Eagle power JOB Operation Manual page 9

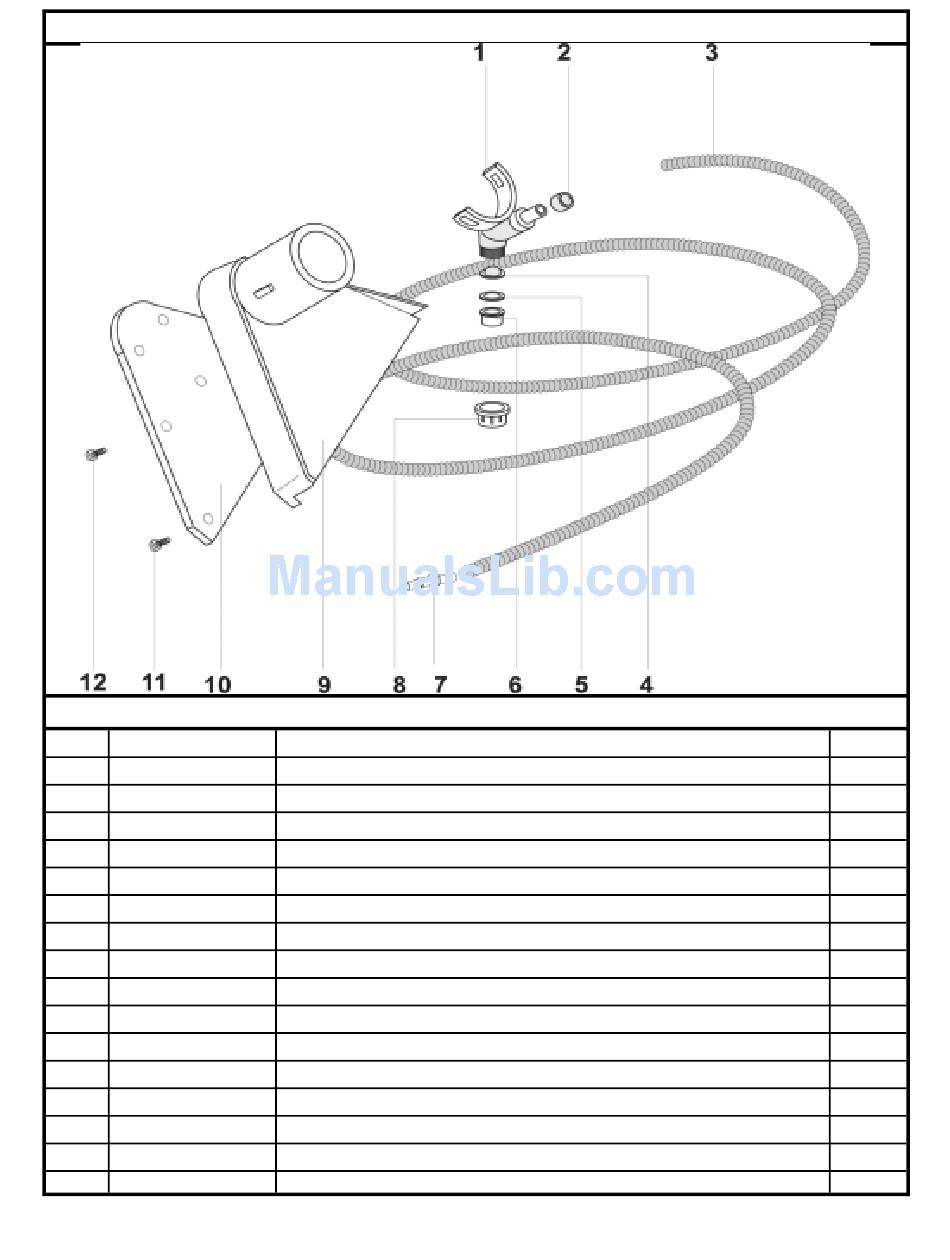

JOB EXTRACTOR - WAND/HEAD ASSEMBLY
POS. PART#
1 S82732
2 S83171
3 S82747
4 S82711
5 S83060
6 S83071
7 S83664OTT
8 S82713
9 S82730
10 S82731
11 S82727
12 S86252
1-8 S83572
9-12 S82753
S82724
JOB EXTRACTOR - WAND/HEAD ASSEMBLY
SPRAY TIP HOUSING
PLASTIC SLEEVE
HYDROLITIC HOSE
FILTER
GASKET
NOZZLE
QUICK DISCONNECT, MALE
CAP
EXTRACTION HEAD
PLATE
SCREW
SCREW
COMPLETE SPRAY NOZZLE ASSEMBLY
COMPLETE EXTRACTION HEAD
COMPLETE EXTRACTION WAND ASSEMBLY
DESCRIPTION QTY.
1
2
1
1
1
1
1
1
1
1
2
5
