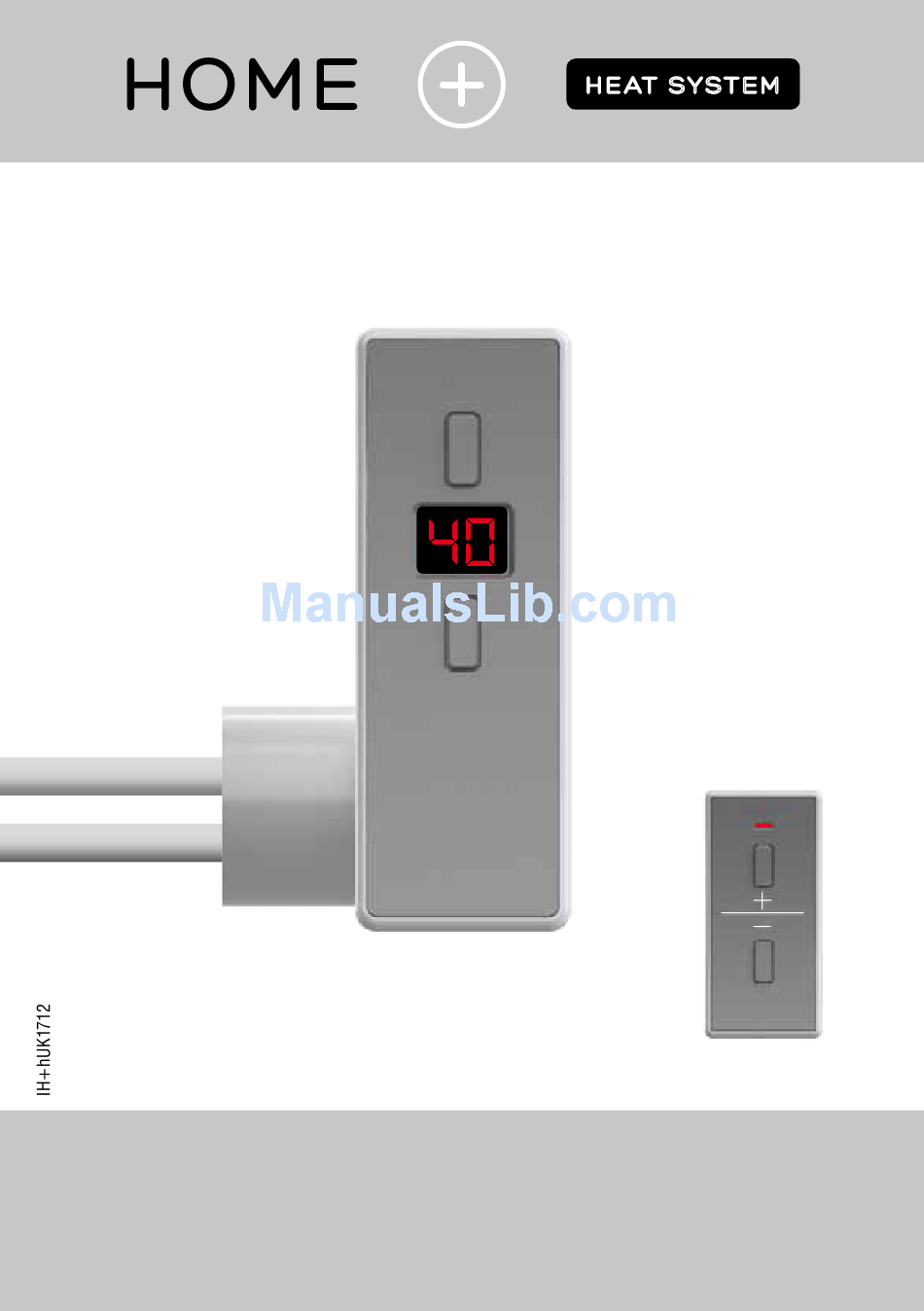

- Page 1 H E AT SYS T EM HEATER CONTROLLER – HORIZONTAL REMOTE CONTROLLER GUIDE & USER MANUAL HEATER CONTROLLER H+H | REMOTE CONTROLER H+R...
-
Page 2: Guarantee Terms
SAFETY: 1. The heater should be installed by a qualified person. 2. Bathroom radiators fitted with electric heaters should be fixed not less than 60 cm from a bath, shower or wash basin, and never above abath. 3. For the heater permanently connected (hard wire) there must be applied a cut-off device from the mains. Such a device must disconnect the heater from the supply mains in 2 poles, with contact separation of at least 3 mm. 4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved 5. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 6. One radiator valve must always be open when a heater is in use (liquid thermal expansion). This equipment requires RCD protection with rated residual operating current not exceeding 30mA. This equipment must be connected to circuit protective conductor (earth). CAUTION: To avoid the risk of fire or electric shock the heater should be protected from water spray or flooding. Exclamation mark on triangular field signals: information important for the user. GUARANTEE TERMS: Guarantee is granted by manufacturer for 24 months period star ting from date of sale, but no longer than 36 months from date of the heat- er manufacture. Defects revealed within this period, resulting from a fault of manufacturer will be repaired free of charge or the item re-... - Page 3 USER MANUAL: Heating element + Heater controller (horizontal) H+H Side connection Kit content 180˚ Right side Left side Heater Heating element controller 180˚ System option: Heating element Heating element Wall clip Allen Remote controller Mounting in radiators CH system Electric radiators Electric radiator must be equipped with a safety valve Installation details min.
- Page 4 CAUTION! Do not disconnect heater The locking screw must be protected against controller when the system is powered. accidental unscrewing eg. by applying a drop 230 V of lacquer or acrylic adhesive. 15 cm Electric radiators CH system 3-5 cm For the heater permanently connected (hard wire) there must be applied...
- Page 5 USER MANUAL: How to use heater controller (optional remote controller) VIDEO available at www.homeplus-system.com Heater controller Connect heater controller to the heater Use manufacturer recommendation Turn ON the controller Heater LED (Activity) controller ON/OFF display Remote controller Push for pairing button using allen key – to activate the controller. Locate suitable place to mount the clip When switched to an ambient temperature control, a remote controller is simultaneously a temperature sensor...
- Page 6 Heater controller and remote controller pairing If you bought the pilot completed to a heater — the remote controller is already paired! Prepare remote controller + allen key for use During countdown within 30 seconds Press once Hold 3 sec. Reverse remote controller. upper and lower Start countdown Push pairing button! button together Allen key Pairing finished! included Remote controller...
- Page 7 USER MANUAL: How to use remote controller (to control the heater controller) Heater controller Connect heater controller to the heater Use manufacturer recommendation Turn ON the controller LED (Activity) Heater ON/OFF controller display – Push for pairing button using allen Remote controller key to activate the controller. Locate suitable place to mount the clip When switched to an ambient temperature control, a remote controller is simultaneously...
- Page 8 Run the heater controller via remote controller Hold upper button for 3 seconds Switch off the controller 10˚C - 65˚C * via remote controller Hold lower button Select temperature for 5 seconds – 40˚C Standard heating Remote controller is an temperature ambient temperature sensor TURBO mode activation...
