SERIES 5400 CONTROL VALVE

WITH BEVEL GEAR ACTUATOR

Installation, Operation, and Maintenance Manual

IMPORTANT

Please take a moment to review this manual. Before performing any maintenance on the

valve be sure the pipeline has been de-pressurized. The improper installation or use of this

product may result in personal injury, product failure, or reduced product life. Red Valve Co., Inc.

can accept NO liability resulting from the improper use or installation of this product. If you have

any questions or problems, please call the customer service department at (412) 279-0044. We

appreciate your comments. And thank you for choosing Red Valve.

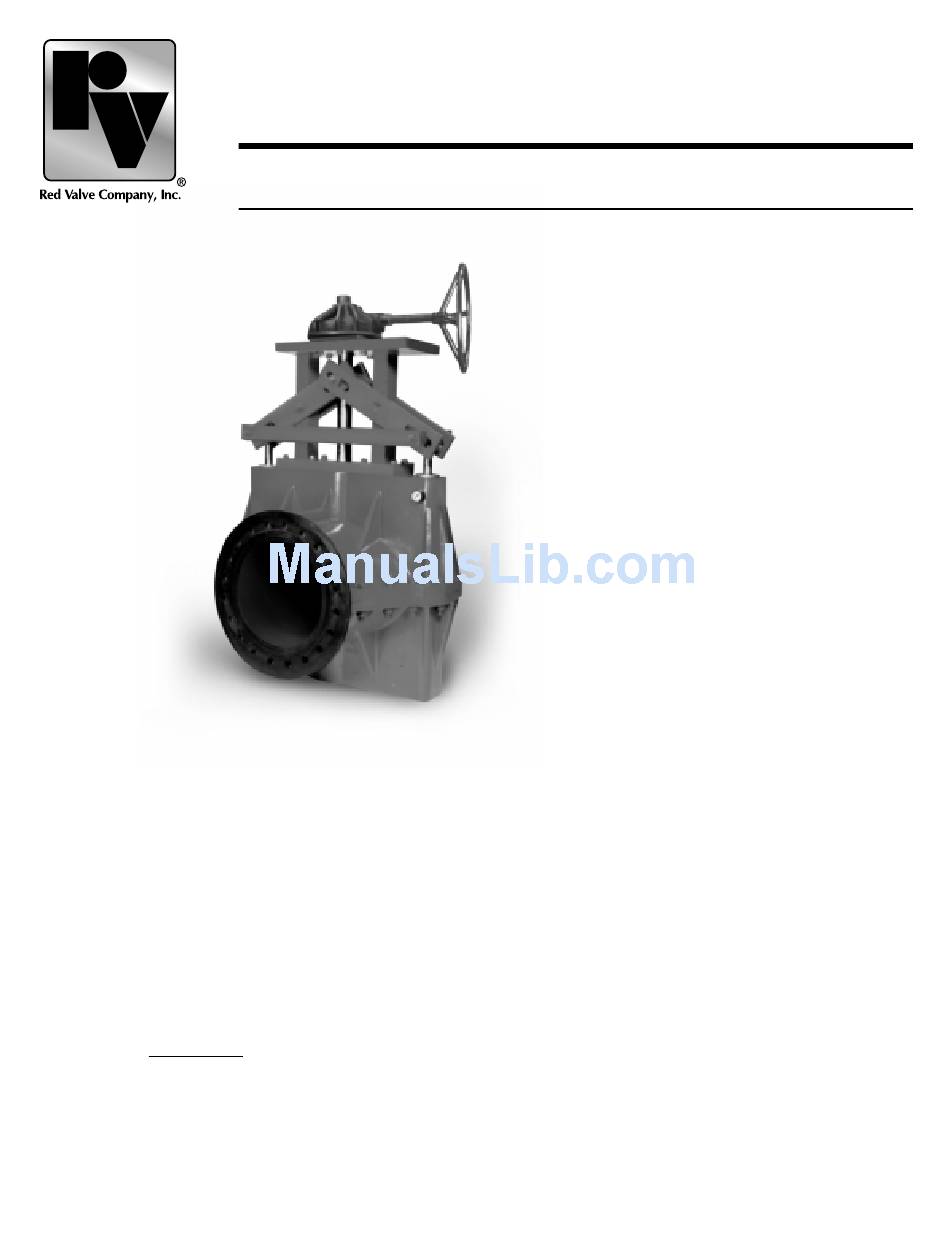

The Red Valve Series 5400 Control Pinch Valve is a

bi-directional valve designed for tough slurry appli-

cations. The elastomer sleeve closes on centerline,

creating a smooth venturi which reduces wear. The

flexing action of the sleeve breaks up any sediment

or build-up in the valve, which makes the Series

5400 a reliable, low maintenance control valve.

A variety of elastomers are available to suit your

specific needs. Along with the standard Red Valve

sleeve, we offer Cone, Variable Orifice, Reduced Port,

and Double Wall sleeves for special applications.

• Simple design

• No packing to maintain, ever

• Cost effective

• No cavities or dead spots to bind

valve operation

• Low maintenance

Page 1 of 8

Table of Contents

Need help?

Do you have a question about the SERIES 5400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Red Valve Company SERIES 5400

Page 1 SERIES 5400 CONTROL VALVE WITH BEVEL GEAR ACTUATOR Installation, Operation, and Maintenance Manual The Red Valve Series 5400 Control Pinch Valve is a bi-directional valve designed for tough slurry appli- cations. The elastomer sleeve closes on centerline, creating a smooth venturi which reduces wear. The...
Page 2 GENERAL DESCRIPTION (Fig. A) The Red Valve Series 5400 Control Pinch Valve consists of the following major components, plus optional accessories. (See Fig. A) A. Body - The body acts as a housing and support for the other valve components. It is not the primary pressure containing component.
Page 3 STORAGE flanges will If your Series 5400 Control Pinch Valve is to be stored for mate, but the a period of time prior to installation, the following guide- sleeve I.D. will lines will help preserve the valve and assure trouble-free protrude into Fig.
Page 4 ìstarî pattern, not sequentially around the flange. flange bolts, stroke the valve half-closed, re-open, and re- 2. The flanges mating to the Series 5400 should be serrated, tighten the flange bolts a second time. approximately 1/16" x 90°. Rubber will creep along smooth 3.
Page 5 4. MAINTENANCE Red Valve Company recommends lubricating the stem where it is attached to the bevel gear internals every 90 days. The protective cover should be removed and the valve stem greased liberally with Mobil Mobilith AW 1 or equivalent grease.
Page 6 Frame (5) must be turned over. Secure with bolts. The “legs” REPLACING SLEEVE of the Mounting Frame (5) are offset. Orient yourself at the front 1. To remove and replace the sleeve, the entire valve of the valve. (Fig.D) must be removed from the line. Be sure that the valve is in the full open position before removing the electrical Rear supply or air supply.
Page 7 (Fig. E) See Page 2 of 8 for parts list. Page 7 of 8...
Page 8 SERIES 5400 FLANGE BOLTING SPECIFICATIONS VALVE NO. OF BOLT CIRCLE THREAD BOLT TORQUE SIZE BOLTS DIAMETER SIZE (ft. lbs) 1 " 3-1/8 " 1/2 " - 13 NC 1/2 " 3/4 " 1-1/2 " 3-7/8 " 1/2 " - 13 NC 1/2 "...
