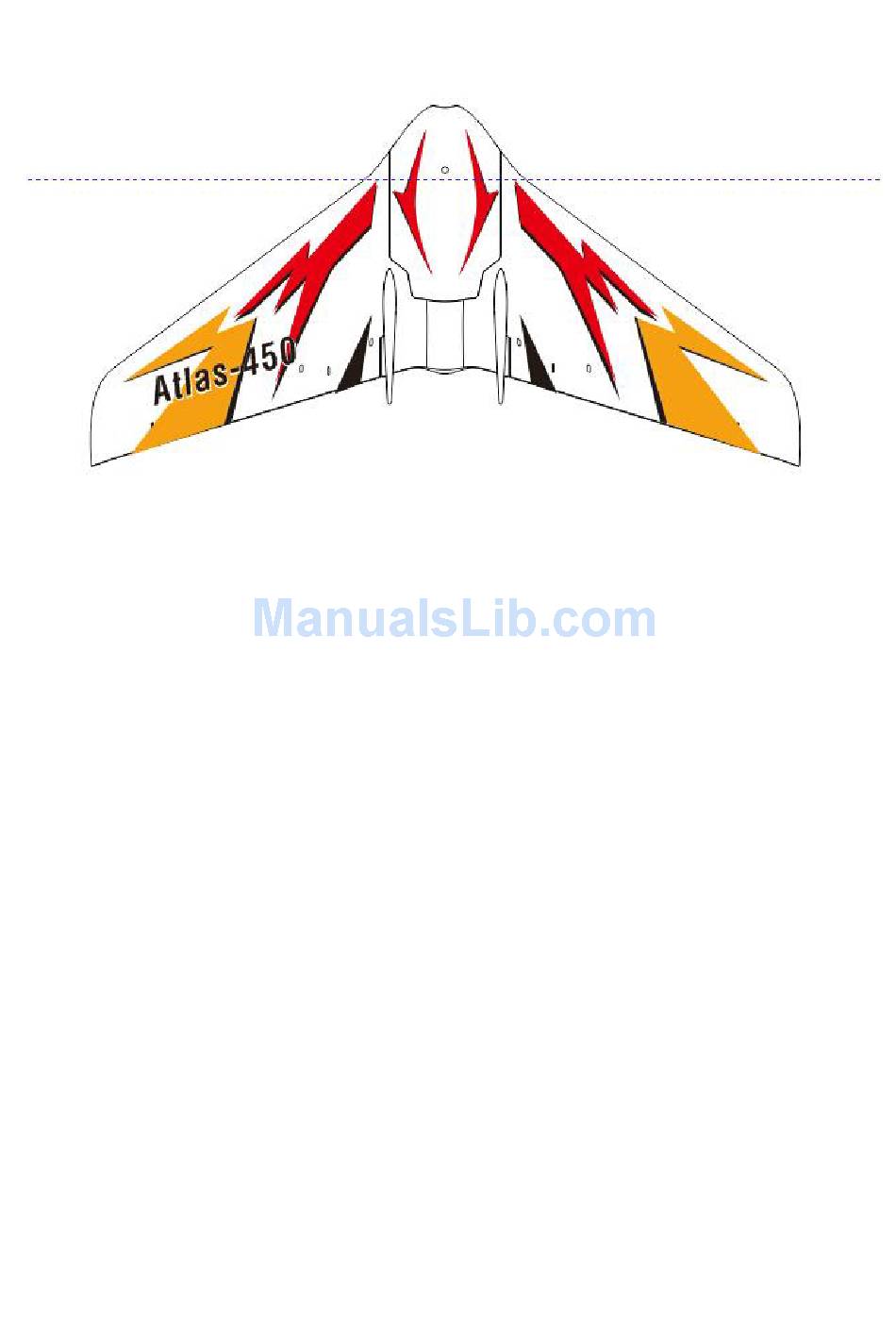

Oversky Atlas-450 User Manual

Atlas-450 is a kind of micro brushless FPV delta-wing airplane base on the design idea of reliability, safety
and concise, her flight time is as long as 20 minutes! Park flying or indoor flying is suitable for Atlas-450,
flying in even more difficult environment will be suitable too. Innovative design concepts for electronic parts
on Atlas-450 FPV (no matter on its hardware or software) are high efficiency/concise/online upgrading. The
power switchable analog onboard VTX is very effective on power saving and avoids signal interference with
other on scene VTXs. Power system. Our engineers spent many hours perfecting the construction and power
system of this aircraft and tested many prototypes to make sure Atlas-450 lived up to expectations, powerful
performance, flight speed and flight time are well balanced and perfected!
Besides, as Atlas-450 provides as many as 7 optional onboard compatible receives of different protocols, such
as DSMX/DSM2, DEVO, Futaba-SFHSS, FrSky-D8, FlySky-AFHDS(2A), Hubsan compatible, if modelers
already have those transmitters, they don't need to pay for a transmitter again.

Features:

1) Length: 230mm（9.0 in.）
2) Wing span: 450mm（17.7 in.）
3) Height: 43mm（1.7 in.）
4) Flight weight: 67g (including a 500mAh/2S/25C)
5) Flight time: 20 minutes (Note 1)
6) Flight distance: 250~300 meters( Note 2)
7) Onboard receiver (Note 3): 1->A1- DSMX/2；2-> A2-DEVO（on testing） ；3-> B1- Futaba-SFHSS；4->
B2-FrSky-D8；5-> C1-FS-AFHDS；6-> C2-FS-AFHDS -2A；7->C3- Hubsan
8) Motor: brushless motor MX-T 1103 (6400KV)
9) ESC: MU-3A
10) Prop: MX-P2425(60mm)
11) Servo:LSM1300 *2
12) Video transmitter: 2-geared power switchable VTX(25mw/150mw), 40CH frequencies (can be upgraded
online)
Atlas-450 FPV Brushless FPV
