Summary of Contents for Holars AB BT1-Bluetooth IC

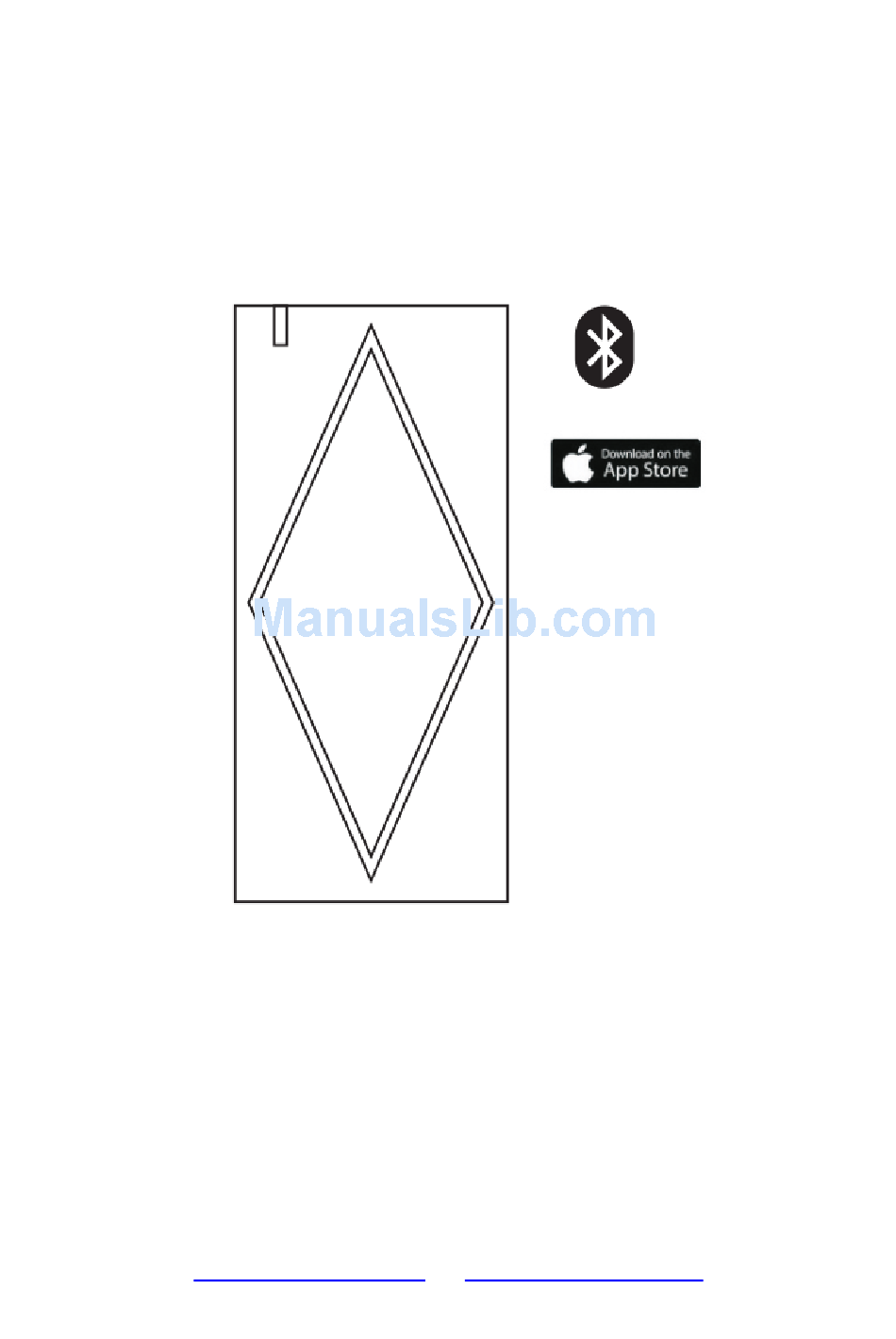

- Page 1 BT1-Bluetooth (For iOS) Bluetooth Standalone Access Control User Manual – www.holars.se www.holars.no...
-
Page 2: Specification
Introduction The BT1-Bluetooth is a metal case anti-vandal standalone access control that can be mounted both indoor and outdoor. The unique feature is it can be operated by mobile phone through Bluetooth or 13.56MHz Mifare or 125KHz EM Card. The operation is very smart and convenient. Two versions optional: IC Version:13.56MHz Mifare Card <---- Standard modell. -
Page 3: Installation
Physical Zinc-Alloy Enclosure Dimension L103 X W48 X H19 (mm) Net Weight 260g Shipment Weight 300g Carton Inventory Wall Anchors Self Tapping Screws Screw Driver Diode 1N4004 (For relay circuit protection) Installation Drill 2 holes(A,C) on the wall for the screws and one hole for the cable, thread the cable through the cable hole(B) ... -
Page 4: Connection Diagram
Green Normally Closed Relay Output Brown Common Connection for Relay Output White Normally Open Relay output Black Negative Pole +12V Regulated Power Input Yellow OPEN Request to Exit input(REX) Connection Diagram: Common Power Supply: Access Control Power Supply: APP Operation Here are just a few steps to get you started: 1）... - Page 5 (Searching doormaster) 1. Register Pic 01 Pic 02 Pic 03 You will get an email from DoorMaster...
- Page 6 Pic 04 Then Register Successfully. Pic 05 2. Add Device & Set Master Users Below steps are only available for Masters. Each device has 1 Super Master and 10 Master Users (The 1 user to add device is the Super Master, the 2 users to add device are Master Users) .
- Page 7 . Slowly press exit button for three times, when Red light shines, operate like below: (Remark: If the Red light doesn’t shine, it means the Super Master has been added, please erase all users firstly—refer to page14) Pic 07 Pic 08 .
- Page 8 Press the key next to device name to enter configure setting menu (change device password setting is not valid for the moment). Pic 09 4. Add and Delete Card Users by App Add Card Users When hear one “Beep”, the Red LED shines once per second, the APP shows “Punch Register”, click it, then read card on BT1 (Cards can be added continuously) Pic 10 Pic 11...
- Page 9 Pic 13 Delete Card Users When hear one “Beep”, the Red LED shines once per second, the APP shows “Punch Delete”, click it, then read card on BT1 (Cards can be deleted continuously), after one beep, it means the card is deleted successfully, press “Exit”...
- Page 10 Pic 17 Pic 18 Lock Control Mode Manually Control Mode (Latch Mode) Pic 19 Pic 20 6. Open door 1. Read the valid user card 2. Open the door by “Shaking” your mobile (Remark: This function is valid only after login in App) (Factory default is OFF) Turn ON the “Shake open”: Login in >>...
- Page 11 Pic 21 7. Send E-Key E-Key receivers can be set as Admin or Common User, and the authority can be Forever or Limited. (Remark: E-Key receivers must have registered in App firstly) Pic 22 Pic 23 Pic 24 The E-Key receiver will receive a message when log in. Pic 25 8.
-
Page 12: Modify Device Name
Pic 26 Pic 27 Pic 28 9. Modify Device Name Pic 29 Pic 30 10. Modify Account Password... - Page 13 Pic 31 Pic32 Pic 33 11. Device Reset (Method 1) (Please refer to title OTHERS for Method 2) This operation only reset the door open time to 5 seconds. Pic34 Pic 35 Pic 36 12. Erase ALL Users (Method 1) (Please refer to title OTHERS for Method 2) Remark: This operation will be also reset the door open time to 5 seconds.
- Page 14 Pic 37 Pic 38 Pic 39 13. Delete Device Pic 40 Pic 41...
-
Page 15: Sound And Light Indication
OTHERS To Reset to Factory Default (Method 2) press exit button To reset to factory default, power off and , hold it and power on (hold it for 10 seconds), release it until hear one beep and the LED in Red, means reset to default successfully. Remarks: Reset to factory default, the users’...
