Smarty BlackBox3000 User Manual

Drive recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

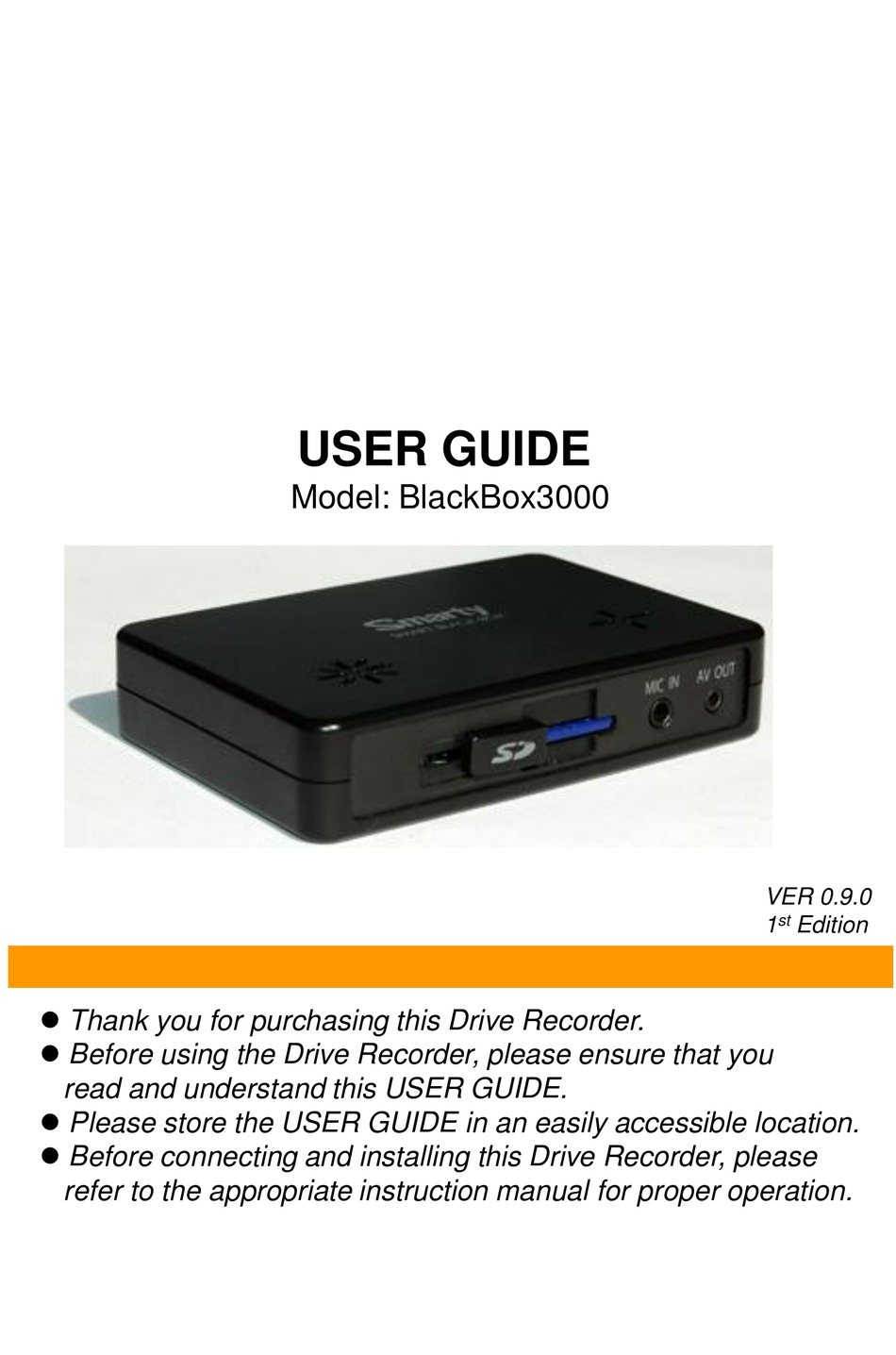

 Thank you for purchasing this Drive Recorder.
 Before using the Drive Recorder, please ensure that you
read and understand this USER GUIDE.
 Please store the USER GUIDE in an easily accessible location.
 Before connecting and installing this Drive Recorder, please
refer to the appropriate instruction manual for proper operation.
USER GUIDE
Model: BlackBox3000
VER 0.9.0
st
1
Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlackBox3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Smarty BlackBox3000

  • Page 1 USER GUIDE Model: BlackBox3000 VER 0.9.0 Edition  Thank you for purchasing this Drive Recorder.  Before using the Drive Recorder, please ensure that you read and understand this USER GUIDE.  Please store the USER GUIDE in an easily accessible location.

  • Page 3: Safety Advice

    SAFETY ADVICE CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Please make sure you follow the safety advice/instructions given in the user guide. Caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

  • Page 4: Gps Reception

    GPS Reception Activate the product in an area without large buildings to improve GPS reception. The commercial purpose GPS has the average rage error of more than 15 meters and the range error could be more than 100 meters due to environmental conditions like buildings, roadside trees etc. The temperature range for optimum operation of the GP S receiver in your car is 0 ~ 45°C.
  • Page 5 CONTENTS You should have a set of the following items for each BlackBox 3000 order. 1. BlackBox 3000 unit 2. 2GB SD memory card (The PC Viewer software is in the provided SD card.) 3. CMOS Camera (2pcs) 4. Wire Splice clip (6pcs) 5.
  • Page 6 CONTENTS 6. GPS Antenna module 7. Remote Controller 8. Audio/Video output cable 9. Power Cable...
  • Page 7 INTRODUCTION FRONT 1 Audio/ 2 Video Output SD Door External MIC input SD Slot REAR BUZZER Internal MIC Remote Controller Input Power Input GPS Input & Car Signal Input (Turn left, Turn right, Rear View Camera 1, 2 Input Brake, Speed pulse) Camera Input...
  • Page 8 INTODUCTION REMOTE CONTROLLER Record LED BLUE LED SNAP SHOT BUTTON Overwrite LED RED LED PLAY BUTTON RECORD BUTTON Audio Video Output Cable Audio out 1 Video out 1 Video out 2...
  • Page 9 INTODUCTION Power & Car Signal Input Black (Ground) Red(+) Yellow (Turn Right) BLUE (Turn Left) FUSE White (Car pulse) Green (Brake)
  • Page 10 FUNCTION Automatic start Turn on the vehicle power, BlackBox 3000 will be automatically started. (Use the provided power cable.) And Normal record will be started, if it set with your Notice : The unit will not start recording immediately after power on. It takes around 1 minute for the built-in power backup system to charge.

  • Page 11: Operation

    OPERATION 1. Make sure that the power cable is properly connected and turn on the car power. 2. Blue LED & Red LED will be slowly blinking simultaneously and then Blue LED will remain on. Blue LED light means BlackBox 3000 is now ready for the event recording and is started the Normal recording (Continuous recording).

  • Page 12: Live View

    OPERATION LIVE VIEW Press [PLAY] button and hold more than 2second. Then the live view and the summery of setting will be on the monitor like below picture, The channel 1 will be on the screen. If the channel 3 (rear view camera) is on, live screen will be change to channel 3.
  • Page 13 OPERATION EVENT RECORD BY RECORD BUTTON The event recording by RECORD button will start by pressing the [RECORD] button with one short “Beep” sound. Blue LED will be blinking during the event recording. SNAP SHOT RECORD BY BUTTON The SNAP SHOT(1 image with 5seconds audio) button will record by pressing the [SNAP SHOT] button with one short “Beep”...
  • Page 14 OPERATION PLAYBACK Press [PLAY] button and hold 1~2seconds and then release the button. [1~2seconds] means more than 1 second but less than 2second. Then the latest recorded file will playback on the screen. [REMARK] The recording cannot be done during playback. If the event recording is on, [PLAY] button will not work.
  • Page 15 SOFTWARE USER GUIDE BlackBox 3000 PC Viewer Guide [PC SYSTEM REQUIREMENT] Recommended PC specifications for PC Viewer software Windows 2000, Windows XP Windows Vista Pentium4 2.6GHz or higher 512MB or higher Interface SD Memory Card Reader Install 20MB or higher Free space Backup 2GB or higher Display...

  • Page 16: Installing Procedures

    INSTALLING PROCEDURES PC Viewer software is in the provided SD card. 1. Connect the SD card and open the “My Computer” 2. Right-click the “DRIVEREC3” drive and select [Open] 3. Double click [SETUP.EXE] at [pcsw] folder. 4. Select the language and then follow the dialog box. 5.
  • Page 17 Connect SD memory card 1. Connect SD memory card in to the SD card reader. 2. Run “PC Viewer BlackBox 3000” 3. To set PC Viewer select [File] and then click” PC Viewer Setting” The „date‟ formats and „speed‟ unit will be set automatically according to the PC Windows setting.
  • Page 18 FILE LOADING (Event Recording File) 4. Check the event from the „Event file‟ list using mouse or click [Check All] button. Then click [Load] button. “Switch” means Check Recorded by button the event “G-Senor” means G-sensor Recorded by impact Load Button 5.
  • Page 19 PLAYBACK 6. Click (play) button for playback. GPS Speed, Playback speed Brake, Right/Left turn G sensor data & GPS location data Date & Time Volume Before Event After Event Event Drag & Move the white line to move the playback position. Playback buttons X2, 4, 8, 16 X0.5, 1...
  • Page 20 Google map (Event Recording File) The route are on the Google map at lower right corner of the software. To see the route & position on the Google map, the GPS data should be recorded with video. To see the map on the PC, the internet line should be connected.

  • Page 21: Thumb-Nail Function

    Thumb-nail Function 7. Click button for 4x4 multi view (Thumb-nail function) Click the thumb-nail image to change the playback position. Click right button of mouse for the single image playback mode. 8. Click [Close] button to quit the event playback. Click [Close] to finish the event playback.
  • Page 22 FILE LOADING (Normal Recording File) Check the event from the „NORMAL‟ file list using mouse or click [Check All] button. Then click [Load] button. The recording duration of 1 file will be less than 1 hour. The NORMAL list tap will be changed to [PlayList] tap as below, Drag &...
  • Page 23 Save JPG file & AVI file Pause the playback and click „Save Image‟ icon to make a JPG file. „Save Image‟ icon Pause the playback and Click „Save AVI‟ icon to make a AVI file. „Save AVI‟ icon...

  • Page 24: Print Image

    Print image 11. Pause the playback and click „Print Image‟ icon. Print image icon Input [Print Title] & [Print Comment] using Keyboard. Total Print Comment window allows up to 7 lines total.

  • Page 25: Make Report

    Make Report 12. Click [Print] button in the print preview windows for printing. [Print Title] & [Print Comment] & G-sensor graph & map will be printed on the first page. Click [ 2x2 ] and then click [Print] to print 4 images in one page. To print CH1~3 together select 1frame only.
  • Page 26 Backup 13. Click [Backup] icon to backup the files to the PC. [Backup] icon Check & Load [Event], [Normal], [Memo] & [Log] data first, before clicking the [Backup] icon. Then [Event], [Normal], [Memo] & [Log] list are on the Backup windows. Or check Backup All and press Start button to backup all files.
  • Page 27 Setting Drive Recorder 14. Click [Setting Drive Recorder] icon for setup. [Setting Drive Recorder] icon Caution Backup the SD data first, before clicking initialize SD card button. Once done, the old data cannot be recovered. Initialize SD card : All data will be deleted and set the configuration of Drive Recorder will default to the factory settings.
  • Page 28 Setting Drive Recorder This is for CH2 & CH3. If you want to use CH2 or CH3 check this box. Video Type Select your camera type. NTSC or PAL Record Mode Normal Mode: Continuous recording will automatically start after booting the BlackBox 3000. Event Mode: Recording by G-sensor or [RECORD] button.
  • Page 29 Setting Drive Recorder Select Event Trigger. G-Sensor or Manual Record Switch. This menu will work when Record Mode is Event Mode. Select your overwrite policy. One time or Overwrite. Overwrite (The image data is overwrites the oldest files when the SD memory is full.) One time (The recording stops automatically when the SD memory is full.) Automatically synchronize with GPS time.
  • Page 30 Setting Drive Recorder G-Sensor setting If G-sensor sensitivity value is too high like 8 or 9, it becomes too sensitive, so it will detect even a light impact or light turn. If G-sensor sensitivity value is too dull, so it might no detect a notable incident.
  • Page 31 Setting Drive Recorder 15. Click [About] icon to check the product information. About icon...

  • Page 32: Log File Playback

    LOG FILE PLAYBACK 16. Select [LOG] windows and then check the log from the log list using mouse or click [Check All] button. Then click [Load] button. Log data Log data will be recorded during driving even if there are no events.
  • Page 33 GPS LOG TO KML CONVERTER (for Google Earth) To see the whole route on Google Earth, select the log file and click Google Earth button. (BX1000 Plus only) STEP1. Install the Google Earth on your PC. (http://earth.google.com/ STEP2. Check the log file STEP3.
  • Page 34 GPS LOG TO KML CONVERTER (for Google Earth) Tip: Click [Route] and then Click [Play Tour] button to see the route tour.

  • Page 35: Specification

    SPECIFICATION BlackBox 3000 Specification Video In CH1-Front, CH2-Internal, CH3-Rear view Audio In AV-Out Video-2, audio-1 Event/Continu 720x480, Max 30fps es Record Memo Still Image + Audio (5 sec) External GPS Module Internal 3D G-Sensor (Collision/Q.Brake, Q.Accel, G Sensor Q.Turn/Rough) Car Signal Brake, Left Turn, Right Turn, Speed Pulse Compression MPEG4(continues recording, MJPEG (Event recording)
