Summary of Contents for SKY KING 3SSH1.6/80-D36/400

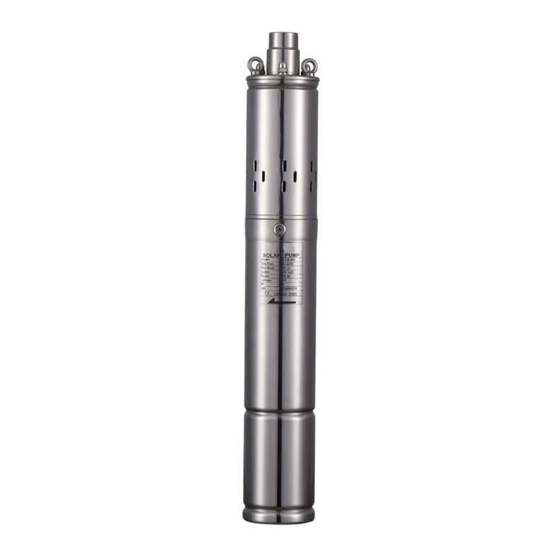

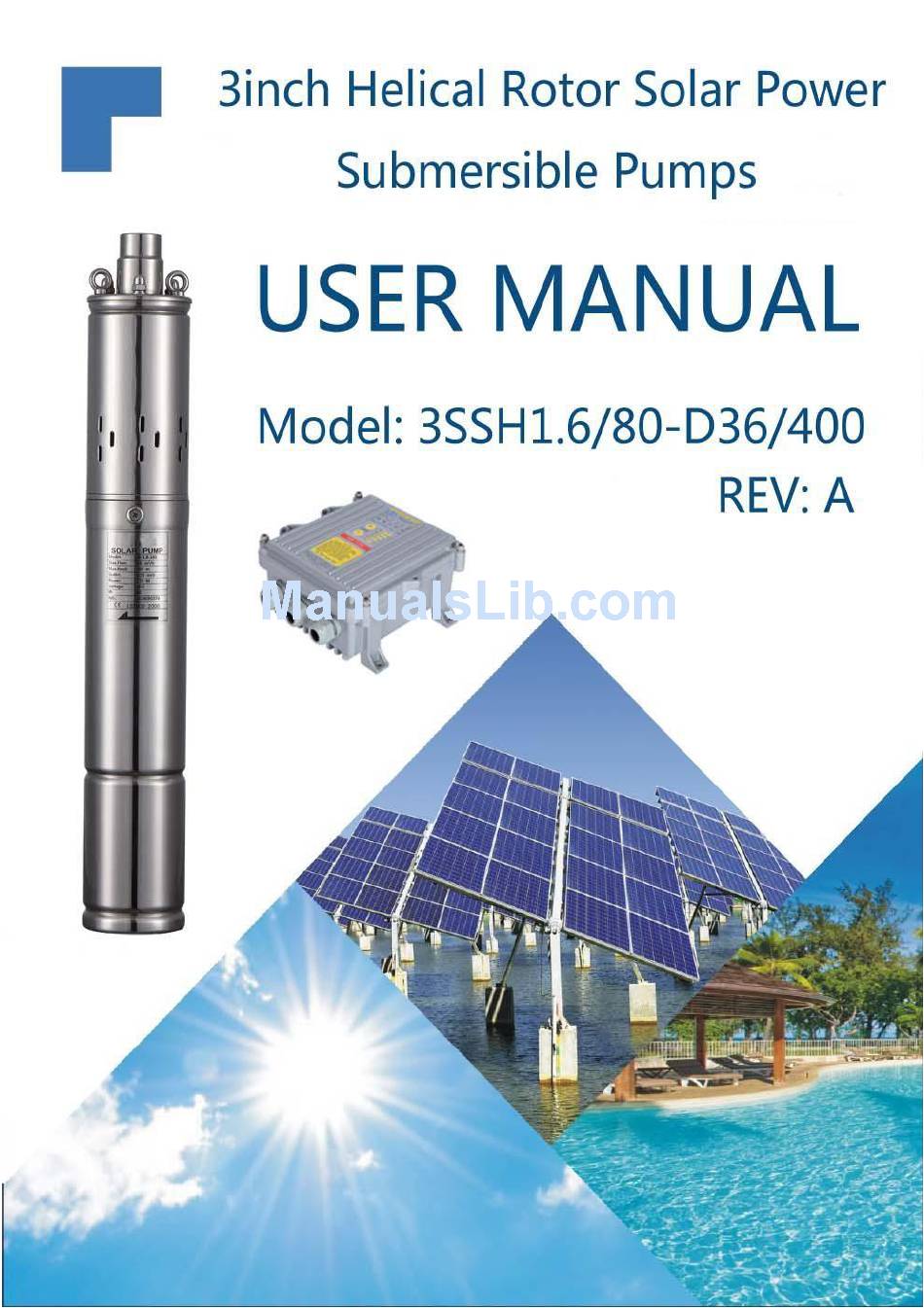

- Page 1 3inch Helical Rotor Pumps Series - 1 -...
-
Page 2: Table Of Contents
3inch Helical Rotor Pumps Series CONTENTS # Notes for Safe Operation 1、 How It Works 2、 The 3SSH1.6/80-D36/400 Description Model Instruction Material of Parts Performance Chart Curve Pump Performance Pumps Outline Dimension 3、The SK-197K1500-36 Controller General Information Features The Technical Parameters of The SK-197K1500-36 Solar Controller... -
Page 3: Notes For Safe Operation
3inch Helical Rotor Pumps Series Notes for Safe Operation Before Installation ■ WARNING Do not install or operate the controller that is damaged or has missing parts. Otherwise, it may result in equipment damage or harm life. Installation ■ CAUTION ◎... -
Page 4: 1、How It Works
3inch Helical Rotor Pumps Series 1、How It Works SKYKING solar pumping system serves to provide water in remote applications where electrical grid power is either unreliable or unavailable. SKYKING solar pump controller can direct use the DC power from PV array, and drive the brushless DC pumps. In sunny days, the pumping system can continuously pump water. -
Page 5: 2、 The 3Ssh1.6/80-D36/400 Description
3inch Helical Rotor Pumps Series 2、 The 3SSH1.6/80-D36/400 Description 2.1 Model Instruction -D36 /400 ○ ○ ○ ○ ○ ○ ○ ○ Well Diameter 3” ○ ○ Submersible Pump ○ ○ Stainless steel helical rotor Helical Rotor Pump ○ ○... -
Page 6: Curve
3inch Helical Rotor Pumps Series 2.4 Curve FLOW RATE(m Figure2. Pump Curve 2.5 Pump Performance Model Power Voltage Max Flow Max Head Outlet Outline (Vdc) (in) (in) 3SSH1.6/80-D36/400 0.75 2.6 Pumps Outline Dimension Figure3. outline Dimension - 6 -... -
Page 7: 3、The Sk-197K1500-36 Controller General Information
3inch Helical Rotor Pumps Series 3、The SK-197K1500-36 Controller General Information 3.1 Features The SK-197K1500-36 solar pump controller is designed with the high standard of reliability expected of products. The controller attempts to drive the pump and motor to deliver water even under adverse conditions, reducing output as necessary to protect the system components from damage, and only shutting down in extreme cases. -
Page 8: The Technical Parameters Of The Sk-197K1500-36 Solar Controller
3inch Helical Rotor Pumps Series Over Temperature Foldback The SK-197K1500-36 solar pump controller is designed for full power operation from a solar array in ambient temperatures up to 45℃. In excess of 45℃ temperature conditions，the controller will reduce output power in an attempt to avoid shutdown. Full pump output is restored when the controller temperature cools to a safe level. -
Page 9: The Operation Mode Of The Sk-197K1500-36 Solar Controller
3inch Helical Rotor Pumps Series 3.3 The operation mode of The SK-197K1500-36 Solar Controller Push-Button Function Description Push to Add the Speed Push to Reduce the speed Push to control Run and Stop Indicator light function Description The Speed of the pump display Nate: the controller control the pump run with 5 sets. -
Page 10: The Connect Way Of The Sk-197K1500-36 Solar Controller
3inch Helical Rotor Pumps Series 3.4 The Connect Way of The SK-197K1500-36 Solar Controller 3.4.1 The Connection Way with Level Switches TL and TH short circuit, The pumps stop; TL and TH open circuit, The pumps run; WL and COM short circuit, The pumps stop;... -
Page 11: The Connection Way With Pressure Switches
3inch Helical Rotor Pumps Series 3.4.3 The Connection Way with Pressure Switches The Pressure Switches ON: The pump STOP The Pressure Switches OFF: The pump RUNNING 3.4.4 The operation of Well Level Switches The pumps RUNNING (the Switches OFF) The pumps STOPPING (the Switches ON) The pumps will delay 10min to RUNNING... -
Page 12: The Solar Panel Configure And Connection Way
3inch Helical Rotor Pumps Series 4. The Solar Panel configure and Connection way 4.1 Configured by 18Vmp(Voc 22V) Solar Panel INPUT: Solar Panel Vmp=18Vdc Solar panel VOC=22Vdc Solar panel Power=150W Solar panel Quantity=4PCS OUTPUT: Vmp=36Vdc VOC=44Vdc Power=600W(MAX) 4.2 Configured by 30Vmp(Voc37V) Solar Panel INPUT: OUTPUT: - 12 -... -
Page 13: Configured By 36Vmp(Voc44V) Solar Panel
3inch Helical Rotor Pumps Series 4.3 Configured by 36Vmp(Voc44V) Solar Panel INPUT: Solar Panel Vmp=36Vdc Solar panel VOC=44Vdc Solar panel Power=300W Solar panel Quantity=2PCS OUTPUT: Vmp=36Vdc VOC=44Vdc Power=600W(MAX) - 13 -... -
Page 14: Mechanical And Electrical Installation
3inch Helical Rotor Pumps Series 5. Mechanical and Electrical Installation 5.1 Outline &installation dimensions diagram 5.2 Mechanical Installation Overheat protection The protection level of SK-197K Series solar pump controller reached IP67; if installed in the outdoor, the controllers should be installed in a well ventilated place, and avoid direct sunlight and rain. The best installation location is below the solar array, which can prevent the equipment from overheating and performance degradation. -
Page 15: Annex1: Solar Submersible Pump Performance
3inch Helical Rotor Pumps Series Annex1: Solar submersible Pump Performance Model Power Voltage Max Flow Max Head Outlet Outline (VDC) (in) (in) 3SSH1.3/ 50-D24/140 0.75 3SSH1.6/ 80-D36/400 0.75 3SSH1.8/ 100-D36/500 0.75 3SSH1.8/ 120-D48/600 0.75 3SSH2.2/ 140-D72/900 0.75 3SPC3.2/ 36-D36/400 3SPC3.2/ 54-D36/550 3SPC3.2/ 80-D54/750 3SPC3.3/ 106-D72/1100 1100...
Need help?
Do you have a question about the 3SSH1.6/80-D36/400 and is the answer not in the manual?
Questions and answers

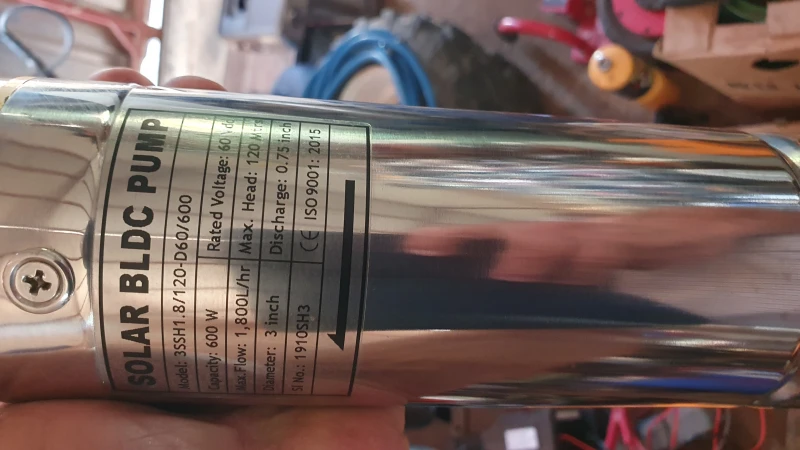

My pump 1350 w and vdc is 90, if i put 3 pannels the watt go to 1380 and vdc 104.4 on 3 pannels. Wiil the higer vdc damage the pump?...
