High-Tech • Made in Switzerland

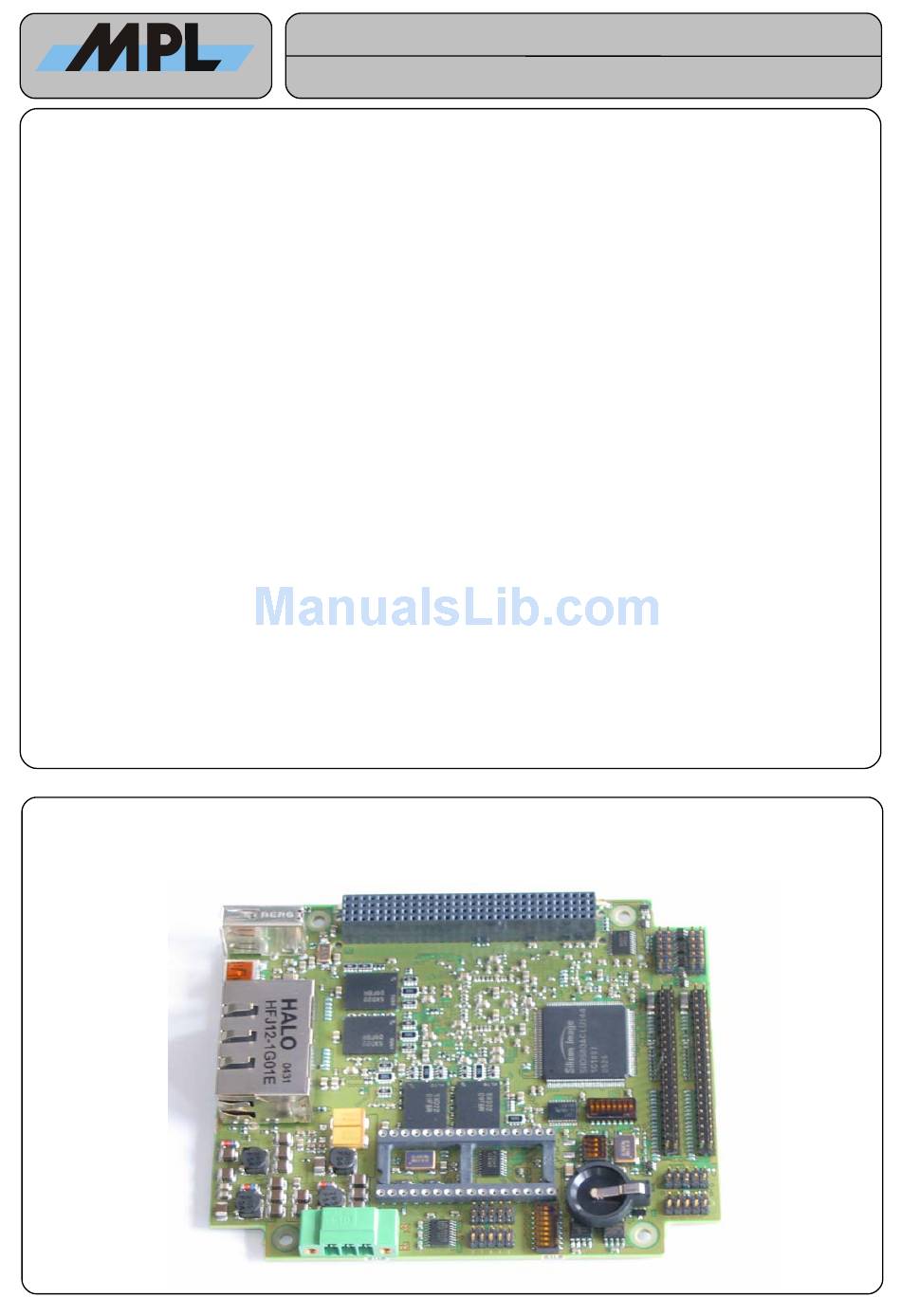

MPL Industrial PC with Freescale PowerPC™ Processor
The MIP470 is a highly integrated industrial single board computer in PC/104 form factor. Build around the
MPC8347 Freescale PowerPC™ Processor it is well suited for applications requiring small size, high
performance and Low Power. The MIP470 can be used in a standard operating environment without the
necessity of a fan.
All major components required to build a industrial PC system are implemented on a single PC/104 sized
board. It features two E-IDE, two 10/100/1000Base TX Ethernet, two USB Ports, four serial ports, and a real
time clock. The PC/104+ (PCI) interface offers easy and flexible expansion capabilities.
Integration of the MIP470 into a system is facilitated by the fact of offering standard connectors E-IDE (44
pin header) and LAN (RJ45). The serial interfaces can be accessed through 2mm 10pin headers. Particular
precaution has been taken to the EMC so that an entire system can fulfill the CE and FCC requirements.
The DDR SDRAM is soldered on board and is available with ECC.
All these features make the MIP470 to the ideal solution for any low-cost embedded control application
where a flexible industrial PC is needed.
Features
Low Power Freescale MPC8347 CPU with
FPU
Processor clock up to 400 MHz
Up to 512MByte ECC DDR SDRAM soldered
on board.
Up to 64MByte Flash on board
2 x Integrated 10/100/1000 Mbit/s Ethernet
Controller
© 2006 by MPL AG
MIP470 Preleminary
USERS MANUAL
PC/104 Plus PCI only interface
2 x USB 2.0 Ports
Two EIDE HDD ports
Four RS232 ports
Low power consumption
1
MEH-10121-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIP470 and is the answer not in the manual?

Questions and answers

Summary of Contents for MPL MIP470

  • Page 1 The PC/104+ (PCI) interface offers easy and flexible expansion capabilities. Integration of the MIP470 into a system is facilitated by the fact of offering standard connectors E-IDE (44 pin header) and LAN (RJ45). The serial interfaces can be accessed through 2mm 10pin headers. Particular precaution has been taken to the EMC so that an entire system can fulfill the CE and FCC requirements.
  • Page 2: Table Of Contents

    MIP470 USERS MANUAL TABLE OF CONTENTS 1. INTRODUCTION................................3 1.1 About this manual................................ 3 1.2 MIP470 Variants................................3 1.3 Safety precautions and handling..........................3 1.4 Electrostatic discharge (ESD) protection........................3 1.5 Equipment safety................................. 3 2. GENERAL INFORMATION AND SPECIFICATIONS...................... 4 2.1 Specifications................................
  • Page 3: Introduction

    For all Bootloader related information please refer to the “U-Boot User Manual for MPL SBC (MEH-10082-002)” supplied by MPL AG or your local MIP470 supplier. The U-Boot User Manual for MPL SBC” is also available on the Internet under http://www.mpl.ch in PDF format.
  • Page 4: General Information And Specifications

    USERS MANUAL 2. General information and specifications This chapter provides a general overview over the MIP470 and its features. It outlines the electrical and physical specifications of the product, its power requirements and a list of related publications. 2.1 Specifications 2.1.1 Electrical...
  • Page 5 Power LED (green) ● Reset / Power Fail LED (red) ● Error LED (red) ● HDD activity LED (green) ● LAN LED (green) ● LAN Speed/Link LED (red/green/amber) ● 1 user programmable LED (green) © 2006 by MPL AG MEH-10121-001...
  • Page 6: Physical / Power

    Over PC/104 bus interface or through separate 3-pin Mini-Combicon power connector. Input Power requirement: +5VDC ± 5% +5V: Power consumption: MIP470 @ 400MHz, DDR266, 512Mbyte ECC DDR and 64MByte Flash: Typical. 1300mA@5V 2.1.3 Environment Temperature range: 0°C to +60°C (+32°F to +140°F) @ 400 MHz CPU speed without heat sink...
  • Page 7: Dimensions

    UNITS: mm 12.7 12.7 85.1 90.2 115.6 Figure 1: Dimensions MIP470 Drawing not to scale. Since the MIP470 is implemented as PCI Host, it is not a stack-through board. Please see Chapter for further information. © 2006 by MPL AG MEH-10121-001...
  • Page 8: Preparation For Use

    Not yet defined S1-5 Not yet defined Not yet defined S1-6 Not yet defined Not yet defined S1-7 Not yet defined Not yet defined S1-8 Not yet defined Not yet defined Table 2: S1 Switch settings © 2006 by MPL AG MEH-10121-001...
  • Page 9: S2 System Switch - Hardware Configuration Switch

    Notes: ● S2-1 should be switched On when the MIP470 is normally used. The switch is only set to Off for shipping. ● S2-3 changes the PCI Class Code of the IDE Controller. If switched Off the PCI Class code is 010185h (RAID Class), if switched On it is 010400h (IDE Class).
  • Page 10: Indicators

    Table 6: J1 USB Host Connector 3.4.2 J2 USB OTG connector Pin no Signal Description Vbus+ Cable Power +5VDC Data- Balanced Data Line- Data+ Balanced Data Line + Cable Power GND Table 7: USB OTG Connector © 2006 by MPL AG MEH-10121-001...
  • Page 11: J3-1 & J3-2 Ethernet Connectors

    On the SRESET# input on the External Power Connector exists the possibility to mount an external Reset Switch for system reset, see . The SRESET# input is active low and can be connected directly to an open drain output (internal 10k Ω pull up resistor to 3.3V). 1 2 3 Reset Button © 2006 by MPL AG MEH-10121-001...
  • Page 12: J5 Pc104 Pci Connector

    RS232. This is the default Console Interface Pin no Signal Description Not connected Not connected Receive Data Request to send Transmit Data Clear to send Not connected Not connected Ground Earth Shield Table 11: J6 Serial 0 Connector © 2006 by MPL AG MEH-10121-001...
  • Page 13: J7 Serial 1

    Not connected Not connected Ground Earth Shield Table 12: J7 Serial 1 Connector 3.4.8 J8 Debug The debug Interface is used to connect an debugger to the MIP470. Pin no Signal Description VCC Target 100E Pull Up to 3.3VDC Ground...
  • Page 14: J10 Secondary Ide Connector

    Level only. Pin no Signal Description Carrier detect Data set ready Receive data Request to send Transmit data Clear to send Data terminal ready Ring indicator Ground VCC5 5VDC Table 15: J11 Serial 2 Connector © 2006 by MPL AG MEH-10121-001...
  • Page 15: J12 Serial 3

    5VDC Table 16: J12 Serial 3 Connector Notes: ● MPL provides kits to connect the TTL Interfaces to different other standard interfaces, such as RS232, RS485, RS422 and even a GPS module is available. Refer to www.mpl.ch for more information.
  • Page 16: J13 Primary Ide Connector

    The Battery is only used as backup power supply for the real time clock. Please switch on the switch S2-1 after installing the battery. The battery must be mounted with the positive pol up. The battery type is CR1202 © 2006 by MPL AG MEH-10121-001...
  • Page 17: U4 - Multi Purpose Socket

    32 pin, 600 mil wide DIL case ● MPS compatible pin-out (refer to Table 18: MPS Switch settings) ● Since the MIP470 delivers only 3.3V (max 12mA) VPP Flash programming may not be possible with some Devices. © 2006 by MPL AG MEH-10121-001...
  • Page 18: Device Types Examples For The Multi Purpose Socket

    Table 19: MPS Devices Notes: ● Since the MIP470 delivers no 12V Vpp, only the 4MBit AMD Flash is erasable and writeable on Board. All other Flash types are read only. ● For the Disk On Chip use Mode 3 3.6.5 External bootloader...
  • Page 19: Operation

    MIP470 USERS MANUAL 4. Operation 4.1 Block diagram Local Bus Figure 3: Block Diagramm © 2006 by MPL AG MEH-10121-001...
  • Page 20: Memory Map

    Mode Register SYS_REG Read/Write System Register BOARD_REV Read only Board Revision and populated Configuration PLD_VERS Read only Versions Number of the PLDs PLD_PART Read only Part Number of the PLDs Table 22: Extension Registers © 2006 by MPL AG MEH-10121-001...
  • Page 21: Pld Part Number

    PCB3..0 = 0000 => ‘A’. CFGx: Population Options. Used to distinguish different population or other Options. Currently following populations Options are valid: Value Description 0x00 MIP470, 512MByte DDR ECC, 64MByte Flash Table 26: Population Options © 2006 by MPL AG MEH-10121-001...
  • Page 22: System Register

    UART Interrupt mode, if cleared the UART0 and UART1 IRQ's are shared and pulsed on CPU IRQ5. If set, the IRQ’s are inverted (active Low) level sensitive on IRQ5, and IRQ6 This Bit is read/write. © 2006 by MPL AG MEH-10121-001...
  • Page 23: Software Configuration Register

    The MPC8347 distinguish it's Frequency's, boot port size etc. during Power-up with the Hardware configuration words. These can be loaded via different mechanism. On the MIP470 the hardware configuration words are loaded via the I2C bus. Switching the EEPROM addresses allows to have 4 different Power-up configuration. They are decoded as follows:...
  • Page 24 Disclaimer The information contained herein is believed to be accurate as of the date of this publication, however, MPL AG will not be liable for any damages, including indirect or consequential, arising out of the application or use of any product, circuit or software described herein.
