Summary of Contents for Ferraris Respiratory eSense PiKo

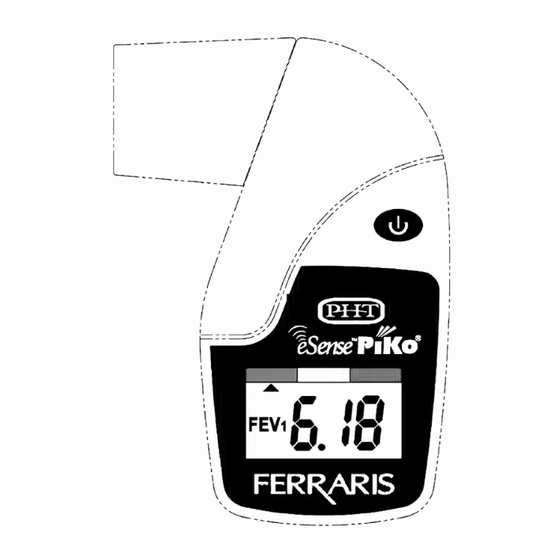

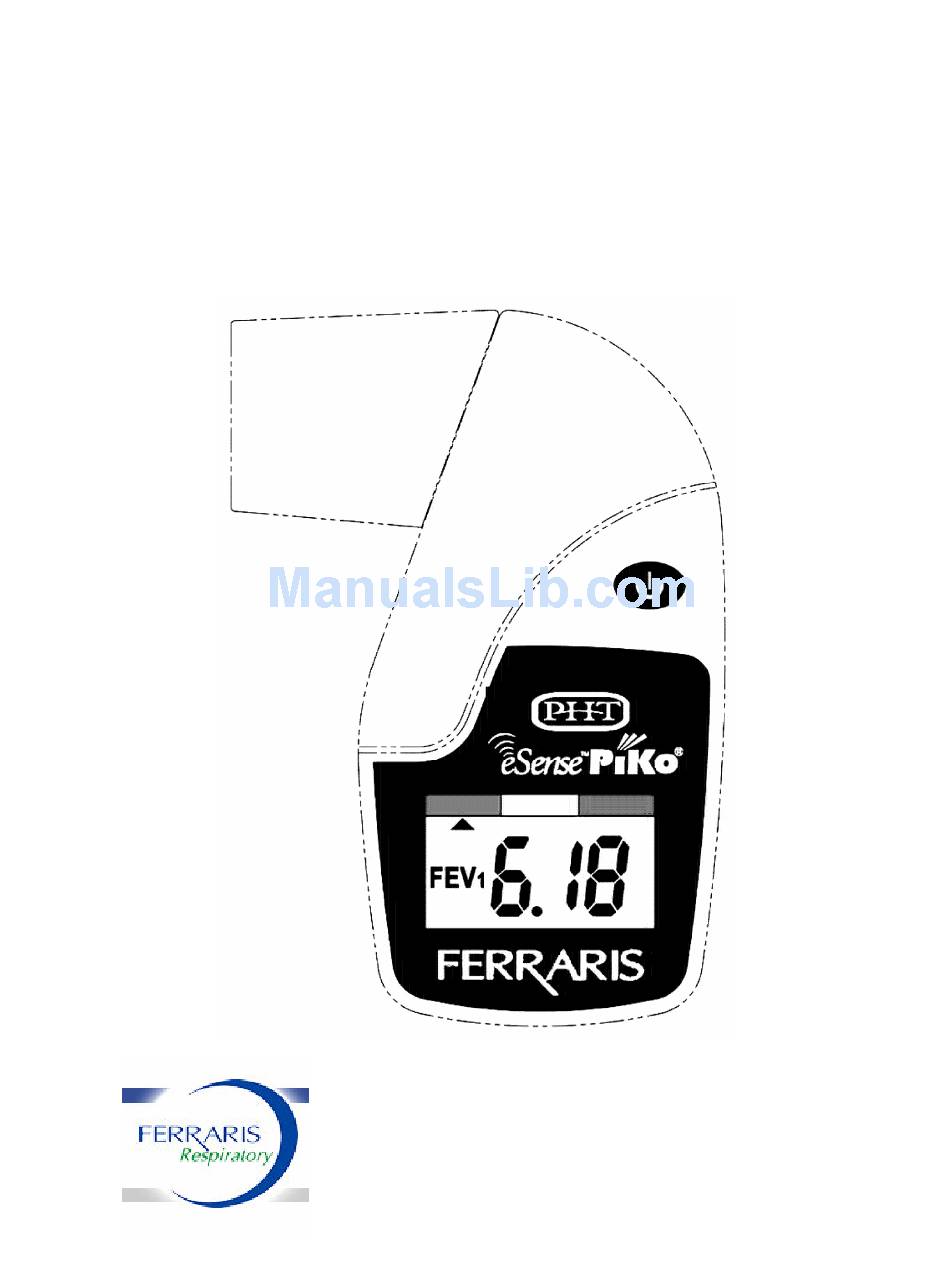

- Page 1 USER’S MANUAL ® eSense™ PiKo Ferraris Respiratory, Inc. 901 Front Street, Louisville, CO 80027, USA Tel: 303-666-5555, Fax: 303-666-5588 Website: www.ferrarisrespiratory.com...
- Page 2 FCC ID: TQTPIKOBLI ® eSense Piko This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Intended Use
® eSense Piko User’s Manual Intended Use ® The eSense is used for monitoring respiratory Piko conditions such as COPD and Asthma. ® The eSense measures the Peak Expiratory Flow Piko (PEF) and the Forced Expiratory Volume in the first second of expiration (FEV1). It displays the test results and also shows the respective color-zone relative to the patient’s PEF or FEV1 reference values. - Page 4 Warnings Note: Please read all the information in this manual ® eSense Piko before using the • The user should be under the care of a licensed healthcare professional. Healthcare professionals may ® eSense Piko recommend the as part of a disease management treatment plan.
- Page 5 eSense Piko® Description Removable Mouthpiece Vent holes Operate Button Colored Zones Zone indicator Q-Factor indicator Low battery indicator IR Communication window PEF data, (Liter per minute) PEF indicator Memory counter FEV1 indicator FEV1 data, (Liters) Battery cover, (behind) Front View Note: The PEF data, items 9 &...
-
Page 6: Perform Test
Perform Test If the display is blank, press the operate button once. The display will show the last test results. ® Stand up. Hold the eSense Piko your hand. Do not cover the vent holes. ® Bring the eSense Piko up with the mouthpiece towards your mouth. -
Page 7: Setting Reference Values
Setting Reference Values Setting a Reference PEF or FEV1 for color-zone display: Press the Operate button quickly 4 times during 2 seconds. The PEF or FEV1 indication starts blinking. The display will show the stored reference value, (000 for first time setting). Release the button, then each press will advance the display by 10 LPM for PEF, or 0.10 Liter for FEV1. -
Page 8: Memory Review
Memory Review ® The eSense Piko memory bank can store the last 96 PEF & FEV1 tests. Each memory location contains also the warning indicators and a time/date stamp of the test. To scroll through the memory bank, follow these steps: Press and hold the Operate button for 5 seconds. -
Page 9: Additional Information
Additional Information A reference PEF or FEV1 value is usually the best result you achieve when you are not having symptoms. Reference PEF or FEV1 To turn ON the color-zone indicator, you or a healthcare professional must set a reference value (see page 6). The following are color-zone descriptions: Default Settings: Green = test results over 80% of the set value... -
Page 10: Downloading Data
Downloading Data The memory bank can be downloaded to a PC using an IR Cradle and the PiKoNet software. The following is a description of the steps involved: To start downloading, press the Operate button. The downloading progress is indicated by the cycling segments on the display. -
Page 11: Maintenance
Maintenance Note: This product is NOT user serviceable. Cleaning: ® Note: Do not submerge the eSense Piko in water. Detach the mouthpiece by sliding it sideways. Wash the mouthpiece with a liquid dish soap in cold water, rinse and dry thoroughly. DO NOT use heat to dry. ®... -
Page 12: Technical Specifications
Technical Specifications Range 15 - 999 LPM, (1 LPM resolution) FEV1 Range 0.15 - 9.99 Liter, (0.01 Liter resolution) Accuracy PEF: +/-5% or 10 LPM, (whichever is greater) FEV1 : +/-3~5% or 0.05 Liter, (whichever is greater) Sensor Pressure/flow sensor technology (US Patent 6,447,459) Memory 96 Tests containing: PEF, , Color Zone, Quality... -
Page 13: Warranty
Warranty Ferraris Respiratory, lnc.(FRI) warrants each hardware product it manufactures to be free from defects in material and workmanship. Under this warranty, FRI will repair or replace at its option, any hardware product or part thereof within 6 months of purchase. - Page 14 European Union Medical Device Directive. Ferraris Respiratory, Inc. 901 Front Street, Louisville, CO 80027, USA Tel: 303-666-5555, Fax: 303-666-5588 Website: www.ferrarisrespiratory.com In Europe: Hartforde Court, John Tate Road, Hertford, SG13 &NW, UK...
