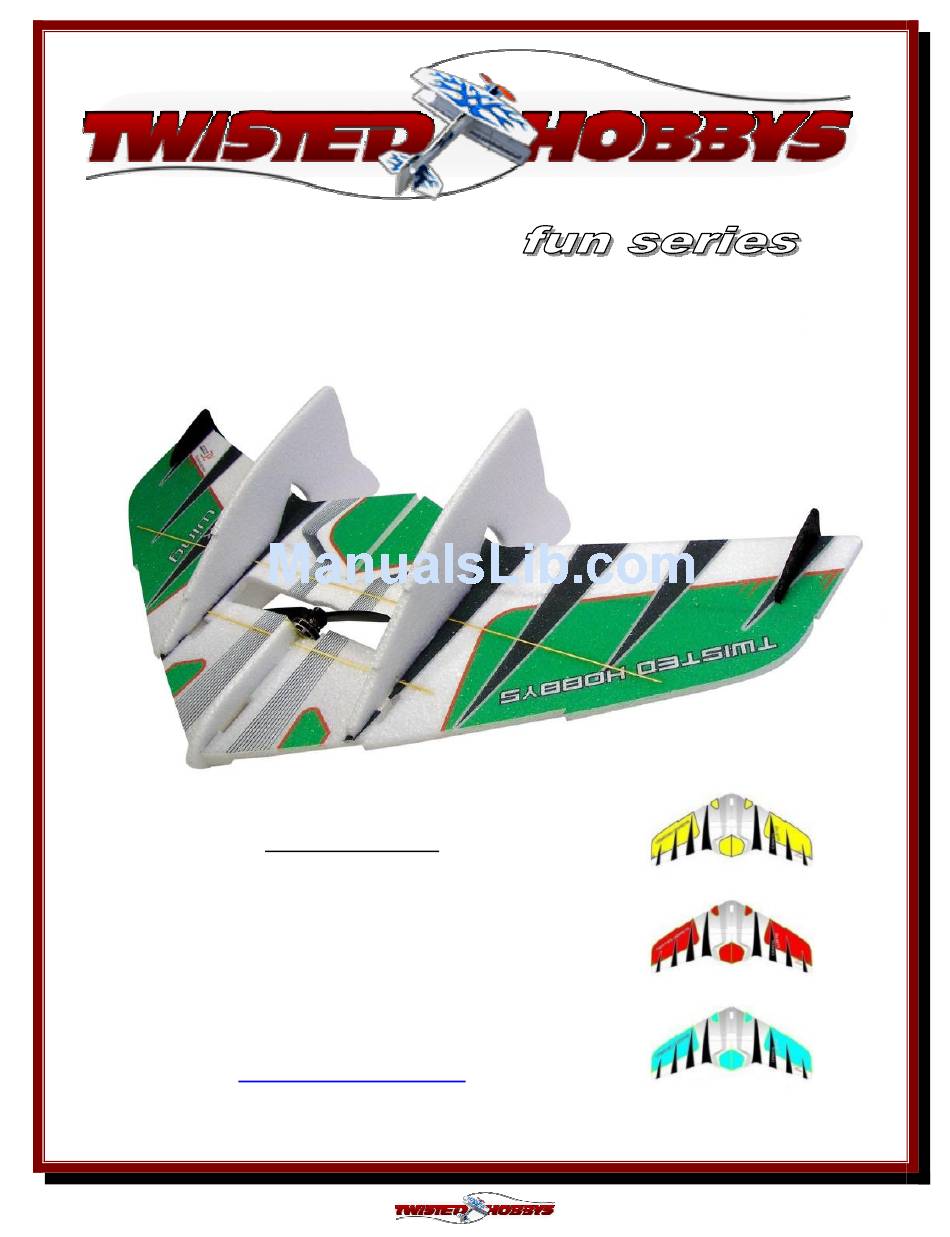

30" Crack Wing

Wing span – 30" / Length – 14"

2000-2800kV outrunner motor (11g – 18g)

6 - 12 amp ESC / 2s 180 – 250mAh battery

4 ch radio with Elevon Mixing

2x 4g to7g servos / 6x3 to 7x3.5 prop

Twisted Hobbys

www.twistedhobbys.com

Rev: 2013.02.02.v001b

Specifications

AUW 90 - 100g

USA Distributor

RC Factory

Factory

Table of Contents

Need help?

Do you have a question about the fun series 30" Crack Wing and is the answer not in the manual?

Questions and answers

Summary of Contents for Twisted Hobbys fun series 30" Crack Wing

Page 1 AUW 90 - 100g 2000-2800kV outrunner motor (11g – 18g) 6 - 12 amp ESC / 2s 180 – 250mAh battery 4 ch radio with Elevon Mixing 2x 4g to7g servos / 6x3 to 7x3.5 prop USA Distributor Twisted Hobbys www.twistedhobbys.com Rev: 2013.02.02.v001b...
Page 2: Table Of Contents
TABLE OF CONTENTS Page WARNING INFORMATION..............................3 SHIPPING DAMAGE................................3 OUR MISSION ..................................3 SAFETY NOTES ..................................4 IMPORTANT: PRIOR TO ANY ASSEMBLY ......................4 KIT CONTENTS ..................................5 OPTIONAL PARTS ..................................6 TOOLS & ADHESIVES NEEDED............................7 THE BUILD ....................................8 CENTER OF GRAVITY ................................38 CONTROL THROWS ................................39 3D / Combat Flight ................................39 Sport ....................................39 PRE-FLIGHT &...
Page 3: Warning Information
These instructions are suggestions only on how to assemble this model. There are other ways and methods to do so. Twisted Hobbys has no control over the final assembly, the materials and accessories used when assembling this kit, or the manner in which the assembled model, installed radio gear and electronic parts are used and maintained.
Page 4: Safety Notes
SAFETY NOTES SAFETY NOTES SAFETY NOTES SAFETY NOTES Before assembling and flying this model, read carefully any instructions and warnings of other manufacturers for all the products you installed or used on your model, especially radio equipment and power source. Check thoroughly before ever flight that the airplanes’...
Page 5: Kit Contents
kit contents kit contents kit contents kit contents 3 0 ” C r a c k W i n g standard parts list: hardware packet: 2x – wing half 2x – 1.0mm dia x 130mm push rod 2x – side fin/rudder 2x –...
Page 6: Optional Parts
Activator available from Twisted 1x – 12g Crack Series 2650 kV motor Hobbys’ 1 1 1 1 x x x x – Twisted Hobbys 6A ESC w/dbl bec chip 1x – 4.6g Digital Ball Bearing Nano servo 1x – prop 6x3...
Page 7: Tools & Adhesives Needed
Tools Tools & & & & Adhesives Needed Tools Tools Adhesives Needed Adhesives Needed Adhesives Needed • Tape Measure and Tape Measure and Ruler Ruler Tape Measure and Tape Measure and Ruler Ruler • Lighter Lighter Lighter Lighter • Small drill bits Small drill bits Small drill bits Small drill bits...
Page 8: The Build
THE BUILD THE BUILD THE BUILD THE BUILD CONSTRUCTION METHODS: Building surface should be at least 2ft x 4ft and flat. Weights or some small heavy objects will be handy for holding things in place during the time glue is setting. Welders glue is used exclusively for this build, except for the control rod ends, which are glued with thin CA.
Page 9 Carefully align the spar slots. While maintaining alignment, bring the two halves together and press firmly. STEP 2 STEP 2 STEP 2 STEP 2 Remove the support tabs from the spar slots. Rev: 2013.02.02.v001b...
Page 10 Locate the wing spars, check their fit into the slots. Coat both sides of the short spar with a bead of Welders. Insert the spar into the forward slot, spreading it a little as you go to help the glue get all the way in. Rev: 2013.02.02.v001b...
Page 11 Coat both sides of the long spar with a bead of Welders. Insert the spar into the rearward slot, spreading it a little as you go to help the glue get all the way in. Press the foam against the spar to secure the bond.
Page 12 Wipe off any extra glue from both sides Use some tape (high tack tape shown) or other means to maintain pressure on the glue joint while it cures Add some weights to hold everything flat while the glue dries. Rev: 2013.02.02.v001b...
Page 13 STEP 3 STEP 3 STEP 3 STEP 3 Locate the wood control horns. Complete the pre-made slot in the Elevon so that it extends all the way through Test fit the horn. Rev: 2013.02.02.v001b...
Page 14 Coat both sides of the horn with Welders. Lay a small bead of Welders into the slot. Install the horn into the Elevon, make special note to line up the profile of the horn with the profile of the hinge slot as shown.
Page 15 Wipe off any excess glue. Repeat for the other Elevon. Let everything dry. Apply weights to help keep things flat. STEP 4 STEP 4 STEP 4 STEP 4 Locate the items shown. Rev: 2013.02.02.v001b...
Page 16 Slide the z-bend and shrink tubing onto one of the carbon push rods Heat shrink the very end only. Apply a few drops of CA down the open end of the heat shrink tubing. Rev: 2013.02.02.v001b...
Page 17 Shrink the tube completely. Apply heat carefully and blot away any CA that is forced out, onto a paper towel. If the glue catches fire remove the lighter and blow out. Repeat for the other control rod. PREPARE THE ELECTRONICS PREPARE THE ELECTRONICS PREPARE THE ELECTRONICS PREPARE THE ELECTRONICS...
Page 18 Shrink the tubing. Motor ready to connect to the ESC Set up a new program on your Radio, in this case the model has been named “Cwing02” Rev: 2013.02.02.v001b...
Page 19 Go to your System Setup Page. Go to the menu for Wing Type selection. Pick “Elevon” for the Wing Type Rev: 2013.02.02.v001b...
Page 20 Attach the quick link to the Servo arms. For the arms included with the Twisted Hobbys CS-40D, use one hole in for mild control (shown) and outer most hole for extreme control On a piece of cardboard or other soft surface push the pin onto the keeper.
Page 21 PREPARE SERVOS PREPARE SERVOS PREPARE SERVOS PREPARE SERVOS Add thin (skim) layer of Welders to the three sides of the Servos that come into contact with the surfaces of the cutouts in the wing. NOTE: The method being described will allow for removal of the servos yet hold them tight otherwise.
Page 22 Smooth the glue out to a thin coat and allow to dry a couple hours, longer if possible. NOTE: Once the glue has dried, there will still be a “sticky” surface between the servos and wing cut out, hold them securely in place, but still remove-able if needed STEP 5 5 5 5...
Page 23 Trace the location of the doubler Coat each surface with a thin coat of Welders Allow the glue to tack up. Rev: 2013.02.02.v001b...
Page 24 Bring piece together, remembering to keep the back edges flush. Completed assembly. If the glue on the servos and wing has dried, you can now install them into the wing cutouts. Servo horns should be sticking out on the bottom side. NOTE: Install these in the same positions as when you did your initial radio setup earlier in the build.
Page 25 Both Servos in position Decide what batteries you will be using. Mark as required for the foam that needs to be removed. Rev: 2013.02.02.v001b...
Page 26 Remove the material as marked and test fit the battery STEP 6 STEP 6 STEP 6 STEP 6 Locate the upper and lower center ribs. Test fit the upper rib, making sure that the back edge lines up with the cut out in the wing.
Page 27 Test fit the lower rear rib. NOTE: This part is NOT symmetrical make sure it is orientation is such that the back edge lines up with the cut out in the wing. Glue all the pieces together (wet) and secure with pins or tap. Allow to dry. Locate the motor mount Rev: 2013.02.02.v001b...
Page 28 With the edge of a file or coarse sand paper, rough up one side of the motor mount Roughed up and ready for glue. Coat the roughed up side with Welders, and allow to tack up Rev: 2013.02.02.v001b...
Page 29 Coat the mating surface for the motor mount on the fuselage with Welders, and allow to tack up. Once the glue has tacked up, assemble the two pieces. Motor mount installed and ready for the motor to be installed. Rev: 2013.02.02.v001b...
Page 30 STEP 7 STEP 7 STEP 7 STEP 7 Locate push rods that were assembled with ends earlier Install the z-bend end into the Elevon Horn. With Elevon it’s neutral position, rough cut the push rod to approx. ¼ inch beyond the quick link. Rev: 2013.02.02.v001b...
Page 31 Push back the Elevon and slide the cut end of the push rod thru the quick link. It may be necessary to cut the rod a little shorter. Lightly tighten the set screw. NOTE: Over tightening will crush the carbon rod and ruin your push rod. Repeat for the other side.
Page 32 Mount the motor… situate so the cables come out in the area where you want to install the ESC. Note: motor shown may be different Note: motor shown may be different Note: motor shown may be different Note: motor shown may be different than the one included in your power than the one included in your power than the one included in your power...
Page 33 Test fit noting that the larger surface area is the top of the rudder. Lay down a bead of Welders on both sides of the wing in the area that comes into contact with the rudder. Avoid the area directly around the servo, this will make it easier to remove should it fail.
Page 34 The glue will tack pretty quickly, but until it does, make there are no gaps. Repeat the process for the SFG’s. Test fit. Rev: 2013.02.02.v001b...
Page 35 Apply a small bead of Welders in the are the SFG will contact. Install check squareness. Repeat for the other side. Make note of where the Center of Gravity should be located. C.G. = 13mm C.G. = 13mm C.G. = 13mm C.G.
Page 36 If using all the Twisted Hobbys’ stuff, and the 250mAh Twisted Hobbys’ LiPo battery, your ESC and Receiver should be located approx as shown in regards to the front to back position.
Page 37 Bottom side. For this build we chose to keep all the electronics on the top in order keep them save during landings. …………….. READY SET GO! ENJOY! Rev: 2013.02.02.v001b...
Page 38: Center Of Gravity
Center of Gravity Center of Gravity Center of Gravity Center of Gravity 13mm back from mm back from mm back from mm back from Forward Spar Forward Spar Forward Spar Forward Spar Locate the electronics to establish the proper Center of Gravity. CG point is 13mm back from the Forward Spar.
Page 39: Control Throws
Control Throws Control Throws Control Throws Control Throws 3D / Combat Flight Max Allowed as determined by Rudder Cut-Outs – SEE PICTURES BELOW 60 to 75% expo Sport 20 degrees all surfaces 30 to 45% expo Depending on your Radio the Elevon mix / setting may “overdrive” the controls surfaces. It is very important to determine the max travel while the transmitter sticks are in the extreme corners of the Gimble.
Page 40: Pre-Flight & Testing
If there is insufficient range twist. Storage in a hot car could also cause or significant reduction with the motor damage. running, resolve and re-test before flying. Be safe and enjoy, thank you again for purchasing a Twisted Hobbys’ Product! Rev: 2013.02.02.v001b...
Page 41: Notes & S/U Sheet
NOTES NOTES NOTES NOTES & & & & s/u Sheet s/u Sheet s/u Sheet s/u Sheet Rev: 2013.02.02.v001b...
Page 42: Tips And Tricks
TIPS AND TRICKS TIPS AND TRICKS TIPS AND TRICKS TIPS AND TRICKS - A good building surface is “drop ceiling” panel from a local hardware store on a nice flat board - use parchment paper between the areas being glued and your work surface - heavy flat objects (like books, batteries, etc.) could be used to hold everything flat - When resetting your radio, start with all the ATV’s or throw volumes at 100%.
