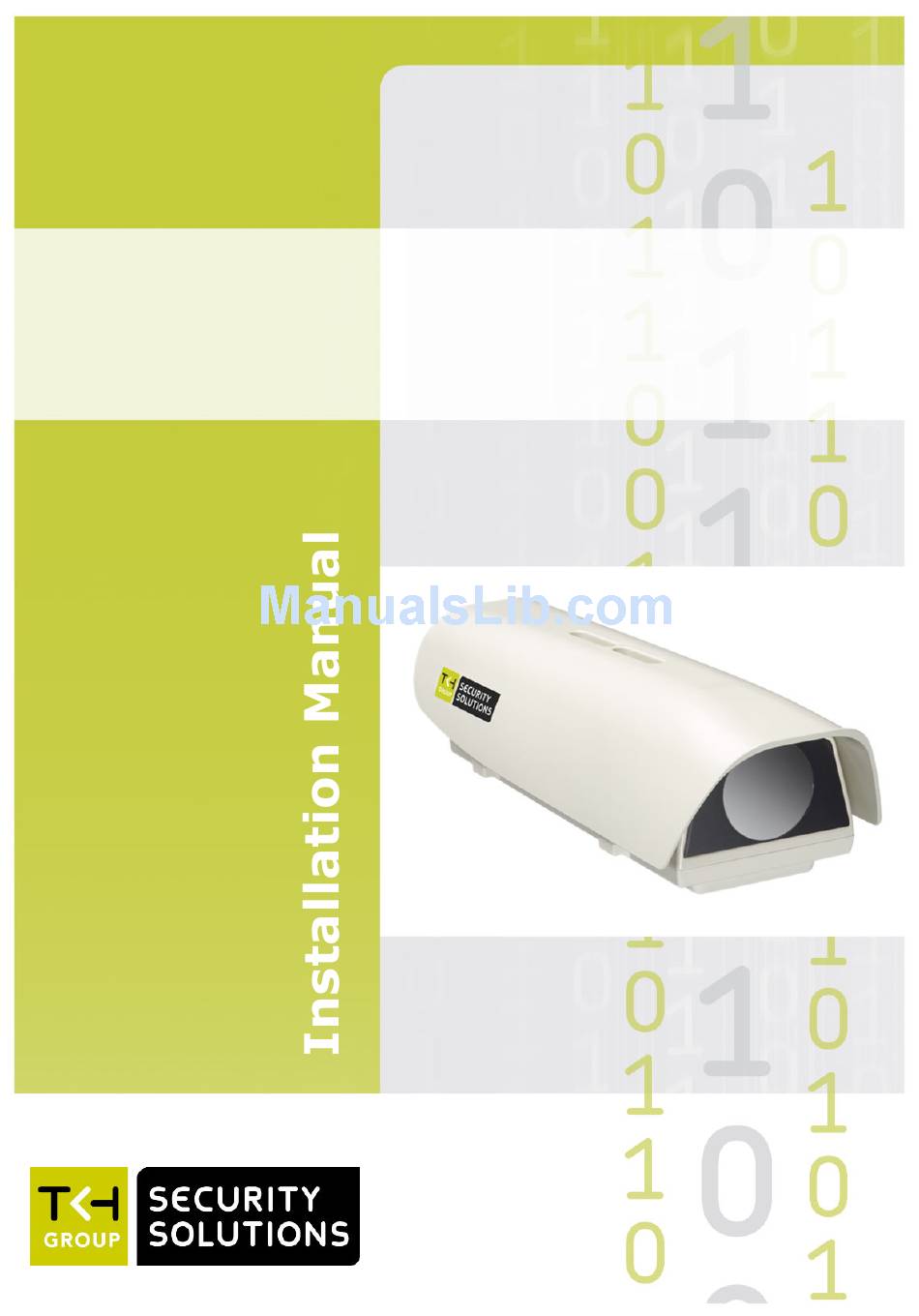

- Page 1 TC620 & TC840R1 Thermal IP cameras in aluminium housing...
- Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 3: Table Of Contents
Contents About this manual ..................Typographical conventions ..............Copyright and trademarks ..............Safety rules ....................Identification .................... Product description and type designation ..........Product markings ................. Preparing the product for use ..............Unpacking ..................Contents .................... Disposing of packaging material ............Preparatory work before installation ............ -
Page 4: About This Manual
About this manual Before installing and using this unit, read this manual carefully. Be sure to keep it handy for later reference. In This Chapter 1.1 Typographical conventions..................4 1.2 Copyright and trademarks..................4 Typographical conventions DANGER! High level hazard. Risk of electric shock. Disconnect the power supply before proceeding with any operation, unless indicated otherwise. -
Page 5: Safety Rules
Safety rules CAUTION! The device must be installed only and exclusively by skilled technical personnel. CAUTION! The electrical system to which the unit is connected must be equipped with an automatic bipolar circuit breaker. The circuit breaker for main supply voltage phase units must have a level of intervention of 20 A max. - Page 6 Safety rules ● For all connections, use cables that are able to withstand temperatures of at least 75 °C (167 °F). ● The product is designed to house only cameras that are properly certified (7 W max). ● A disconnecting device, readily and easily accessible, must be incorporated in the electrical system of the building for rapid intervention.
-
Page 7: Identification
Identification In This Chapter 3.1 Product description and type designation..............7 3.2 Product markings....................7 Product description and type designation This housing has been designed to fit thermal cameras with compact lenses for vision even in total darkness. It is possible to use it for a wide range of day/night surveillance systems, such as: monitoring and rescue in the event of a fire, public safety, along with airport, industrial and environmental surveillance. -
Page 8: Preparing The Product For Use
Preparing the product for use Any change that is not expressly approved by the manufacturer will invalidate the guarantee. In This Chapter 4.1 Unpacking......................8 4.2 Contents....................... 8 4.3 Disposing of packaging material................8 4.4 Preparatory work before installation................9 Unpacking When the product is delivered, make sure that the package is intact and that there are no signs that it has been dropped or scratched. -
Page 9: Preparatory Work Before Installation
Preparing the product for use Preparatory work before installation 4.4.1 Attaching the bracket The product must be fastened with suitable equipment. The fastening means must guarantee the mechanical seal when a force equal to at least four times the weight of the device is applied. -
Page 10: Installation
Installation In This Chapter 5.1 How to open the housing..................10 5.2 How to install the camera..................10 5.3 Board description....................11 5.4 Connection of the power supply line................ 12 5.5 Installation of the version with double filter for air renewal......... 12 How to open the housing Loosen the two screws on the side, turn the cover and the upper half of the body about the opening hinge axis. -
Page 11: Board Description
Installation Fig. 2 Remove the conductors protective sheathing and connect them to terminal J5 (see "Board description" on page 11). The camera’s power supply cable conductors must be tied up with a cable tie next to the terminal. Keep the signalling and power supply cables separated from each other. Board description Connect the safety earth to the relative terminal of the J1 connector. -
Page 12: Connection Of The Power Supply Line
Installation Fig. 3 Connection of the power supply line Earth cable should be about 10 mm longer than the other two, so that it will not be disconnected accidentally if pulled. Insert the cables for the connection to the power supply line inside the housing through the cable glands. - Page 13 Installation Fig. 4 Depending on the angle of inclination of the housing, the orientation of the filter fins must prevent water penetrating in case of rain. To guarantee the weatherproofness, install the housing on the support following the inclination limits as shown in the picture. Fig.
-
Page 14: Accessories
Accessories For further details on configuration and use, refer to the user manual. In This Chapter 6.1 Heater.........................14 6.2 Camera power supply.................... 15 6.3 Blower.........................16 Heater 6.1.1 Heater installation Open the housing as described (see "How to open the housing" on page 10). Fix the heater kit to the prearranged points on the body of the housing. -
Page 15: Camera Power Supply
Accessories Camera power supply 6.2.1 Camera power supply installation Not usable in housings with wiper device installed. Pay attention to the voltage value used when the circuit is powered. Depending on requirements use the correct power supply kit. There are two types of camera power supply depending on requirements. Fig. -
Page 16: Blower
Accessories Fig. 9 Plug the multipolar female connector into the corresponding male connector J7 (see "Board description" on page 11). Fig. 10 Blower 6.3.1 Blower installation Not usable in versions with double filter for air renewal and wiper. Pay attention to the voltage value used when the circuit is powered. Depending on requirements use the correct power supply kit. - Page 17 Accessories Open the housing as described (see "How to open the housing" on page 10). Fix the blower using the corner bracket and screws. Fig. 11 Plug the multipolar female connector into the corresponding male connector J8 (see "Board description" on page 11).
-
Page 18: Cleaning
Cleaning In This Chapter 7.1 Window and plastic cover cleaning................18 Window and plastic cover cleaning Avoid ethyl alcohol, solvents, hydrogenated hydrocarbide, strong acid and alkali. Such products may irreparably damage the surface. We recommend using a soft cloth with neutral soaps diluted with water or specific products to clean eyeglasses lenses. -
Page 19: Disposal Of Waste Materials
Disposal of waste materials This symbol and recycle system apply to EU countries only. They are not applicable to countries in other areas of the world. Your product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. -
Page 20: Technical Data
Technical data In This Chapter 9.1 General....................... 20 9.2 Mechanical......................20 9.3 Housing window....................20 9.4 Digital I/O......................21 9.5 Electrical......................21 9.6 Environment......................22 9.7 Certifications......................22 General Constructed from aluminium Sunshield in ABS Epoxypolyester powder painting, RAL9002 colour Stainless steel external screws Mechanical Cable glands: 3x M16 Dimensions (WxHxL): 176x160x514 mm (6.9x6.3x20.2 in) -
Page 21: Digital I/O
Technical data Transmittance spectrum Fig. 12 Digital I/O CC input: : Low level <1V; High level >2.2V or open, Internal pull-up 3.3 V, 2.2 kΩ; max input voltage: 9 Vdc. CC output: Open collector type, max 30 Vdc; 2 A Electrical Power supply / Current consumption (empty version): ●... -
Page 22: Environment
Technical data Environment Indoor/Outdoor Operating temperature (with heater): -20 °C (-4 °F) ~ +75 °C (167 °F) Altitude of operation: Up to 2000 m Certifications Electrical safety (CE): EN60950-1 Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3 IP protection degree: EN60529 ● IP66/IP67 (with cable glands) ●... -
Page 23: Technical Drawings
Technical drawings The dimensions of the drawings are in millimetres. Fig.13... -
Page 24: Index
Index About this manual........4 Preparatory work before installation....9 Accessories..........14 Preparing the product for use.....8 Attaching the bracket........9 Product description and type designation..7 Product markings........7 Blower..........16 Blower installation........16 Safety rules..........5 Board description........11 Technical data........20 Camera power supply......15 Technical drawings.........
