Summary of Contents for OneKubedDESIGNS FOLD & GO WHEELCHAIR

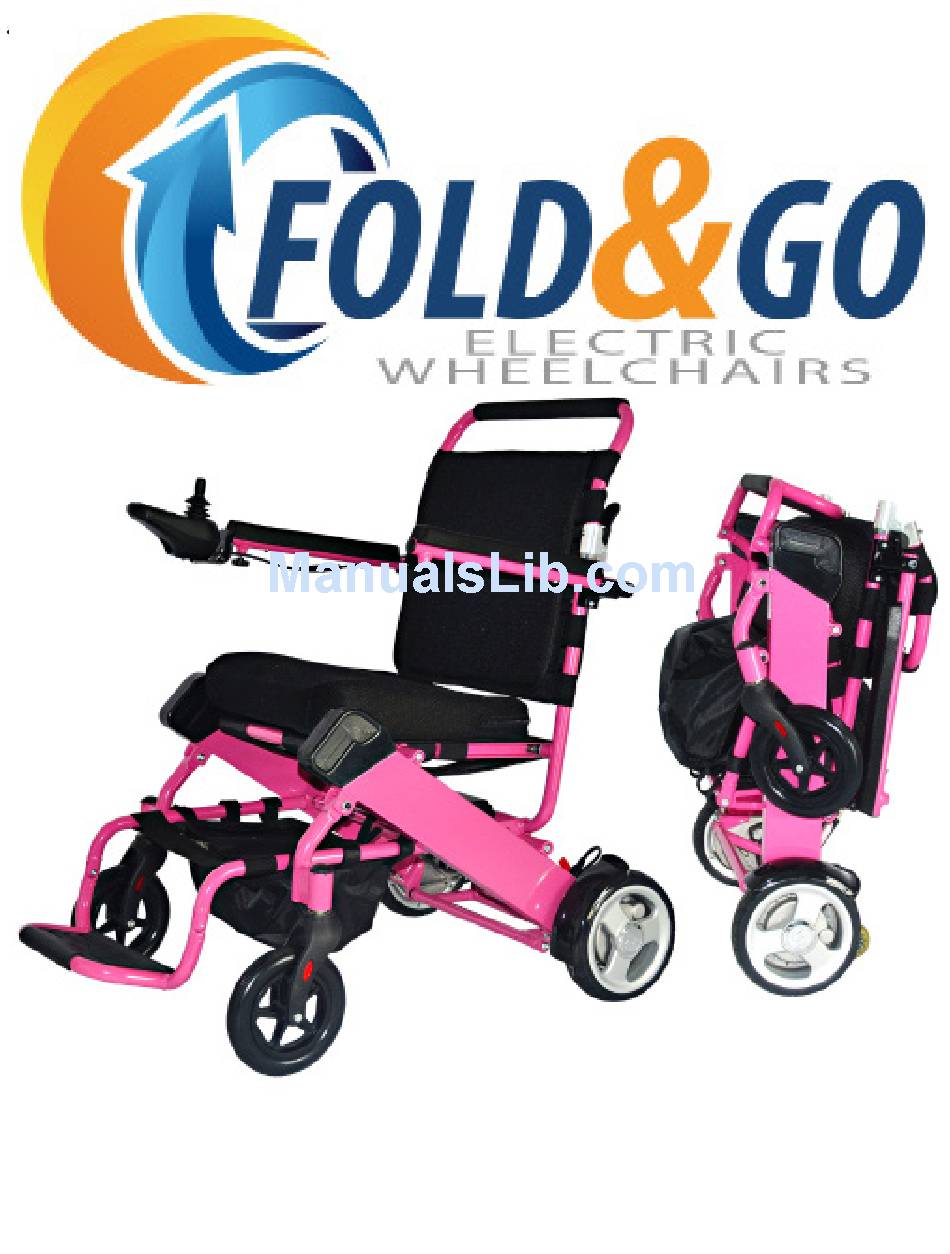

- Page 1 REGULAR SIZE MODEL User/Caregiver Manual © 2018 FOLD & GO Wheelchairs® – A Division of OneKubedDESIGNS®, LLC.
- Page 2 INTRODUCTION Thank you for buying the FOLD & GO WHEELCHAIR®, which is designed and manufactured by OneKubedDESIGNS, which is Trademarked. Before operating this electric wheelchair for the first time, please read this manual carefully. This instruction manual will help you to understand the performance, operation, features, and routine maintenance. Please refer to this manual and or our website for how to videos on operating your new chair.
-
Page 3: Model Components
Can be placed on the riding in your chair, and to wrap up into the wall outlet either the right or left armrest the armrests when folded © 2018 FOLD & GO Wheelchairs® – A Division of OneKubedDESIGNS®, LLC. - Page 4 PARTS OF THE FOLD & GO ELECTRIC WHEELCHAIR® Joystick Controller Seat Cushions Empty Storage Bag Battery Rear Motor Wheel Foot Plate Front Wheel...
-
Page 5: Battery Installation
INSTRUCTIONS How to Install & Operate Battery Installation Slide the skinny part of the battery into the slot on the side arm. Make sure the battery is inserted all the way, so the red and black plug connectors show at the bottom of the side arm case. Then plug in the cable from the black box under the seat into the battery. - Page 6 How to FOLD the FOLD & GO Electric Wheelchair® ● Turn off the Joystick. ● Rotate both armrests up and over towards the back of the chair. ● Pull steel wire under the back-end of the seat cushion. ● Push the backrest forward toward the seat cushion. ●...
- Page 7 Specifications of the Regular FOLD & GO Electric Wheelchair® Net Weight 46 LBS Weight Capacity 265 LBS Motor 180 Watt x2 Brushless Battery Lithium-Ion 24V/10AH Standard Max Speed 4 MPH - 5-Speed Control Modes: 0.5 MPH, 1 MPH, 2 MPH, 3 MPH, 4 MPH Turning Radius 31.5 inches Grade/Slope...
-
Page 8: Joystick Functions
Joystick Functions Power ON Power OFF Increase Speed Horn Decrease Speed Movement Direction to Move Joystick FORWARD Move the joystick FORWARD BACKWARD Move the joystick BACKWARD RIGHT Move the joystick RIGHT LEFT Move the joystick LEFT STOP Release your hand from the joystick... -
Page 9: Joystick Diagnostics
Joystick Diagnostics When the LED light on the Joystick flickers, it means that there is something wrong with the wheelchair. An alarm may also sound from the rear motor wheels, brakes, batteries, wire connections, or from the wheelchair itself. Below are the diagnostic codes to help you identify any problems you may be experiencing while using your FOLD-N-GO Wheelchair: Flash or Beep Description &... - Page 10 When an elevator is not available, fold up the chair to roll it from step to step up or down the stairs. 16215 State Road 50, Suite 304, Clermont, Florida 34711 Customer Service: 512-817-FOLD support@foldandgowheelchairs.com https://www.foldandgowheelchairs.com © 2018 FOLD & GO Wheelchairs® – A Division of OneKubedDESIGNS®, LLC.
