Summary of Contents for Fortuna Slim
- Page 1 Fortuna Slim Bluetooth GPS Receiver Product specification Reference Manual Fortuna Electronic Corporation 2005/04/20 All Rights Reserved...

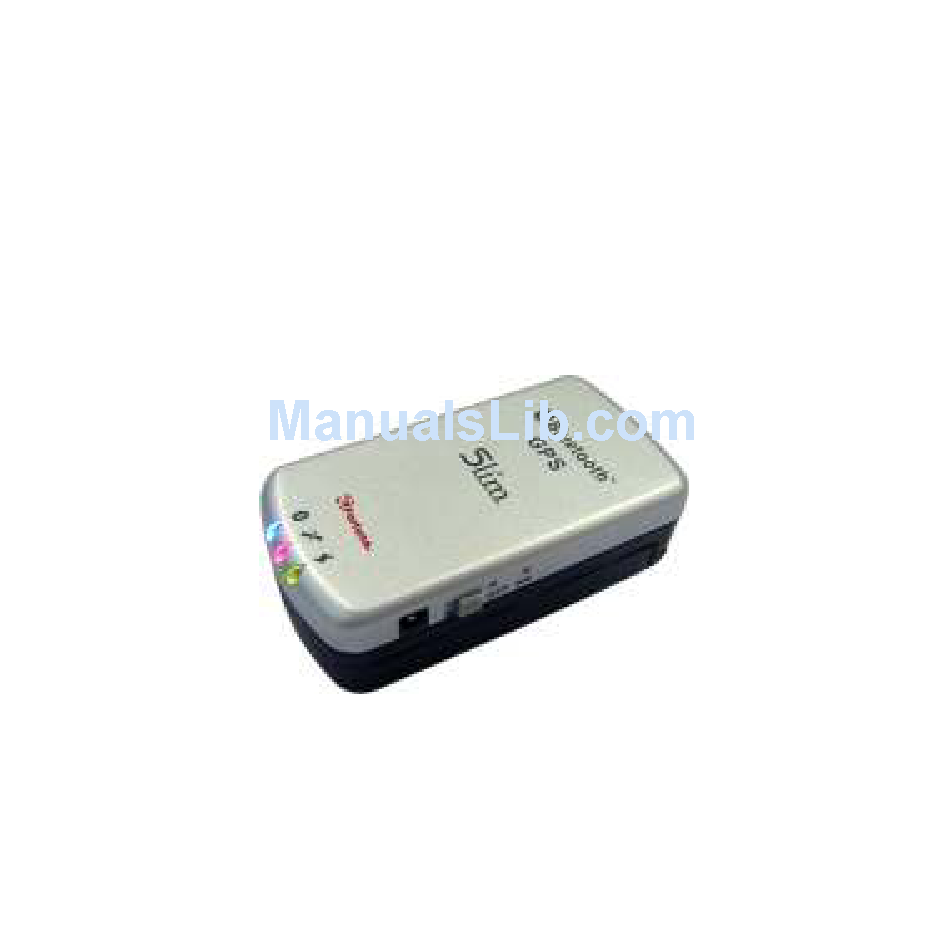

- Page 2 Introduction Overview The Fortuna Slim Bluetooth GPS receiver is a Global Positioning System Receiver with Bluetooth wireless technology. This Bluetooth GPS receiver allows you to receive GPS data and send GPS position data over Bluetooth. You can position the receiver for the best reception without wires.
-
Page 3: Main Features
Main Features *Three LED at the top of the device shows Bluetooth, GPS and Power Status. *Detachable 1200mA Lithium-Polymer battery lasts up to 8.5 Operating hours *Dimension: L= 74 mm, W= 38mm, H= 23 mm *Weight: 80g *On/Off Switch *12 Channels ( All-In-View ) Tracking (up to 20 channels) *Cold/ Warm/ Hot Start Time: 42/38/1 Seconds *Reacquisition Time: 0.1 seconds *Standard NMEA-0183 output at 38400 bps baud rate... - Page 4 6.Go to Action and select SPP slave. 7.Enter the pass key 0000 if required. 8.Click on the Slim BTGPS icon and then a 2 way arrow shows the Bluetooth is linking. 9.The Slim Bluetooth GPS LED light should be on and it means the Bluetooth link has been established.
- Page 5 Technical Specifications Electrical Characteristics General Chipset SiRF Star III Frequency L1, 1575.42 MHz C/A code 1.023 MHz chip rate Channels 12 Channels ( All-In-View ) Tracking (up to 20 Channels) Antenna Type Built-in Ceramic patch antenna Accuracy Position 10 meters, 2D RMS 5 meters 2D RMS, WAAS corrected 2.5 meters, DGPS corrected Velocity...
- Page 6 Dynamic Conditions Altitude 18,000 meters (60,000 feet) max. Velocity 515 meters/second ( 1000 knots) max. Acceleration 4g, max. Power Operational Power 3.3 VDC +10% Input Power 5VDC + 10% Battery Source rechargeable and detachable lithium Polymer battery with 5V DC input charging circuit (1200 mA) Operation Time 8.5 hours continuous operating after full...
- Page 7 Main Interface Connection: Communication with host platform via Bluetooth Serial Port Profile Protocol messages NMEA 0183 output protocol Baudrate: 38400 bps Data bit: Stop bit: Output format: GGA ( 1 sec), GSA ( 1 sec), GSV ( 5 sec), RMC ( 1 sec), VTG ( 1 sec) Environmental Characteristics Operating temperature range -20 C to +60 C...
- Page 8 Furthermore, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of the Fortuna Electronic Corp. to notify any person of such revision or changes.
- Page 9 PURPOSE, MERCHANTABILITY AND NONINFRINGEMENT. FCC&CE Compliance Statement The Slim Bluetooth GPS compliant with Part 15 of FCC limits for Class B (DoC). This device has been shown to be in compliance with and was tested in accordance with the measurement procedures specified in the standards Specification listed above.
- Page 10 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This equipment complies with FCC radiation exposure limits set forth for...
- Page 11 Made in Taiwan Part No.: 121-090020003...
