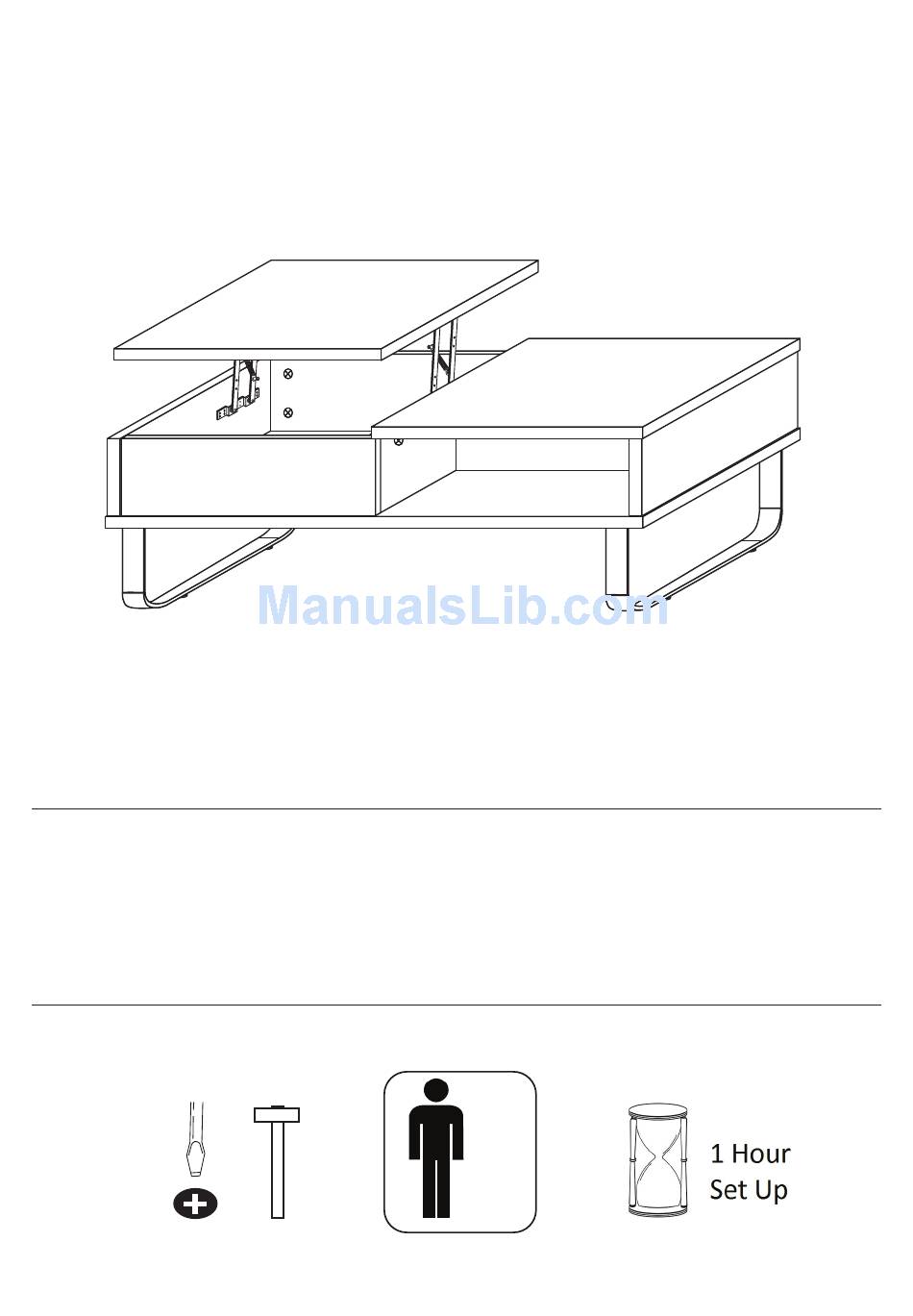

ASPEN LIFT UP COFFEE TABLE ASSEMBLY INSTRUCTIONS

Thank you for purchasing the ASPEN LIFT UP COFFEE TABLE

．

Please read the instructions carefully to ensure safe operation of the product.

Size:100X59.5X37.5CM

Colour:ESPRESSO / OAK / WHITE

PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of

construction.

Carefully open the pack supplied and check the contents against the parts and fittings check list.Do not

destroy any of the packaging until you are certain that you have all the necessary parts for the

assembly.

CAUTION: There are small components used in the construction of this unit. These loose items should

be kept away from young children whilst assembling your unit to avoid the danger of choking hazards.

Tools Required

Batch No.: WMI 15474
