Technoton CAN UP 27 Operation Manual

Online telematics gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

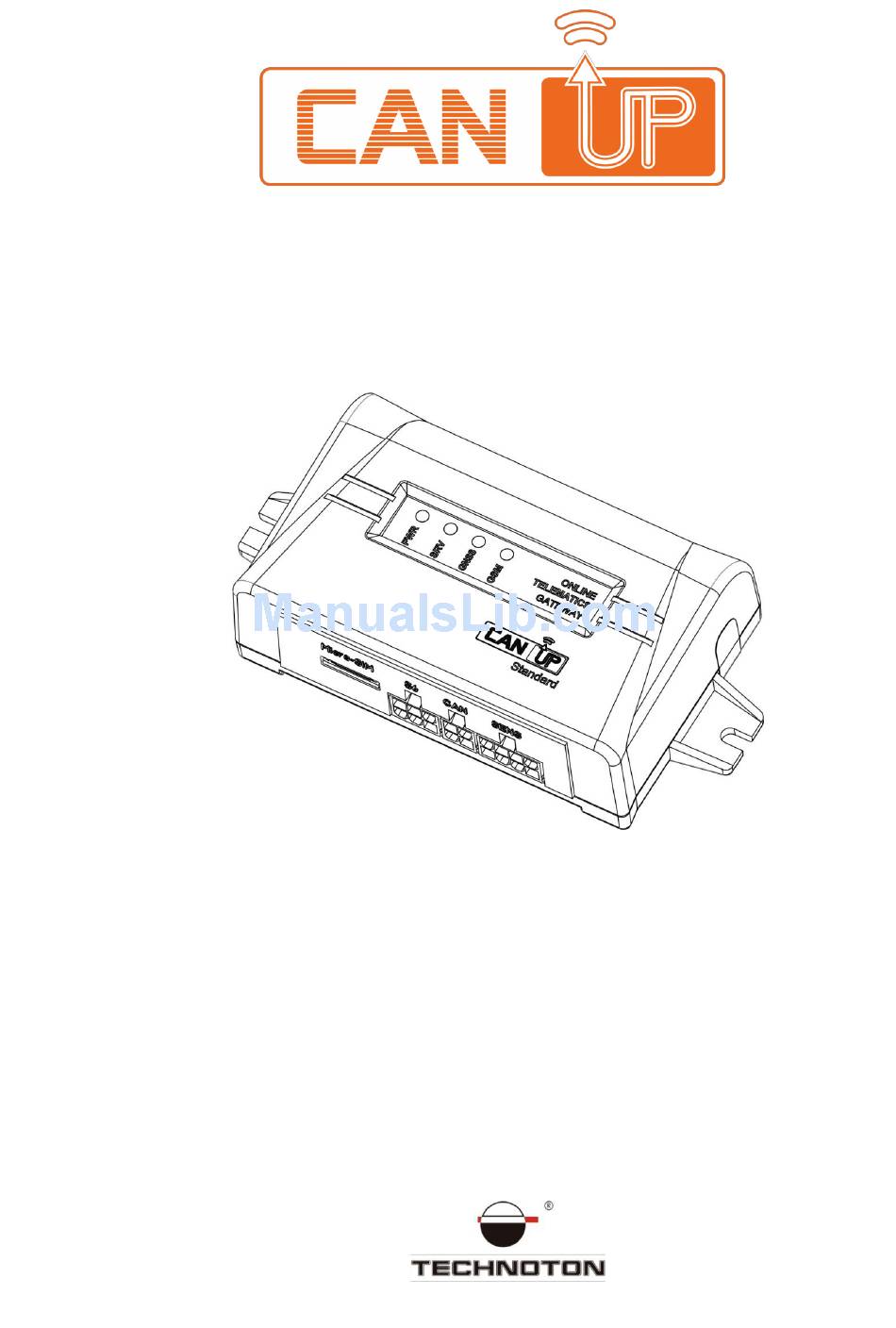

ONLINE TELEMATICS GATEWAY
CAN UP 27
OPERATION MANUAL
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAN UP 27 and is the answer not in the manual?

Questions and answers

Summary of Contents for Technoton CAN UP 27

  • Page 1 ONLINE TELEMATICS GATEWAY CAN UP 27 OPERATION MANUAL Version 1.0...

  • Page 2: Table Of Contents

    Annex C SPN of CAN UP 27 Functional modules ............... 51 Annex D CAN UP 27 firmware upgrade ................68 Annex E CAN UP 27 using S6 Technology example of wiring diagram ......... 69 CAN UP 27 online telematics gateway. Operation manual. Version 1.0...

  • Page 3: Revision History

    Revision history Revision history Version Date Editor Description of changes 08.2017 Basic version. CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...

  • Page 4: Structure Of External Links

    Structure of external links Structure of external links Document Center S6 Website JV Technoton Website MasterCAN Website ORF 4 Website Wialon Website CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...

  • Page 5: Terms And Definitions

    (2-5 USD). Ready-made library of system and applied FM is available. CAN UP 27 online telematics gateway is based on IoT Burger technology. — technology of combining smart sensors and other IoT devices within one wire network for monitoring of complex stationary and mobile objects: vehicles, locomotives, smart homes, technological equipment etc.
  • Page 6 (Tracking device) is a unit of Telematics System used for reading the signals of Vehicle standard and additional sensors, getting location data and transmitting the data to the Server. Tracking device is not required when online telematics gateway CAN UP 27 as a part of telematics system. Telematics system —...

  • Page 7: Introduction

    27), developed by JV Technoton, Minsk, Belarus. The manual contains information on design, operation principle, specifications and instructions on installation and use of CAN UP 27. The manual provides guidelines on sensor configuration with Service CAN UP software (version 1.0 and higher).
  • Page 8 Introduction CAN UP 27 is represented by the following models: 1) CAN UP 27 Standard — provides standard functionality allowing to: - perform data processing (SPN) using Technology; - convert analog signals of vehicle's sensors to SPN; - generate and send Onboard reports to the Server/by E-mail/SMS.
  • Page 9 Manual. ATTENTION: Manufacturer reserves the right to modify CAN UP 27 specifications that do not lead to a deterioration of the consumer qualities without prior customer notice. * Product is in release preparation stage.

  • Page 10: General Information And Technical Specifications Of Can Up 27

    General information and technical specifications of CAN UP 27 / Purpose of use and application area, operation principle 1 General information and technical specifications of CAN UP 27 1.1 Purpose of use and application area, operation principle is designed for (see figure 1): ...
  • Page 11 General information and technical specifications of CAN UP 27 / Purpose of use and application area, operation principle CAN UP 27 online telematics gateway is installed in Vehicle and receives data (SPN) from Units, using technology, also converts output analog signals of Vehicle sensors to digital data according to Database.
  • Page 12 General information and technical specifications of CAN UP 27 / Purpose of use and application area, operation principle Figure 3 — Example of Analytical report, generated in ORF 4 software, based on the CAN UP 27 Reports The presence of CAN/S6 interface (J1939 protocol) allows...

  • Page 13: Exterior View And Delivery Set

    General information and technical specifications of CAN UP 27 / Exterior view and delivery set 1.2 Exterior view and delivery set CAN UP 27 online telematics gateway – 1 pc.; Sealing bar – 1 pc.; Specification – 1 pc.; S6 3 Mol power T-connector with power wire –...

  • Page 14: Can Up 27 Design

    General information and technical specifications of CAN UP 27 / CAN UP 27 design 1.3 CAN UP 27 design 1 – body, containing PCB, battery, SIM-holder, GPS/GLONASS receiver, GPRS modem with antennas; 2 – installation holders; 3 – Micro-SIM slot for Micro-SIM card installation;...

  • Page 15: Technical Specifications

    General information and technical specifications of CAN UP 27 / Technical specifications / Main specifications 1.4 Technical specifications 1.4.1 Main specifications Table 1 — CAN UP 27 main specifications Parameter, measuring unit Value Cellular communication standards GSM-850/GSM-1900/GSM-900/GSM-1800 Mobile communication technology...

  • Page 16: Data Transfer Protocol To Server

    General information and technical specifications of CAN UP 27 / Technical specifications / Data transfer protocol to Server 1.4.2 Data transfer protocol to Server CAN UP 27 sends information to the telematics Server (AVL server) in form of data packets...

  • Page 17: Can/S6 Digital Interface Protocol And Characteristics

    General information and technical specifications of CAN UP 27 / Technical specifications / CAN/S6 digital interface protocol and characteristics 1.4.3 CAN/S6 digital interface protocol and characteristics Characteristics of the CAN/S6 digital interface of CAN UP 27 comply with Technology. Data transfer protocol is based on SAE J1939 standard and meets its requirements.

  • Page 18: Analog Signals Specifications

    General information and technical specifications of CAN UP 27 / Technical specifications / Analog signals specifications 1.4.4 Analog signals specifications Table 3 — CAN UP 27 analog input signals specification Signal type, measurement units Value Voltage, V 0…30 Frequency, kHz 0.001…10...

  • Page 19: Overall Dimensions

    General information and technical specifications of CAN UP 27 / Technical specifications / Overall dimensions 1.4.4 Overall dimensions Figure 7 — CAN UP 27 overall dimensions CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...

  • Page 20: Can Up 27 Installation

    2.1 Exterior inspection prior to starting works It is required to conduct CAN UP 27 exterior inspection for the presence of the possible defects of body or connectors arisen during transportation, storage or careless use. Contact the supplier if any defects are detected.

  • Page 21: Operational Restrictions

    CAN UP 27 installation should be done in a dry location protected from aggressive impact of the environment. CAN UP 27 should not be mounted near heating and cooling devices (e.g. the climate control system). Also, it is not recommended to mount CAN UP 27 close to the vehicle electrical circuits.

  • Page 22: Sim Card Installation

    CAN UP Insert SIM card (contacts facing down) into the Micro-SIM slot of CAN UP 27 and using your fingernail or with a small screwdriver gently push it into the SIM holder until it clicks (see figure 8).

  • Page 23: Configuration Of Can Up 27

    CAN UP 27 installation / Configuration of CAN UP 27 / Connecting CAN UP 27 to PC 2.4 Configuration of CAN UP 27 ATTENTION: To avoid any S6 SK communication faults between PC and CAN UP 27 make sure there are no sources of electromagnetic interference close to the workplace (running electric motors, welding equipment, high-power transformers, power lines, etc.).
  • Page 24 CAN UP 27 installation / Configuration of CAN UP 27 / Connecting CAN UP 27 to PC CAN UP 27 connection to PC per the connection schemes (see figure 9) in the following order: 1) Connect the adapter to CAN UP 27.
  • Page 25 CAN UP 27 installation / Configuration of CAN UP 27 / Connecting CAN UP 27 to PC b) if CAN UP 27 is not using S6 Technology Figure 9 — CAN UP 27 to PC connection schemes Windows automatically detects adapter connected to PC’s USB port as USB device and enables virtual COM port driver for it.
  • Page 26 CAN UP 27 installation / Configuration of CAN UP 27 / Connecting CAN UP 27 to PC Table 4 – Adapter LED signals description LED Indicator Signal description Marking Status Light color Power supply is on (from vehicle electrical system).

  • Page 27: Interface Of Service Can Up Software

    CAN UP 27 installation / Configuration of CAN UP 27 / Interface of Service CAN UP software 2.4.2 Interface of Service CAN UP software Service CAN UP software is launched with desktop shortcut created during installation. Software interface consists of Horizontal menu, Vertical menu, Unit ID area and...

  • Page 28: Authorization

    CAN UP 27 installation / Configuration of CAN UP 27 / Authorization 2.4.3 Authorization To enable connection between CAN UP 27 and PC, click the button in Horizontal menu. Service CAN UP software will search for the connected sensors (see figure 12 a).

  • Page 29: Can Up 27 Profile

    (passport data, counters and settings of Function modules of Unit). It is possible to manage the profiles in both the sensor CAN UP 27 connected and autonomous mode. The button with drop down menu is used to choose the options (see figure 14). Profile can be stored as a file to PC hard drive or loaded into the memory of the Unit.
  • Page 30 CAN UP 27 installation / Configuration of CAN UP 27 / CAN UP 27 Profile If the modified settings were not saved into Unit and button was pressed or Service CAN UP software is being closed there will appear a notification on profile settings saving.

  • Page 31: Connection To Orf 4 Telematics Service

    CAN UP 27 installation / Configuration of CAN UP 27 / Connection to ORF 4 Telematics service 2.4.5 Connection to ORF 4 Telematics service Configuration of CAN UP 27 connection to ORF4 Telematic service and Internet-connection status check is performed in...

  • Page 32: Remote Connection To Can Up 27

    CAN UP 27 installation / Configuration of CAN UP 27 / Remote connection to CAN UP 27 2.4.6 Remote connection to CAN UP 27 Service CAN UP software allows you to remotely connect to CAN UP 27 over the Internet without using a cable connection to PC.

  • Page 33: Electrical Connection

    Vehicle) through S6 cabling system in accordance with pin assignment of S6 connector (see table 5). Note – CAN UP 27 can work up to 5 hours from inbuilt battery without external power supply. IMPORTANT: 1) Before mounting and connecting CAN UP 27 switch off power supply of the Vehicle electrical circuits.
  • Page 34 FMS-gateway (see figure 18) Figure 18 — Safe integration of Automotive CANbus into Telematics system using FMSCrocodile CCAN An example of connection scheme of CAN UP 27 using S6 Technology including required elements for the S6 cabling system is shown in annex CAN UP 27 online telematics gateway.
  • Page 35 Quick splice connectors (ordered separately) are recommended for electrical connection of signal wires (see figure 19) Figure 19 — Using connectors to connect wires of signal cable CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 36 Ground ―-‖ — Digital, CANH Blue CAN HIGH CAN 2.0B, SAE J1939 CANL White CAN LOW Standard * In CAN UP 27 Standard, CAN socket is not used. CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...

  • Page 37: Creating And Customizing Reports

    Figure 20 — Selecting Event for Onboard report generation Created CAN UP 27 Reports are displayed as tabs in Report Generator area. Each tab has identical settings for the generating and sending Report to the Server. To delete a Report, use button, placed on each tab (see figure 21).
  • Page 38 (see figure 22 a) window, which will be used for Report generation. To add button, to remove SPN use button, placed near the corresponding SPN. You can select up to 10 SPNs for one Report. CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 39 If you select SPN that does not meet specified conditions, a corresponding warning window will appear (see figure 23). Figure 23 — Warning on choosing SPN of inappropriate format CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...

  • Page 40: Function Test

    Figure 24 — Example of how the vehicle (with CAN UP 27 installed) is displayed in ORF 4 monitoring service During CAN 27 operation, signals of LED indicators, located on the top cover of CAN UP 27 body, should be visible (see table 8) CAN UP 27 online telematics gateway.
  • Page 41 Server. Report sending in progress. No signal GPRS modem is switched off or defective. * For flashing light signals, interval between flashes is 2 seconds. CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...

  • Page 42: Packaging

    Label sticker with information on the product name, certificates, serial number, firmware version, manufacture date, weight as well as Quality Control seal and QR code is stuck on two sides of the CAN UP 27 box (see figure 26). Figure 26 — Packaging label Note —...

  • Page 43: Storage

    -50 to +40 °C and relative humidity up to 100 % at 25 °C. Do not store CAN UP 27 in the same room with substances that cause metal corrosion and / or contain aggressive impurities. CAN UP 27 shelf life must not exceed 24 months.

  • Page 44: Transportation

    CAN UP 27 from mechanical damage and precipitation. When transporting by air, CAN UP 27 must be stored in heated pressurized compartments. Air environment in transportation compartments should not contain acid, alkaline and other aggressive impurities.

  • Page 45: Utilization/Re-Cycling

    CAN UP 27 does not contain precious metals in amount that should be recorded. CAN UP 27 online telematics gateway. Operation manual. Version 1.0...

  • Page 46: Contacts

    Contacts Contacts Manufacturer Tel/fax: +375 17 240-39-73 JV Technoton www.mastercan.com http://s6.jv-technoton.com/ru/ E-mail: marketing@technoton.by Technical support E-mail: support@technoton.by CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...

  • Page 47: Annex A List And Contents Of Can Up 27 On-Board Reports

    Annex A List and contents of CAN UP 27 On-board reports Annex A List and contents of CAN UP 27 On-board reports Packet of loin for authorization: #L#protocol_version;id;password;crc16\r\n Field name Transmitted data protocol_version Field should contain the value 2.0 CAN UP 27...

  • Page 48: Annex B Sms Commands For Can Up 27 Remote Configuration

    Annex B SMS commands for CAN UP 27 remote configuration Annex B SMS commands for CAN UP 27 remote configuration Format of SMS-commands: ++PVX;Y;Z;V;DDD…DDDD/++ Table B.1 — Fields SMS-commands Field Purpose Notes SMS-commands Beginning of the command. — Version of SMS format structure.
  • Page 49 Annex B SMS commands for CAN UP 27 remote configuration Table B.2 — List of SMS-commands Field of the Command Purpose command Notes (DDD…DDDD) LDFW Load firmware. see table B.3. — RDID Get serial number and firmware — Returns serial number of version.
  • Page 50 1 For firmware files, create a folder named ―firmware‖ in the root directory of the server. 2 If you need to specify any of the optional fields, all the preceding fields must also be specified. Missing fields are automatically filled with the corresponding settings saved in the CAN UP 27. Example command: ++B1111;100;LDFW;5;file.blf3;PSW/++...

  • Page 51: Annex C Spn Of Can Up 27 Functional Modules

    Setting is not available for editing. 521345 Model 27 Standard Model – this is version of the CAN UP 27 inside of CAN UP product line. Each model has its own functional and constructive features. CAN UP 27 Standard characteristic – wireless data transmission according to GSM standard.
  • Page 52 PGN 65226 521044 Malfunction On the fact List of current CAN UP 27 malfunctions are displayed at the settings code (SID) field (in case of its presence — up to 10). For each active malfunction is indicated following: - faulty nod;...
  • Page 53 GNSS GNSS signals. This setting is available for editing by user. Automatic time adjustment with GNSS signals is not carried out when the value is 0 h. CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 54 (see figure C.1). Power supply borders PGN 63067 521075 Nominal 0…60 Field for entering a nominal value of accumulator voltage of Battery Vehicle (U =12V/24V). Voltage CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 55 - power-supply status is not available/not supported by this device. While working with service software, data exchange between PC and CAN UP 27 is possible only if Unit is power-supplied from external source and power-supply status of CAN UP 27 will always be displayed as ―powered from on-board electrical system‖.
  • Page 56 ―not available/not supported by this device‖. 521116/16.1 Unit hours of On the fact Counter of total operation time of CAN UP 27 from embedded battery operation/ since installation to Vehicle. The Counter cannot be reset by user. Reset 16.1 Battery is possible in Regional Service Centers.
  • Page 57 Number of phone numbers in the list of recipients for sending elements Report to mobile phone numbers. count 521020 Phone Report recipient’s phone number. Number should be specified number in international format (13 digits maximum). CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 58 - Not used - getting SPN is not required. 521188 S6 Address 0…255 CAN bus network address of device, which is the source of (SA) SPN added to content of Report. CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 59 On the fact SIM-card is locked automatically while PIN-code is 521627 entered incorrectly. To unlock the SIM-card enter its present correct PIN- code and turn locking off. CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 60 It is necessary to enter opened port number of 521623/13.1 FTP server CAN UP 27 communication with FTP server. User name/13.1 server It is necessary to enter user name for CAN UP 27 521620/13.1 FTP server authorization at FTP server. Connection mode Passive...
  • Page 61 Counter of successful authentications of CAN UP 27 at successful AVL Server*. authentications at AVL Server 521177 Number of On the fact pcs. Counter of authentication errors of CAN UP 27 at AVL authentication Server*. errors at AVL Server Sent e-mail counter PGN 63147 521240 E-mail Sent On the fact pcs.
  • Page 62 Figure C.2 — Collector 1A1F1D FM configuration window Figure C.3 — Example of a chart of calibration table for analog input CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 63 SA cannot be edited if PGN is sent ―on request‖. 521362 PGN Sending 0…4294970000 Enter time interval (in ms) of sending generated PGN Period via S6. For ―on request‖ sending, enter 0 ms. CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 64 ―0‖ and ―1’ values. In software window, you will see current value and chart of converted SPN parameter change in real time. CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 65 Events of loading/unloading/overloading Vehicle. Figure C.4 — Axles Load Monitoring FM configuration window Figure C.5 — Axle load mode boundaries CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 66 521393/10.1 Axle weight Mode 10000 0…32127.5 Enter axle load value, which will be a boundary between border / ―No semi-trailer‖ and ―not loaded‖ operation modes 10.1 Empty (see figure C.5). CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
  • Page 67 Detailed parameters description (SPN), structure and content of messages (PGN) of FM CAN UP 27 are placed at the following web site http://s6.jv-technoton.com/en (to access S6 DB registration is required). CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...

  • Page 68: Annex D Can Up 27 Firmware Upgrade

    Service CAN UP Software will display appropriate message and automatically will disconnect CAN UP 27 from PC in case the update is successful. CAN UP 27 is ready for further operation. Service CAN UP Software will display a new firmware version with the next connection session between PC and CAN UP 27.

  • Page 69: Annex Ecan Up 27 Using S6 Technology Example Of Wiring Diagram

    CAN UP 27 using S6 Technology example of wiring diagram Annex E CAN UP 27 using S6 Technology example of wiring diagram Figure E.1 — Connectin Units to CAN UP 27, using S6 technology CAN UP 27 online telematics gateway. Operation manual. Version 1.0 © Technoton, 2017...
