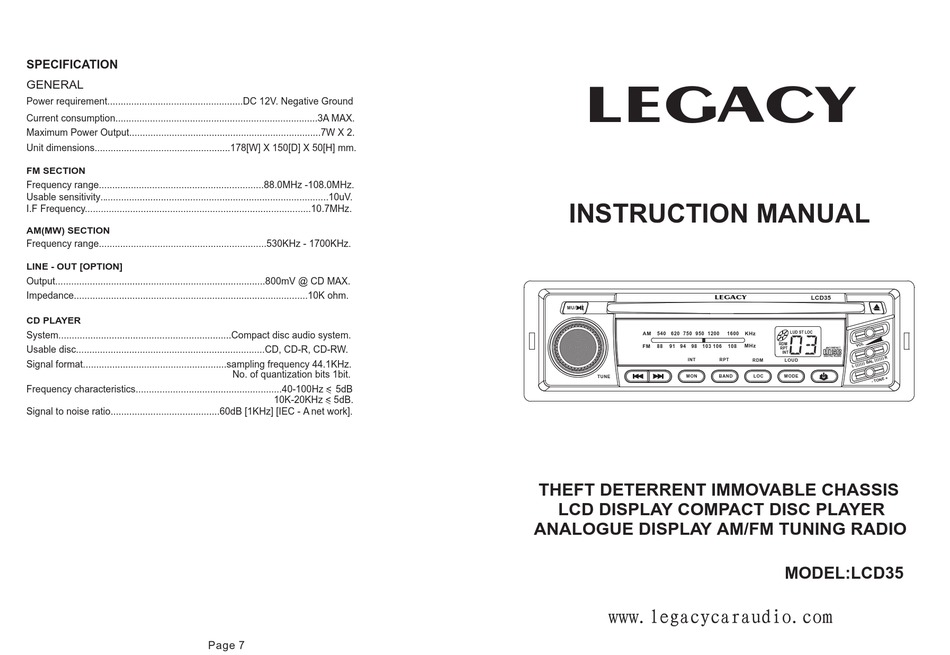

SPECIFICATION
GENERAL
Power requirement...................................................DC 12V. Negative Ground
Current consumption............................................................................3A MAX.
Maximum Power Output........................................................................7W X 2.
Unit dimensions...................................................178[W] X 150[D] X 50[H] mm.
FM SECTION
Frequency range..............................................................88.0MHz -108.0MHz.
Usable sensitivity......................................................................................10uV.
I.F Frequency.....................................................................................10.7MHz.
AM(MW) SECTION
Frequency range...............................................................530KHz - 1700KHz.
LINE - OUT [OPTION]
Output...............................................................................800mV @ CD MAX.
Impedance........................................................................................10K ohm.
CD PLAYER
System.................................................................Compact disc audio system.
Usable disc.......................................................................
Signal format......................................................sampling frequency 44.1KHz.
Frequency characteristics.......................................................40-100Hz < 5dB
Signal to noise ratio.........................................60dB [1KHz] [IEC - A net work].
CD, CD-R, CD-RW
.
No. of quantization bits 1bit.
10K-20KHz < 5dB.
Page 7
LEGACY
INSTRUCTION MANUAL
MU/
AM
540 620
750
950
1200
FM
88
91
94
98
103
106
INT
TUNE
MON
THEFT DETERRENT IMMOVABLE CHASSIS
LCD DISPLAY COMPACT DISC PLAYER
ANALOGUE DISPLAY AM/FM TUNING RADIO
LEGACY
LCD35
1600
KHz
LUD ST LOC
RDM
MHz
108
RPT
COMPACT
INT
DIGITAL AUDIO
RPT
RDM
LOUD
BAND
LOC
MODE
MODEL:LCD35
Advertisement
Summary of Contents for Legacy LCD35
- Page 1 INSTRUCTION MANUAL I.F Frequency..................10.7MHz. AM(MW) SECTION Frequency range...............530KHz - 1700KHz. LINE - OUT [OPTION] Output................800mV @ CD MAX. Impedance..................10K ohm. LEGACY LCD35 CD PLAYER System..............Compact disc audio system. 540 620 1200 1600 LUD ST LOC Usable disc............... CD, CD-R, CD-RW...
-
Page 2: Trouble Shooting
DEAR CUSTOMER: TROUBLE SHOOTING Thank you for your purchase of this CD player. Selecting fine audio equipment such as the unit you have just purchased is only the start of your musical enjoyment. Now it is time to consider how you can maximize the fun and Before using the check list please make all the connections first. - Page 3 To properly fix the metal mounting please ensure the metal support strap is sleeve, bend the tabs of the sleeve connected firmly to the car chassis. with a screwdriver to secure the LEGACY LCD35 bracket firmly in place. LUD ST LOC 540 620 1200 1600...
- Page 4 9. SKIP TRACK UP/ FAST REVERSE BUTTON 15. MODE/LOUD BUTTON In CD playback state, press the button briefly to play the next track. MODE BUTTON: Press and hold the button to fast forward, the CD playback stats when (1) When there is a disc in the CD compartment, press this button briefly to release the button.
