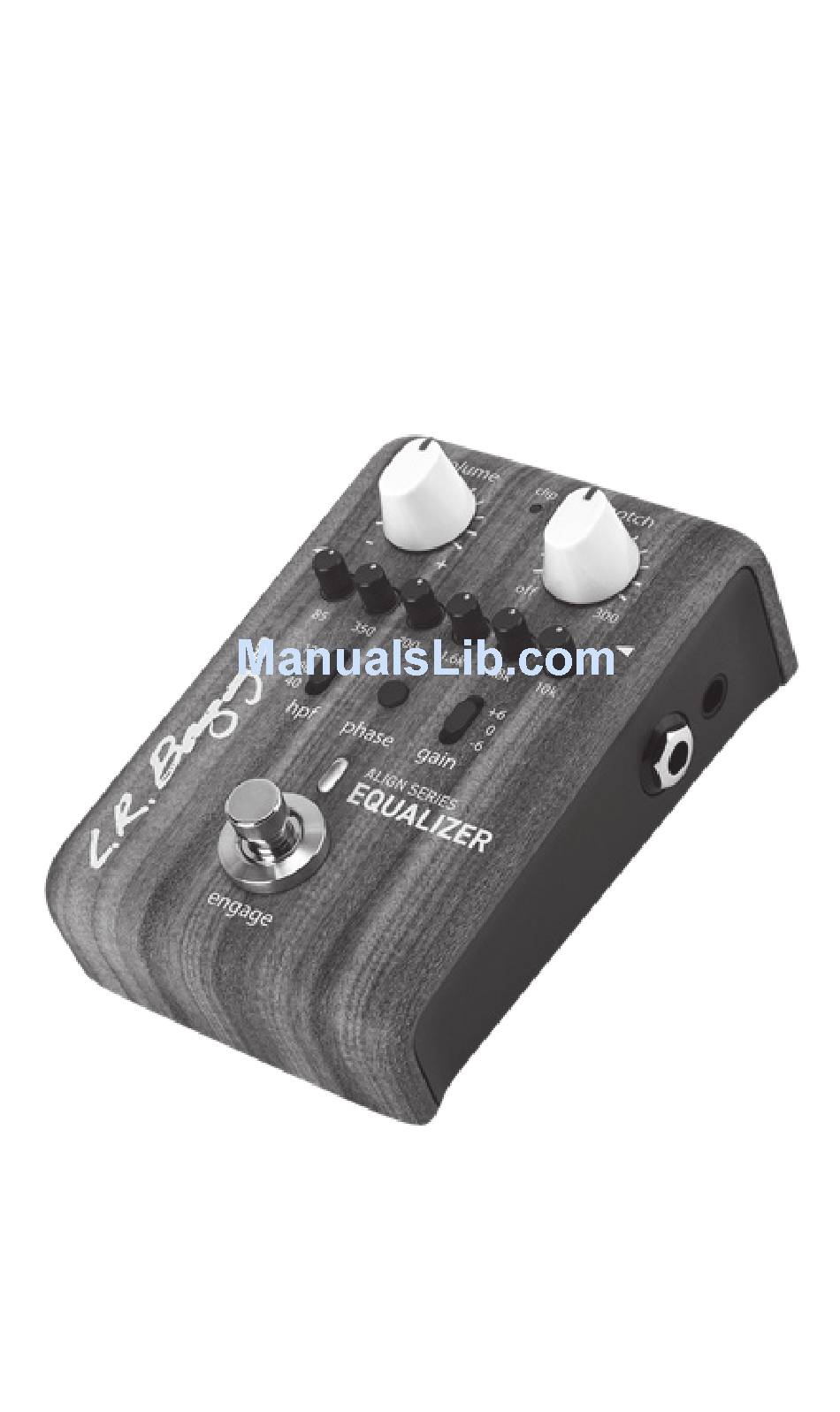

- Page 1 ALIGN SERIES EQUALIZER USER’S GUIDE...
-
Page 2: Getting Started

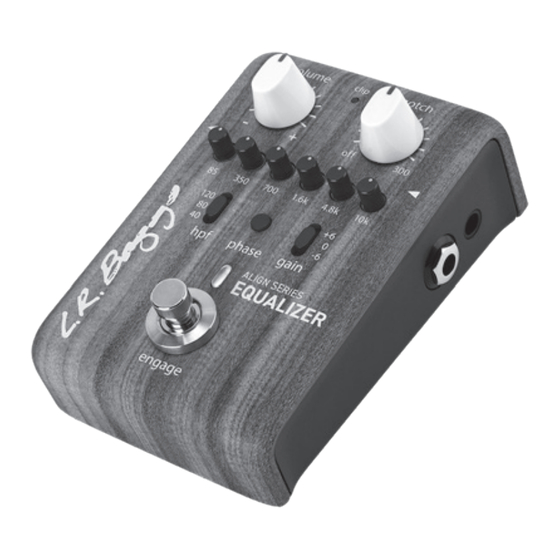

INTRODUCTION Based on the circuit of the esteemed Para Acoustic DI, the Align Equalizer combines our signature, high-graded FET gain stage with powerful tone-shaping EQ that injects richness and balance to any acoustic pickup signal. A 6-band EQ shapes the frequencies we found most useful for improving acoustic guitar pickups with the flexibility needed to cover other acoustic instru- ments effectively. -
Page 3: Instrument Input
TOP FEATURES A. NOTCH The notch filter is designed to help control feedback. If your guitar begins to feedback, slowly turn the notch control clockwise. The offending frequency will stop instantly when the notch is in the proper position. B. INSTRUMENT INPUT The ¼”... - Page 4 C. 6-BAND EQ The Equalizer’s 6-band EQ controls shape the frequencies we found most useful for improving acoustic guitar pickups with the flexibility needed to cover other acoustic instruments effectively. Use the controls to raise or lower each individual frequency to meet the needs of your instrument or to balance your tone in the room.
-
Page 5: Side Features
systems. The variable “hpf” switches between 40Hz, 80Hz, and 120Hz. H. ¼” OUTPUT The ¼” output is an unbalanced, line level output. You can plug into any amp or device that has a ¼” input. We recommend running into any other LR Baggs Align pedals, DI’s, or the Synapse Personal PA System. -
Page 6: Specifications
SPECIFICATIONS 1/4” INPUT Input Impedance: 5.1 Megohms Preamp Gain: -6dB,0dB, +6dB Input Level: -25dBv to +3dBv (0.056Vrms to 1.414Vrms) High Pass Filter: 40Hz, 80Hz, 120Hz Notch: -20dB, sweepable from 40Hz to 300Hz 1/8 octave 85Hz: +/-9dB 350Hz: +/-9dB 700Hz: +/-9dB 1.6kHz: +/-9dB 4.8kHz: +/-9dB 10kHz: +/-9dB... -
Page 7: Product Registration & Warranty Information
Register the Align Equalizer online at: lrbaggs.com/register LIMITED WARRANTY L.R. Baggs warrants to the using purchaser that this product shall be free of defects in workmanship and materials under normal and proper use for a period of one year. If you experience problems with the Align Equalizer, please contact your dealer. - Page 8 483 N. Frontage Road, Nipomo, CA 93444 ph: 805.929.3545 lrbaggs.com...
