Summary of Contents for SpectraPure The LiterMeter III

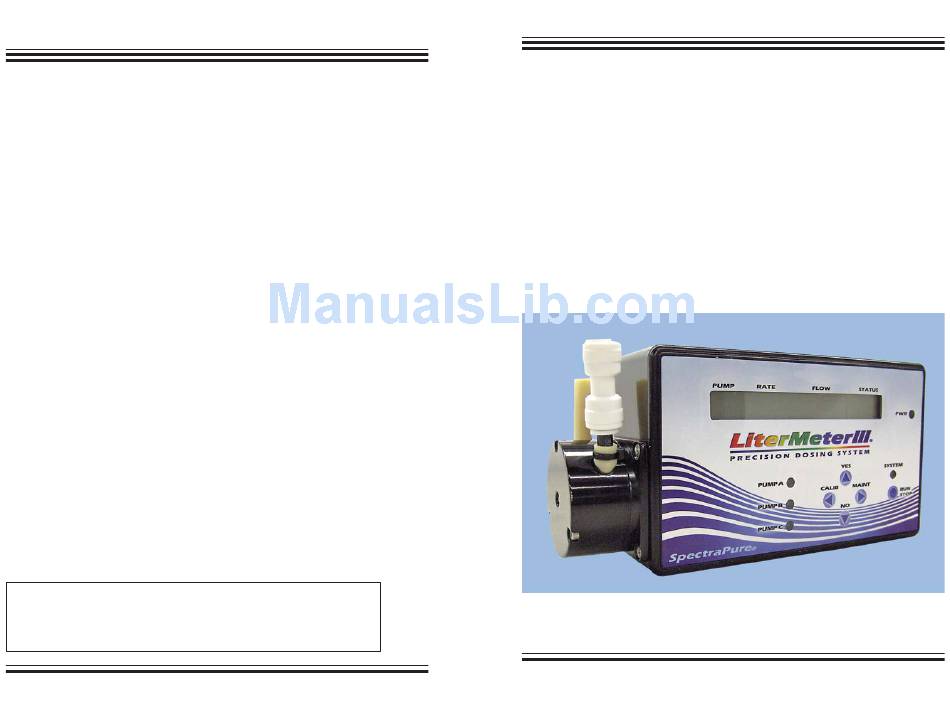

  • Page 1 SpectraPure, Inc. warrants each new LiterMeter Precision Dosing System to the original owner only to be free of defects in material and workmanship for a period of 2 years from the date of receipt. SpectraPure’s liability under The LiterMeter III this warranty shall be limited to repairing or replacing on SpectraPure’s...
  • Page 2: Table Of Contents

    Fig. B-11 Fig. B-12 mission of SpectraPure Inc. SpectraPure®Inc. SpectraPure®Inc . 480.894.5437 Call us toll-free 1.800.685.2783 Fax 480.894.6109 Fax us toll-free 1.877.527.7873 215 South Industrial Drive, Suite 2A Tempe, Arizona 85281-2941 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
  • Page 3: System Description

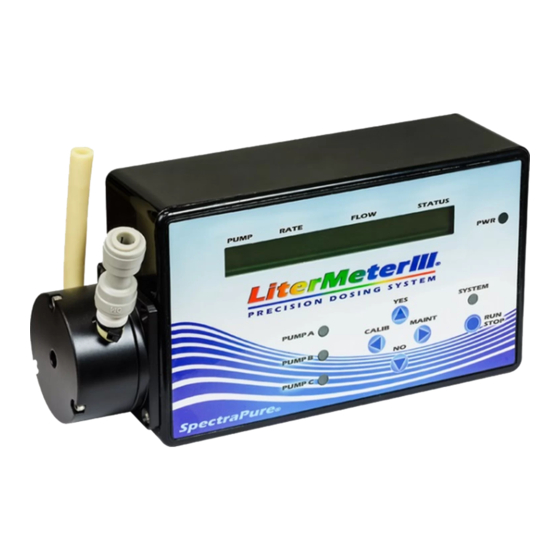

    Pump Head Maintenance SYSTEM DESCRIPTION: The LiterMeter III is a precision liquid dosing system with independent control of three peristaltic pumps, one is internal and two more can be remotely connected. The pumps may be of different sizes and flow rates.
  • Page 4: System Features

    • 2-part calcium additives, such as B-Ionic and C-Balance products • Laboratory use SpectraPure®Inc. SpectraPure®Inc . 480.894.5437 Call us toll-free 1.800.685.2783 Fax 480.894.6109 Fax us toll-free 1.877.527.7873 215 South Industrial Drive, Suite 2A Tempe, Arizona 85281-2941 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
  • Page 5: Controls And Components

    See Fig. B-5. LiterMeter III Side View SpectraPure®Inc. SpectraPure®Inc . 480.894.5437 Call us toll-free 1.800.685.2783 Fax 480.894.6109 Fax us toll-free 1.877.527.7873 215 South Industrial Drive, Suite 2A Tempe, Arizona 85281-2941 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
  • Page 6: System Setup

    2. Loose connection on the Suction side will cause it to 5. Connect the 12 VDC, 500 mA power supply to the power jack (13) lose its prime. on the side of the LiterMeter III, and then to any proper 120 VAC source (230 VAC power supply available). OUTLET...
  • Page 7: Calibrating

    CALIBRATING THE LiterMeter III: All peristaltic pumps exhibit a “breaking-in” period where the tubing An example using the LiterMeter III for the hydroponics industry is shown needs to become “seated” in the pump head. Variations in pumping below. Nutrient components “A” and “B” are metered and mixed in height and liquid viscosity will also affect the flow RATE of the pump.
  • Page 8: Programming

    PROGRAMMING DOSING MULTI-PART ADDITIVES One of the most common uses of the LiterMeter III is to dispense Many different brands of 2- and 3-part additives are available today. a metered amount of kalkwasser on a daily basis from a reservoir For example, using the B-Ionic and C-Balance products, the LiterMeter III containing many days’...
  • Page 9: System Operation

    Two-way water changes have been a problem in the past. Two pump heads mounted on one shaft can have different flow RATEs and thus unequal totals after a period of time. The LiterMeter III solves this problem LiterMeter III by providing individual pump flow RATE calibrations. With two pumps Transformer properly calibrated, a constant water exchange system can be set up.
  • Page 10: The Lights

    THE BUTTONS When the LiterMeter III is in RUN mode, the group of four navigation but- LM3-RPM tons are used to change the RATE, FLOW and STATUS of the individual Remote Pump Module –...
  • Page 11: Navigation Aids

    B: 206 12.34 RUN A: 234 12.34 RUN (DOWN) (RIGHT) SpectraPure®Inc. SpectraPure®Inc . 480.894.5437 Call us toll-free 1.800.685.2783 Fax 480.894.6109 Fax us toll-free 1.877.527.7873 215 South Industrial Drive, Suite 2A Tempe, Arizona 85281-2941 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
  • Page 12: Maintenance

    DIGIT in FLOW Operation STATUS Very little maintenance is required to keep your LiterMeter III operating reliably for many years. The LiterMeter III has a Service Interval Timer (300 Digits are stored as they are OFF = Pump is always OFF hours of run time) for each pump.
