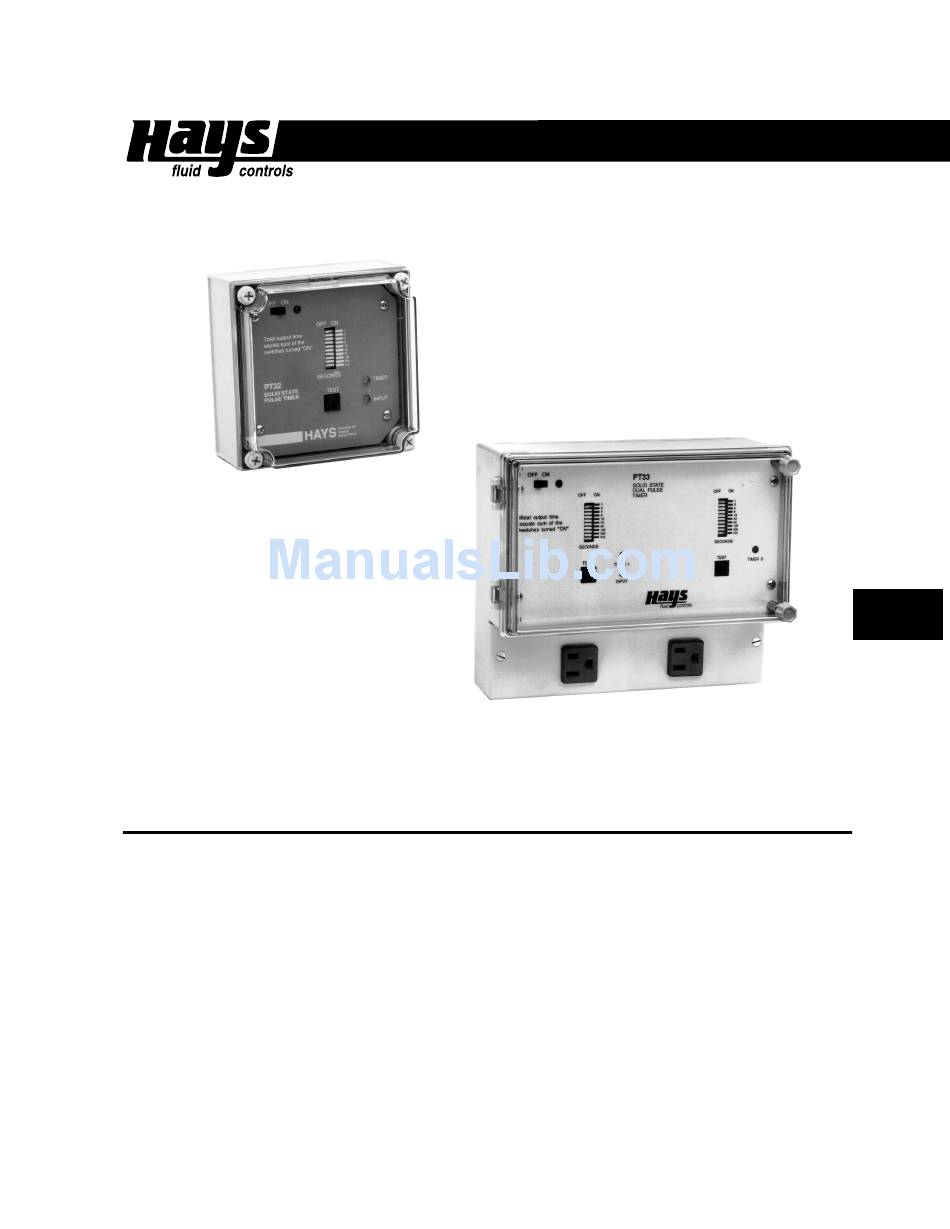

PT32
•
Simple Installation and Operation. The PT32 and PT33 are easy to install and operate. Hays
controller are designed to eliminate expensive installation.
•
Safe Power Switching with Pulse Meter. For safety, the meter sensor loop is low voltage, low
curent and transformer isolated
•
Compatable with all Hays Meters. This gives the ability to match control requirements to the
pulse timer.
•
Power, Input and Output Lights. At a glance, you are able to determine process in action.
•
Precise Setting. Digital setting eliminates the trial and error settings of a rotary dial.
PT32, PT33
SPECIAL FEATURES
— Pulse Timers
•
Solid State Electronics
•
Timer Range: 1-1270 seconds
•
Low Voltage, low current
•
Nema 4 enclosure
•
Single Timer (PT32)
•
Dual Timer (PT33)
PT33
4-23
Advertisement
Table of Contents
Summary of Contents for Hays PT32
- Page 1 PT33 SPECIAL FEATURES • Simple Installation and Operation. The PT32 and PT33 are easy to install and operate. Hays controller are designed to eliminate expensive installation. • Safe Power Switching with Pulse Meter. For safety, the meter sensor loop is low voltage, low curent and transformer isolated •...
-
Page 2: Specifications
• Sequential timers (PT33 only) • Third power receptacle (unswitched)(PT33 only) Example: Single Timer with Nema 4 Rating Order: PT32 with conduit connection SPECIFICATIONS Power: 115 VAC, 50-60 Hz Timer Ranges: 1-1270 seconds (21 minutes) Enclosure: Glass-reinforced polycarbonate Relay Contact Rating:... - Page 3 1. Mount the timer to a solid surface as follows: PT32—Gain access to the screw holes by removing the front cover. Insert a screw through each of the four corner holes and tighten. PT33—...
- Page 4 4. Be sure to replace the front cover and tighten screws before leaving the unit in operation. The PT32/PT33 pulse timer is designed for use with a HAYS MR or ME pulse meter. It can be used to control a metering pump or valve in a variety of proportional feed or bleed applications. The timer’s solid-state one-shot logic cycles once for each contact from the meter.
- Page 5 PT32, PT33 — Pulse Timers CONNECTION DIAGRAM INPUT CONNECTIONS INPUT CONNECTOR 1 POWER - 2 INPUT SIGNAL 3 POWER + TO CONNECTOR PIN 1 TO CONNECTOR PIN 2 CONTACT CLOSURE 4-27 BLACK TO CONNECTOR PIN 1 WHITE TO CONNECTOR PIN 2...
