TR-2000/TR-1000/TR-2015/TR-2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Tranzeo Wireless Technologies TR-2000

Summary of Contents for Tranzeo Wireless Technologies TR-2000

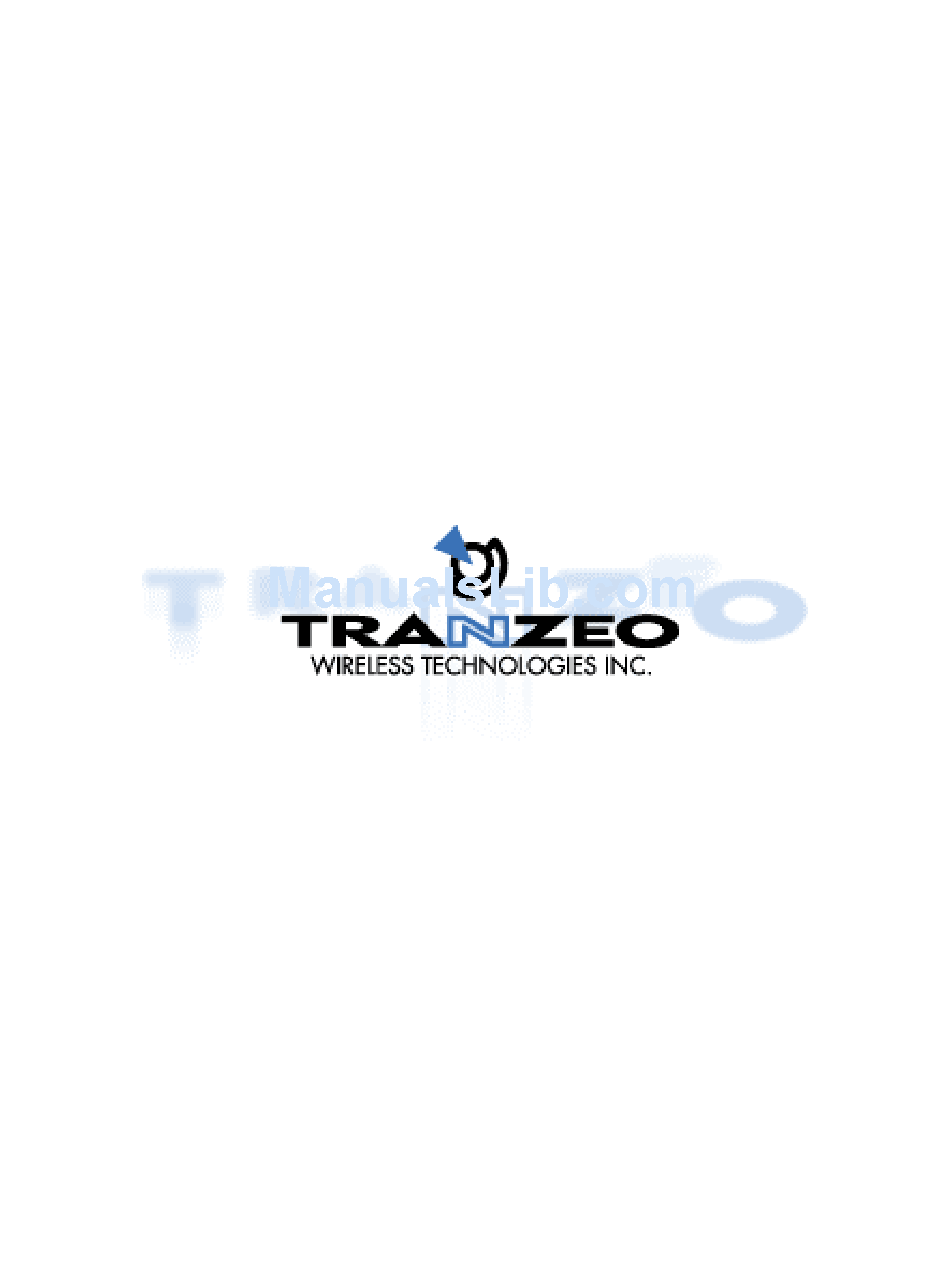

  • Page 1 TR-2000/TR-1000/TR-2015/TR-2018...

  • Page 2: About This Manual

    FCC Information This equipment has been tested and found to comply with the limits for a Class A digital devices pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction 1-1 Features and Benefits 1-2 Applications2 1-3 System Configurations Chapter 2 Hardware Installation 2-1 Product Kit 2-2 System Requirements 2-3 Mechanical Description 2-4 Hardware Installation Chapter 3 Configuring the Access Point 3-1 Using the Access Point Manager 3-2 Using the Web Management 3-3 Using the Console Mode Chapter 4 Troubleshooting...

  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction The 11Mbps Wireless LAN Access Point is a high-speed wireless unit that performs as a transparent Media Access Control (MAC) bridge between wired Local Area Networks, and one or more wireless networks. It brings Ethernet-like performance to the wireless realm.

  • Page 5: System Configurations

    C1- Trade shows, exhibitions and construction sites where a temporary network will be practical. C2- Retailers, airline and shipping companies need additional workstations during peak period. C3- Auditors requiring workgroups at customer sites. 5. Access to database for mobile workers Doctors, nurses, retailers, accessing their database while being mobile in the hospital, retail store or office campus.

  • Page 6: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation This chapter describes initial setup of the Access Point. 2-1 Product Kit Before installation, make sure that you have the following items: The 11Mbps Wireless LAN Access Point……………………………………x 1 Quick Start Guide. …………………………………………………………...x 1 Power Adapter……………………………………………..………………….x 1 Product CD ……………………………………………………………………x 1 If any of the above items is not included or damaged, please contact your local dealer for support.

  • Page 7: Chapter 3 Configuring The Access Point

    the Access Point. Then connect the other end of the RJ-45 cable to a hub or a station. Please be aware that, use the MDI port to connect the Access Point to a hub. Otherwise, please use the MDI-X port to connect the Access Point to a computer/station. Connect the Power Cable Connect the power adapter to the power socket on the Access Point, and plug the other end of the power into an electrical outlet.
  • Page 8 The statistics tab contains three of the following items for you to monitor the Ethernet and Wireless network traffic. Ethernet: You may monitor the TX/RX on the wired network. Wireless: You may monitor the TX/RX of the wireless network. Wireless Error: This item offers detailed information on error wireless packets that the AP receives and transmits.
  • Page 9 Station Adapter – 802.11 Ad-Hoc (SAA2): Same to SAA. This Ad-Hoc mode complies with 802.11 standard. NOTE: When setting the operation mode to either PxP or SAA, you need to set the Access Points with the same channel. ESSID however can be ignored. When the SAA2 is selected, you need to set both the ESSID and channel for the Access Point.
  • Page 10 In the IP Address tab, there are two TCP/IP modes for the Wireless Access Point: Bridge-Only and IP Router. Bridge-Only To enable remote access to the Wireless Access Point using Telnet or Web Management, you need to select the Bridge-Only mode and assign an IP address to the wireless Router.

  • Page 11: Access Control

    server, WINS server, you may either choose to set manually or obtain these parameter via your DHCP server. WEP: The 11Mbps Wireless Access Point allows you to create 4 data encryption keys to secure your data from being eavesdropped by unauthorized wireless user. To activate and set the WEP keys, do the following: From the WEP encryption item, pull down the menu and it will list three options: Disable –...

  • Page 12: Using The Web Management

    • The import/export file is in a plain text format. 3-2 Using the Web Management The built-in Web Management provides you with a user-friendly graphical user interface (web pages) to manage your Wireless Access Points. An AP with an assigned IP address (e.g.

  • Page 13: Using The Console Mode

    3-3 Using the Console Mode The Access Point can be configured via the command prompt console with either: RS232 (serial) Connection: The RS232 port configuration is provided for advanced users to manage the Access Point. You may use any terminal emulation program with a RS232 (serial) connection (e.g.,...
  • Page 14 To change factory default settings, type “set xxx (parameter) xxxx (value) based on the chart below. For example, set channel 7 command will set the channel to number 7; set essid “Your Network” command will set the ESSID as Your Network. Remember that, a ‘save’...
  • Page 15 Issue a reset signal. The Access Point will be reset if the user confirms. 3-3-2 Advanced Setup This section describes the advanced commands to configure the 11Mbps Wireless Access Point. The advanced parameters include Access Control Table, WEP, DHCP/IP Router Mode, PPPOE, Wireless DHCP Server and NAT. Please follow the instructions of each command to set your Access Point.
  • Page 16 set key4 key_text: set WEP Key#2 as key_text with a same format as WEP Key#1. set usekey 1|2|3|4: Select the WEP key to be used for encrypting data transmission. Only one key can be selected at a time. list: Display current WEP settings. Note: Your new WEP settings will take effect after resetting the Access Point.
  • Page 17 set mode | ip_start | ip_end | ip_netmask | ip_gateway | ip_dns1 | ip_dns2 | ip_wins1 | ip_wins2 |wizard: set the DHCP server mode and other related network parameters for the Wireless Access Point. The definition of “dhcp set mode” command is listed as follows: •...

  • Page 18: Chapter 4 Troubleshooting

    Chapter 4 Troubleshooting If you have trouble using the 11Mbps Wireless LAN Access Point, the starting point to troubleshoot the problem with your Access Point is looking at the LED activity of the Access Point. The following is “LED Error Table” provided to assist you in diagnosing and solving operational problems.

  • Page 19: Appendix A Network Configuration

    TR-2000 LED Activity Table LINK DESCRPTION/ACTION Steady Normal Activity Green ? No Action Required Continuous No LAN Activity – ? No Action Required Power failure ? Check power chord/supply Invalid loader Firmware or micro-controller dead ? Return to Dealer for support Invalid Access Point Firmware –...

  • Page 20: Appendix B Specifications

    DC 12V (External power supply included) RF Output Power 13 dBm Sensitivity -84dBm @ 11Mbps, PER < 8* 10-2 TR-1000 and TR-2000 N-female connector Antenna TR-2015 15 dBi integrated panel TR-2018 18 dBi integrated panel Appendix C Glossary Access Point - An internetworking device that seamlessly connects wired and wireless networks.
  • Page 21 within range. In cellular and personal communications applications, each cell or microcell has its own base station; each base station in turn is interconnected with other cells’ base. Bridge - An internetworking function that incorporates the lowest 2 layers of the OSI network protocol model.
