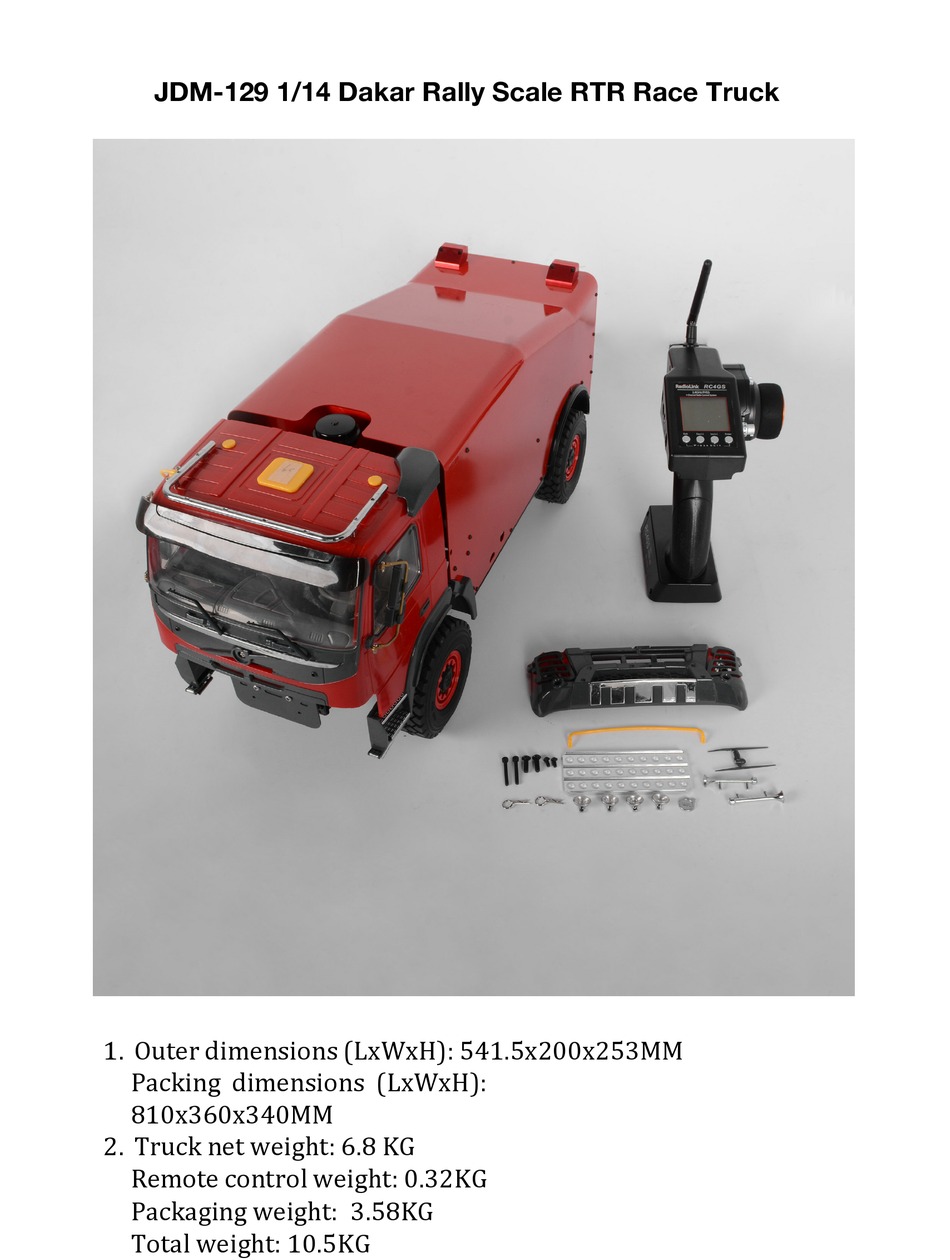

- Page 1 JDM-129 1/14 Dakar Rally Scale RTR Race Truck 1. Outer dimensions (LxWxH): 541.5x200x253MM Packing dimensions (LxWxH): 2. Truck net weight: 6.8 KG 810x360x340MM Remote control weight: 0.32KG Packaging weight: 3.58KG Total weight: 10.5KG...
- Page 2 3. Main material: aluminum alloy, iron, copper, ABS and polycarbonate. 4. Minimum ground clearance (axle pumpkin 5. Incline driving angle: 35° position): 32MM Road driving angle: 20° 6. Power voltage: 12V, XT60 connector, we recommend ≥ 3S 25C Lipo Decline driving angle: 56° 7. Maximum speed: 25KM/H (3S battery) battery. Battery size should be within 165x50x60MM (LxWxH) 8. Remote control Antenna Direction Trim Lever CH3 Trim Lever Turning Wheel Button for Menu Setup Throttle Trim Lever Speed-changing Knob Button (CH3/CH4) CH3 for speed CH4 for lights...
- Page 3 Simulator Port USB Upgrade Port Power Switch Throttle Trigger 9. Sound system: this product does not include a sound system. Optional Parts: You may choose to purchase one separately. We recommend 10. Light system: this product does not include a light system. the 3T system or ESS ONE (part number VVV-S0074). You may choose to purchase one separately (part number JDM-76).
- Page 4 **Important Note: Remote only reserves one channel for either sound or light. Remote will not work for both. 11. Main features: 2-speed planetary transmission, reduction ratio at 1-speed is 1:16 and 1:4 at 2-speed. Axles have been preset up with the function of differential locking with the remote control. Since the hanging anti-dig rod is adjustable, you may lock down the screws for anti-dig rod to improve the body stability while fast running. Additionally, you may unlock these screws to increase torsion for the axle while climbing.
- Page 5 Adjustments when you can’t switch to 2-speed differential lock well: 1. Loosen the screw on differential servo and allow the lock nut press the springs to adjust. Note: adjust slowly, don’t adjust too much at once. 2. Increase the setting of 2-speed on remote control channel to channel 4. Adjustments when the differential lock of front and rear axles doesn’t work well: 1. Loosen the screw on differential servo, find and pull out a bit the springs from the front axle and rear axle accordingly. Then use the screw to fix the springs. Note: pull springs out slowly, don’t pull too far all at once.
- Page 6 2. Increase the setting of differential lock on remote control channel 4. 12. Notes: A. Before the truck is connected to the battery, please adjust the speed button (CH3) on the remote control to the center. B. It is best not to turn the speed button (CH3) when the truck is running.
