Summary of Contents for Symcod MoniCom 15''

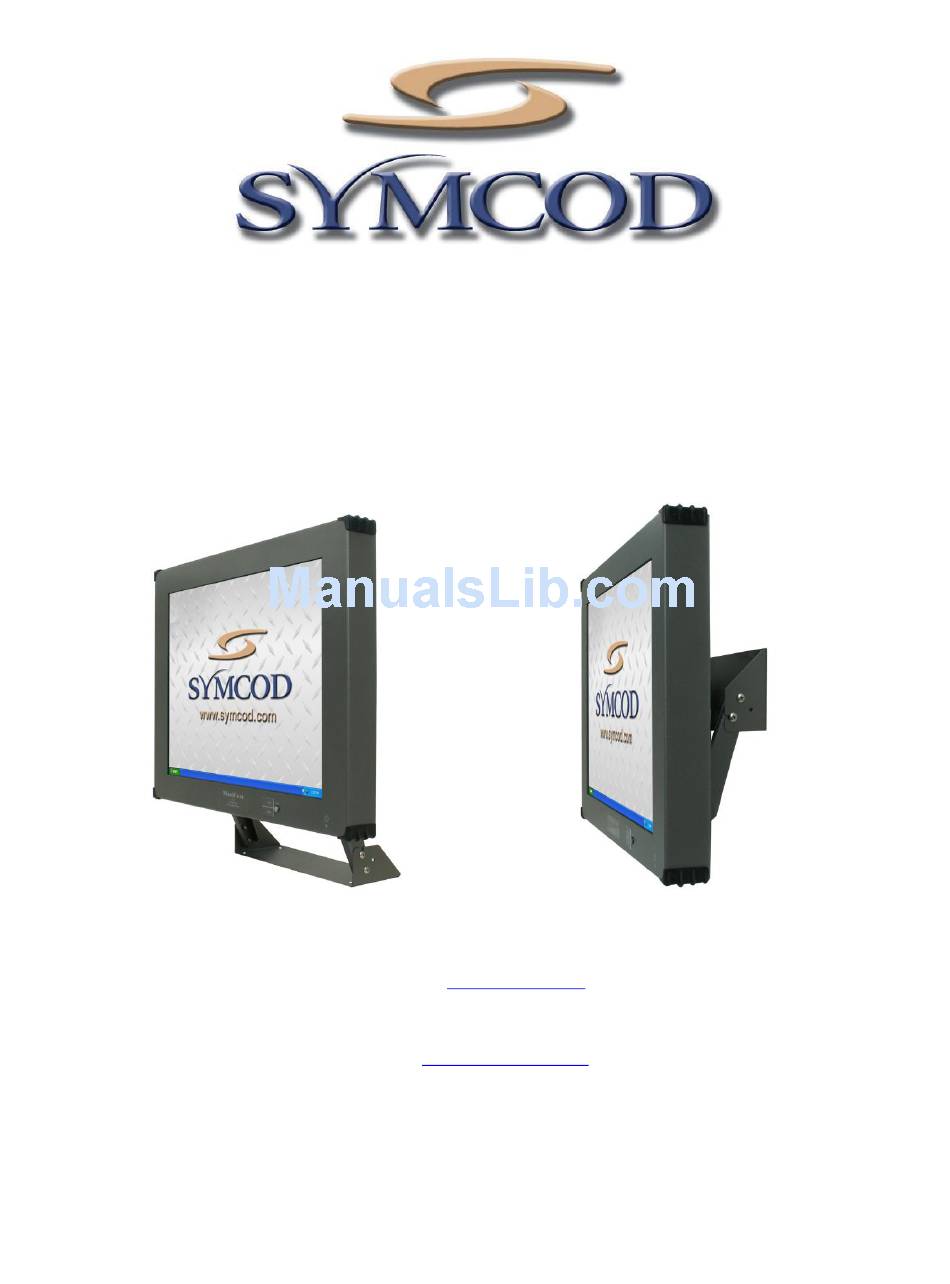

- Page 1 MoniCom 15” and 19” User Manual Documentation Version: 27-09-2012 WEB site: www.symcod.com E-mail: support@symcod.com...
-
Page 2: Warranty
MoniCom WWW.SYMCOD.COM Warranty Warning Disclaimer The material on this document* is Symcod warrants its products to be free intended for end user, distributor and/or from defects material reseller use. Although downloading and workmanship during one year from the printing documents is allowed, Symcod purchase date. -
Page 3: Read Me First
( ). WARNING: Safety and reliability SYMCOD Inc will not be responsible for the use of this equipment for other purpose then data collection. This equipment is designed and intended for an industrial and commercial use only. The... - Page 4 MoniCom WWW.SYMCOD.COM MoniCom The MoniCom is a touch screen monitor specifically designed for dusty industrial environment without watering. The casing of the MoniCom is made of aluminum which gives it his lightness and resistance. The MoniCom is provided with a 15"/19" TFT LCD resistive touch screen and with a solid aluminum stand which allows desktop or wall mount installation in a few minutes.
-
Page 5: Main Characteristics
MoniCom WWW.SYMCOD.COM Main characteristics MoniCom 15" Color touch screen Inputs / Outputs Product # 006-01215B-1000 Recommended for environments with very abrasive dust, screen covered with a fine layer of tempered glass, allows operation with deep scratches. Environmental specifications Product MoniCom 15"... - Page 6 MoniCom WWW.SYMCOD.COM Main characteristics MoniCom 19" Color touch screen Inputs / Outputs Product # 006-01219B-1000 Recommended for environments with very abrasive dust, screen covered with a fine layer of tempered glass, allows operation with deep scratches. Environmental specifications Product MoniCom 19"...
- Page 7 MoniCom WWW.SYMCOD.COM Dimensions (in inches) for the 15” and 19” MoniCom 15" Wall mount Desktop mount Top view Side view Side view MoniCom 19" Wall mount Desktop mount Top view Side view Side view...
-
Page 8: Options Description
MoniCom WWW.SYMCOD.COM Power The MoniCom is powered through an external 12 VDC power supply which connects to a 120/240VAC power network. (Power cable and power supply are provided with the unit) WARNING: powering Before installation, please turn off powering source. Plug the unit only when the installation is completed. - Page 9 MoniCom WWW.SYMCOD.COM How to install your MoniCom The support provided with the MoniCom permits to install the unit on a wall or on a table. Once fixed, the angle of the MoniCom can be easily adapted to the needs of each user, no need to do a new adjustment of the screws (see fixation &...
-
Page 10: Mounting Holes
MoniCom WWW.SYMCOD.COM Mounting variants The MoniCom is always sent with its support installed at the bottom of the unit and in Wall mount position. However, it is possible to change the location and position of the support to respond to different needs. - Page 11 MoniCom WWW.SYMCOD.COM MoniCom 19" Mounting Holes The MoniCom also offers VESA100 mounting (100mm x 100mm) at the back to allow installation to a VESA mounting arm. These mounting holes accept M4 screws (not included) that must not exceed a depth of 1"...
-
Page 12: Detailed Specifications
MoniCom WWW.SYMCOD.COM Detailed Specifications The MoniCom is provided with some ports (see Figure 2) allowing the connection to a computer. Figure 2 MoniCom bottom view Power button The power button (figure 2) allows the MoniCom to be powered on or off. - Page 13 MoniCom WWW.SYMCOD.COM With the MoniCom are provided two "L" shaped brackets to allow you to tie your USB cable and power cable to prevent them from disconnecting unexpectedly. To tie your USB cable, use one of the screws from the USB connector to hold the bracket in place, connect your USB cable then tie it to the bracket with a tie-...
-
Page 14: Service And Support
Phone: 1-800-203-9421, 1-819-751-0095 Fax: 819-751-1292 Return Merchandise Authorisation (RMA) All return request must be authorized by SYMCOD Inc. To do so please refer to the following: http://www.symcod.com/rma You will receive a formal confirmation number (# RMA) The RMA number must be printed on each box.
