PRIZM Petit Crouto v4 User Manual

Single cell middle range illuminated saber controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

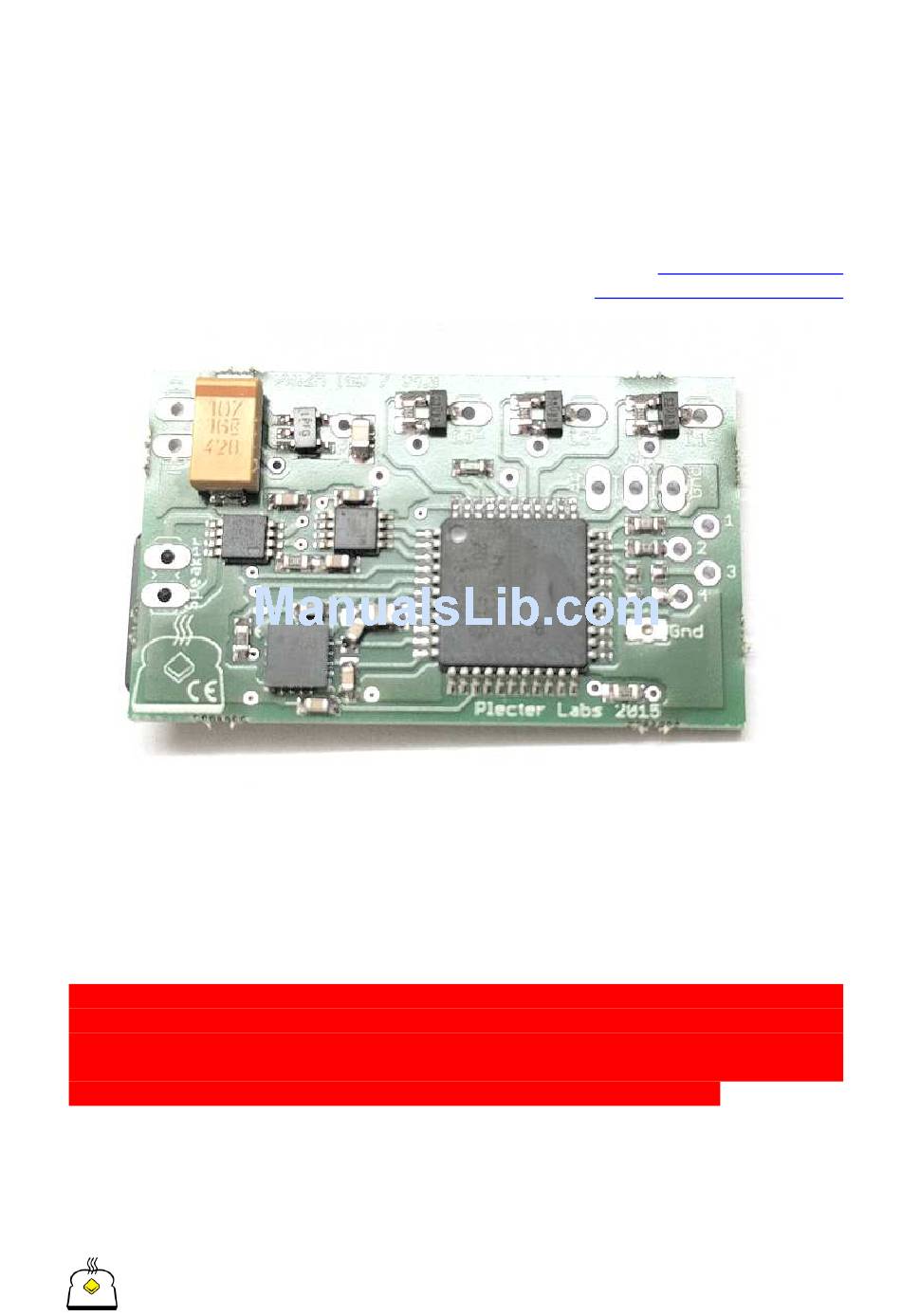

Single Cell Middle Range Illuminated Saber Controller
Important release information
3 channel direct drive Color mixing with the FlexiBlend™ engine
-
Supports luxeon III, V, rebel (old or new), seoul LEDs, Ledengin, tri-rebels, tri-
-
Cree etc
Trident™ (cross-guard) support
-
We spent a lot of time writing this manual to ensure all the important
information is provided for proper use of that board. If you are new to saber
building, to the use of Petit Crouton boards, or simply to electronics in
general, we highly recommend you print a copy of that document and keep
it with you during the whole process of installing PC in your hilt.
Modification, copies or distribution of that document is strictly prohibited
Plecter Labs is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates.All brands and trademarks listed are the exclusive property of their respective
Owners.
The PRIZM Sound Board User's Manual
Petit Crouton™ PRIZM v4
User's manual
© Plecter Labs / Erv' Plecter 2005-2016
© Erv' - Plecter Labs
February 2016
erv@plecterlabs.com
http://www.plecterlabs.com
1
