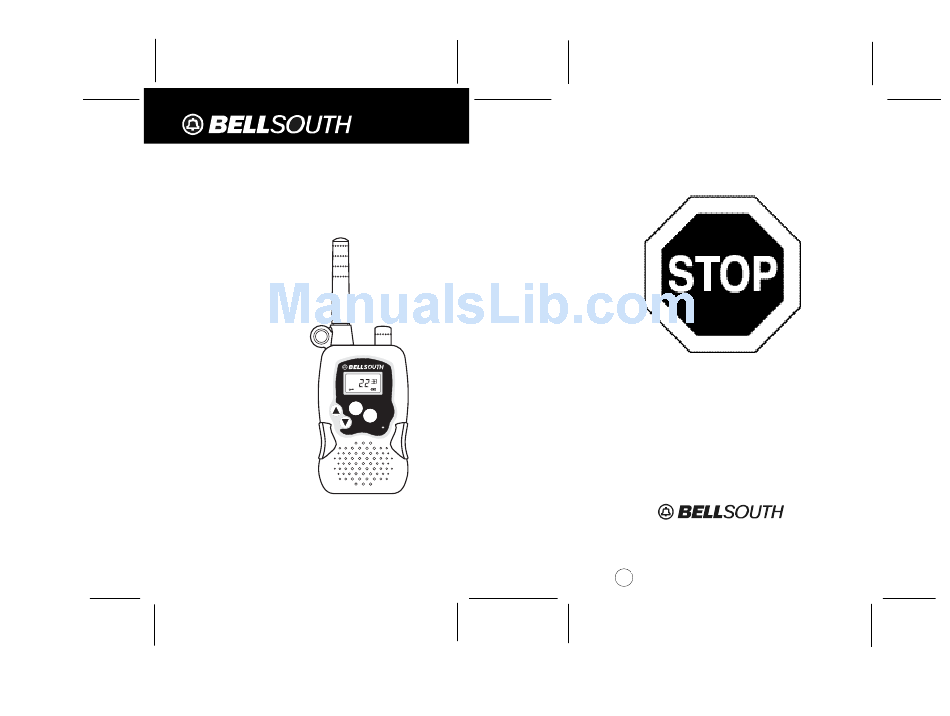

COMMUNICATOR
MODEL 2730
OWNER'S MANUAL
AND OPERATING
INSTRUCTIONS
TX
HI
P
LO
PLEASE READ
VX
GMRS/FRS
THIS OWNER S
Mode
MANUAL
CAREFULLY
BEFORE USE.
KEEP FOR YOUR
REFERENCE.
FOR "GETTING STARTED" INFORMATION,
PLEASE SEE INSTALLATION INSTRUCTIONS ON PAGE 7
OR
YOUR SEPARATE QUICK START GUIDE.
© 2002 BellSouth Corporation
RX
SC
Call
Read this Owner's Manual first to
receive the best performance from the
COMMUNICATOR.
Operation on GMRS frequencies
requires a license from the Federal
Communications Commission (FCC)
Website - http://wireless.fcc.gov/prs/genmbl.html
Tel.: 1-800-418-3676
Visit Us on the Web:
www.uselectronics.info
Made in China
LD
