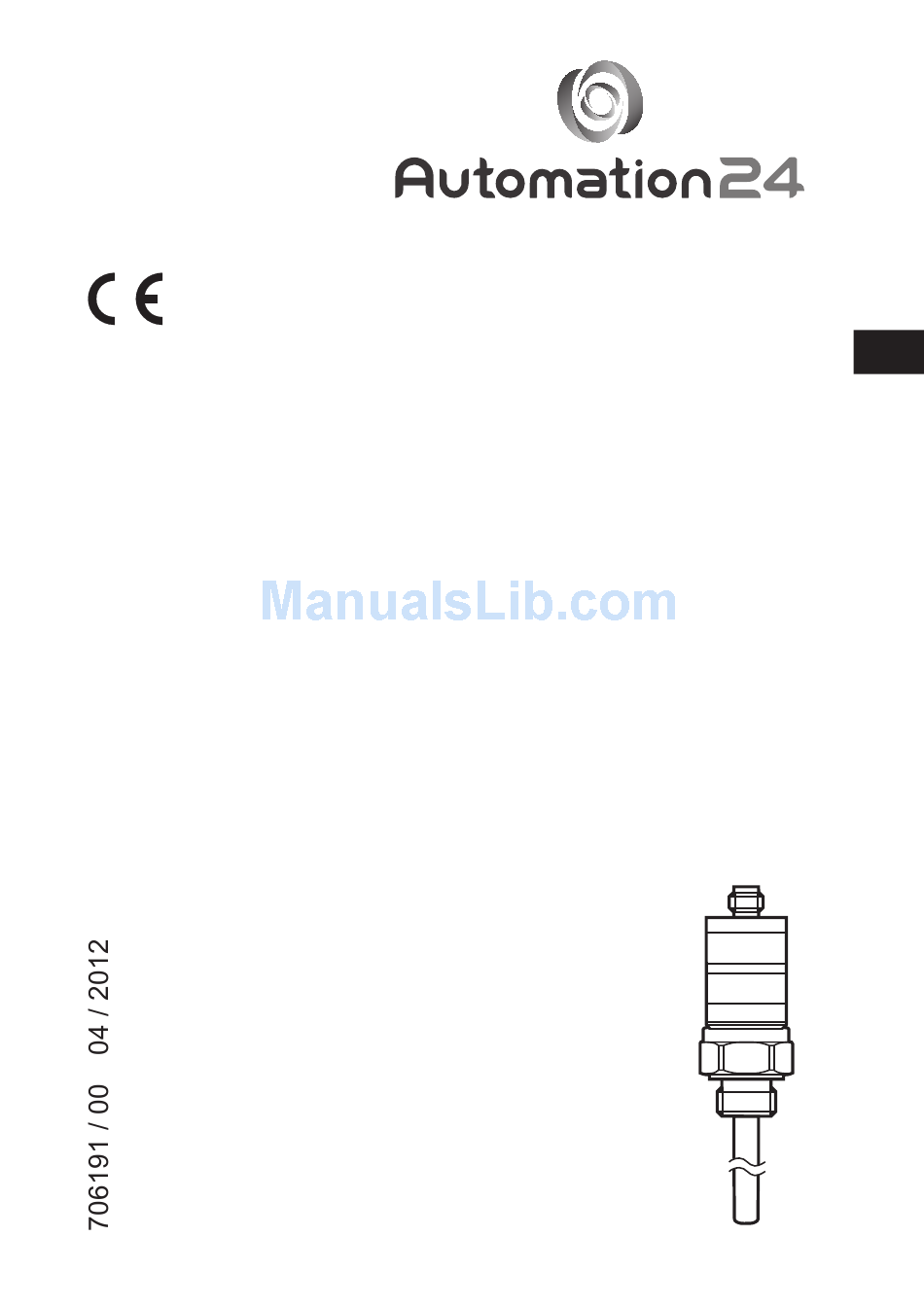

- Page 1 Operating instructions Electronic temperature sensor TC6704...
- Page 2 1 Functions and features The unit detects the system temperature in machines and installations. 2 Function The unit generates 2 output signals: 1 x NO + 1 x NC with separately adjustable switch points [SET1] and [SET2]. With rising temperature OUT1 closes when the set value [SET1] is reached. OUT1 With falling temperature OUT1 opens, when the value [SET1] minus hysteresis is reached.
- Page 3 5 Setting SET1 SET2 1: locking ring 2: setting rings (manually adjustable after unlocking) 3: LED yellow: lights if OUT1 = ON, temperature ≥ [SET1] 4: setting marks 5: LED yellow: lights if OUT2 = ON, temperature < [SET2] 6: process connection G½ A Pin 4 = OUT1 / Pin 2 = OUT2 To obtain the setting accuracy: Set both rings to the minimum value, then set the requested values.
- Page 4 6 Scale drawing M12 x1 Dimensions are in millimeters...
- Page 5 Vibration resistance [g] ..........20 (DIN / EN 68-2-6, 10 - 2000 Hz) EN 61000-4-2 ESD: ....................4 / 8 KV EN 61000-4-3 HF radiated: ..................10 V/m EN 61000-4-4 Burst: ......................2 KV EN 61000-4-6 HF conducted: ..................10 V More information at www.automation24.com...
