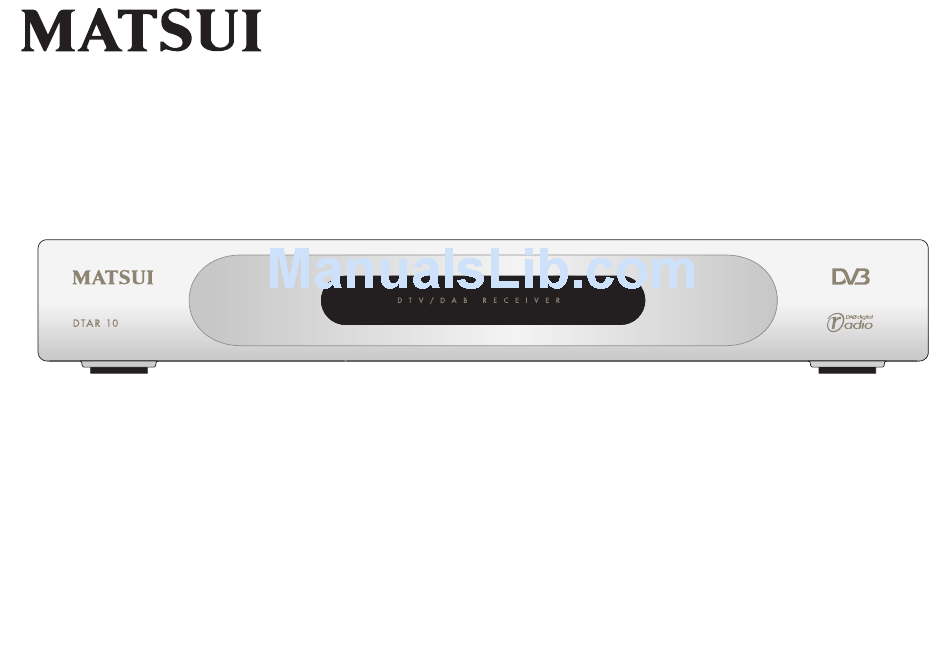

  • Page 1 How to use your DTAR10 Receiver...
  • Page 2 Safety warnings Moisture Ventilation If required, use a soft damp cloth to clean the casing. Do not use strong detergents or solvents. Allow at least a 10 cm gap around your unit for sufficient ventilation. Do not cover the ventilation openings. Do not expose your unit to dripping or splashing liquids.

  • Page 3: Table Of Contents

    Contents Introduction........................1 Connecting up ......................2 Overview diagrams...................... 3 Getting started......................5 Using the main menu ....................7 Troubleshooting......................14 Technical Specifications................... 15...

  • Page 4: Introduction

    Introduction Thank you for buying the DTAR10 Digital Terrestrial Televison and Radio set-top box. The DTAR10 enables you to receive digital televison and DAB digital radio through your TV aerial and existing TV without the need for subscription-based cable or satellite access.

  • Page 5: Connecting Up

    Connecting to a hifi RF cable Use a dual phono to dual phono lead (not supplied) to connect your DTAR10 to your hifi as shown to be able to record digital radio or output the audio through your hifi speakers.

  • Page 6: Overview Diagrams

    Overview diagrams Overview diagrams Main Unit Power LED shows Remote sensor receives when the unit is on infra red signal from the remote control LINE LEVEL AUDIO OUT LINE LEVEL RF IN for RF OUT for DC for SCART 1 for SCART 2 for AUDIO OUT connection to...

  • Page 7: Remote Control

    Remote Control toggles between power on and standby modes 0-9 Quick TEXT toggles teletext on access to and off (where available) channels WIDE toggles GUIDE displays between widescreen on-screen TV guide and normal TV STB toggles between Coloured buttons perform digital and analogue TV special menu functions as SUBTITLES toggles subtitles...

  • Page 8: Getting Started

    Getting started This section provides information on how to set up and start using your DTAR10 once you have connected up as described on page 2. For further details on using your DTAR10 see the other sections in this manual.
  • Page 9 OK to change to another station on the list. Viewing extra information Press the yellow button (Info on/off) to view extra information, including DAB channel and frequency and multiplex name. Please read the instructions in the rest of this manual for further guidance on using your DTAR10.

  • Page 10: Using The Main Menu

    Using the main menu The main menu gives you access to the TV Guide, Digital Radio, Timer Record and Setup functions of your DTAR10. Press the MENU button to access the main menu then select one of the icons to access the submenu for that function.

  • Page 11: Selecting A Station

    Digital Radio The Digital Radio menu shows the complete list of digital radio stations available to you, shows which type of content they broadcast and enables you to select favourite stations. You access the Digital Radio menu from the main menu by selecting the Digital Radio icon.

  • Page 12: Deleting A Recording

    Timer Record The Timer Record menu enables you to set your DTAR10 to switch on (if in standby mode) and tune to a channel for a set period of time. You can use this to record programmes to your VCR even when you are not watching TV.
  • Page 13 You access the Setup menu from the main menu by selecting the Setup icon. TV Channel Search Your DTAR10 can automatically scan the digital television frequencies and store the channels available in your area. The number of channels available will vary depending on coverage at your location and the orientation and type of your aerial.
  • Page 14 Selecting your favourite channels 1. Use the up and down arrows to highlight a channel then press OK. The channel is marked with a tick in the favourites list. 2. Repeat step one as required to select other channels, or press the Green (Select All) button to select all channels or Red (Clear All) button to clear all selections.

  • Page 15: Signal Strength

    Digital Radio Channel Search Your DTAR10 can automatically scan the digital radio frequencies and store the stations available in your area. The number of stations available will vary depending on coverage at your location and the orientation and type of your aerial.
  • Page 16 Radio Favourites The Radio Favourites option enables you to view a complete list of your Digital Radio stations and mark those that are your favourites. Marking your favourite stations puts them at the top of the station list for easy access. You can also manually change the order in which the stationsappear in the channel list.

  • Page 17: Troubleshooting

    The channel search finds no channels Check that your aerial is connected directly to your DTAR10 and that it is of suitable type (Check with your retailer if unsure). Note that most indoor aerials are unsuitable for receiving Digital TV.

  • Page 18: Technical Specifications

    Technical Specifications Technical Specifications General Connections Size (mm) 120 (w) x 218 (l) x 30 (d) UHF Aerial input, UHF Aerial output + 2 SCART. Weight 300 g SCART pin Power Consumption 800 mA (max) connections System Processor FS5021 DVB-T/DAB Decoder DSP/ RISC processor TV SCART 1 Audio right output...
