Clean City RCPGG6 Assembly Instructions

AssemBLy InstructIons

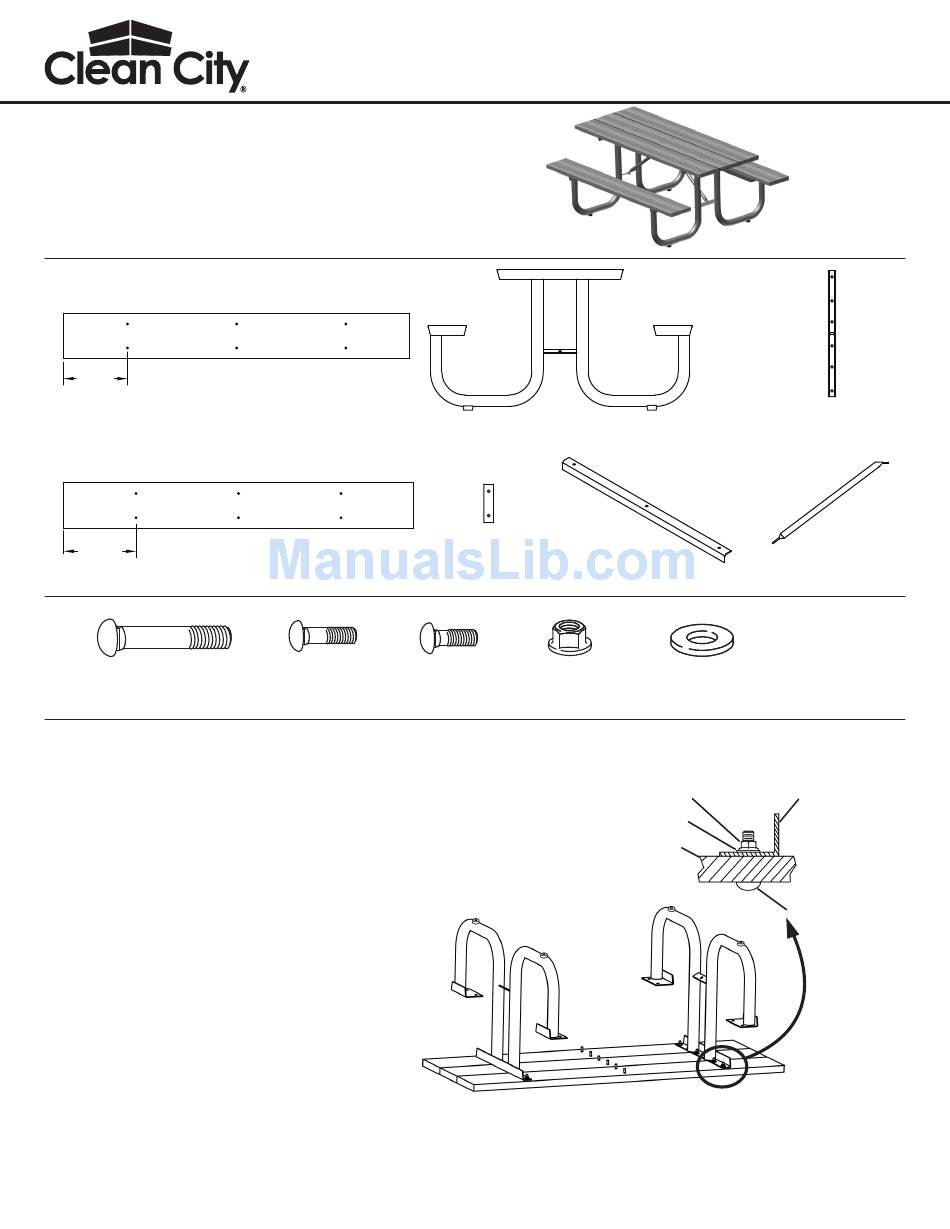

rcpG6 Recycled Plastic Picnic Table

tooLs needed:

• Ratchet with 9/16" Socket and 3/8" Socket
• Tape
• Level

tABLe components:

13.25"
13.25"
3 x Tabletop Plank
14.87"
2 x Seat Plank

AssemBLy HArdwAre:

14.87"
30 x
3/8" X 2.5"
Carriage Bolt

AssemBLy:

The assembly is a two-person operation.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.
2. Assemble the Table over the shipping packaging or padded work area to avoid
scratching the product.
Note: Before assembling the Nuts to the Bolts, it is recommended that a light oil or
petroleum jelly be applied to the screw threads
3. Lay the three Tabletop Planks out on the work
area. The Tabletop Planks can be distinguished
from the Seat Planks because the predrilled holes
on either end of the Tabletop Planks are about
1.5" closer to the end of the Plank.
Push a 2.5" long Carriage Bolt through each of the
holes in each of the Tabletop Planks.
Note: It may be helpful to Tape the Bolt heads in place
so the Planks can be adjusted without dislodging
the Bolts.
4. Place one of the Table Under Supports over one of
the lines of Carriage Bolts. Make sure the vertical
flange on the mounting bar of the Under Support
faces outward toward the nearest end of the
table. Place a Flat Washer and Flanged Nut on the
end of each Carriage Bolt and tighten. Repeat for the other Under Support. Be sure to check the alignment of the vertical flange
on the mounting bar before tightening the Flanged Nuts.
ASI_RCPG6-B
4/2011
800-231-1327
www.landscapebrands.com
sales@landscapebrands.com
2 x Seat Stiffener
Support
2 x
1 x
3/8-16 X 1.5" 3/8-16 X 1.0"
Carriage Bolt Carriage Bolt
2 x Table Under
Support
2 x Seat Stiffener
33 x
3/8" Flat Washer
3/8-16
Flanged Hex Nut
Flanged Nut
Washer
Tabletop
Plank
Landscape Brands
211 North Lindbergh Blvd.
St Louis, MO 63141-7809
Phone: 314-535-5005
Fax: 314-754-0835
1 x Center
Brace Mount
2 x Angle Brace
33 x
Vertical flange
oriented out
toward nearest
end of the Table
Carriage Bolt
1 of 4
