Summary of Contents for Acura Global UHF860

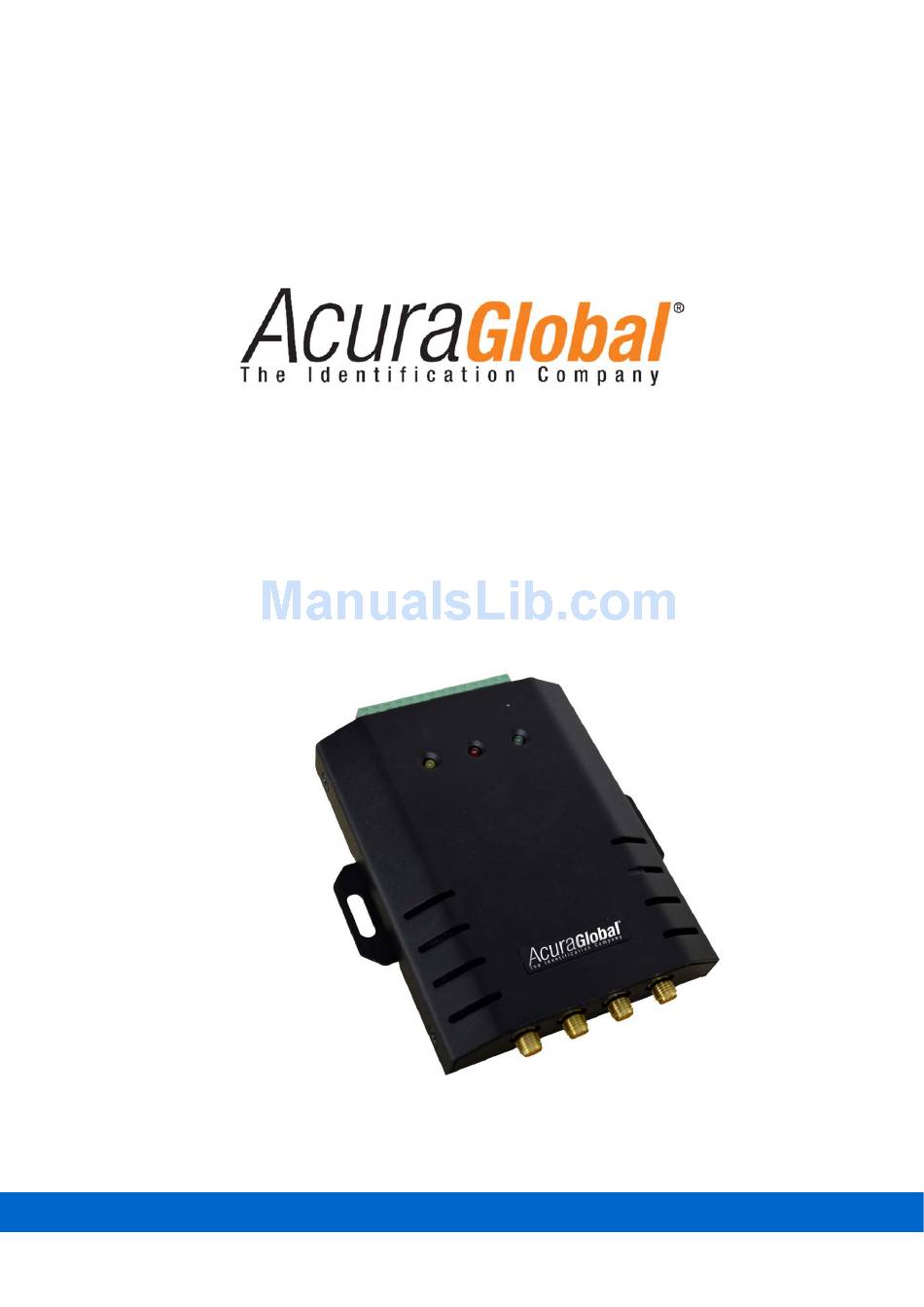

- Page 1 Copyright© 2013 ACURA Global. UHF860 RFID READER User’s manual English draft TM970180 April 10, 2013...
- Page 2 Copyright® 2013: without a written approval from ACURA Global Inc, this document is not allowed to be duplicated for the public usage. The content is subjected to change without notice Revision history Version Date of issue Description April 10, 2013...
-
Page 3: Table Of Contents
Specification ....................... 3 LED reader status indication ..................4 Antenna port ....................... 5 I/O connection ......................5 Chapter 2：Insatallaion of UHF860 ............. 6 Befefore getting started ..................6-7 RS232 interfacing……………………………………………………………………….8-9 Single RS485 interfacing ..................10-11 Multiple RS485 interfacing ..................11 Wiegand interfacing .................... -
Page 4: Chapter1：Overview

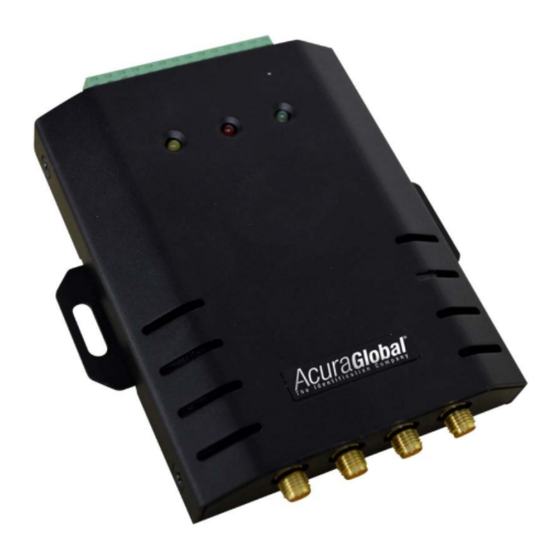

UHF860 RFID Reader Chapter 1：Overview Introduction UHF860 is a slickly designed ultra high frequency RFID reader with a reading range of 5 meters. It has widely varied applications such as Asset Control, Transportation Management, Logistic of Items Management…etc. We strongly suggest you read this manual in details before you start the setup. -
Page 5: Optional Accessories
UHF860 RFID Reader Optional accessories Following parts are available to purchase from ACURA Global to work with UHF860 Reader. Go to sales@acuraglobal.com for sales inquiry of these items. ANT800-EU / ANT800-US Circular polarization Cable VISA Antenna bracket kit USB232B Converter USB485A Converter ©... -
Page 6: Specification
Operating: 10% ~ 90% non-condensing Storage: up to 90% non-condensing Vibration 0.5Grms , 10~500Hz ( not tested ) Safety approval Approval CE R&TTE FCC ID EN 302 208-1/-2 PART 15B/C EN 301 489-1/-3 EN 60950-1 © 2013 ACURA Global. All rights reserved http://www.acuraglobal.com... -
Page 7: Led Reader Status Indication
(Auto mode) Normal read Blink once (Every active ID reading) Tags in sensing field Blink once (communication mode) Tags in sensing Continuous field reading (Auto mode) Communication Continuous reading mode ISP mode © 2013 ACURA Global. All rights reserved http://www.acuraglobal.com... -
Page 8: Antenna Port
RS232 Received Data Differential Signal (+) RS485 Differential Signal (-) No Connect Digital Input 1 Digital Input 2 Digital Input 3 Digital Input 4 Digital Output 1 Digital Output 2 Power Ground © 2013 ACURA Global. All rights reserved http://www.acuraglobal.com... -
Page 9: Chapter 2：Insatallaion Of Uhf860
One set of PC equipped with the operating systems of Windows XP / Vista / Windows 7 or Up One set of UHF860 RFID Reader One piece of bundled Disk 5442 contenting UHF reader utility and documents ... - Page 10 UHF Reader Utility with the Basic Setting value. The output value could be different depending on the features of other brand antennas or UHF tags you are applying with (ANT800 antenna is the optional device to work with UHF860 developed by ACURA).
-
Page 11: Rs232 Interfacing
UHF860 RFID Reader 5. Mainly there are 4 available interfacing modes of UHF860 to work with PC/Controller, RS232, Single RS485, Multiple RS485 and Wiegand. Please refer to the one you are applying with. RS232 communication Please refer to the below illustration for wiring connection and communication. - Page 12 3. Do not power on unless you have secured and connected the power supply to UHF Reader’s I/O Pins for VCC and GND communication. 4. Connect the wires of TX/RX at RS232 cable to UHF860’s TX/RX I/O pins. 5. Connect RS232 connector with it’s cable to PC com port...
-
Page 13: Single Rs485 Interfacing
RS485+ RS485 Differential Signal (-) RS485- No Connect Power Digital Input 1 Digital Input 2 Digital Input 3 Push Digital Input 4 Button Digital Output 1 Alarm Digital Output 2 Power Ground © 2013 ACURA Global. All rights reserved http://www.acuraglobal.com... -
Page 14: Multiple Rs485 Interfacing
3. Do not power on unless you have secured and connected the power supply to UHF Reader’s I/O Pins for VCC and GND communication. 4. Connect the end of +/- at RS485 cable to UHF860’s I/O Pin for RS485+/-. 5. Connect another end of UB485 converter cable to PC’s UBS port. - Page 15 UHF860 RFID Reader RS485 to USB UHF860 USB485A ANT800 UHF860 ANT800 ANT800 © 2013 ACURA Global. All rights reserved http://www.acuraglobal.com...
- Page 16 RS232 Received Data Differential Signal (+) RS485 Differential Signal (-) No Connect Digital Input 1 Digital Input 2 Digital Input 3 Digital Input 4 Digital Output 1 Digital Output 2 Power Ground © 2013 ACURA Global. All rights reserved http://www.acuraglobal.com...
- Page 17 10. Then open Multi-RS485 Utility and assign a comport to communicate. 11. Click on Scan Begin to Detect UHF860 12. When the device is detected, an UHF860 icon will show up. Click on it to enter the reader properties configuration. 13. Click on “Auto mode” to start Tags scanning.
- Page 18 14. Adjust the UHF Tag to face the reading range within 5M and situate in front of ANT800 (Antenna). You will see the EPC IDs displaying on UHF Reader Utility screen and indicates which antenna is scanning them © 2013 ACURA Global. All rights reserved http://www.acuraglobal.com...
-
Page 19: Wiegand Interfacing
No Connect Digital Input 1 Digital Input 2 Digital Input 3 Digital Input 4 Digital Output 1 Wiegand Control Digital Output 2 Interface Borad Power Ground Pull high 220 ohm + 5V © 2013 ACURA Global. All rights reserved http://www.acuraglobal.com... - Page 20 8. Then open Multi-RS485 Utility and assign a comport to communicate. 9. Click on Scan Begin to Detect UHF860 10. When the device is detected, an UHF860 icon will show up. Click on it to enter the reader properties configuration 11. Click on “...
-
Page 21: Chapter 3：Trouble Shooting
Q1: Why I cannot find UHF860 reader after running UHF Reader Utility? Answer: 1. Check if the Yellow LED and Green LED are running on UHF860 device 2. Check if the cable and power supply are wired in correct. 3. Check if the connectors are terminated and secured well between PC/Controller and...
