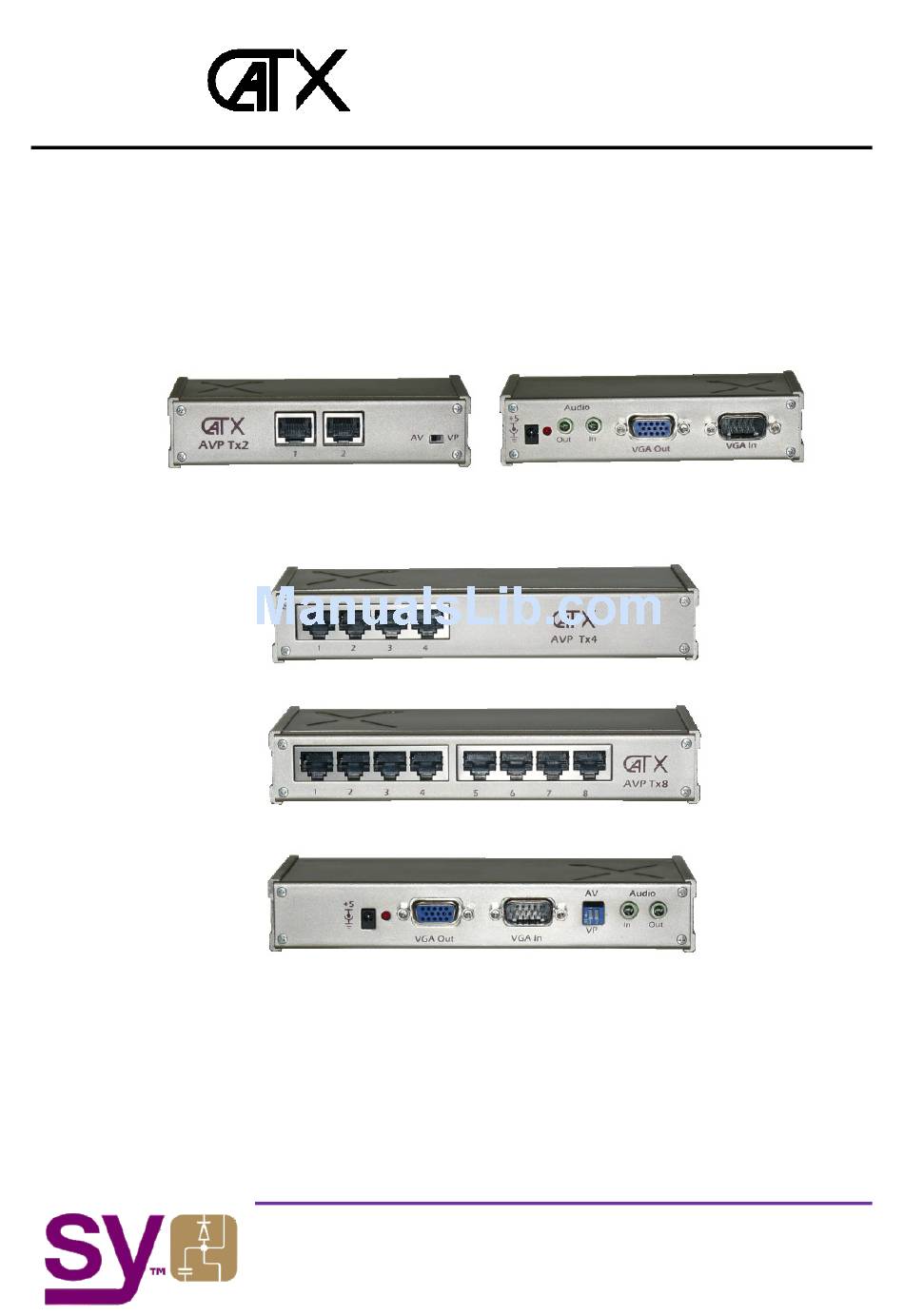

- Page 1 View the possibilities CatX AVP Transmitters (2, 4 and 8 outputs) Manual and Installation guide Cat5/6 extenders Audio + VGA Video distribution cat5/6 UTP Cable Tel: +44 (0)161 868 2450 – Fax: +44 (0)161 868 2459 syelectronics.co.uk MAN201002-1...
- Page 2 CatX AVP units can be configured to transmit Audio+VGA video (AV) up to 300m or VGA Video+Power (VP) up to 150m over Cat5/6 UTP cable. Use the mode select switch on the front of the CatX AVP Tx2 transmitter to select either AV or VP mode for both outputs.
- Page 3 CatX units Compatible with AVP Transmitters Transmitters – (All transmitters are up to 300m) CatX AVP Tx2 2 port, AV / VP transmitter with local VGA output CatX AVP Tx4 4 port, AV / VP transmitter with local VGA output...
- Page 4 (T568B specification) at both ends, as shown below: DO NOT connect CatX units to any other network (Data or Voice). DO NOT connect CatX units using a crossover patch cable. Technical Specification CatX AVP Tx2 CatX AVP Tx4 CatX AVP Tx8 Maximum Distance 300m of Cat5/5e/6 UTP cable 75 Ohms RGB input/output;...
