Summary of Contents for EIS KBSOUND

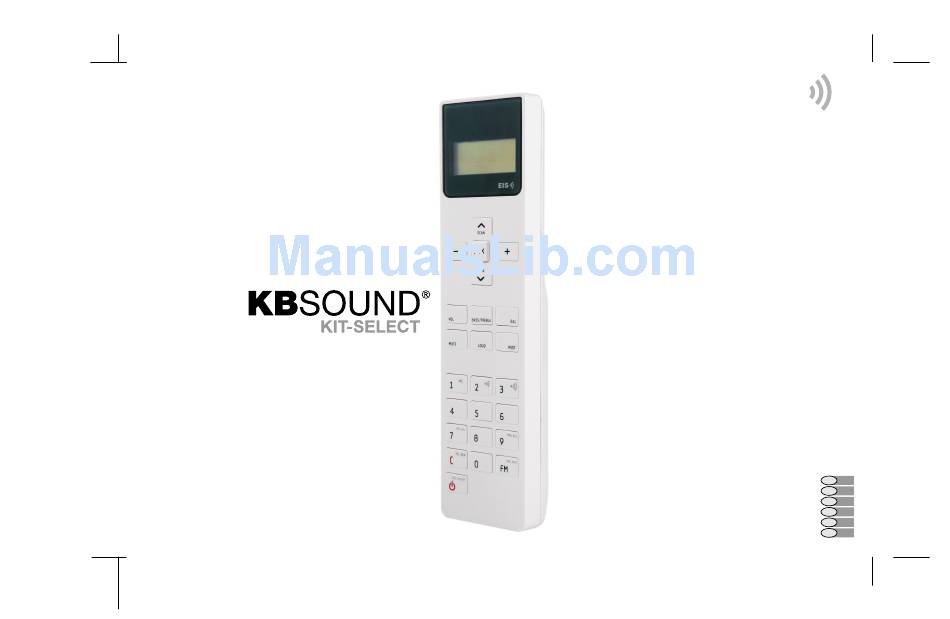

- Page 1 Electrónica Integral de Sonido USER’S MANUAL BENUTZERHANDBUCH MANUEL DE L ’USUAIRE GEBRUIKERSHANDLEIDING MAMANUALE DELL'UTENTE BRUKERHÅNDBOK...
-
Page 3: Table Of Contents
Important Safety Instructions Table of Contents Quick Reference Guide Before installing the unit, please read and follow the instructions provided in the Installation Manual included in this kit. 1. Introduction Before operating the unit, please read and follow the instuctions provided in this User´s Manual thoroughly 2. -
Page 4: Quick Reference Guide
Quick Reference Guide FM memory pre-sets Automatic FM station search 1” Audio level control volume/bass/treble/balance ”IDEAL” mode Select +/- keys function volume/bass/treble/balance Forced mono Automatic FM station Loudness search sensitivity 5” Mute Delete all FM tuning pre-sets 5” Store all FM stations detected Numeric Keypad 5”... -
Page 5: Introduction
1. Introduction Introducing ® , a sound device especially designed for easy and quick installation, sound select without building work, cabling or pre-installations involved. Its three components (remote control, loudspeakers and electronic device) provide an FM tuner that perfectly blends into the kitchen or bathroom décor installed in the furnishings. -
Page 6: General Operating Notes
2. General Operating Notes 1.- None of the functions (except ON/OFF) work unless the remote control is in “on” mode. 2.- Functions pertaining to operating the audio signal only work when “mute” is cancelled. Once the ® is connected to the mains, it will remain powered even it is in OFF state. sound select That means that the OFF state (as indicated in this manual) really means a “standby”... -
Page 7: Operating Audio Functions
3. Operating Audio Functions Key Sequence Display If the control unit is off, a brief press on the will gradually turn on the unit ON/OFF key (between 1 and 2 seconds). The LED will display the word “ON” When the control unit is off, the LED will be OFF. Increase/decrease in the signal volume: The LED will vol 58 flash to indicate the desired change in volume. -
Page 8: Operating The Fm Tuner
4. Operating the FM Tuner Key Sequence Display 4.1 Station Search SCAN While the search is taking place, the word “SCAN” will appear on the display screen. The screen will duly display the station frequency of the next station located. 1”... -
Page 9: Tuning To Fm Memory Pre-Sets
4. Operating the FM Tuner Key Sequence Display 4.3 Tuning to FM Memory Pre-Sets MEM 19 The SCAN keys allow you to scroll through the stations stored in memory (see Chapters 2.6 and 2.7, Storing and Clearing Stations in Memory). When stations are stored in memory they are sorted in ascending order;... -
Page 10: Storing And Clearing Station Frequencies Automatically
4. Operating the FM Tuner Key Sequence Display 4.5 Storing and Clearing Station Frequencies Automatically To activate the process, hold down key 9 for 5”. storing station frequencies automatically AUTO 5’’ When the automatic programming begins the screen will display the word “AUTO” . The control unit will store into memory the stations that are received with the highest quality, ordered from lowest frequency (87.5 MHz) to highest frequency (108.0 MHz). -
Page 11: Selecting Turn-On Mode
5. Selecting Turn-On Mode This function is designed for use in the event that the ® sound select power supply is fed by a specifically designated switch. In this case, the automatic activation mode must be programmed in order to automatically turn on the ®... -
Page 12: Ideal" Mode
6. “Ideal” mode Key Sequence Display The "IDEAL" mode of operation can be instantly accessed by pressing the IDEAL key on the IDEAL remote control. In this mode, a specific station is played at particular levels of volume, bass, treble and loudness. To program your "IDEAL"... - Page 13 6446 0032 CENTRAL AENOR Polígono Malpica Calle F Oeste Grupo de Naves Gregorio Quejido, 87-88 50016 Zaragoza (España) Empresa Electrónica Integral de Sonido Registrada Tel.: 34 976 465550 ER-0634/1998 Fax: 34 976 465559 comercial@eissa.com MADRID Paseo de Europa 13, 2ºB 28700 San Sebastián de los Reyes Madrid (España) Tel.: 34 91 6593678...
