Thanks for your selection of our products, please reach this manual carefully before you use
it, which will provide you a great help.
1. Basic specification parameters
Image Device:
Validity Pixel:
Transmitting Frequency: Channel 1:2.414GHz；Channel 2: 2.468 GHz.
Horizontal Definition: 380TVL
Minimum Illumination: 0LUX
Transmitting signal:
Transmitting Power:
Open transmission distance: 30~50meters
Power consumption:
Working temperature:
Working time:

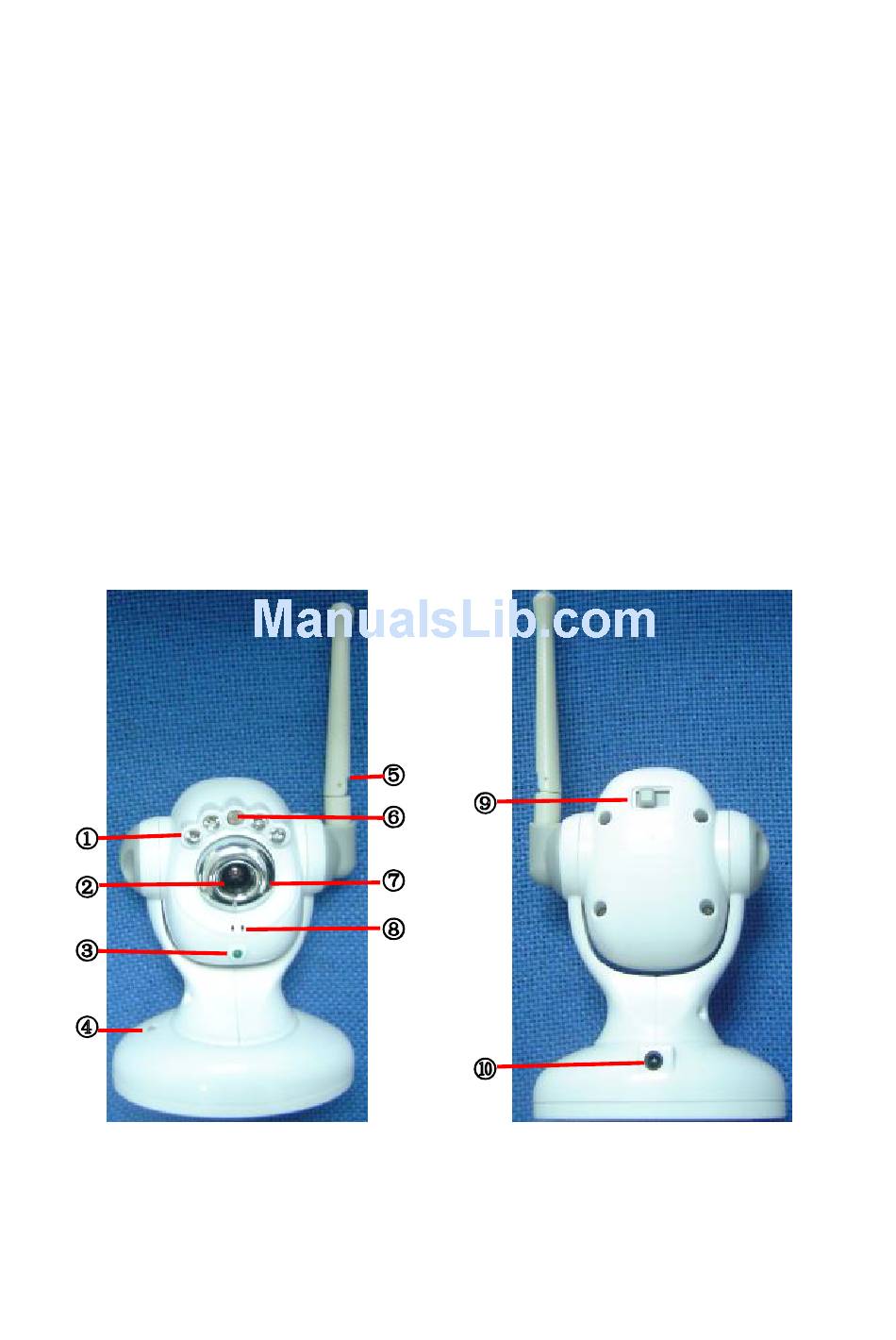

2. Products picture
C28 camera user manual
1/3OvmniVision CMOS
PAL：628×586；
video and audio
10mW
<1W
-10~50℃
3~4 hours
Face
NTSC：510×496
Rear
Advertisement
Table of Contents
Summary of Contents for Eye Sight Technology ES-QC28R1
- Page 1 C28 camera user manual Thanks for your selection of our products, please reach this manual carefully before you use it, which will provide you a great help. 1. Basic specification parameters Image Device: 1/3OvmniVision CMOS Validity Pixel: PAL：628×586； NTSC：510×496 Transmitting Frequency: Channel 1:2.414GHz；Channel 2: 2.468 GHz. Horizontal Definition: 380TVL Minimum Illumination: 0LUX Transmitting signal:...
- Page 2 Bottom night vision lights lens working indicating light recharging indicating light antennal lens socket built-in microphone power adaptor and channel switcher DC power input battery cover 3. Operation 1>.Install the camera in the place where is needed to be monitored. 2>.Insert 3.7V/1400mA battery correctly into the battery socket in bottom, which is as follows, plug the DC 5V/1A power adaptor into the city power socket, make the DC output plug of power adaptor insert into DC input power of camera, make sure it is powered on.
- Page 3 when charging, and it turns off when charge full well. Usually charging takes 4 hours. 4. Problems and solutions 1>.The indicator light doesn't light on Please check if the power adaptor of camera inserted correctly into the AC power socket, check camera turn on or not.
- Page 4 Note: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
