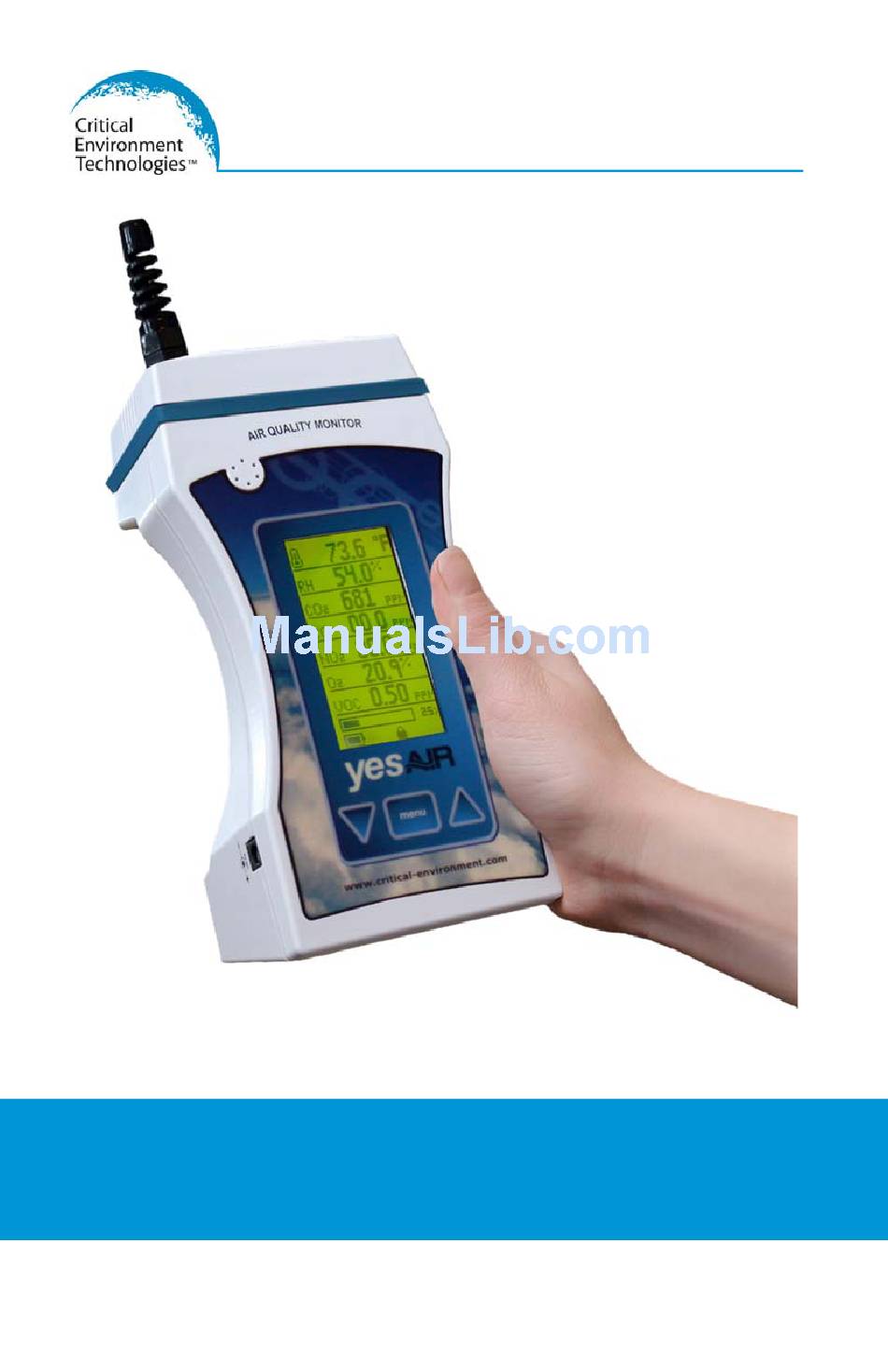

- Page 1 Operation Manual Rev. K | 2018.02 | For instrument firmware version 3.2.3 & up. YESAIR 8-Channel IAQ Monitor www.critical-environment.com...
-
Page 2: Table Of Contents
5.3 Left Side View ................... 17 5.4 Rear View ....................19 5.5 Top View of YESAIR Pump Model ............20 5.6 Top View of YESAIR Diffusion Model ............21 6 OPERATION ..................21 ... - Page 3 14 TROUBLE SHOOTING ..............49 15 ACCESSORIES ................. 50 15.1 External Battery Pack for Extended Operation........50 15.2 YESAIR Pump Handheld Gas Sample Probe ......... 50 15.3 YES Logger Package ................51 15.4 YES Viewer Software ................51 ...
-
Page 4: Policies
PURCHASED FROM: ________________________________________________________________ 1.2 Warranty Policy Critical Environment Technologies Canada Inc. (the manufacturer) warrants this instrument, (excluding sensors, battery packs, batteries, pumps and filters), to be free from defects in materials and workmanship for a period of two years from the date of purchase from our facility. -
Page 5: Service Policy
(RMA) number. Contact the manufacturer for a number and procedures required for product transport. 1.3 Service Policy Critical Environment Technologies Canada Inc. (CETCI) maintains an instrument service facility at the factory. Some CETCI distributors / agents may also have repair facilities; however, CETCI assumes no liability for service performed by anyone other than CETCI personnel. -
Page 6: Disclaimer
Revised copies of this manual can be obtained by contacting CETCI or visiting www.critical-environment.com. Should you detect any error or omission in this manual, please contact CETCI at the following address: Critical Environment Technologies Canada Inc. Unit 145, 7391 Vantage Way Delta, BC, V4G 1M3 Canada Toll Free: +1.800.940.8741... -
Page 7: Introduction
This checklist ensures that you have received everything required to run your IAQ monitor / logger. If you do not receive any of the items listed below, contact the factory immediately: YESAIR multi-gas monitor / logger AC wall adapter 6 V @ 850 mA ... -
Page 8: General Description
The YESAIR is available three models: YESAIR Pump that draws in sample air through a nozzle with an internal pump on the top of the unit. YESAIR Diffusion that works by sample air passing through the sensor openings by natural circulation of air on top of the unit. -
Page 9: Key Features
Rev. K | 2018.02 YESAIR Operation Manual different warm up / stabilization period before they are able to perform to publish specifications). An optional gas sampling probe is available with the Pump model. The probe has a 10 in / 25.4 cm wand and 30 in / 76 cm of tubing that fits onto the nozzle and allows you to reach into areas that are difficult to access. -
Page 10: Instrument Specifications
Rev. K | 2018.02 YESAIR Operation Manual 3 INSTRUMENT SPECIFICATIONS 3.1 Technical Specifications MECHANICAL Enclosure Rugged ABS / Polycarbonate (UL94 rated) Weight 567 g / 20 oz Size 7.8” x 3.1” x 3.9”/ 197 mm x 78 mm x 98 mm Sensor cover (removable;... - Page 11 Rev. K | 2018.02 YESAIR Operation Manual Miniature USB port for changing settings and Communication configuring logging functions and auxiliary port for using a remote sensor (i.e. YESDUST) USER INTERFACE Display Back-lit, multi-line LCD alphanumeric display 3 tactile push buttons with audible sound for user...
-
Page 12: Enclosure Dimensions
Rev. K | 2018.02 YESAIR Operation Manual 3.2 Enclosure Dimensions NOTE: The model shown is the YESAIR. The Dual Probe model dimensions are the same. © 2018 All rights reserved. Data subject to change without notice. -
Page 13: Sensor Specifications
1 and 10 microns in size. The YESDUST uses the YESAIR’s data logging capabilities to record data and adds this information to the log file along with the YESAIR’s data records. If you would like more information on the YESDUST please visit our website. -
Page 14: Plug & Play Sensor Gas Types
Rev. K | 2018.02 YESAIR Operation Manual 4.2 Plug & Play Sensor Gas Types PRODUCT SENSOR TYPE RANGE CODE Carbon dioxide (CO 0 - 5,000 ppm PNP-A+ Carbon dioxide (CO 0 - 10,000 ppm PNP-A1 Carbon dioxide (CO 0 - 20% volume... - Page 15 Rev. K | 2018.02 YESAIR Operation Manual Sulphur dioxide (SO 0 - 20 ppm PNP-P Combustibles (CH 0 - 100% LEL PNP-X TVOCs 0 - 300 ppm PNP-Y+ TVOCs 0 - 30 ppm PNP-Z+ Legend: Electrochemical Catalytic Infrared Photo Ionization Detector NOTES: Not all of the above sensors are available from stock.
-
Page 16: Features & Functions
Rev. K | 2018.02 YESAIR Operation Manual 5 FEATURES & FUNCTIONS 5.1 Front View NUMBER FEATURE FUNCTION Temperature / RH Sensor Shroud Protects from everyday ruggedness and responds (Pump and Diffusion quicker to changes in RH and temperature. -
Page 17: Bottom View
Rev. K | 2018.02 YESAIR Operation Manual 3 tactile push buttons with audible sound to maneuver Keypad through display menu. 5.2 Bottom View NUMBER FEATURE FUNCTION Brass Thread For camera tripod mounting Battery cover door Secures batteries in the device 5.3 Left Side View... - Page 18 Cable Lock Slot laptop computers. NOTE: The YESAIR can only accommodate up to a 2GB memory card. It is inadvisable to try to use a larger capacity memory card. Also, if you remove or insert the card without powering the unit OFF, this will cause data corruption and the card will need to be reformatted.
-
Page 19: Rear View
Rev. K | 2018.02 YESAIR Operation Manual 5.4 Rear View NUMBER FEATURE FUNCTION Molded Slot For hanging instrument on wall. Access to screws holing front & rear enclosure Access Holes halves together. Three in total. -
Page 20: Top View Of Yesair Pump Model
Rev. K | 2018.02 YESAIR Operation Manual 5.5 Top View of YESAIR Pump Model The Pump model works by drawing in sample air through a nozzle on the top of the unit using an internal pump. ... -
Page 21: Top View Of Yesair Diffusion Model
Taking notice of the + and – signs, correctly insert the batteries and install the battery cover. Plug one end of the AC wall adapter into the YESAIR and the other end into a wall outlet. A lightning bolt icon will appear, flashing on the screen indicating the unit is charging. -
Page 22: Display And Buttons
Rev. K | 2018.02 YESAIR Operation Manual 6.2 Display and Buttons The YESAIR has an extensive menu system allowing the user to access a wide range of features and functionality. All features and functions can be set to meet the user’s specific requirements. -
Page 23: Switching Instrument On & Off
– signs and correctly install the batteries and then the battery cover. Plug one end of the AC wall adapter / charger into the YESAIR and the other into the wall outlet. While charging a lightning bolt icon will flash. When the icon disappears, the... - Page 24 Plug the YESAIR into the wall using the AC wall adapter / charger. While charging the lightning bolt icon will flash and when it disappears, the unit is fully charged.
-
Page 25: Main Menu Function
Rev. K | 2018.02 YESAIR Operation Manual instrument. DAMAGE CAUSED BY THIS TYPE OF ACTION IS COVERED UNDER WARRANTY MANUFACTURER IS NOT RESPONSIBLE. 6.4 Main Menu Function Pressing the MENU button after the main sensor array is displayed allows the user to enter the extensive menu system. -
Page 26: Menu Function Details
Rev. K | 2018.02 YESAIR Operation Manual Allows the user to reset the USB chip if the YESAIR will not communicate with YES Viewer software. 7 MENU FUNCTION DETAILS 7.1 Calibrate Menu Pressing the MENU button at this menu function puts the user into the calibration section of the menu. -
Page 27: Settings Menu
Both zero and span functions are automated. Before span adjusting the sensor, the user must first tell the YESAIR what concentration of span gas is being used to span each sensor. This does not apply to temperature, RH or Oxygen sensors. - Page 28 MENU button to accept. NOTE: The YESAIR is supplied from the factory with (and configured for) rechargeable NiMH batteries. If the user wishes to change from one type to another (e.g., rechargeable to alkaline), he must first make the change through the SETTINGS menu.
- Page 29 Rev. K | 2018.02 YESAIR Operation Manual KEYPAD This menu item allows the user to leave the keypad operational for anyone using the instrument or lock it so the settings cannot be changed by anyone. A lock symbol appears at the bottom of the LCD display to indicate the keypad lock has been engaged.
-
Page 30: Datalog Menu
Rev. K | 2018.02 YESAIR Operation Manual PUMP This menu item allows the user to select “REG FLOW” (regular flow) or “HIGH FLOW” for the pump. Use the HIGH FLOW setting when a hose and probe is attached. The higher flow rate helps to overcome the resistance of the hose and probe to maintain an adequate flow of air into the instrument. - Page 31 After the sampling rate has been selected, the logger START method must be selected: “STARTUP” or “SET TIME”. STARTUP Logging will start when the YESAIR is turned on and ACTIVATE has been selected from the DATALOG menu SET TIME User can set the time and date to start logging.
- Page 32 Rev. K | 2018.02 YESAIR Operation Manual DO NOT use a memory card with a capacity larger than 2GB. STOP LOG This menu item allows the user to turn off the data log session. Press the MENU button at this item and the LCD indicates “DATA LOG HAS BEEN STOPPED”.
-
Page 33: Alarm Menu
Rev. K | 2018.02 YESAIR Operation Manual This menu item puts an asterisk in front of all sensors listed (installed) indicating they have been selected to have an alarm set point. Press the MENU button at this menu item and the LCD indicates “ALARM SET UP HAS BEEN SAVED”. -
Page 34: Info Menu
RESET” NOTE: If you remove the USB cable before shutting down the “YES Viewer” program, the YESAIR may continue to display “PC Mode”. Press and hold the MENU button to clear this and return to normal measurement mode. 8 CALIBRATION PROCEDURES... -
Page 35: Requirements & Cautions
Ensure the cylinder regulator has a minimum flow rate of 0.3 LPM to a maximum of 1.0 LPM. The pump inside the YESAIR must not be “drawn down” because of a low flow rate from a cylinder regulator. The result will be inaccurate calibration values. - Page 36 Attach the cylinder flow regulator to the cylinder of 100% Nitrogen. Attach the end of the calibration tubing into the regulator. Open the valve fully and attach the brass fitting of the calibration tubing included with the YESAIR onto the inlet fitting on the top of the YESAIR.
-
Page 37: Calibration Process: 3-Point Span (For Co Sensors Only)
8.3 Calibration Process: 3-Point Span (For CO sensors only) YESAIR provides a 3-point span calibration for infrared CO sensors ONLY, to provide maximum accuracy. For ALL other sensors, follow the single point calibration procedure 8.4 Calibration Process: 1-Point Span. -
Page 38: Calibration Process: 1-Point Span
Rev. K | 2018.02 YESAIR Operation Manual Step 3-Point Span Procedure The LCD indicates the list of installed sensors. Use the ARROW DOWN button to scroll to the CO sensor (or combustible sensor) and press the MENU button again. The LCD moves to the SPAN menu and indicates ENTER 1 GAS VALUE. -
Page 39: Adding Or Changing Plug & Play Sensors
9 ADDING OR CHANGING PLUG & PLAY SENSORS The YESAIR accommodates up to seven sensors. Two of those sensors are temperature and relative humidity and these sensors are permanently installed in all instruments as a standard. Five of the sensor locations accommodate only gas sensors. - Page 40 PID sensor or the catalytic combustible (flammable) gas sensor. See 9.2 Sensor Location Restrictions. Most of the YESAIR gas sensors are plug and play smart sensors that can be added or changed at any time. An instrument that is configured for Nitric oxide, Hydrogen chloride, Ethylene oxide,...
-
Page 41: Dummy Sensor Plugs
Rev. K | 2018.02 YESAIR Operation Manual Switch the instrument on and allow at least 20 to 30 minutes of warm up time before using. Once the sensor has been warmed / stabilized, perform a zero function using the push buttons on the front of the instrument. This function is part of the calibration procedure indicated in 7.4 Alarm... -
Page 42: Sensor Location Restrictions
If the YESAIR was not originally ordered with the sensors listed below and you want to install any one or more of these types of gas sensors, the unit must be sent back to the factory to be re-configured: ... -
Page 43: Yesair Dual Probe Model
Hydrogen sulphide (H 10 YESAIR DUAL PROBE MODEL A Dual Probe model of the YESAIR is available for applications that require remote monitoring of gas, temperature, and relative humidity. Applications that are well- suited for the Dual Probe YESAIR have the following similarities, though they are not exclusive prerequisites of using the Dual Probe version: ... -
Page 44: Probes
The calibration / sample adapter is common to the Pump model and the Dual Probe model of the YESAIR. It connects to the threaded brass fitting which is located on the top of either instrument. -
Page 45: Instrument Kits For Dual Probe Applications
NOTE: Specific incubator versions of the YESAIR must be ordered through their respective incubator application kit numbers (above). The standard Pump or Diffusion YESAIR models cannot be changed to Dual Probe models in the field. Temperature / RH High Humidity Gas... -
Page 46: Application Setup And Configuration
Rev. K | 2018.02 YESAIR Operation Manual 10.3 Application Setup and Configuration Operation of the YESAIR Dual Probe model requires minimal setup prior to use. This setup involves: Connecting the temperature/RH probe Connecting the high humidity gas sample probe ... -
Page 47: Installing The Yes Viewer Software
BEFORE disconnecting the YESAIR from the computer. The YESAIR stops data logging when it is connected to a computer. ALWAYS TURN OFF THE YESAIR BEFORE removing the SD card or the data will be corrupted. © 2018 All rights reserved. Data subject to change without notice. -
Page 48: Menu Architecture
Rev. K | 2018.02 YESAIR Operation Manual 12 MENU ARCHITECTURE Below is a high-level architecture diagram of the YESAIR menu system. © 2018 All rights reserved. Data subject to change without notice. -
Page 49: Maintenance
Problem: YESAIR does not communicate with YES Viewer software. Solution: YESAIR must be switched on and have completed the warm up cycle to be able to communicate with the YES Viewer software. It must be in the normal display mode indicating all installed sensors on the LCD. -
Page 50: Accessories
For configurations that include two high powered sensors such as two infrared sensors or one infrared and one combustible sensor, an external battery pack should be used. The external battery pack attaches to rear of YESAIR with velcro and plugs into a port at rear of instrument. NOTE: YESAIR must be ordered with this accessory. -
Page 51: Yes Logger Package
Rev. K | 2018.02 YESAIR Operation Manual NOTE: Remote sampling probe is for gases only. Temperature and RH sensors are mounted on top of the YESAIR Pump and do not connect to this probe. 15.3 YES Logger Package Product Code: YESAIR-LGR PKG... - Page 52 Rev. K | 2018.02 YESAIR Operation Manual NOTES: © 2018 All rights reserved. Data subject to change without notice.
- Page 53 Rev. K | 2018.02 YESAIR Operation Manual NOTES: © 2018 All rights reserved. Data subject to change without notice.
- Page 54 Critical Environment Technologies Canada Inc. Unit 145, 7391 Vantage Way Delta, BC, V4G 1M3, Canada +1.877.940.8741 +1.604.940.8741 +1.604.940.8745 www.critical-environment.com 180221-YESAIR-Manual-Rev-K...
