- Page 1 EduTouch Instruction Manual Model # EDTC...
- Page 2 1-800-261-4112 for courteous and immediate resolution to your problem. Sincerely, OKLAHOMA SOUND 149 Entin Road, Clifton NJ 07014 - (973) 594-9000 FAX; (973) 594-9339—Email: info@oklahomasound.com...
- Page 3 Required Tools for Assembly 1) Crescent Wrench 2) Allan Wrench...

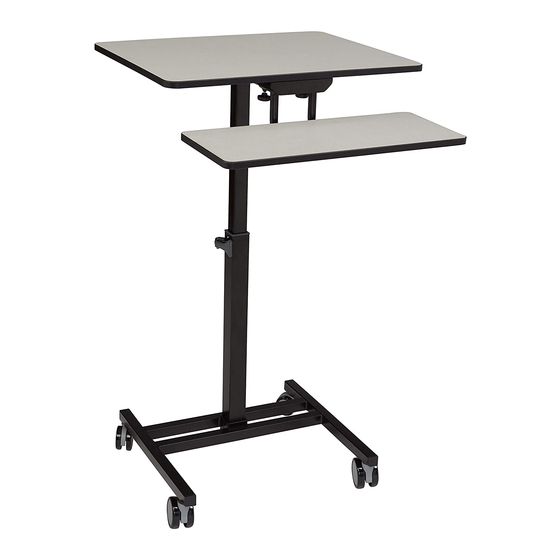

- Page 4 EduTouch - Sit and Stand Cart Part Description Quantity Keyboard Support Tubes Main reading surface Adjustable Pole Main Base Keyboard Tray...
- Page 5 Part Description Quantity Casters Non-Locking Casters Locking Allan Bolt—1/2” Allan Bolt– 5/8” Allan Bolts 1 1/4” Main Column Bolts Knobs...
- Page 6 Step Number One Lay down part B (main reading surface) on a clean surface. Step Number Two Do the following to complete this step. A) Screw the keyboard sliders into the main bracket (part B) right beneath the knobs (park L) using two bolts (part I) , Note the two arrows. B) Screw in two bolts (part H) into the top two holes on the main reading surface (part B)
- Page 7 Step Number Three Take part C (adjustable pole ) and align the four holes to the four holes on the main bracket. Install it using four bolts (part H) . Step Number Four Take part D (main base) and assemble it to part C (adjustable pole) using two Column bolts (part K). Using a wrench, fully tighten bolts.
- Page 8 Step Number Five Assemble four casters ; Two locking in the front and non-locking in the back. Use a wrench to complete this step. Step Number Six Take part E (keyboard tray) and assemble it to part A (keyboard sliders ) using the four longer bolts (part J ).
