Summary of Contents for Meraki MR30H

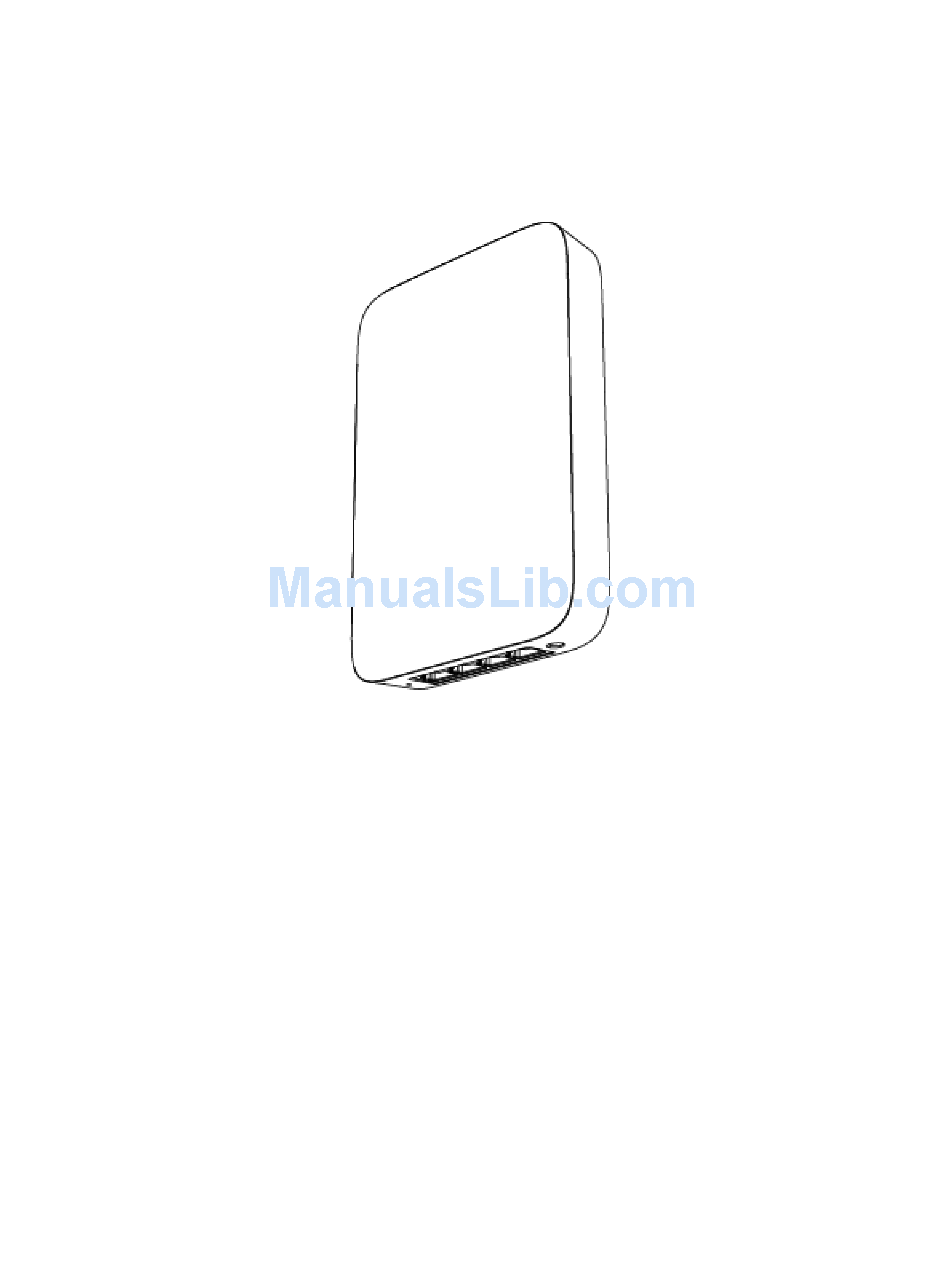

- Page 1 Meraki MR30H Hardware Installation Guide Trademarks...
- Page 2 Cisco, Cisco Meraki, Meraki, Meraki MR30H, and Meraki Cloud Controller are trademarks of Cisco Systems, Inc. Other brand and product names are registered trademarks or trademarks of their respective holders. Warranty Meraki, Inc. provides a lifetime warranty on this product. Warranty details may be found at www.meraki.com/legal.
-
Page 3: Mr30H Overview
When connected to the Meraki Cloud Controller, the MR30H enables the creation of high-speed, reliable indoor wireless networks quickly, easily, and cost-effectively. The Meraki MR30H has an operating temperature of 32 ° F to 104 ° F (0 ° C to 40 ° C). 2.1 Package Contents... -
Page 4: Pre-Install Preparation
MR30H. 1. Attach your MR30H to power and a wired Internet connection. 2. The MR30H will turn on and the LED will glow solid orange. If the unit does not require a firmware upgrade, the LED will turn solid white... - Page 5 (by associating to any SSID broadcast by the AP) or over a wired connection. If using a wired connection, connect the client machine to the MR30H either through a PoE switch or a Meraki PoE Injector. If using a PoE switch, plug an Ethernet cable into the MR30H’s Ethernet jack, and the other end into a PoE switch.
- Page 6 - 802.3at PoE power source (either PoE switch or Meraki 802.3at PoE Injector) - Connection to the internet (if you are setting up your MR30H as a gateway to the internet) - Specialized mounting hardware if mounting to surface other than wood,...
-
Page 7: Installation Instructions
Then attach the MR30H to the mount plate. 4.2.1 Attach the Mount Plate The MR30H mount plate can be used to install your access point in a range of scenarios, and has been designed to fit single-gang outlet boxes and European outlet boxes. -
Page 8: Troubleshooting
2. Insert provided tool through small hole on the left side of the RJ45 connectors to disengage mount plate security lock. 3. While tool is inserted, slide the mount plate off the access point. 5 Troubleshooting Reference the Meraki knowledge base at https://documentation.meraki.com/ for additional information and troubleshooting tips. 6 Regulatory... - Page 9 • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications no expressly approved by Meraki could void the user’s authority to operate this equipment. This Transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.
- Page 10 Avertissement: (i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces...
