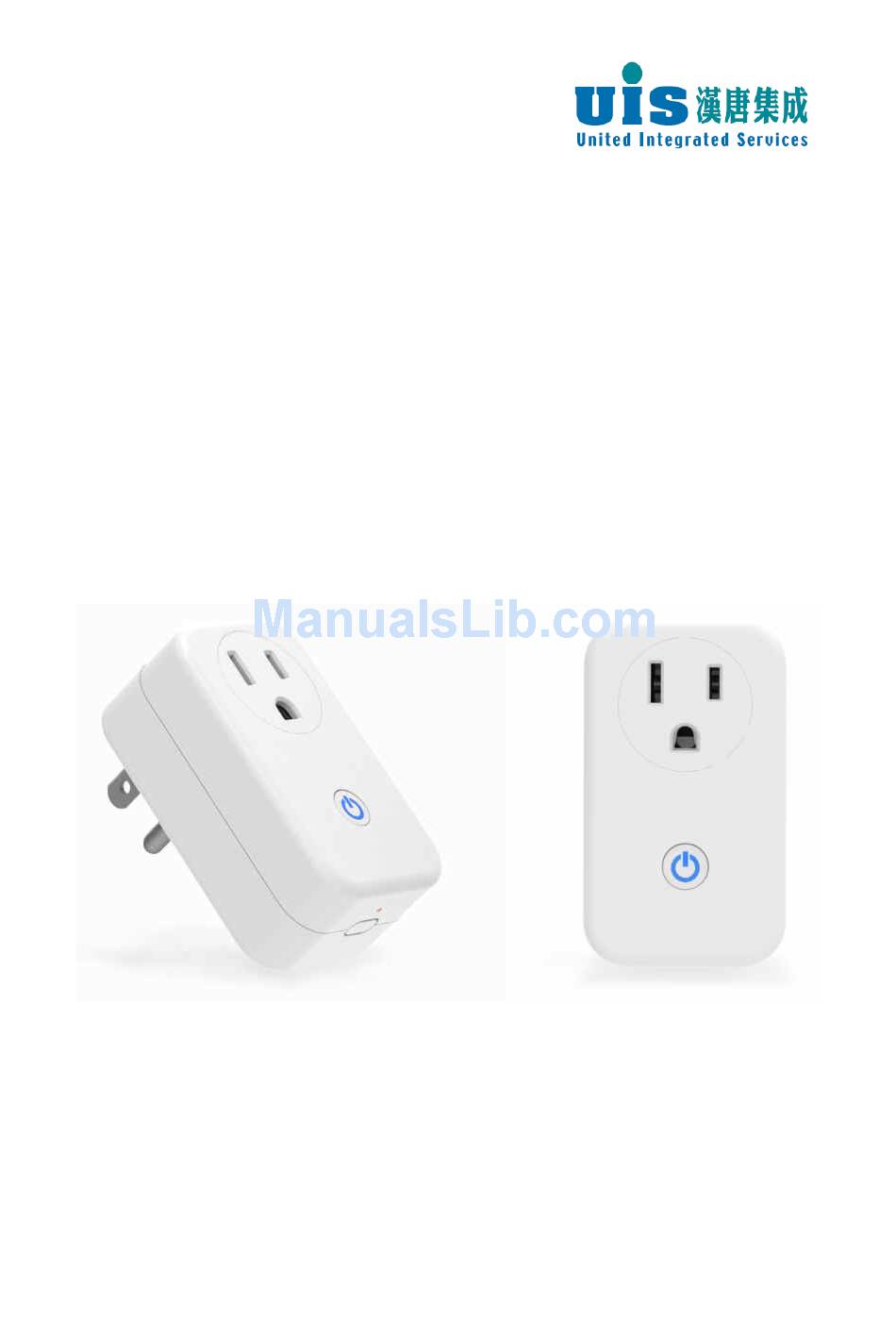

WPW-220 Wireless Power
Installation instructions
Product Overview .......................................................................................... 1
一、
二、
Installation Operation..................................................................................... 2
三、
四、
五、
Switch (US)
Table of Contents
Confidential
Advertisement
Table of Contents
Summary of Contents for United Integrated Services WPW-220
- Page 1 WPW-220 Wireless Power Switch (US) Installation instructions Table of Contents Product Overview ..................1 一、 Feature......................1 二、 Installation Operation..................2 三、 Precautions ..................... 2 四、 Troubleshooting ..................... 3 五、 Confidential...
- Page 2 一、Product Overview Product Name：Wireless Power Switch (US) Model：WPW-220 Power supply：100~120VAC Dimensions (mm) and Accessories： The controller 82 x 45x 36mm base, manual Setting LED status Button (with warning lights) (SET) set key 3-point power outlet 3-point power plug 二、Feature Radio transmission, sent to the receiving host on / off signals to...
- Page 3 三、Installation Operation First WPW-220 connected to the power outlet, then will enter the boot mode, the blue light on the front of the boot will be completed after about 90 seconds of constant light. If you want to skip this program, press the SET button.
- Page 4 Abnormal situation: unable to connect with the wireless host. Treatment: Make sure the distance WPW-220 and the host or between repeaters, whether in unsheltered effective distance of 300 meters straight. If the shelter will shorten the effective distance, you can shorten the distance between the two, or join repeaters, re-test without improvement.
- Page 5 Standby: ~1.32W Blue 1PC/Red 1PC LED Indicator LED Status: Relay (ON/OFF) Push button switch for setting on the side Operation Interface Push button switch for Relay on/off in front Operating Voltage 100~120VAC 50/60 Hz Resistive Load 10A/120VAC, 1200W max. Inductive Load (Single Face) 0.5HP/120VAC Over Current Protection Measure Voltage Range...
- Page 6 Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
