Summary of Contents for EBN BPC03-B-2930

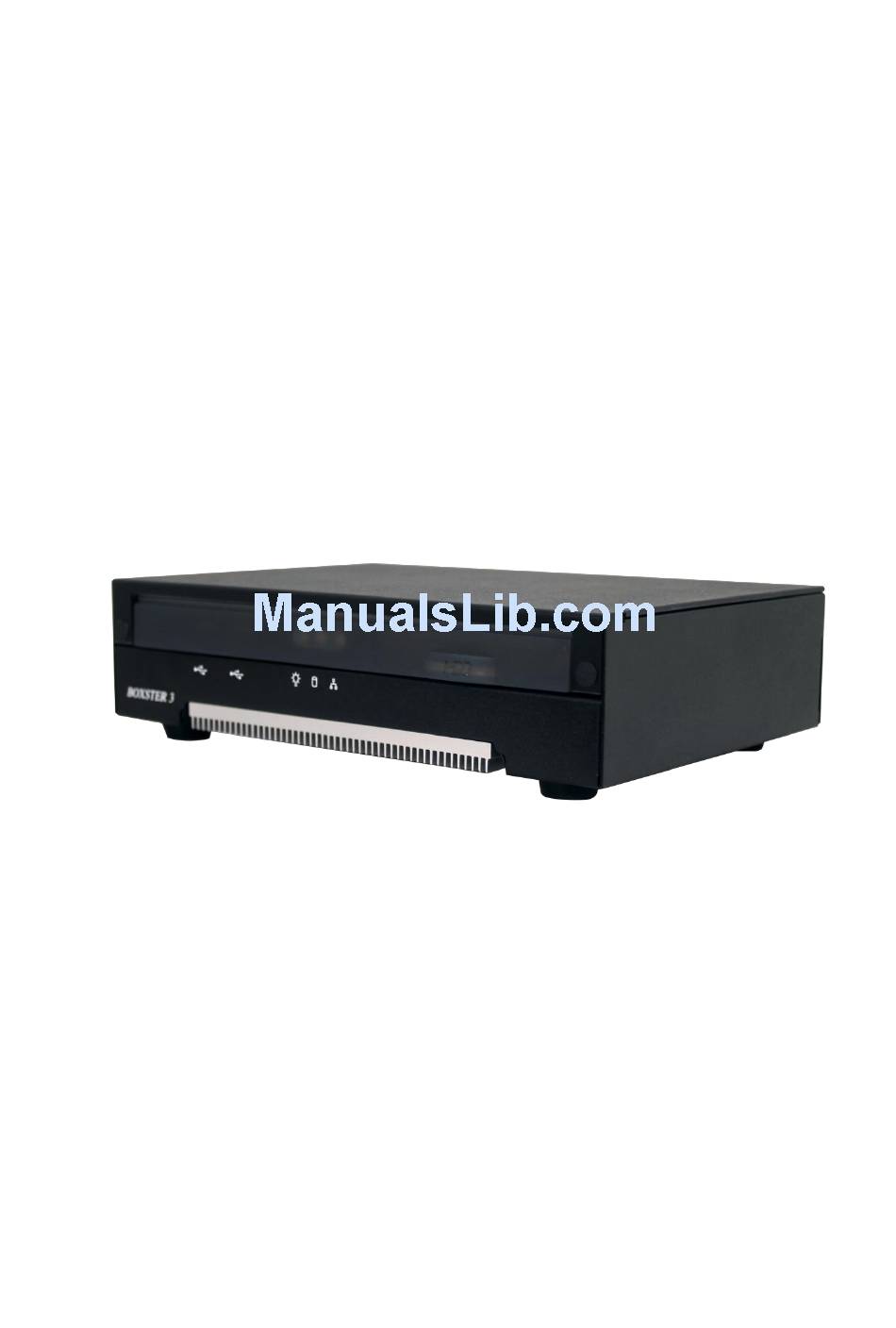

- Page 1 Service Manual BPC03-B-2930 BPC03-B-1900...
-
Page 3: Liability Disclaimer
Copyrights © 2015 All rights reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. This document contains proprietary information protected by copyright. -
Page 4: Table Of Contents
Contents Copyrights ....................i Liability Disclaimer ................. i Contents ....................ii 1. Before You Start ................. 1 1.1. Tools Suggested ..................1 2. Opening the Device ................2 2.1. Separate upper half and bottom half ............2 3. Mainboard and Component Replacement ........4 3.1. -
Page 5: Before You Start
Before You Start 1. Please unplug the power cable before you start to work. 2. Please read and follow the instructions in this document carefully. Failure to follow these instructions could damage your device and void the warranty. 1.1. Tools Suggested All procedures in this document require the following tools: #1 Phillips screwdriver 1.5 mm hexagon socket spanner... -
Page 6: Opening The Device
Opening the Device 2.1. Separate upper half and bottom half 1. Loosen and remove the screws fixing the I/O panel by hexagon socket spanner. 2. Loosen and remove the screws fixing the front panel by #1 Phillips screwdriver. 3. Open the device as shown below. Chapter 2... - Page 7 4. Unplug HDD power connector and SATA data cable. Chapter 2...
-
Page 8: Mainboard And Component Replacement
Mainboard and Component Replacement 3.1. RAM Removal Open the two ejectors on the slot by pushing them, and remove the RAM from the slot. Chapter 3... -
Page 9: Components And Mainboard Replacement
Components and Mainboard Replacement 4.1. Components on the Lower Chassis 1. Unplug: A. VGA cable, B. COM3, C. COM 4, D. COM 5, E. COM 6, F. USB Cable, G. LED. 2. Loosen and remove the four screws fixing the main board by #1 Phillips screwdriver and then remove the main board.
