Getting started with
The Network OWL Gateway sits at the heart of your Intuition system and
makes your home cloud connected for both monitoring and control.

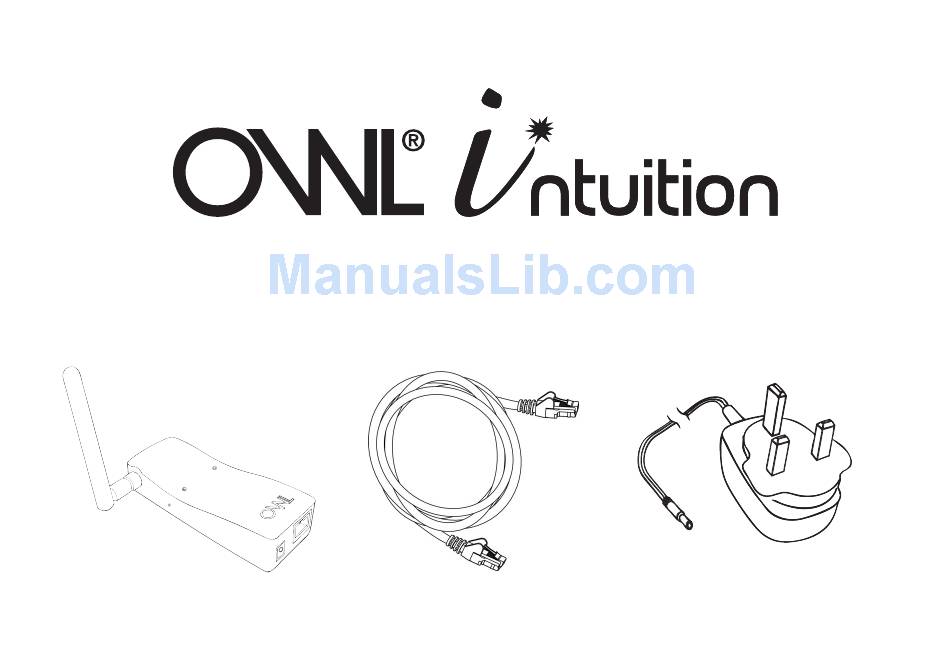

IN THE BOX:
Network OWL Gateway
Plug top mains power supply
with external antenna
Ethernet cable
(100 - 240V AC / 5V DC)
with UK and Euro adaptors
© 2 Save Energy Limited 2012
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Intuition TSE220-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for OWL Intuition TSE220-120

  • Page 1 Getting started with The Network OWL Gateway sits at the heart of your Intuition system and makes your home cloud connected for both monitoring and control. IN THE BOX: Network OWL Gateway Plug top mains power supply with external antenna...
  • Page 2: Before You Start

    Ensure antenna is screwed, finger tight, onto brass connector on side of the Network OWL. • Plug the Ethernet cable into the base of the Network OWL and a spare LAN port on your existing broadband Internet router. • Ensure the connector latches with an audible “click” at both ends.
  • Page 3 Network OWL. • The green LED on the top of the Network OWL will start flashing. After a few seconds the blue LED will start flashing slowly. This is Device Pairing Mode used when set- ting up other OWL Intuition Products / Devices. For now wait until the blue LED stops flashing (about 90 seconds).
  • Page 4 IMPORTANT Note for business users: • If you wish to use a Network OWL connected to a business / commercial LAN then please note that it is usual for the internal IT Security Department to restrict which Internet ports are open for use.
  • Page 5 N-OWL is in pairing mode Blue Flash every 12 to 60 seconds Data received from paired Device Blue Off for longer than 60 seconds N-OWL is not paired or Device is out of radio range Green Rapid flashing N-OWL is starting up Green...
  • Page 6 STEP TWO - Create Intuition online account IMPORTANT: If you want to use with an existing OWL Electricity Transmitter you need to pair this Transmitter to the Network OWL first and then select System Type: Intuition-e during the Create Account process.
  • Page 7 Enter the email address you wish us to be able to contact address you on. Network OWL 12 characters MAC ID can be found on back of the Network OWL and MAC ID starts 443719..Enter the full 12 characters. Country...
  • Page 8 STEP FOUR - Locating your Network OWL The Network OWL should ideally be hung on the wall in a free area as far from large metal objects as possible. Position the antenna in a vertical orientation. If necessary you can replace the Ethernet cable with a longer cable (up to 100 meters long).
  • Page 9: Useful Information

    Useful Information Network OWL Factory Reset: You can Factory Reset the Network OWL by pressing the reset button while the power is on. Carefully insert a paperclip into the small hole and hold the button pressed for a mini- mum of 10 seconds and release. The green LED will flash rapidly. After about 30 seconds the blue LED will start a steady flash.
  • Page 10 © 2 Save Energy Limited 2012...
  • Page 11 © 2 Save Energy Limited 2012...
  • Page 12 You can also email us at: customer.services@theowl.com (please ensure you state your Network OWL MAC ID) 2 Save Energy Limited operate a policy of continuous development and improvement, therefore the content of this document is subject to change without notice.
