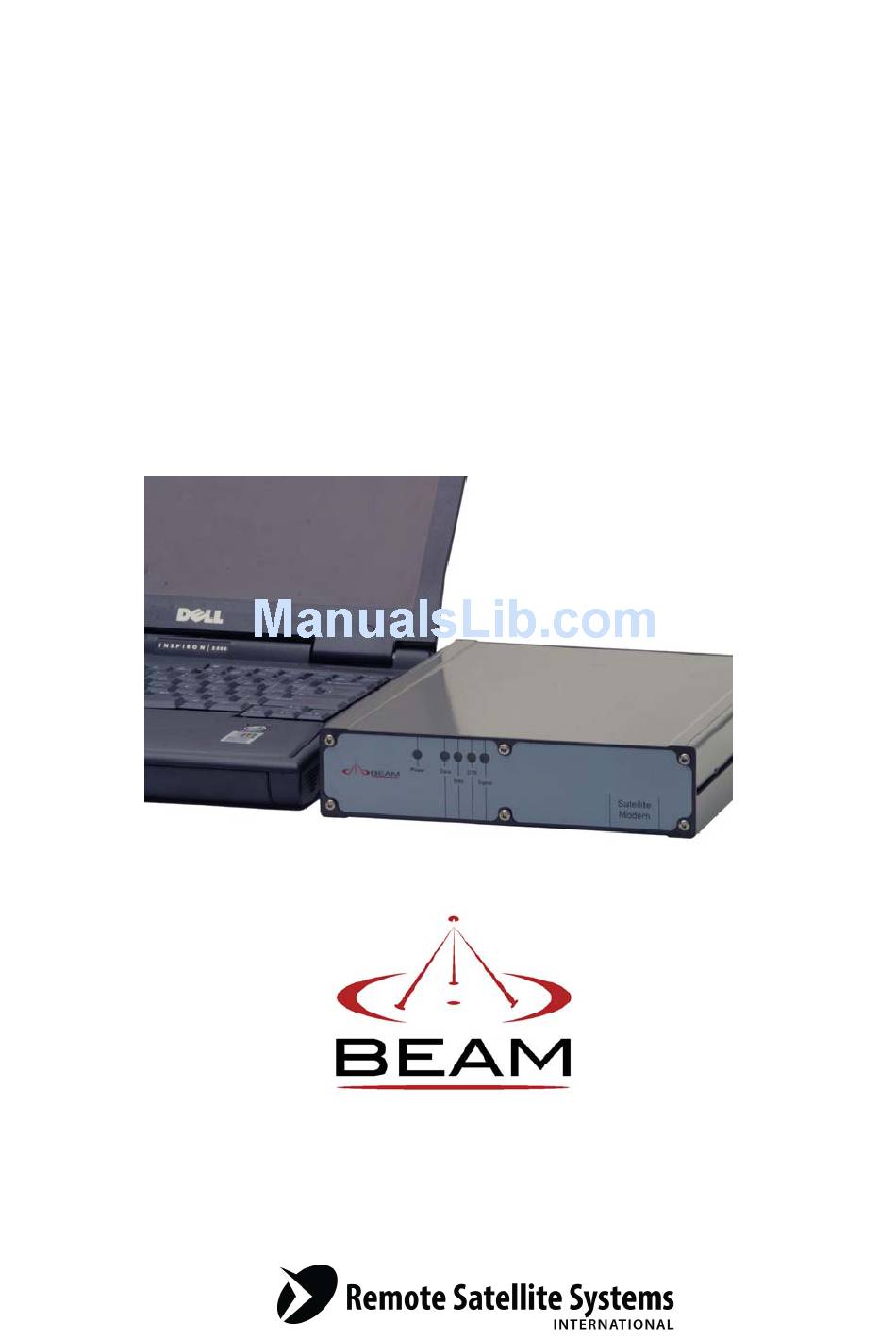

- Page 1 Remote Satellite Modem RST200 Installation & User Manual Beam Communications Pty Ltd...
- Page 2 Information furnished by Beam Communications Pty Ltd (Beam) is believed to be accurate and reliable. However, no responsibility is assumed by Beam for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Beam.
-
Page 3: Table Of Contents
RST200 INSTALLATION & USER MANUAL Contents CONTENTS................................3 SAFETY INFORMATION............................ 5 WELCOME................................6 Conventions in this Manual ..........................6 ABOUT BEAM COMMUNICATIONS ....................... 7 WHAT IS THE RST200?............................. 8 The Front Panel .............................. 9 The Rear Panel..............................9 The RST200 Status Indicators........................10 Display Status Indicators .......................... - Page 4 RST200 INSTALLATION & USER MANUAL ASSURING QUALITY OF IRIDIUM SERVICE ..................... 32 ..............................32 BSTRUCTIONS ................................32 ABLING RF I ............................33 NTERFERENCE RF I ........................34 YMPTOMS OF NTERFERENCE RF I ........................34 ITIGATION OF NTERFERENCE Recommended Operating Distances: ......................35 Inmarsat Mini-M ............................
-
Page 5: Safety Information
Note: Read the following information before installing and using the BEAM RST200. Your RST200 is a low power radio transmitter and receiver. When it is ON, it receives and sends out radio frequency (RF) signals. The design of your RST200 system complies with international safety standards. -
Page 6: Welcome
Welcome to the Beam RST200, the intelligent remote satellite modem. This Installation and User manual contains all the information you need to configure the Beam RST200 and discover the advantages of Beam Communications and Iridium Network technology. Conventions in this Manual Warnings, cautions and notes appear throughout this manual. -
Page 7: About Beam Communications
About BEAM Communications Beam Communications, is an authorised manufacturer of Iridium Satellite products. Beam develops subscriber products that utilise the Iridium satellite network of Low Earth Orbit satellites, known as LEOs. The Iridium network is extensively used around the world by commercial enterprises and defence agencies. -
Page 8: What Is The Rst200
The RST200 provides a serial control interface and audio input and outputs by way of the transceiver’s control and connection interface. The RST200 interprets the signals from the subscriber equipment and constructs control signals to the transceiver. -
Page 9: The Front Panel
RST200 INSTALLATION & USER MANUAL The Front Panel Figure 1 - The RST200 front panel Status LEDS Power Data SMS waiting DTR TX/RX Signal strength The Rear Panel Figure 2 - The RST200 rear panel Connectors Antenna Power 11-32V DC RJ45 Intelligent Handset / In-vehicle Hands free Connector Comm.’s Port... -
Page 10: The Rst200 Status Indicators
RST200 INSTALLATION & USER MANUAL The RST200 Status Indicators The status indicators are located on the front panel of the RST200. The LED lights on the front panel show the RST200 status. Note: The LED lights blink in different combinations to indicate transmission status. - Page 11 Iridium network at your location. This LED displays different colours to indicate the strength of the RF (Radio Frequency) signal and different on/off conditions to indicate the terminal status. Indictor colour Signal strength Flashing RST200 is registering with the network – please wait Green Strong Orange Acceptable...
-
Page 12: Package Contents
RST200 INSTALLATION & USER MANUAL Package Contents The RST200 package contains: 1 RST200 unit 1 universal plug-pack power adapter, 110-240V AC 1 9-pin-to-9-pin RS-232 cable 1 user manual in hard copy Allen Key Mounting Brackets Mounting Bracket Screws 1 CD including; at command set, installation guide, user guide and intelligent... -
Page 13: Getting Started
A SIM Card (Subscriber Identity Module) is a small smart card that carries your identity for accessing the network and receiving calls. It functions as the digital memory of the RST200 and also stores your personal information, including received SMS messages. - Page 14 RST200 INSTALLATION & USER MANUAL 1. Using a Phillips-head screw, remove the holding screw and keep it in a safe place. 2. Slide-open the compartment cover. 3. Remove the screws with the Allen Key provided to expose the SIM Holder of the transceiver 4.
-
Page 15: Pin Details
RST200 INSTALLATION & USER MANUAL PIN Details The RST has a number of different PIN’s, each one to perform or limit certain functions. The table below identifies these PINS, their function and a place for you to note the setting for your unit. -
Page 16: Installing Rst200
RST200 INSTALLATION & USER MANUAL Installing RST200 This chapter explains how to install the RST200 and the Iridium fixed-mast antenna. Warning: Make sure the RST200 is switched off before you install the cables. If you do not, the RST200 may be damaged. -
Page 17: Mounting Methods
RST200 INSTALLATION & USER MANUAL Mounting methods The mounting brackets allow two mounting methods: drop-in (inside corner) mount and flush (outside corner) mount. Figure 3 - Mounting methods To install the RST200 unit 1. Attach the two (2) mounting brackets securely to a suitable structure making sure the space between the brackets is wide enough to smoothly slot in the RST200. -
Page 18: Connecting The Power Cable
3. Carefully slot the RST200 between the two mounting brackets and secure with the retaining screws. Connecting the Power Cable 1. Make sure the AC power switch supplying the RST200 power pack is off. 3. Plug in the power cable into the power jack located on the rear panel of the RST200. -
Page 19: Connecting The Intelligent Handset Or In-Vehicle Hands-Free
RST200 INSTALLATION & USER MANUAL Connecting the Intelligent Handset or In-Vehicle Hands-free 1. Plug the Intelligent handset or the in-vehicle hands free unit into the Handset Connector of the RST200 2. Ensure the power is turned off when connecting the device 3. -
Page 20: Connecting The Laptop
The LOG port should not be used for Communications or Data Services 2. The LOG Port can also be used when using a Beam Alert/Monitoring Device, refer to the instruction provided with the accessory device for configuration... -
Page 21: Connecting The Antenna Cable
RST200 INSTALLATION & USER MANUAL Connecting the Antenna Cable 1. Plug the antenna cable into the antenna jack located on the rear panel of the RST200. 2. Ensure that the specified cable being used does not exceed the Iridium 3DB maximum loss rating to ensure maximum performance of the terminal. -
Page 22: Installing The Antenna
A specialised coaxial cable system is required to connect the Fixed Mast Antenna and RST200. This cable system is offered as an option to the Fixed Site Antenna. To minimize the loss of radio signal from the antenna to the RST200, the coaxial cable system between the antenna and the other component should be less than 3db including connector loss. -
Page 23: Installation Options
RST200 INSTALLATION & USER MANUAL Installation Options The fixed site antenna system consists of a fixed mount antenna and a coaxial cable system that connects the antenna to the Satellite Terminal Equipment. Ensure that the antenna cable being used does not exceed 3DB loss. -
Page 24: Data Terminal Settings For Auto-Answering An Incoming Data Call
To initialize the RST200 to receive an incoming data call, start a Terminal Program (such as HyperTerminal) with the following settings: 19200* bps, 8, N, 1, Flow Control = None. Then to enable the RST200 to auto answer, type the following AT commands to the RST200:... -
Page 25: Remote Configuration
RST200 INSTALLATION & USER MANUAL Remote Configuration The Supervisor Menu items are available for remote configuration via a combination of the Iridium Short Burst Data and or SMS services. Refer to your Service Provider on how to register for this service. - Page 26 RST200 INSTALLATION & USER MANUAL The automatic confirmation reply returned via email will contain: From: <Iridium SBD Service (Tempe, AZ)> Sent: Tuesday, August 13, 2002 12:49 PM Subject: SBD Msg From Unit: 304050607080903 MOMSN: 23 Time of Session (UTC): Tue Aug 13 16:51:04 2002...
-
Page 27: Rst970 Intelligent Handset Use
Intelligent Handset Use Intelligent Handset Use (optional) The RST200 is capable of supporting voice services on the Iridium network through the use of an appropriate Intelligent handset that is available as an optional item. The Intelligent handset enables you to access Voice and SMS services over the Iridium network in conjunction with the RST200 terminal interface. -
Page 28: In-Vehicle Hands Free Kit (Optional)
Installation of In-vehicle Hands-free The RST973 optional in-vehicle hands free kit is simply connected to the RJ45 socket of the RST200 module, just As in the case of an Intelligent Handset. The installation instructions contained within the RST973 kit will provide more... -
Page 29: Antenna Installation Guides
RST200 INSTALLATION & USER MANUAL Antenna Installation Guides The following example will provide guidance for antenna installation techniques for specific applications. Proper antenna installation is critical for the successful operation of your Beam terminal equipment. Whilst it is not always possible to gain clear line of sight to the horizon in all situation due to poor access or environmental conditions, every effort should be made to achieve maximum visibility at all times. -
Page 30: Mobile / Transport Installations
• Connectors should be tightened as shown below in the absence of manufacturer advice specific to your cable: • Use only specified cables for the Iridium network as supplied by Beam or refer to the specification table below. -
Page 31: Protecting The Antenna From Lightning
RST200 INSTALLATION & USER MANUAL Protecting the Antenna from Lightning Antennas mounted in fixed installations can be exposed to lightning strikes in certain geographical and climatological environments. It is not possible to protect the RST600, the antenna, or surrounding and/or connected equipment or structures from damage from a direct lightning strike. -
Page 32: Assuring Quality Of Iridium Service
RST200 INSTALLATION & USER MANUAL Assuring Quality of Iridium Service Iridium is committed to providing users around the world consistent, reliable, quality voice and data access all day every day. The Iridium satellite system is monitored for call performance from numerous locations 24 hours a day, 7 days a week in order to achieve this. -
Page 33: Rf Interference
RST200 INSTALLATION & USER MANUAL The following table should be used as a guide in selecting the appropriate cabling, if you have not already purchased a certified cable from Beam. RF Interference. All wireless devices, including satellite telephones, are susceptible to RF (radio frequency) interference from other electronic devices. -
Page 34: Symptoms Of Rf Interference
RST200 INSTALLATION & USER MANUAL and 45 meters (50 to 150 feet, respectively) of an operating INMARSAT mini-M or Standard-C terminal, will likely experience degraded performance. Other sources of RF interference such as Globalstar units, radar devices and broadcast stations can provide interference for Iridium units, but usually are not encountered as frequently as INMARSAT terminals. -
Page 35: Recommended Operating Distances
RST200 INSTALLATION & USER MANUAL Recommended Operating Distances: Inmarsat Mini-M Recommended Distance Between an Iridium Unit and an Active Inmarsat Mini-M Terminal Antenna • Main Lobe = directly in front and in line with the Inmarsat terminal antenna: 225 feet (68 meters) •... -
Page 36: Specification Summary
RST200 INSTALLATION & USER MANUAL Specification Summary Electrical Power 11-32V DC 2.5A Plug-pack (if provided) 90-250VAC 50/60Hz input Power Consumption (Average) 12Volt 24Volt Standby Mode 0.125A 0.065A Talk/Transmit Mode 0.600A 0.185A Modem Type Hayes Compatible Speed 2400 bps EMC Compliance... -
Page 37: Rs232 Specification
RST200 INSTALLATION & USER MANUAL RS232 Specification The RST200 is provided with two RS232 serial ports for log and data connection. Both are 9-pin D-type (female) sockets, wired DCE for connection to a standard PC with a 1:1 cable. Physical Connection... -
Page 38: Rs232 Port Electrical Parameters
RST200 INSTALLATION & USER MANUAL RS232 Port LBT Data Port Data Logging Port DCD = DTR DSR = DTR CTS = RTS RI not connected RS232 Port Electrical Parameters The LBT “Comm” Port and Log Ports conform to the RS232 interface specification... -
Page 39: Troubleshooting The Rst200
RST200. No lights on RST200 Check power is connected and switched on at the wall. RST200 fails to register with the Iridium service after 30 seconds Press reset button There is no Display on the Intelligent Handset Check if it is connected to the Handset connector. - Page 40 RST200 INSTALLATION & USER MANUAL You can’t make international calls. Have you included the relevant codes? Press and hold the (+) key to display the international dialling prefix (+), and then enter the appropriate country code, followed by the phone number.
