Specification :
Nominal voltage:
Battery type:
Radio frequency:
Transmit power:
Ambient temperature:
Operating range:
Characteristics of the device:
!!!
UP
CHANNEL DOWN

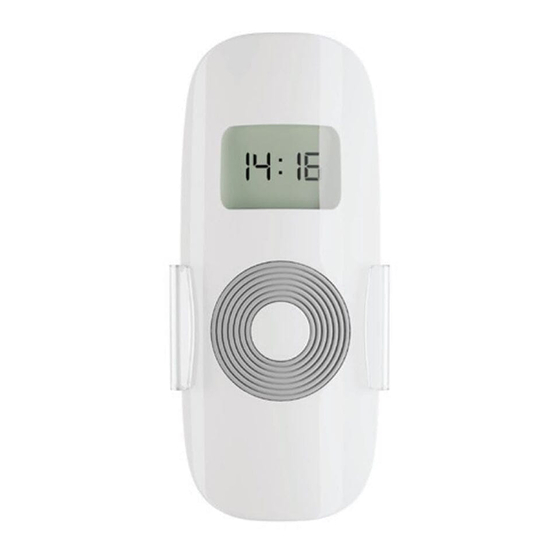

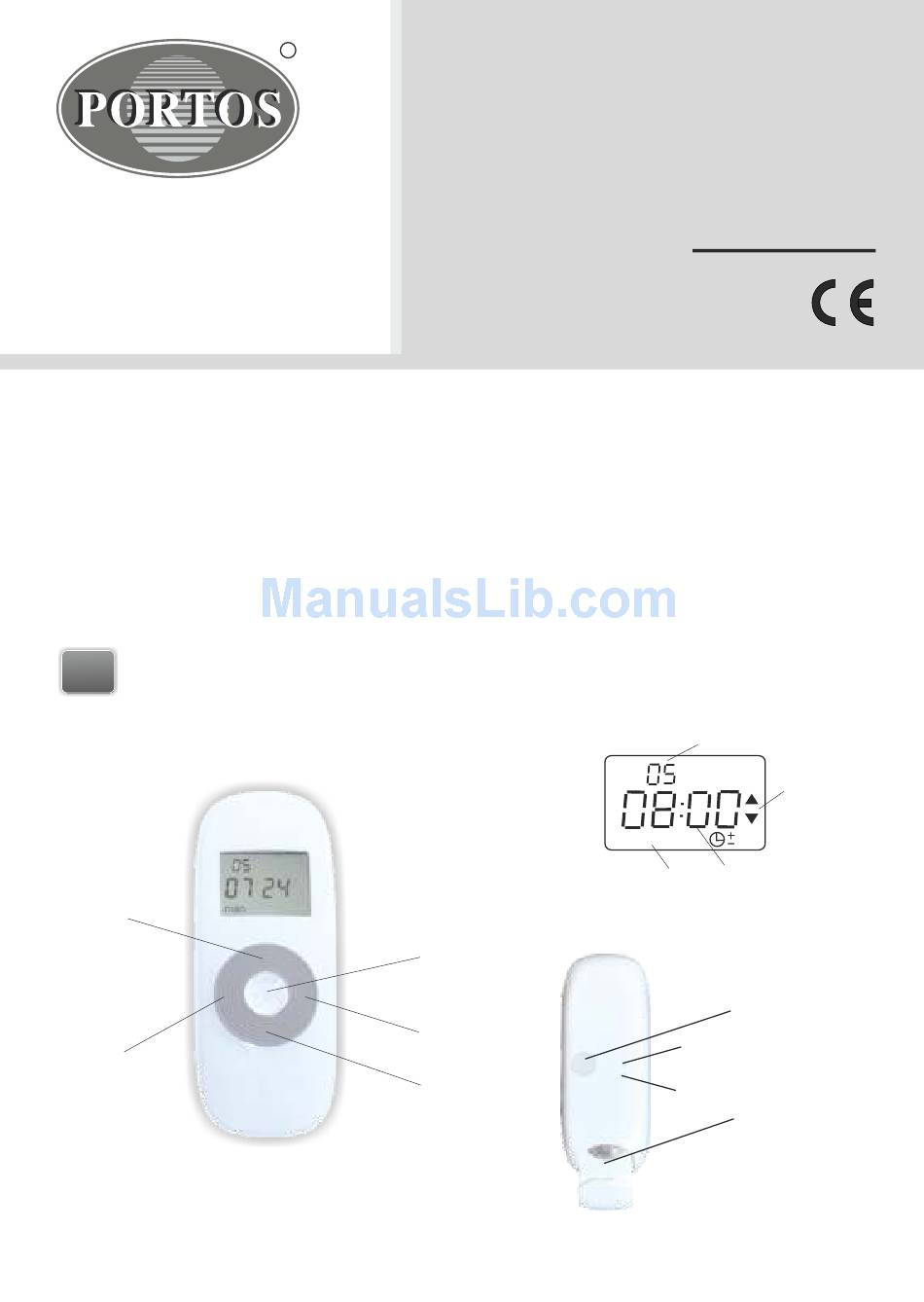

RR-5T
R
INSTRUCTION MANUAL
Transmitters operate
on frequency
433 Mhz
3V
CR 2430
433 Mhz
10 mW
from -10 ˚C to +50 ˚C
150 m outside buildings
25 m indoors
STOP
CHANNEL UP
DOWN
RR-5T
Active
channel
man
auto
Time
Mode
P2
MODE
P2
MODE
TIME
TIME
BATTERY
CR 2430
3V
The direction
of movement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Portos RR-5T
- Page 1 INSTRUCTION MANUAL RR-5T PORTOS Sp.J. ul. Złota 71 62 - 800 Kalisz tel. 62 / 768 40 00 Transmitters operate sekretariat@portosrolety.pl on frequency www.portosrolety.pl 433 Mhz Specification : Nominal voltage: Battery type: CR 2430 Radio frequency: 433 Mhz Transmit power:...
- Page 2 The programming on the channel CAUTION!! When programming, only the tubular motor which is to be programmed needs to be power supplied. Switch the electricity ON. The motor will make a short beep and will vibrate ( short movement up & down ). The motor is in programming mode for 12 seconds. If no button will be pushed within these 12 seconds the motor leaves the programming procedure.
- Page 3 Deleting a channel Set the channel that You wish to delete. 1.Press P2 button, the motor will emit a single sound and will vibrate. 2.Press the STOP button. The motor will emit a single sound again. 3.Press again P2 button. The deleting procedure will be confirmed by 4 short beeps and after that the motor will vibrate, meaning that the deleting was successful.
- Page 4 4. Device functions: The transmitter can work in 3 different modes: – manual mode – only manual control is possible AUTO – automatic mode – both manual and automatic functions are active – holiday mode – manual control is possible but the timing functions set differ randomly by +- 15 minutes MODE SWITCHING: In order to switch the working mode of each device You need to Press the MODE button...
- Page 5 TIME/HOUR SETTING: In order to change the hour/date follow the below instructions: 1.Using the MODE button switch into MAN mode ( pressing it for 2 seconds changes the mode ) 2.Press the TIME button for 5 seconds -> the hour parameter starts to blink on the screen.
- Page 6 SETTING THE TIMER: In order to set the switching times on each channel follow the below instructions: 1.Using the MODE button switch into AUTO mode ( pressing it for 2 seconds changes the mode ) 2.Select the channel that you want to set and press the TIME button for 5 seconds -> the switching time UP for channel 1 appears on the screen 3.Using the UP &...
