MesSen Nord STV-4 Operating Instructions Manual

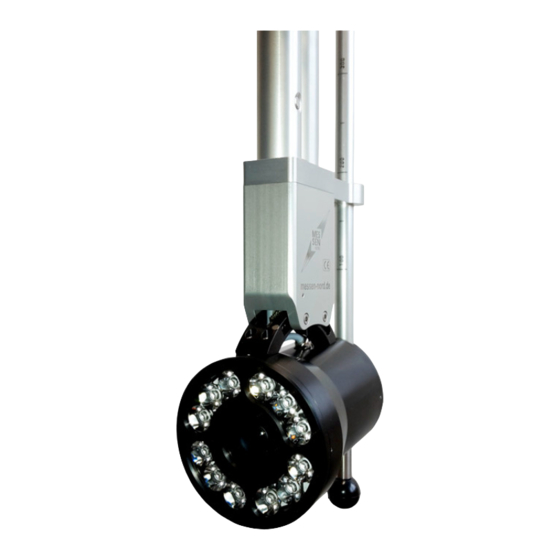

Wireless full-hd manhole zoom camera “electronic sewer inspection”
Hide thumbs
Table of Contents

Advertisement

Quick Links

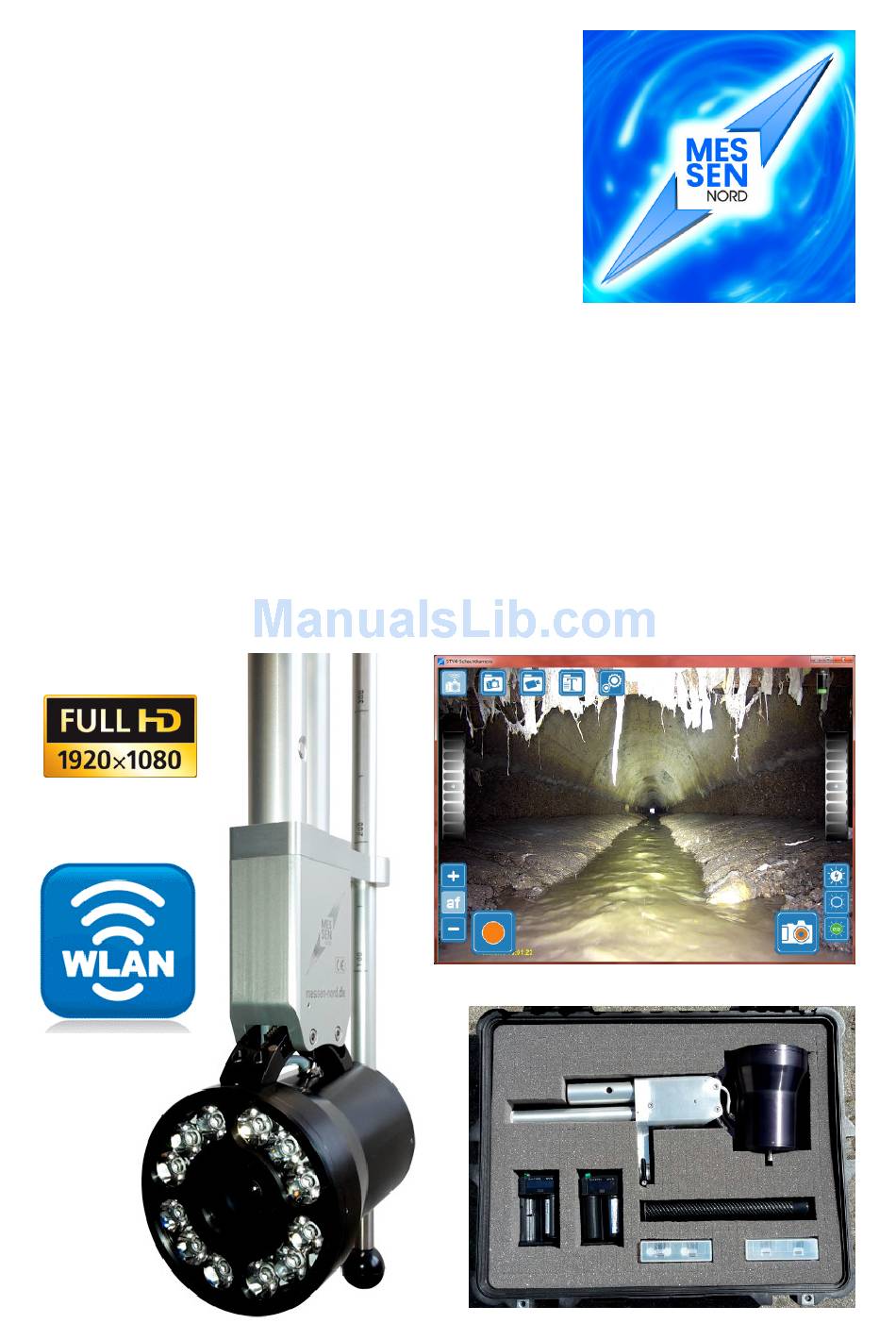

MesSen Nord GmbH
Zum Forsthof 2
18198 Stäbelow, Germany
Phone: +49 (0)38207 – 656 – 0
Fax: +49 (0)38207 – 656 – 66
www.messen-nord.de
STV-4
Wireless FULL-HD Manhole Zoom Camera
"Electronic sewer inspection"
Documentation/Operating instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STV-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for MesSen Nord STV-4

  • Page 1 MesSen Nord GmbH Zum Forsthof 2 18198 Stäbelow, Germany Phone: +49 (0)38207 – 656 – 0 Fax: +49 (0)38207 – 656 – 66 www.messen-nord.de STV-4 Wireless FULL-HD Manhole Zoom Camera “Electronic sewer inspection” Documentation/Operating instructions...

  • Page 2: Table Of Contents

    Table of contents 1 FUNCTION AND USAGE..................3 2 EQUIPMENT OPTIONS/SCOPE OF DELIVERY............ 4 3 COMMISSIONING....................6 3.1. I ............6 NSERT THE BATTERIES INTO THE ROUTER 3.2. I ............7 NSERT THE BATTERIES INTO THE CAMERA 3.3. P STV4 ) ....

  • Page 3: Function And Usage

    The zoom camera STV-4 will be fully software-controlled by WLAN with a tablet PC or notebook of the operating personnel or from a camera inspection car operator workstation.

  • Page 4: Equipment Options/Scope Of Delivery

    Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH 2 Equipment options/Scope of delivery Article STV-4 Description/Scope of delivery Inspection camera Wireless manhole zoom camera / Full-HD / motor adjustment for sewers and tanks for the inspection of the operating condition of sewers, pipes, shafts and separators, “Electronic sewer...
  • Page 5 Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH Options Description/Scope of delivery STV4-TRIP Tripod for STV-3/STV-4 with rotation support Tripod with rotation Rotation support with angular positioning to manually create a surface processing support (panoramic image) of shaft and tanks structures.

  • Page 6: Commissioning

    Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH 3 Commissioning 3.1. Insert the batteries into the router Router/radio amplifier (is used for the extension of the WLAN signal) Insert the battery into the router/radio amplifier as shown in the figure below. Insert the battery into the battery housing with the positive pole first (see picture).

  • Page 7: Insert The Batteries Into The Camera

    Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH 3.2. Insert the batteries into the camera STV4 Manhole zoom camera Insert the batteries into the camera as shown in the figure below. Insert the batteries into the battery housing with the positive pole first (see picture). The camera is operated with three lithium-ion round cell batteries.

  • Page 8: Preparation Stv4 Camera (Filling Pressure + Support Foot)

    MesSen Nord GmbH 3.3. Preparation STV4 camera (filling pressure + support foot) The STV-4 camera unit is not explosion proof but has the possibility of being filled with a shielding gas (e.g. nitrogen) for the purpose of leakage monitoring (please observe the operation notes/warnings at the end of the documentation!).
  • Page 9 Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH Status display with battery symbol in the middle. Click on the battery icon to go to the next view. Status display with filling pressure (P) in mbar. By clicking on the pressure indicator, it changes to the next view.

  • Page 10: Control Software "Stv4

    Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH 4 Control software “STV4” The control software allows you exploit the entire functionality of the camera. You control the zoom, focus, horizontal orientation, lighting, screen display and the video settings. You can monitor the battery level, the temperature and the filling pressure.

  • Page 11: Settings And Program Parameters

    Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH 4.2 Settings and program parameters program parameters settings can be accessed via the button. The directories for picture and video storage can be defined in the tab- window “General”. On request, the stored data can be additionally stored in subdirectories with a date-time stamp.
  • Page 12 Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH The software offers switching between different layouts as a special feature. Two layouts are currently available. In the detailed surface layout, e.g., the LED segments can be controlled individually and exact zoom positions can be selected. The simple surface layout is easier to operate and pre-set after the installation.
  • Page 13 Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH Parameters setting of-tab-window “STV video options” Existing system cameras can be added to the camera selection in the user interface. For example, existing front and back webcams for tablets or even USB video devices.

  • Page 14: Program Interface And Operation (Live-Video)

    Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH 4.3 Program interface and operation (Live-Video) The connection to the STV4 is automatically established when the software is started. First, the WLAN connection and the battery level of the router and the camera are checked.
  • Page 15 Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH One mouse click in this area to hide the control buttons. Next mouse click will make the button visible again. Video image with control buttons One mouse click on the video image displays the control buttons again. If the full screen mode has been deactivated, it is not necessary to display or hide the control buttons.
  • Page 16 Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH overtemperature, over- or low pressure, it is signalled here instead of the battery indicator. The filling pressure should always be checked after the camera is switched on to ensure that the camera is not leaking.
  • Page 17 Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH Move the focusing range away manually (also possible via the keyboard using the “right button”) Move the focusing range close manually (also possible via the keyboard using the “left right”) Activate the autofocus or trigger the autofocus (also possible via the keyboard using the “Enter”...

  • Page 18: The Picture Gallery

    Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH 4.4 The picture gallery The icon opens the picture gallery. Video playback and recordings will be stopped. The picture gallery is for the view and management of the saved pictures. Zoom in a picture by double-clicking on it, close the picture again by clicking on it again.

  • Page 19: The Video Gallery

    Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH 4.5 The video gallery The icon opens the video gallery. Live video playback and current recordings will be stopped. The video gallery is for the view and management of the saved videos.
  • Page 20 Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH Switches to the previous video file in the currently selected directory Switches to the next video file in the currently selected directory Saves a picture in the directory for the current date After closing the video gallery, the live video of the last selected video device will start.

  • Page 21: Troubleshooting

    Wireless FULL-HD Manhole Zoom Camera STV-4 MesSen Nord GmbH 5 Troubleshooting Message: “Router/radio amplifier is not available. Please check the start-up condition/battery of the radio amplifier. The PC must be connected to the WLAN of the radio amplifier!” Switch on the router by pressing the power button. Keep the button pressed until the LED of the button lights.

  • Page 22: Technical Data

    WLAN IEEE 802.11 b/g/n Operation notes/Warning: The camera unit of the STV-4 can be filled with overpressure; the internal pressure of the camera is continuously monitored. The system is not explosion proof, which means it must never be used in the hazardous area of flammable gases.
