Juniper 4VETJ User Manual

Ultrasound scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U S E R ' S
M A N U A L

Advertisement

Table of Contents
loading

Summary of Contents for Juniper 4VETJ

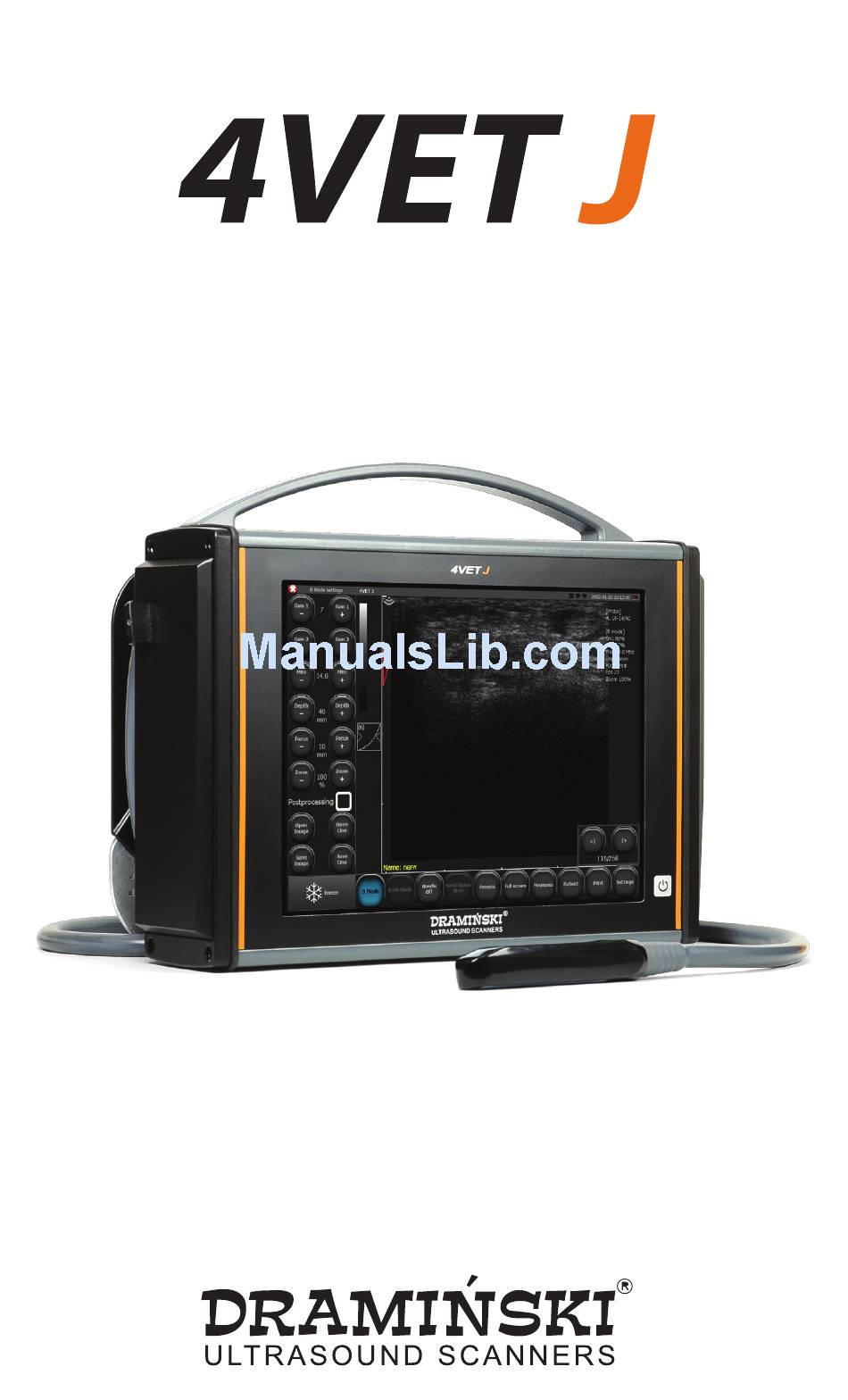

  • Page 1 U S E R ’ S M A N U A L...
  • Page 2 Part Number 27208-00 The 4VetJ is jointly manufactured by Dramiński S.A., ul. Owocowa 17, 10-860 Olsztyn, Poland and Juniper Systems, Inc. It is distributed by Juniper Systems, Inc. in the U.S. tel: 435.753.1881 web: www.junipersys.com 1132 W. 1700 N. Logan, UT 84321...

  • Page 3: Table Of Contents

    Features of the 4VetJ Ultrasound Scanner Probes Battery Pack and AC Power Supply Display and Touchscreen Perform Initial Tasks Clean and Disinfect the 4VetJ and Components Prepare the Animal Safety of Use 4VetJ Settings and Functions Elements of the Basic Panel...
  • Page 4 Wi-Fi Troubleshooting Clean, Store, Transport, and Recycle Clean and Disinfect Store Transport or Ship Recycle Warranty and Repair Information Limited Product Warranty Repairs, Upgrades, and Evaluations Warnings, Regulatory Information, and Licensing Product Warnings! Specifications Index 4VetJ Ultrasound Scanner User’s Manual...

  • Page 5: Getting Started

    C H A P T E R Getting Started...

  • Page 6: System Overview

    „ You can also attach a keyboard, mouse, printer, or extra monitor to the 4VetJ using the appropriate connector ports. The 4VetJ can be used as a stand-alone unit or as part of our EmberEquine Ultrasound Reproduction Solution ™ This manual focuses on the 4VetJ Ultrasound Scanner.

  • Page 7: Features Of The 4Vetj Ultrasound Scanner

    Features of the 4VetJ Ultrasound Scanner Front View 1 Resistive Touchscreen 5 Door to Connector Ports 2 Handle 6 Stylus Holder 3 Probe Cord Strap 7 Speaker 4 Stylus with Tether 8 On/Off Button Connector Ports 1 Ethernet Port 2 HDMI Port 3 USB 2.0 Port...

  • Page 8: Probes

    3 Battery Pack (internal) 9 Probe Connector Lock 4 Tilt Stand (adjustable) (locked position) Probes A standard 4VetJ comes with an endorectal linear probe, 4-9 MHz, for pregnancy and gynecological exams on large animals like cattle or horses. 4VetJ Ultrasound Scanner User’s Manual...

  • Page 9: Battery Pack And Ac Power Supply

    CAUTION: Always use the AC power supply included with the 4VetJ to charge the battery pack or power the unit. The use of any other power supply unit can cause harm to the user or permanently damage the device.

  • Page 10: Display And Touchscreen

    Use a light touch when the stylus is used. Perform Initial Tasks Before you use the 4VetJ for an exam, perform the tasks described in this section. Review Documentation Owner’s manuals (4VetJ, EmberEquine, Mesa 2), quick start...
  • Page 11 If the 4VetJ is off, a completely discharged battery pack takes about 4 to 5 hours to charge. If the 4VetJ is in use while charging, it takes about 20% longer to fully charge the battery.
  • Page 12 LED lights up. Orange indicates that the battery pack is charging. Green indicates a full charge. Note: If the 4VetJ is left on when it is not being used and it is not being powered by the AC adapter, the battery pack is completely discharged and the 4VetJ automatically shuts off.
  • Page 13 With the probe removed, certain functions are no longer available. Note: If you are not going to have a probe attached to the 4VetJ, slide the socket cover closed to keep out debris. 5. Attach the probe connector into the socket for the probe you are attaching.

  • Page 14: Clean And Disinfect The 4Vetj And Components

    CAUTION: The crystals in the probes have a limited life. If the 4VetJ is running but no exam is being done, either turn the unit off or unhook the probe from the probe socket.

  • Page 15: Prepare The Animal

    Review the following list of safety issues before using the 4VetJ. More safety information is located in Appendix C, Warnings, Regulatory Information, and Licensing. The 4VetJ ultrasound is only for use on animals. It is not for „ human use.
  • Page 16 Do not modify the device. „ The warranty is void if unauthorized repairs are done. „ The 4VetJ should be used for diagnostic purposes only. „ The device is not recommended for esophageal „ examinations. Do not use the 4VetJ near explosive devices.

  • Page 17: 4Vetj Settings And Functions

    C H A P T E R 4VetJ Settings and Functions...

  • Page 18: Elements Of The Basic Panel

    4VetJ Settings and Functions This chapter discusses the 4VetJ settings and functions that can be used for ultrasound examinations. WARNING! Ultrasound examinations using the 4VetJ and probes must be conducted by qualified and properly trained personnel. Press and release the on/off button . It takes about 60 seconds for the system to load, then the basic panel is shown.
  • Page 19 21. Needle echo enhancement tool 22. Send Image to the Mesa 2 via Wi-Fi (option) 23. Presets 24. Full screen mode 25. Menu of measurements 26. Patient’s data 27. Print images 28. Settings, additional options Chapter 2 4VetJ Settings and Functions...

  • Page 20: Active Fields

    The basic activities associated with the operating modes are described in this section. Modes B, B+B, and 4B Press the B mode button. From the submenu that appears, select the mode associated with the desired screen view. 4VetJ Ultrasound Scanner User’s Manual...
  • Page 21 From the submenu, starts 4B mode Movement in the Zoom mode In the B+B and 4B modes active fields are located in each window. Chapter 2 4VetJ Settings and Functions...
  • Page 22 Modes B+M and M Press the B+M mode button. To switch to M mode, from the dropdown menu that appears, select M mode. Mode Description Sample Screen View Starts B+M mode Select from the dropdown menu 4VetJ Ultrasound Scanner User’s Manual...

  • Page 23: Optimize Image Parameters

    The range of available frequencies depends on the type of the probe. Refer to Appendix D, Specifications. To change the signal frequency, use the [MHz -] and [MHZ +] buttons in the control panel. Chapter 2 4VetJ Settings and Functions...
  • Page 24 Focus adjustment can also be performed using a finger or the stylus in the vertical active field located on the left side of the sector. The scanner also has automatic dynamic focusing, so the image is sharp in the whole range of the scanning. 4VetJ Ultrasound Scanner User’s Manual...
  • Page 25 A black and white bar located above the [Gamma] button indicates the current grey scale setting. Negative (color inversion) To invert colors from positive to negative, double click the bar showing the grey scale setting. Chapter 2 4VetJ Settings and Functions...

  • Page 26: Freeze

    Press the [Measures] button on the mode panel to see which measuring options are available. [Grid] – The grid provides approximate measurements to „ an image [Narrowing] – This measurement determines the „ narrowing of an image 4VetJ Ultrasound Scanner User’s Manual...
  • Page 27 To obtain two planes in one image, use B+B mode. Put three measuring sections in the image. The scanner automatically calculates the volume of the object on the basis of these measurements. The result is presented in cm3. Chapter 2 4VetJ Settings and Functions...
  • Page 28 0.1 mm. Area Measure the area and circumference of an object by outlining the object with a finger or the stylus without removing it until the shape is closed and you tap on the 4VetJ Ultrasound Scanner User’s Manual...
  • Page 29 The scanner automatically calculates an approximate age of the fetus in days. Horse Fetus Measurements [Horse DC] - Head diameter in mm and days. Available between the 90th and 200th day of pregnancy. Chapter 2 4VetJ Settings and Functions...
  • Page 30 [Cat >30 HD] – Head diameter in mm and days. Available after the 30th day of pregnancy. Measure in the same plane as for CRL. Over the 35th day of pregnancy, measure in the same plane as for biparietal diameter. 4VetJ Ultrasound Scanner User’s Manual...
  • Page 31 Start with the border between the right ventricle and the wall of the septum. Next, mark the point determining the left ventricle lumen. The 4VetJ automatically determines the section between the interventricular septum and the Chapter 2 4VetJ Settings and Functions...
  • Page 32 LVDd to be obtained. The last measuring point is located on the exterior border of the free wall of the left ventricle. The 4VetJ automatically determines the section corresponding to left the ventricular free wall in diastole (LVFWd).
  • Page 33 2. Surface area of the left ventricle (ellipse) in the cross section on the level of the mitral valve (LVAM). The result is calculated on the basis of the equation V = (5 / 6) x LVL x LVAM and is given in ml. Chapter 2 4VetJ Settings and Functions...
  • Page 34 Press [X] to turn the navigation buttons off. The measurement panel can be moved to any place on the screen by selecting the middle of the window with your finger or the stylus and moving it to the desired location. 4VetJ Ultrasound Scanner User’s Manual...

  • Page 35: Optimization Of B+M And M Modes

    To save an image or cine loop, first freeze it from the basic panel using the [Freeze] button then press [Save Image] or [Save Cine]. A dialogue box appears with a virtual keyboard. You can enter patient data when saving an image or cine loop. Chapter 2 4VetJ Settings and Functions...
  • Page 36 Note: This process can be used to transfer images and records from the 4VetJ to a Mesa 2 running EmberEquine software via Wi-Fi. Cine Loops cannot be sent via Wi-Fi. 4VetJ Ultrasound Scanner User’s Manual...
  • Page 37 Send Image to the Mesa 2 Via Wi-Fi (Option) This function allows you to transfer images and records (not cine loops) from the 4VetJ to the Mesa 2 Rugged Tablet. You need to have an EmberEquine solution to do this. For details on how to set up Wi-Fi and make a transfer.

  • Page 38: Patient Data Function

    USB storage devices in a DICOM file format. Patient Data Function You can enter data into the patient record before an examination starts. All the data that is entered is automatically assigned to the saved images and cine loops. 4VetJ Ultrasound Scanner User’s Manual...
  • Page 39 [Load]. Note: To import patient data from the Modality Work List, the scanner has to be configured correctly to work with a DICOM printer. See DICOM under Advanced Settings later in this chapter. Chapter 2 4VetJ Settings and Functions...

  • Page 40: Needle Echo Enhancement Tool

    To print images, you need to install the proper printer drivers. The scanner has default printer drivers for a Mitsubishi P95D. If multiple printers have been set up to use with the scanner, select a printer from the list before printing. 4VetJ Ultrasound Scanner User’s Manual...

  • Page 41: Presets

    When you are ready, press the [Print] button located in the print preview window. Presets Presets Activation The 4VetJ scanner has presets for the liver, kidneys, abdominal cavity, aorta, thyroid gland, superficial blood vessels, lungs, musculoskeletal system and hips examinations.
  • Page 42 [OK]. The preset is saved and appears on the list in the Manage Presets window. To delete the preset, open the Manage Presets window and select the name of the preset, then press [Delete preset]. 4VetJ Ultrasound Scanner User’s Manual...

  • Page 43: Look

    Show mouse cursor „ Full screen „ Lock Settings PIN „ Enable option “one button” to save and load files „ Chapter 2 4VetJ Settings and Functions...

  • Page 44: Clinic

    The /Info/ tab shows information about the software, hardware, network, and license. The following functions can also be performed: Update the software of the scanner „ Select the printer from the list of connected printers „ 4VetJ Ultrasound Scanner User’s Manual...
  • Page 45 Over time, the 4VetJ software could be updated. We recommend that you use updates that are tested by us to avoid potential problems. Follow these steps: 1. The 4VetJ software update that was last tested is listed on our website at: www.junipersys.com/emberequine/ downloads.

  • Page 46: Time

    Press [Set Date and Time] to enter the current date and time. Display In the /Display/ tab there are options to set the brightness of the display and calibration of the touch panel. 4VetJ Ultrasound Scanner User’s Manual...

  • Page 47: Audio

    Touch Panel (Touchscreen) Calibration The 4VetJ touchscreen has a default calibration. If the system malfunctions, it is possible that the touchscreen has become uncalibrated. You can suspect that this is the case if the accuracy is low when a measurement is made, for example.

  • Page 48: Dicom

    DICOM Modality Worklist (MWL) section. Once the information is entered, press the “Enable DICOM Storage” option. Confirm the entered changes with the [Save DICOM Settings] button at the bottom of the screen. 4VetJ Ultrasound Scanner User’s Manual...

  • Page 49: Wi-Fi

    Auto connect can be selected. Note: Details on how to use Wi-Fi to link the 4VetJ with a Mesa 2 running EmberEquine software are given in the...

  • Page 50: Troubleshooting

    If you are using the AC power „ supply, check the cable and make sure it is property connected to a wall outlet and the 4VetJ. The red battery LED should be on. You can also try disconnecting the unit from external power and powering it on using battery power.
  • Page 51 „ gamma and make sure that they bright or too dark are set correctly. There are visible, If you are running the 4VetJ on „ battery power, try running it using moving spots on the AC power supply. the image If you are running the 4VetJ using „...
  • Page 52 If none of the basic activities solves the issues you are having or other problems appear, contact our service department (see Appendix B, Warranty and Repair Information for details). 4VetJ Ultrasound Scanner User’s Manual...

  • Page 53: A Clean, Store, Transport, And Recycle

    A P P E N D I X Clean, Store, Transport, and Recycle...

  • Page 54: Clean And Disinfect

    The personnel performing disinfection on the equipment should wear protective gloves and clothes. 4VetJ Ultrasound Scanner Clean the body of the 4VetJ after use with a soft cloth or a paper towel using warm water or a mild cleaning solution to avoid mechanical damage.

  • Page 55: Store

    The storage temperature range is +41°F to 113°F (+5°C to +45°C). If the 4VetJ is not charged while it is powered down and the battery is discharged, the unit turns off. Note: Data and programs are secure as long as they have been saved, even if the battery pack becomes discharged.

  • Page 56: Recycle

    Make sure that nothing is touching the touchscreen during shipping (except for the protective case). Put the stylus in the holder on the 4VetJ and place the stylus tether where it won’t touch the screen. Make sure that the 4VetJ is turned off.

  • Page 57: Warranty And Repair Information

    A P P E N D I X Warranty and Repair Information...

  • Page 58: Limited Product Warranty

    Limited Product Warranty Two Year Warranty Juniper Systems, Inc. (“JS”) warrants that the Draminski 4VetJ Ultrasound Scanner, internal battery, and probe shall be free from defects in materials and workmanship, under normal intended use, for a period of 24 months from the date of shipment.
  • Page 59 Parts that are excessively worn are not covered under warranty. These may include, but are not limited to, the touchscreen. This warranty is exclusive and JS will not assume and hereby expressly disclaims any further warranties, whether express or implied, including, without limitation, any warranty as to merchantability, fitness for a particular purpose, non- infringement or any warranties arising from the course of performance, dealing, or usage of trade.
  • Page 60 International Sale of Goods. The courts of Utah shall have exclusive personal jurisdiction in case of any disputes arising out of or in connection with this warranty. Warranty Status You can check the warranty status of the 4VetJ on our website at www.junipersys.com/Juniper-Systems-Rugged- Handheld-Computers/support/Warranty/Check-Warranty- Status.

  • Page 61: Repairs, Upgrades, And Evaluations

    CAUTION: Do not attempt to repair the 4VetJ yourself. This action voids the warranty. We recommend that you have the service department perform a technical review of the 4VetJ every two years to help guarantee the safety of the patients (animals). Information about repairs, upgrades, and evaluations is located on our website at www.junipersys.com/Juniper-...
  • Page 62 (for a repair or upgrade that is not covered by the standard warranty or an extended warranty policy) You must clean and disinfect the 4VetJ and probe before returning them to our service department. Refer to Appendix A, Clean, Store, Transport, and Recycle for details.
  • Page 63 A P P E N D I X Warnings, Regulatory Information, and Licensing...

  • Page 64: C Warnings, Regulatory Information, And Licensing

    Warnings, Regulatory Information, Licensing Product Warnings! Follow the warnings listed below to use the 4VetJ, battery, and AC power supply safely. Please review additional warnings shown towards the end of Chapter 1, Getting Started. 4VetJ and Internal Battery Pack The 4VetJ cannot be shipped on a commercial airline. The internal Li-Ion battery is 259Wh, which is greater than what is allowed by TSA or airline regulations.
  • Page 65 To reduce the risk of personal injury, electrical shock, fire or damage to the equipment, follow this information: Only use the power supply provided with the 4VetJ. Using other power supplies could be a fire hazard as well as damage the device and void the warranty.
  • Page 66 In compliance with the FCC rules, 47 CFR 15.21, the user must be notified that changes or modifications to the 4VetJ that are not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

  • Page 67: Specifications

    A P P E N D I X Specifications...
  • Page 68 „ Cat abdomen „ Small/Medium/Large dog abdomen „ Grayscale 256 shades „ Processing Speckle reduction „ Contrast enhancement „ Edge sharpening „ User Interface Languages: English, Spanish, French, „ Arabic, Croatian, German, Korean, Polish, Russian 4VetJ Ultrasound Scanner User’s Manual...
  • Page 69 Measurements Basic: Area, distance,k elipse, grid, „ stenosis, volume Obstretric: Horse DC; horse DO; horse „ DSG; sheep LLC; Lama DBP; Sow LCC; cow DBP; cow LLC; small/medium dog GS; dog BPD medium; cat>30 HD, BD, CRL, and GSD Operating Windows 10 „...
  • Page 70 Components 4VetJ ultrasound „ Included Probe with cord wrap „ Rechargeable Li-Ion battery pack „ (internal) AC Power supply „ 4-position tilt stand „ Durable transport case „ Stylus „ 4VetJ Ultrasound Scanner User’s Manual...

  • Page 71: Index
