Summary of Contents for Volth S-NET1

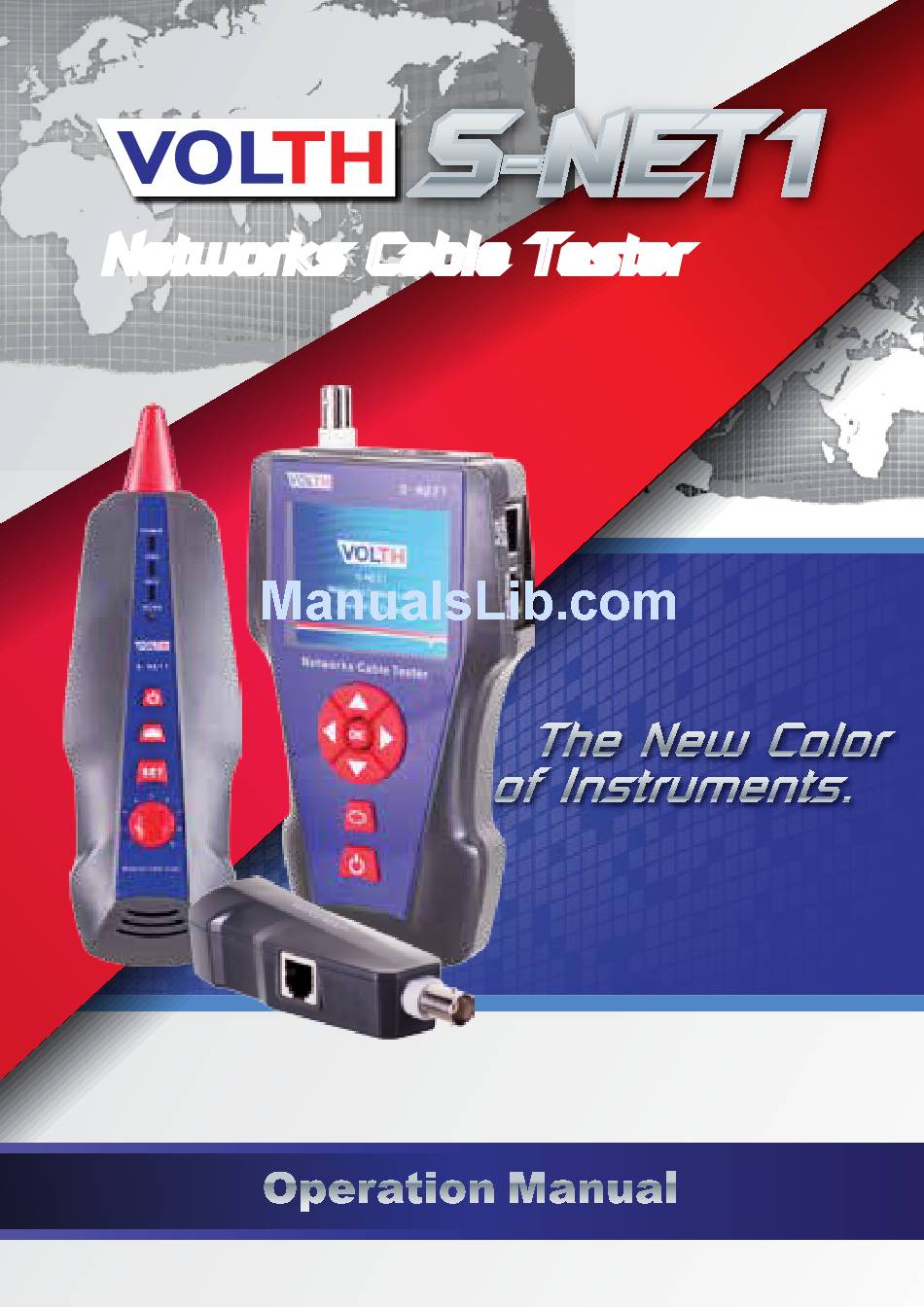

- Page 1 Networks Cable Tester Networks Cable Tester...
-
Page 2: Table Of Contents
• Power supply for device is 3.7V rechargeable lithium battery. • Disconnect the 5V 1A Charger when complete charging in fear of danger. • Please use battery according to the specification; otherwise, it may result in damage to equipment. • Never put the equipment in the place with much dust, humidity and high temperature (over 40°C). •... - Page 3 S-NET1 Series are newly developed by our company which are capable of anti current interference. The equipment is composed of three parts: main tester (S-NET1-M), receiver (S-NET1-S) and remote identifier (S-NET1-R). It is a multifunction device, capable of measuring cable length, cable tracing, cable continuity testing, PoE and PING functions also it can detect voltage presence.
-
Page 4: Benefits
(11). S-NET1 includes 8 remote units with ID1-ID8. (12). PoE/PING Testing (13). Tracing cable Locate targeted cable among lots of cables (only for S-NET1 & S-NET1W, S-NET1A Can't) (14). Automatic power-off Users can choose time to turn off the tester automatically. - Page 5 RJ45 RJ11 MAIN S-NET1 Menu Mapping Scan Port Flash RJ45 PoE/Ping Ping SCAN Length Card C a ble L ength T es ter E MIT T E R Main tester Ports on Main unit (1). Three RJ 45 ports on the main unit: One of them is “MAIN” port, used for cable length measuring and continuity testing.
-
Page 6: Charging Function
Remote identifier Ports on Remote identifier (1) RJ45: remote testing cable continuity for Lan cable. (2) Port RJ11: remote testing cable continuity for telephone cable. (3) Port BNC: remote testing cable continuity for COAX cable. Ports Instruction on Main interface Menu Menu Mapping... - Page 7 When the emitter low battery(＜3V), it will show “Low battery, auto-off soon! ” ; when the reciever low battery (＜3V), “power” will flash. Operation steps Boot screen Turn on the tester to come to home page. Menu Menu S-NET1 Your excellent Mapping Scan Port Flash helper in cable test!
-
Page 8: A.cable Line-To-Line Test
a.Cable line-to-line test ( eg: Network cable): Turn on the device, connect one end of the network cable to “RJ45 Main”, the other end to “RJ45” port of remote unit. Choose “Mapping” on the main menu, then enter “Cat5” or “Cat6” to start testing, the testing result will display on the screen directly. - Page 9 CAT5 Mapping Test mode:Local 1 2 X 4 5 6 7 8 G 1 2 X 4 5 6 7 8 G Open mapping: 3 In the figure, “X” shown in “3” position, indicates there is open circuit. Note: Because network cable is made of pair cores, if there is open circuit, it will show faults in pairs, just as above "4"...
- Page 10 Menu Mapping RJ11 Mapping RJ11 Mapping Start Data upload Testing. . . CAT5 CAT6 Mapping Port Flash Scan RJ11 Ping Length Test result 10: Continuity test for coax cable When you test the coax cable , you should insert into the BNC interface and the test method is the similar with network cable. Menu Mapping BNC Mapping...
-
Page 11: C.cable Length Test
CAT5 Mapping Test mode: Remote X X X X X X X X X X X X X X X X Short mapping: 345678 Open mapping:12 Attention: This method is only to lan cable which is open or good connection , can't test cross and short. - Page 12 CAT5 Length Total length: 1 Open 105.3m 2 Open 105.3m 105.3m 3 Open 105.3m 4 Open 105.3m 5 Open 105.3m 6 Open 105.3m 7 Open 105.3m 8 Open 105.3m From the image you can see the total length is 105.3 M, press back to the main menu and then enter the next testing.
- Page 13 RJ11 Length 1 Open 95.6m Total length: 95.6m 2 Open 95.6m 3 Open 95.6m 4 Open 95.6m 5 Open 95.6m 6 Open 95.6m From the image , you can see the cable length is 95.6M , press return the main menu and start other testing.
- Page 14 Connect a network cable to “RJ45 MAIN” port, (the cable should be more than 10m). choose “Length”---“CAT5”---“Calibration” to start to adjust the length value, press to add , reduce the value, when adjust the value into actual length value, press OK to save the data. The details is as below Menu Length...
- Page 15 d. Cable scanning (POE router & other brand router) NF-8601A doesn’t) After entering main menu, choose icon”scan” and press OK to enter, then press Up/ Down button to switch scan modes. Choose “ scanning” mode if scan cable on ordinary switch(graph No.2), choose “scanning PoE switch”...
- Page 16 Note: in this case, users should alter the voice to degree 1~2 in order to find out targeted cable precisely. 3. Locate short point for uncharged metal cable Enter “Scan” work mode, connect the cable lead into “ RJ11” port, use the red clip to connect the red core of the metal cable, black to black, then hold the receiver to get close to the cable and move forwarder, you can hear “...
- Page 17 Crosstalk interface is shown as below: CAT5 Mapping Test mode: Remote 1 2 3 4 5 6 7 8 G 1 2 3 4 5 6 7 8 G Crossover:3 4 5 6 crossover pins flicker Note: telephone is not twisted pair cable, but if the interference is excessive, sometimes, it will also display crosstalk .
-
Page 18: H.system Set
Parameter specification of PING functions IP address: can obtain automatically any Internet device which has connected in the global. (Under a specific situation, users need to manually set IP address when can't be automatically obtain IP address.) Local IP address:It can be set up,but it must be different with other LAN devices. -
Page 19: Power Off
4. System theme: enter the “Set” function in main menu, here is two system theme for option: Blue & white. 5. Data export: enter the “Set” function in main menu, you can export any of data which you saved before into TF Card. (when you insert TF Card, icon will display at the top-left corner of the screen, if not, the data won't be exported into TF Card.)
