Summary of Contents for Schramm Master UM-200

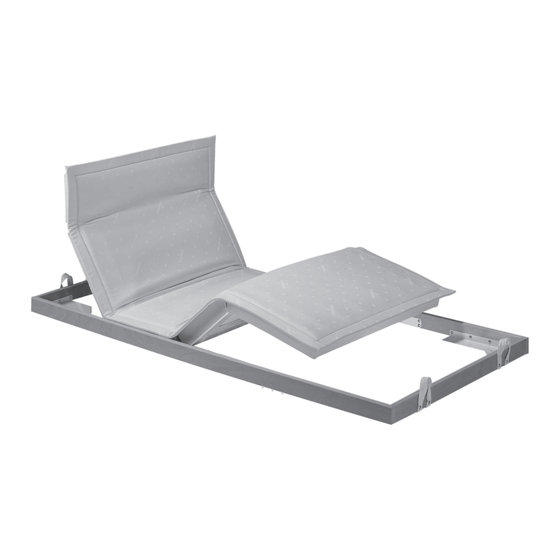

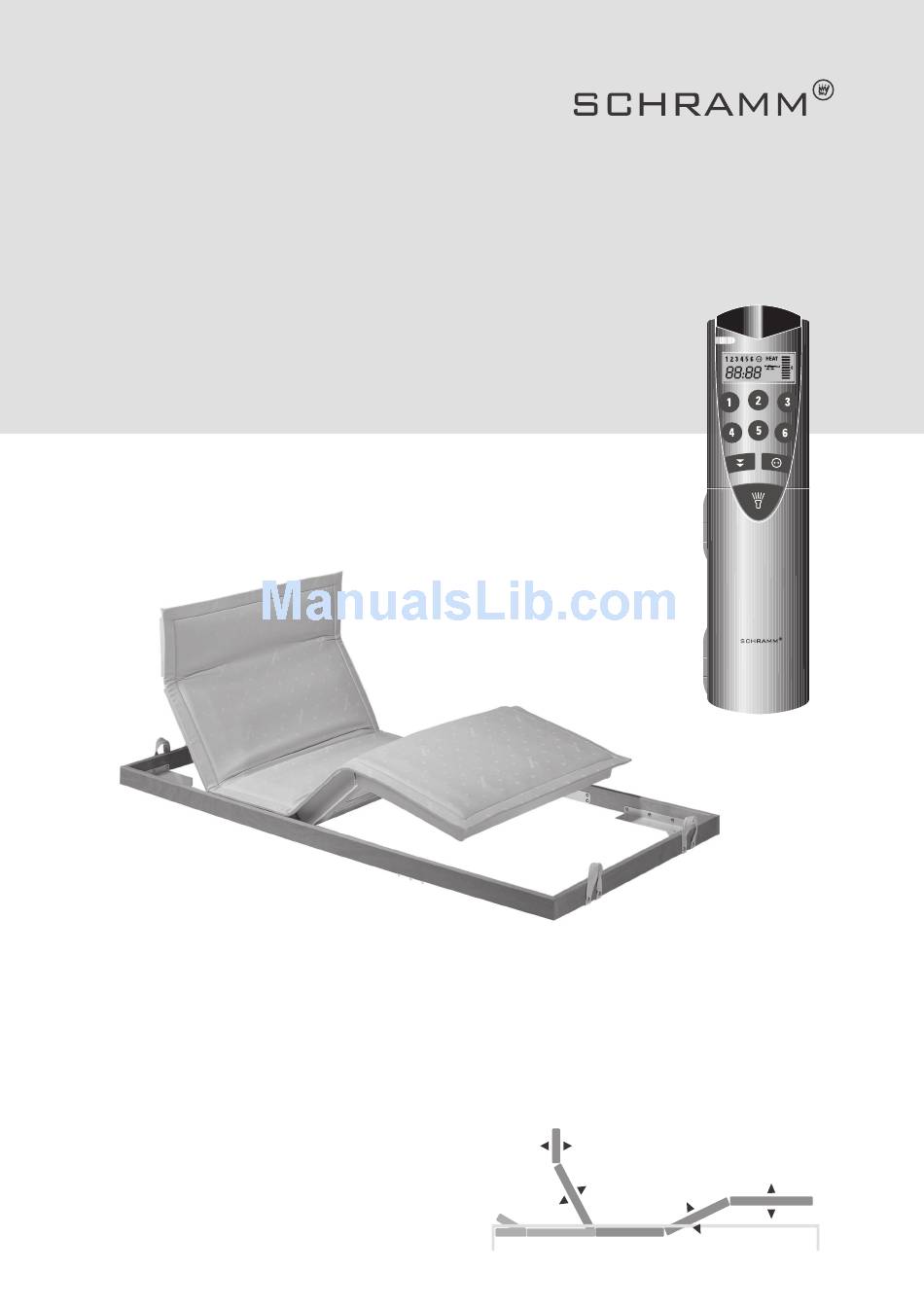

- Page 1 OPERATION MANUAL SLEEP SYSTEM BASE MATTRESSES Master UM-200 | UM-201 | UM-220 | UM-221 09/2016 11.V1...
-
Page 2: Childproof Lock
Radio remote control for motorised base mattresses functionless Display memory button 1 / 2 / 3 (preset programmable) memory button 4 / 5 / 6 (programmable) RESET (all down) functionless clock S.C.A. (optional) neutral memory button / child proof lock S.C.A. - Page 3 Fig. 2 Control Memory functions 1 - 6 If not already preset, the programming is performed as follows: Use buttons (below the flap of the remote control) to set the desired resting position. Press button S 3 times Press any of the memory buttons 1 - 6 Setting is confirmed by a beep.
- Page 4 Synchronisation The controller units of two identical motorised base mattresses are connected with each other by a sync cable (Fig. 2, controller). Each of the two base mattresses boasts its own remote control. With this configuration both base mattresses adjust synchronously no matter which remote control is used for setting. The controller units also recognize different weights and coordinate the movement in a way that both sides of the bed are set in an almost identical position.
- Page 5 Emergency lowering Even in the event of a power failure the base mattress can be moved back to the horizontal resting position thanks to the integrated batteries. The rocker switch is to be found on the controller unit which is located in the middle of the foot end of the motorised surface.
-
Page 6: Troubleshooting
Troubleshooting Please note the following potential malfunctions and their elimination. If you are unsure what might have caused the malfunction we recommend you to check the individual points or take the recommended steps in the indicated order. No function, no reaction at all Check whether the mains plug has been correctly inserted into the socket. -
Page 7: Eg-Konformitätserklärung
Untermatratze in Boxspringbetten mattress for boxspring beds Typenbezeichnung: EP-Untermatratzen Model: Base mattress Hersteller: Schramm Werktätten GmbH, Manufacturer: Schramm Werktätten GmbH, Winnweiler Winnweiler The described product is in accordance Das bezeichnete Erzeugnis stimmt mit den Anforderun- with the requirements of the following gen folgender europäischer Richtlinien überein:... - Page 8 Children must be supervised in order to ensure that they do not play with the appliance. Always pull out the mains plug if work is to be carried out on the sleep system technology - e.g. to rectify malfunctions. Schramm Werkstätten GmbH Am Stundenstein 1 D-67722 Winnweiler Tel.: ++49-6302-9236-0...
