Summary of Contents for Telpo TPX820

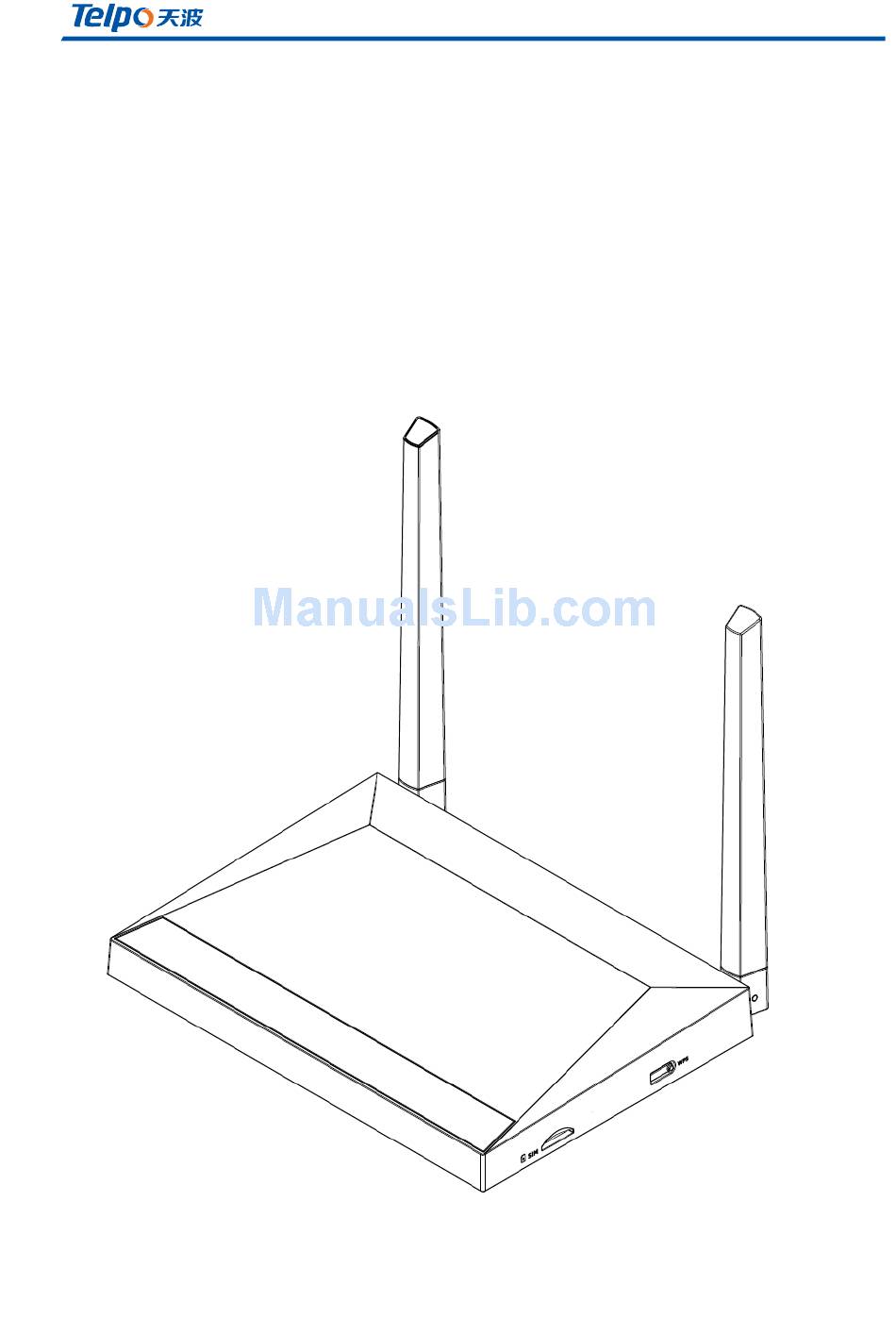

  • Page 1 TPX820 User Manual TPX820 User Manual V1.0 Page 1/62...

  • Page 2: Led Indicator

    TPX820 User Manual 1. LEDIndicators& Cables Before you use this product, you must first have a general understandingofLEDindicators,andhowtoconnect. 1.1 LED indicator (1)Front View LED Status Description There is a service stream or is being Flashing(green) registered Phone1 / 2 Successfullyregisteredtothesoftswitch,but Steady(Green) nobusinessflow Network interface is connected, but no Steady(Green) datatransmission....
  • Page 3 TPX820 User Manual Flashing(green) Thereisdatatransmission The network connection is successful and Steady(Green) thephysicalconnectionhasbeenestablished The network is not connected or the Off connectionfails Flashing(green) Thereisdatatransmission Steady(red) Thesystemispoweredupnormally POWER Off Thesystemisnotpoweredon Steady(Green) WIFIswitchisturnedon,APwork WLAN Flashing(green) Thereisdatatransmission (2)Back View Interface Description Connectthepoweradapter Power ...

  • Page 4: Hardware Installation

    TPX820 User Manual Phone1 / 2  Connectthephone USB  USBinterface WAN  ConnectaccesstotheInternet LAN (1/2/3/4)  WIFInetworkdeviceconnectedtoalocalswitch 1.2 Hardware Installation Beforesettingupyourhomegateway,youmustconnectyourdevicecorrectly: Use Ethernet as Uplink   1. WithRJ-11cabletoconnectatelephonetoafixedtelephonejackport; 2. DevicewithanEthernetcableandamodemconnectedwanport; 3. TheLANportyourcomputerdeviceconnectedviaRJ-45cable; 4. Oneendofthepowercordisconnectedtothepowerinterfaceofthe deviceandtheotherendisconnectedtoanelectricaloutlet; 5. Starttherouter 6. Checkthepower,wanLANportopeningandanLEDlamptoensure networkconnection. Use LTE as uplink  1. WithRJ-11cabletoconnectatelephonetoafixedtelephonejackport; 2. CheckthattheSIMcardisconnected; 3. TheLANportyourcomputerdeviceconnectedviaRJ-45cable; Page 4/62...
  • Page 5 TPX820 User Manual 4. Oneendofthepowercordisconnectedtothepowerinterfaceofthe deviceandtheotherendisconnectedtoanelectricaloutlet; 5. Starttherouter 6. Checkpower,LTEandLANportLEDlamptoensurenetworkconnection. Warning –  Part15.19 1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjectto thefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterference thatmaycauseundesiredoperation. Part15.21 2.Changesormodificationsnotexpresslyapprovedbythepartyresponsible forcompliancecouldvoidtheuser'sauthoritytooperatetheequipment. Part15.105 NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfor aClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,if notinstalledandusedinaccordancewiththeinstructions,maycauseharmful Page 5/62...
  • Page 6 TPX820 User Manual interferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes causeharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,theuserisencouragedtotry tocorrecttheinterferencebyoneormoreofthefollowingmeasures: 　Reorientorrelocatethereceivingantenna. 　Increasetheseparationbetweentheequipmentandreceiver. 　Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. 　Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCCRFRadiationExposureStatement ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforan uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Page 6/62...

  • Page 7: Web Login Page

    TPX820 User Manual 2.Web admin page settings 2.1 WEB login page Built-inWebserverdevicein response toHTTP get / postrequest.Users canuseaWebbrowser,suchasMicrosoft'sIEtothelogintheWEBadminpage andconfigurethedevice. 2.1.1URLformat URLformatloginwebpageis: http://LANportIPaddress UsuallythedefaultLANportIPaddress:192.168.3.1,entertheappropriate addressintheaddressinputfield,andthepagewilljumptotheloginpagefor thedevice,Asshownbelow: 2.1.2 About password Log levelTPX820has two, namely general and administrator-level user level,differentstandardshavedifferentpasswords. Page 7/62...
  • Page 8 TPX820 User Manual GeneralleveluserstobrowseandconfigureallTPX820parameters, inadditiontotheSIPlinecannotbechangedinsomeparameters,suchas serveraddressandport;theadministratorlevelusercanconfigureallother parameters. TPX820defaultmanagement-levelpassword:admin TPX820defaultnormaluserpassword:user Page 8/62...

  • Page 9: Web Admin Page

    TPX820 User Manual 2.2 WEB admin page Numbering name description Click the secondary navigation bar, the Timesthe corresponding sub navigation bar will navigationbar appear Clickthechildnavigationbartoenterthe Subnavigationbar correspondingconfigurationpage title Configurethetitle Configurationbar Configurationbar TPX820displayfirmware version,DSPversion, the current time and management.The user presses the exit to DeviceInformation exit, press restart to restart.
  • Page 10 TPX820 User Manual The single Save button means your parameters will be saved but it won’t be effective until you really apply them or reboot the device. Clickthisbuttontocancelthechange Clickthisbuttontorestartthedevice Page 10/62...

  • Page 11: System Information

    TPX820 User Manual 3. Configure from WEBadmin page 3.1 Status Inthispage,theusercanviewthesysteminformationandsystemlog information of the home gateway. Users landing through the web pageafterthefirstjumpisthepage. 3.1.1 System Information Inthispage,userscanviewtheproductinformationofthehome gateway,SIPaccountstatus,networkstatusandsystemstatus. Page 11/62...

  • Page 12: System Log

    TPX820 User Manual 3.1.2 System Log Inthisconfigurationpage,theusercanviewthesystemrecords; the system records contain the home gateway important configurationinformation. In this page, the user can refresh, clear, and save the relevant systeminformationbyclickingtheappropriatebutton. 3.2 Network 3.2.1 WAN (1) Static IP WhenthegatewayWANportstatusissettostatic,theuserneeds toconfigureanIPaddress,subnetmask,default gateway,DNSandthepreferredvalueofthealternativeDNS. Page 12/62...

  • Page 13: Dhcp Mode

    TPX820 User Manual parametername Description (Setthe parametersin amulti-WANport settings page)with the keyword markedWANport service Service(name) model IPprotocolmode ThereareonlyatemporaryconnectionmodeIPv4 INTERNETaccess SelectStaticIP EnableNAT WANportneedstobesetinamulti-page,see3.2.7 Optional"pass-through""Snooping""Native DHCPServiceType service" VLANmode WANportneedstobesetinamulti-page,see3.2.7 VLANID WANportneedstobesetinamulti-page,see3.2.7 IPaddresses IPInternetports Subnetmask ThesubnetmaskfortheInternetport Defaultgateway ThedefaultgatewayfortheInternetport DNSMode Thisisanoptionaloption PrimaryDNS PrimaryDNSInternetport SecondaryDNS...
  • Page 14 TPX820 User Manual Parametername description Use keywords to indicateservice modeWAN1 ~ WAN5(setparametersin themulti-WANport servicename settingspage) Connectionmode ThereareonlyatemporaryconnectionmodeIPv4 INTERNETaccess SelectDHCP Andautomaticallyselectingfromthe specifiedDNS-typetwomodes. ♦DNStypetoAuto,thehomegateway willautomaticallyobtainpreferredDNSand alternateDNSDHCPserver. ♦ DNStype is specified, the user should manually DNSMode configurethepreferredandalternativeDNSDNS. PrimaryDNS EquipmentpreferredDNS FromDNS EquipmentSecondaryDNS DHCPupdate RefreshDHCPIP...

  • Page 15: Pppoe Mode

    TPX820 User Manual (3) PPPOE mode parametername Description UsekeywordstoindicateservicemodeWAN1~ WAN5(setparametersinthemulti-WANportsettings servicename page) Connectionmode ThereareonlyatemporaryconnectionmodeIPv4 INTERNETaccess SelectPPPoE FillinthePPPoEaccountobtainedfrom username theInternetserviceprovider FillinthePPPoEpasswordobtainedfromyour password Internetserviceprovider confirmpassword EnterthePPPoEpasswordagain Page 15/62...

  • Page 16: Bridge Mode

    TPX820 User Manual Select OptionsfromtheKeepAlive,OnDemand,andManual modeinthreeways: Whenthemodeiswhen♦KeepAlive,theuserneedsto setthe'keepaliveredialperiod'valueintherange of0to3600s,thedefaultsettingis60s; Whenthemodeis♦OnDemand,usersneedtoset themondemandidletime'valueintherange of0-60minutes,thedefaultsettingis5minutes; ♦WhenthemodeisManual,whichdonotneedtofillin Runningmode twosettings. OperationMode Keep Alive,transmissiontimeinterval Keep Alive Redial Set On demand transmission time interval Period (4) Bridge Mode Page 16/62...
  • Page 17 TPX820 User Manual parametername description INTERNETaccess Optional:DHCP,staticIP,PPPoE LAN connection modes bridging DNSMode Optional:Automaticormanualconfiguration 3.2.2 LTE TPX820 supports using LTE as uplink, In LTE settings you will find: Afterapplyingandreboot,LTEconnectionstatewillshowonstatus page. Page 17/62...
  • Page 18 TPX820 User Manual 2.2.3 LAN parametername description EntertheIPaddressoftherouterLAN,LANIP addressesofallcomputersmustbewiththisIP addressinthesamesegment,andthedefault gatewayIPaddressmustdothis.(Default IPaddresses is192.168.168.1) Page 18/62...
  • Page 19 TPX820 User Manual Enterthesubnetmasktodeterminethesizeofthe Subnetmask network(thedefaultis255.255.255.0/24) DHCPserver WhethertoenableDHCPserver StartIPaddressisanIPaddresspooltoentera validIPaddresstoDHCPserversasDHCPclient,if therouterLAN IPaddress192.168.168.1,192.168.168.2IPaddresscan Addresspoolstart bethestartingormore,butlessthanthe address endIPaddress TheendoftheipaddressfortheIPaddresspoolenter Addresspoolend avalidIPaddressas address theDHCPserversendstheDHCPclient Andautomaticallyselectingfromthe specifiedDNS-typetwomodes. ♦DNStypetoAuto,thehomegatewaydevice fromaLANportDHCPserverautomatically PrimaryDNSandSecondaryDNS ♦DNStypeisspecified,theusershouldmanually DNSMode configurethepreferredandsecondaryDNS PrimaryDNS EquipmentpreferredDNS SecondaryDNS EquipmentSecondaryDNS Effectiveuseoftimethe DHCPserverIPaddressassignedtothecomputer withinthenetwork.Withinthisperiodoftime,the Customerlease serverdoesnotassignanIPaddresstoanother time computer. SelectOpenordisabled;Ifenabled,...
  • Page 20 TPX820 User Manual 3.2.4 VPN VPNtechnologytoestablishaprivatenetworkoverapublic network.TheconnectionbetweenanytwonodesoftheVPNnetwork andprivatenetworkisnotrequiredintheconventionalendphysicallink, logicallinktransmissionarchitecturebuttheserviceproviderinthe publicnetworkprovidedbythenetworkplatform,user data.VPNtechnologies,ausercanestablishaprivateconnection betweenanytwodevicesonthepublicnetworkandtransmittingdata. parametername description IfVPNisenabled.VPNmodethe user EnableVPN canselectfromtwomodesPPTPandL2TP. IPserver FillVPNserver'sIPaddress username Fillintheusernamerequiredforauthentication password Fillinthepasswordrequiredforauthentication Page 20/62...

  • Page 21: Advanced Settings

    TPX820 User Manual 2.2.5 Advanced Settings parametername description Natmaximum numberof connections 4096default Mssmode Therearetwooptionsto specifyandautomatic Mssvalue SetthevalueoftheTCP AntiDosAttack Canbeselectedtoenableordisable IPAddressConflict Selectenabledordisabled;ifenabled,will Detection promptoccursIPconflictTPX820 IPaddressconflict detectioninterval IPaddressconflictdetectiontimeinterval 3.2.6 Port Management parametername description 100MFull WANspeed Duplex,100MHalf-duplex,full-duplexin10Mand10 negotiationsettings Mhalf-duplexspeednegotiationmethodof Page 21/62...
  • Page 22 TPX820 User Manual selectionfromtheportsupportsauto-negotiation 100MFull Duplex,100MHalf-duplex,full-duplexin10Mand10 LAN1~LAN4speed Mhalf-duplexspeednegotiationmethodof negotiationsettings selectionfromtheportsupportsauto-negotiation 3.2.7 multi-WAN port settings Page Setup in the management of working mode to Advanced mode Multiple pages may be provided in a WAN WAN, a click connection mode wan new...

  • Page 23: Mac Clone

    TPX820 User Manual 3.2.8 QoS parametername description EnableQoS WhetherQoSisenabled Uplinkbandwidth Settrafficsize 3.2.9 DMZ AftersettingtheLANDMZhost,whichwillbecompletelyexposedtothe wideareanetwork,youcanachieveunlimitedtwo-waycommunication. BringinsecuritytotheDMZaddclientmaygivethelocalnetwork,sodo notusethisone. parametername description DMZsettings OpenorprohibittheDMZsettings DMZHostIPaddress UsedtoentertheDMZhostIPaddressneeded 3.2.10 MACClone MACaddressisthehardwareaddressofthenetwork device.SometimesanetworkprovidermayMACnamesofnetwork Page 23/62...
  • Page 24 TPX820 User Manual devicesboundtothenetworkaccount.Sowhentheuserusesthe newhomegatewaymaynotbecertifiedbythesupplier.Inthiscase, theusercancloneyourcomputer'sphysicaladdressofthehome gatewaytotheInternetporttouseMACcloning. MACaddressisanimportantparameterofnetworkdevices,sousers shouldmakesurethecorrectMACdevicetopreventhomegateway cannotbeused. IfyoumakeamistakeMACaddress,ausercanloghomegateway pagesforviewingandclonedintoTPX820correctaddressorto restorethefactoryequipment. Enable MAC address cloning 1.Click button to obtain the MAC address of the PC 2.Click button to save the changes; if you do not want to use MAC cloning; or click button to cancel the change.
  • Page 25 TPX820 User Manual 3.3 Wireless 3.3.1 Basic settings parametername description SelectOnorOfftoenableordisablethewireless WIFIswitch connection Selectoneofthemodesbasedonthewireless Networkmode clienttype.Thedefaultis11b/g/nmixedmode ItisthebasicidentityofthewirelessLAN.SSIDcan beanycombinationofalphanumericorspecial characters.Itwillbedisplayedinthewireless SSID networkcardsearchtothewirelessnetworklist MultiSSID1~SSID3 ItcanbeachievedwithmorethanoneAPSSID AftercheckingonthecorrespondingSSIDisno longerdisplayedinthesearchtothewireless hide networkcardwirelessnetworklist BroadcastNetwork Initialopenstate,fortherouterintothewireless Page 25/62...
  • Page 26 TPX820 User Manual Name(SSID) networkbroadcastSSID APisolationwithinthis,Enablingcustomerswithin APIsolation theendofthisAPcannotvisiteachother ThisouterbarrierAP,APotherclientsarenot MBSSIDAPisolation presentattheclientcannotaccessthisAP AsetofwirelessstationsandawirelessLANaccess point(AP)composedofabasicaccess unit(BSS),BSS,eachcomputermustbeconfigured withthesameBSSID,anAPshallwireless BSSID identification CanbeselectedinAutoSelect/ Frequency(channel) 1/2/3/4/5/6/7/8/9/10/11/12/13 1.MixedMode:Inthismode,thepreviouswireless networkcardmaybeidentifiedandconnectedto thePre-NAP,butthethroughputwillbeaffected 2.GreenField:toachievehighthroughput,butit willaffectthesafetyofbackwardcompatibility,and Operatingmode system Pleaseselectthedefaultsettings, Channelbandwidth divided20MHzand20/40MHztwokinds Thedefaultisautomatic,inordertoachieve excellentbiterrorrateperformance,youmustset Protectioninterval theappropriateprotectioninterval Pointingcontrolsignalhasavalueintherange0 MCS to32,thedefaultisautomatic Reversedirection Youcanchoosetoenableordisablethis permission(RDG)...

  • Page 27: Wireless Security

    TPX820 User Manual 3.3.2 Wireless Security Choose the SSID you want to configure from the SSIDChoice dropdownmenu. Chooseasuitableencryptionmodetoimprovethe Securitymode securityandprivacyofwirelesspackets Different encryption mode is selected will appear different web interface, you can make the appropriate configuration through these web interface. Here are some common ways to encrypt: (1)OPENWEP：WEP encryption a handshake, is encrypted by a WEP key to:...
  • Page 28 TPX820 User Manual WEP represents a Wired Equivalent Privacy, which is a basic encryption. Default 4isusedtoselectaWEPkeyinthekeysetontheclientcardis key alsorequiredandthiscorrespondsto TheWEPkey.Select the64-bitkey10must enterHexcharacters,ASCIIcharacters,or5;128-bitkeyselection WEPkey foraninputcharacter26HexorASCIIcharacters13 (2)WPA-PSK, WPA mode router will use a shared key based on: Thechoiceforwirelessdataencryptionsecurity WPAAlgorithms algorithm,optionsareTKIP,AEStwokinds  Passpassword SettingWPA-PSKsecuritypassword Privatekeyupdate...
  • Page 29 TPX820 User Manual 4)WPAPSKWPA2PSK 与 WPA2PSK 的设置方式一致. WPA-PSK / WPA2-PSK security type is actually a simplified version of WPA / WPA2, which is the shared key WPA mode, high security settings are also relatively simple for ordinary home users and small businesses based.
  • Page 30 TPX820 User Manual Access Policy: parametername description Wirelessaccesscontrolbasedonthe MACaddress of the specified Accessstrategy conditions allow or disallow access to the wireless network client Disable:indicatesthatthewirelessaccesscontrolpolicyisnot enabled;allows:indicatesthatonlytheclientsinthelistare allowedtoaccessanddeny:onlytheclientaccessinthelistis Strategy disabled Added Enteryouwanttoalloworprohibitwirelessclient'sMACaddress Examples: Disable the wireless network card MAC address 00: 1F: D0: 62: BA: FF computers to access the wireless network and other computers can access this network.

  • Page 31: Wi-Fi Protected Setup (Wps)

    TPX820 User Manual 3.3.4 Wi-Fi Protected Setup (WPS) WPS is Wi-Fi Alliancehaslaunchedanew Wi-Fi security settings (Wi-FiProtectedSetup) standard,mainlyduetothe introductionofthisstandardistoaddresslong-standingWi-Fi encryptionandauthenticationproceduretoocomplicatedHardills The By WPS button onthewirelessrouter allowsustoquicklyand easilyencryptwirelessnetworktotransmitdatatoprevent unauthorizedusersinvasion. Ontheonehandbothtoensurethe safetyofthewirelessnetwork,ontheotherhandletussetthe encryptioneasy. Page 31/62...
  • Page 32 TPX820 User Manual parametername description WPSSettings OpenandclosetheWPSfunction WPSthecurrentdisplay,includingthecurrent status,thenameoftheSSID,authentication, WPSSummary encryptiontype,andthepresentAPPINcode Generate GenerateanewPINcode Thesystemusesthedefaultsecuritypolicytoallow ResetOOB otherusersaccessusinganon-WPS 1. PIN:PINoptionsbelow,fillintherequired accessclients(wirelessLAN)PINcode,andthen clickApply.WPStransmissionstartsignal,this time,theclientalsoopenonthePINaccess,the clientcanautomaticallyconnectwirelessAP 1. PBC:PBCmode,therearetwowaystostart,you WPSmode canpressthePBCbuttononthe Page 32/62...

  • Page 33: Wireless Client

    TPX820 User Manual hardwaredirectly,orchoosefromthesoftware toPBCmode,thenclickApply.Bothapproaches canbeconnectedtoactivate theWPSPBCmode,atthistimeonlyneedto selectthePBCaccessclient,theclientcan automaticallyconnecttothewirelessAP ThecurrentWPSstatusinthreeways: WSC:Idlestate WSC:StartWSCProcessstateinformationasthe start WSC:Successstatetohaveaclientaccess WPSstatus toAP,WPSconnectionissuccessful 3.3.5 Wireless Client The wireless client can display information that has been connected to the apparatus according to the present AP: 3.3.6 Advanced Settings...
  • Page 34 TPX820 User Manual parametername description BGProtection SelectOn,Offorautomatically,todetermine Mode thestateoftheprotectedmodeBG Sendthebeaconframetimeinterval,withinthis timerange,willsendabeaconframetoobtain thesurroundingwirelessnetworkaccess Beaconinterval information Specifiestheintervalforthetransmissionofthe indicationmessage,whichisacountdownjob thattellsthenextclientwindowtoreceive Databeaconratio broadcastandmulticast Specifytheslicethresholdforthepacket.When thelengthofthepacketexceedstheslice threshold,itisautomaticallydividedintomultiple Splitboundaries packets Transferrequest RTSthresholdvaluetospecifyadatapacket,when limit thepacketexceedsthisvalue,therouterwill Page 34/62...

  • Page 35: Sip Settings

    TPX820 User Manual sendRTStothedestinationsiteconsultations DefinethecurrentSSIDforwirelessAPtransmit Transmitpower strongerpowerlevel,thegreaterthesignal Enabledbydefault,thesystemisnotcompatible withtheconventionalIEEE802.11,therateof Shortpreamble operationofthesystem1,2Mpbs Shortcollision Bydefault,theopeningcanincreasethe groove transmissionrateofwirelesscommunication MACaddressbelongslayercharacteristics,can Transmissionburst improvetheTCPtransportnetworkfairness Enhancedlocalareanetworktoensurethatthe packetcorrectlyreachesthedestination Packetaggregation mechanism SupportIEEE802.11 Bydefault,itcanbeturnedon countrycode ThereCN,US,JP,FR,TW,IE,HK,NONEoptional Wi-FiMultimedia (WMM) Wi-FiMultimedia WMMfunctionisturnedon,takeeffectuntil capability open Automaticpower Openwillreducethewirelessperformance,but savingmode canplaytheroleofenergysaving WMMParameters ClickWMMConfigurationdirectlyoutofWi-Fi multimediaparametersconfigurationpage Multicasttounicast...
  • Page 36 TPX820 User Manual otherrelevantinformation. parametername description 1.WhethertoenableNATTraversal 2.ThedevicesupportsSTUNTraversal;ifyouwant NATTraversal totraverseNAT/Firewall,chooseSTUN STUNserver Add the correctIPaddress of theSTUNservice address providers NATrefresh NATrefresh interval setting, the default interval configurationis60s STUNportservices SettingNATportnumber,default5060 Page 36/62...

  • Page 37: Basic Settings

    TPX820 User Manual 4.2 VoIP QoS QoScanimprovethequalityofserviceforvoiceapplications. 默认值为 0，可以设置值的范围是 0~63. 参数名称 描述 默认值为 0，可以设置值的范围是 0~63. SIP /RTP/Data QoS 4.3 FXS(FXS1&FXS2) 4.3.1 Basic settings Settheuser'sbasicinformationVOIPserviceprovider,suchasphone numbers,accountnumbers,passwordsandSIPagents. parametername description Page 37/62...
  • Page 38 TPX820 User Manual Accountenabled Line1isenabled WhethertoenablePeerToPeer Ifenabled,theaccountwill notissuearegistration requesttotheSIPserver;displayingthe registrationissuccessful,theline1candial outthestatuspagewill,butthenumbercannot Endtoend bedialedexternalline1 FillintheSIPserver'sdomainname Registertheserver orIPaddress Fillintheproxyserver'sdomainname Proxyserver orIPaddress Backuptheproxy FillinthedomainnameorIPaddressofthe server backupproxyserver Registertheserver port FillSIPserverportnumber,defaultis5060 Fillintheproxyserverportnumber,default Proxyserverport is5060 Backuptheproxy Fillbackupproxyserverportnumber,default serverport is5060 showname Thenameofthenumber registeraccount SIPserverprovidesthephonenumber Nameofcertification SIPserverprovidestheaccount password...

  • Page 39: Audio Settings

    TPX820 User Manual 4.3.2 Audio settings parametername description Selecttheappropriatecoding modefromG.711A,G.711U,G.722,G.729andG. Encoding1 723codingschemefivekinds Selecttheappropriatecoding modefromG.711A,G.711U,G.722,G.729andG. 2encoding 723codingschemefivekinds Selecttheappropriatecoding modefromG.711A,G.711U,G.722,G.729andG. 3encoding 723codingschemefivekinds Selecttheappropriatecoding modefromG.711A,G.711U,G.722,G.729andG. 4encoding 723codingschemefivekinds Selecttheappropriatecoding modefromG.711A,G.711U,G.722,G.729andG. Encoding5 723codingschemefivekinds SelectingacodingrateG.723,therearetwo G.723codingrate kindsof5.3kbpsand6.3kbps SettheRTPwrappingcycle,thedefault Packingcycle configurationis20ms Mutesuppression Whetheritismuted Whethertoenableechocancellation,the Echocancellation defaultisenabled Page 39/62...

  • Page 40: Supplementary Services

    TPX820 User Manual T.38enabled WhethertoopenT.38 T.38redundancy T.38CNGdetecti onisenabled 4.3.3 Supplementary Services parametername description Callwaiting Whethertoenablecallwaiting Fill in the hotline number.After the user set up, Hotlinecall hook,once home gateway will automatically dial number outthehotlinenumber WhetherMWI(messagewaitingindication)isena bled,if the user needs to use voice mail, enable...
  • Page 41 TPX820 User Manual 4.3.4 Advanced parametername description  WhethertoenabledomainnamerecognitionintheSIP Domainnameformat URI Carryportinformation WhethercarryingportinformationoftheSIPURI SignalPort LocalportnumberoftheSIPprotocol,thedefaultis5060 Secondaryselectiondialmode,selectableitems DTMFmodesetting areIn-band,RFC2833andSIPInfo. RFC2833Payload(>= 96) Theusercanusethedefaultsettings Thetimeintervalbetweentwonormalregistration Registerrefreshtime messages.Theusercanusethedefaultsettings. TransmittingtheRTPportisprovided;ifset RTPport to"0",IPphonewillselectanidleporttosendRTP Whenenabled,anunregisteredmessagewillbesent beforetheregistrationisdisabledandnounregistered CancelMessage messageswillbesentbeforeregistration;shouldbeset Enable accordingtothedifferentserverrequirements SessionRefreshTime Theintervalbetweentwosessions,theusercanusethe Page 41/62...
  • Page 42 TPX820 User Manual (sec) defaultsettings Refresher FromtheUACandUASselectRefresh PrackEnable WhetherPrackenabled Ifthisoptionisenabled,IPphonesSIP-OPTIONwillbe senttotheserver,ratherthanperiodically sendHellopackets.TransmissiontimeintervalKeep-alive SIPOPTIONSEnable Interval Detectingtimeintervalsthemasterserver,thedefault Heartbeatcycle valueis0,representsanenabled Detectingthenumberoftimestheprimaryserverfails;the Maximumdetection defaultvalueisnolongerdetected failurecount after3,i.e.,threeprimaryserverfails Keep-aliveinterval(10 -60s) Thetimeintervalforsendingemptypackets AnonymousCall Whetheranonymouscallsareenabled AnonymousCallBlock Whethertoenableanonymouscallblocking SetDNSservertype,optionalitemshavetypeAandDNS ProxyDNSType SRV UseOBProxyIn Dialog WhethertouseaproxyinaconversationOB VPN WhetherVPNenabled Whenenabled,thesubscriptionmessageissentafterthe Signupfor registrationmessage;thesubscriptionmessageisnotsent...

  • Page 43: Volume Settings

    TPX820 User Manual 5.Preferences thispage,theusercansetthehomegatewaypreferences.  5.1 Volume Settings parametername description  MICvolumeadjustmenthandleinputsizes,adjustable Enterthevolume from0to7 Outputvolume Earpiecevolumeadjustmentlever,adjustablefrom0to7 5.2 Regional parametername description  Ringtonesstandard Selectthetypeoftones,suchasChina,USA,India,etc. Dialtone Dialtone busytone Busytone Tributetone Hangupwarningtone Page 43/62...

  • Page 44: Call Transfer

    TPX820 User Manual Ringbacktone Ringtonestone Callwaitingtone Callwaitingtone MinimumJitterDelayandJitterdelayadaptivemechanism Minimumjitterdelay adoptedhomegateway MaximumJitterDelayandJitterdelayadaptive Maximumjitterdelay mechanismadoptedhomegateway Ringtime Theringingtimeofthehomegateway BellchooseSINUSOIDwaveform(sine) andTrapezoid(trapezoidal),thedefault Ringingwaveform selectionSINUSOID Ringingvoltage Ringingvoltagesetting,thedefaultvalueof70 Ringingfrequency Ringfrequencysetting,thedefaultvalueof25 FlashTimeMax Flashmaxtime,thedefaultvalueof0.9 FlashTimeMin Flashmintime,thedefaultvalueof0.1 5.3 Call Transfer Page / parameter name description All Forward Whether to enable forwarding all calls...
  • Page 45 TPX820 User Manual No Answer Timeout Set the ringing time to be determined as unanswered Keep the key code Call Hold feature code, default * 07 Conference key code Signature three-way conversation, the default * 09 Transfer key code Call forwarding feature code, default * 08...

  • Page 46: Digit Map

    TPX820 User Manual WhethertoenableICMPPing.Ifenabled,thehome gatewayatacertainlengthoftimewillpingSIPserver;if disabled,thehomegatewaysends"hello"emptypacketto ICMPPing theserver Whethertoopenthespecialcharactertranslationfunction; Specialcharacter ifenabled,whenyoupressthe#keywillbetranslated escaping into23%,comparedtoban# 5.4.1Digit Map 5.4.1 General Settings parametername description Dialplan Whethertoenabledialplan line Settheline Page 46/62...
  • Page 47 TPX820 User Manual Figurenumber Fill in the expression of the graph, the grammar of the (expression) numberofwords Select the number of match action figure,Denyrepresents the home gateway will refuse to match the number dialed,Dial Outrepresents the home gateway allows Features...
  • Page 48 TPX820 User Manual substituted> Forexample: <#: 23%> xx<#: 23%>,# 56 #is input,theoutputis23%5623% Afterenteringthe"x"willbetheendofthedialtone, enter"y"afterthedialtone. E.g.<5:><: 241 333> 810158 101for theinput,output2413338101.In additionIP601input5will have dial tone, X,y dial8afterstopping Set the delay time.IP601willallocate valid numberafter2seconds 5.4.4Call Logs Inthispageusercanviewthereplaymenu(outgoingcalls),receivedcalls andmissedcalls. Page 48/62...
  • Page 49 TPX820 User Manual (1)Rediallist (2)AnsweredCalls (3)MissedCalls Page 49/62...
  • Page 50 TPX820 User Manual 6.Security Inthispageyoucanfiltersettings,contentfiltering. 6.1 IP/MAC/PORT Filtering parametername description Enablefiltering Whethertoturnonfiltering Defaultpolicy Maychoosetogiveuporaccept Page 50/62...
  • Page 51 TPX820 User Manual MacAddress AddMacaddressfilteringrequired DestinationIPaddress DestinationIPaddress SourceIPaddress SourceIPaddress Select the name the protocol, protocol supportTCP,UDPandTCP&UDP The purposePortInterval Destinationportrange SourcePortsection Sourceportrange behavior Youcanchoosetoreceiveorgiveup Annotations Theannotationoftheaddedcontent delete Deletetheselecteditem cancel Cancelthesettings Page 51/62...

  • Page 52: Content Filtering

    TPX820 User Manual 6.2 Content Filtering Page 52/62...
  • Page 53 TPX820 User Manual basicsettings description Enablefiltering Whethertoenablecontentfiltering Thedefaultpolicyistoacceptordisablefiltering Defaultpolicy rules WebsURLfiltering description URLfilterlistthecurrent system URLfilteringrulesthatalreadyexist(blacklist) Youcanchoosetodeleteorcancelanexisting Delete/Cancel filteringrule AddaURLFilter AddURLfilteringrules Add/Cancel ClickAddorCancel WebsHostFilterSettings description CurrentWebsiteHostFilters Alreadyexistingkeywords(blacklist) Youcanchoosetodeleteorcancelanexisting Delete/Cancel keyword AddaHostFilter(Keyword) Addkeywords Delete/Cancel ClickAddorCancel 7.Application YoucansetadvancedNat,UPnP,IGMP,DMS,MLDinthispage. Page 53/62...
  • Page 54 TPX820 User Manual 8.Administration In this page you can manage your home gateway, home gateway users to set the time / date, password, web login, the system logs, andTR069relatedconfiguration.   8.1 Management In his page, users can manage the home gateway time / date, password,restorefactoryandsoon....

  • Page 55: Administrator Settings

    TPX820 User Manual parametername description Upload:ClickBrowse,selectthefilelocally,presstheUpload buttontostartuploadingthefile Configurationfile uploadand Download:ClickDownload,thenselectthepathtostart download downloadingtheconfigurationfile Dialingrulesfile ClickBrowse,selectthefilelocally,presstheUploadbuttonto upload startuploadingthefile dministrator Settings 8.1.2 A parametername description usertype Therearetwolevelsofadministrator,ordinaryusers newusername Youcanmodifytheusername,setanewusername newpassword Addanewusernameforthepassword confirmpassword Addanewpasswordagain Language ThereareChinese,English,Russian,Finnish,Spanish,canbe Page 55/62...

  • Page 56: Ntp Settings

    TPX820 User Manual selected,Webpagescorrespondingchangeswilloccur RemoteWebLog WhethertoenableremoteWebLog PortsettingsusedforloggingonviatheInternetport Webport andPCport,thedefaultvalueof80 Setthenetworkidletimeoutinminutes.Ifthenetworkidle WebIdleTimeout timeoutwithoutanyoperation,thepageautomaticallylogoff RemoteTelnet Whethertoenableremotetelnetlogin Telnetport Setstheportnumberbyloggingontotheremotetelnet NTP settings 8.1.3 parametername description NTPswitch WhetherNTPisenabled currenttime Showcurrenttime NTPsettings Setthetimezone PrimaryNTPserver IPaddressordomainnameofchoiceforNTPserver From theNTPserver IPaddressordomainnameserveralternateNTP NTPSynchronizati NTPsynchronousperiod,whenthecyclelengthmaybeany oneof1to1,440minutes,thedefaultsettingis60minutes Page 56/62...

  • Page 57: System Log Settings

    TPX820 User Manual 8.1.4 System Log Settings parametername description Systemlogenable Whethertoenablethesystemlogfunction Select the system log level, there aretwo levelsINFOandDebug,Debugwhichcanget more Systemloglevel informationthanINFO Remotesystemlog enable Whethertoenableremotesystemlogging Remotesystemlog server AddtheremoteserverIPaddress 8.1.5 Packet Trace Page 57/62...

  • Page 58: Factory Default

    TPX820 User Manual Theusercanusethemessagetrackingfunctiontointerceptsent packets.ClicktheStartbuttontostartthedatatrackingandkeep refreshingthepageuntilthemessagetrackingisdisplayedas stopped.ClicktheSavebuttontosavethecapturedpacket. 8.1.6 Factory Default Click Factory Default to reset everything back to factory status. Reboot required. 8.2 Firmware Management parametername description Upgradetype Temporarilyonlychoosetoupgradethesoftware Selectthelocalupgradefile,andthenclickUpgrade Localupgrade toupgradethesoftware Page 58/62...
  • Page 59 TPX820 User Manual 8.3 TR069 parametername description TR069Enable TR069isenabled WhethertoenableTR069(newversiondoesnot CWMP havethisparameter) ACSURL ACSURLaddress UserName ACSusername Password ACSPassword Regularnotifications Whethertoopenthecyclenotificationfunction,the areenabled defaultisopen Regularlynotifythe timeinterval Periodicnotificationinterval,s,default43200s UserName TR069serverusernametoconnecttotheDUT Password TR069serverisconnectedtotheDUTpassword SSLKey FillSSLkey Page 59/62...
  • Page 60 TPX820 User Manual 8.4 Provision TPX820supporttodelivertheconfigurationhttp/https/tftp, firmwareupgradesandotheroperations. parametername description ProvisionEnable Whethertoenableprovision. Synchronousreset DIV378rebootwhethertore-enablesync Synchronousrandom Setsthemaximumdelayrequestto delay synchronizefiles,thedefaultis40 Ifthelastfailedresynchronizationisin Synchronization the"ResyncErrorRetryDelayafter" period(sec) time,G201N4willretrythe Page 60/62...
  • Page 61 TPX820 User Manual resynchronization,thedefault is3600seconds. Synchronizationerror Settingthetimingresynchronization,the retrydelay defaultvalueis3600seconds. Ifitistimetore-sync,butG201N4isbusy, inwhichcase,G201N4willwaitforsome time,thelongestwas"forcedtore-sync delay"defaultsto14400s,aftera Forcesyncdelay(sec) time,G201N4willbeforcedtore-sync. Resynchronizationafter Afterresynchronization,iffirmwareupdate upgrade featureisenabled,thedefaultistoenable ResyncFromSIP WhetherfromtheSIPresynchronization Itisonlyusedmodespecifiedwithinthe company.WhenusingTFTPand options66Whenimplementing configuration,theusermustIP542Nenter thecorrectprofilenameofthepage.When youdisabletheoption66,thisargument Option66 doesnotwork. Profilename Profilename ProfileURL ProfileRule Notethatthespecifiedfilepathisrelative Page 61/62...

  • Page 62: Ping Test

    TPX820 User Manual totheTFTPserver'srootdirectory. 8.5 Diagnosis Thispageisbasedonnetworkconnectionstatus. 8.5.1 Ping Test UseICMPprotocoltotestnetworkconnectivity. 8.5.2 Traceroute Usetracertcanviewtheroutingnodesinthenetwork. Page 62/62...
