Living Flame

December 2016

Installation & Operating Instructions

Aura Outdoor Fire

Technical details subject to change

Please ensure you have the latest specifications

Table of Contents

Need help?

Do you have a question about the Aura and is the answer not in the manual?

Questions and answers

Summary of Contents for Living Flame Aura

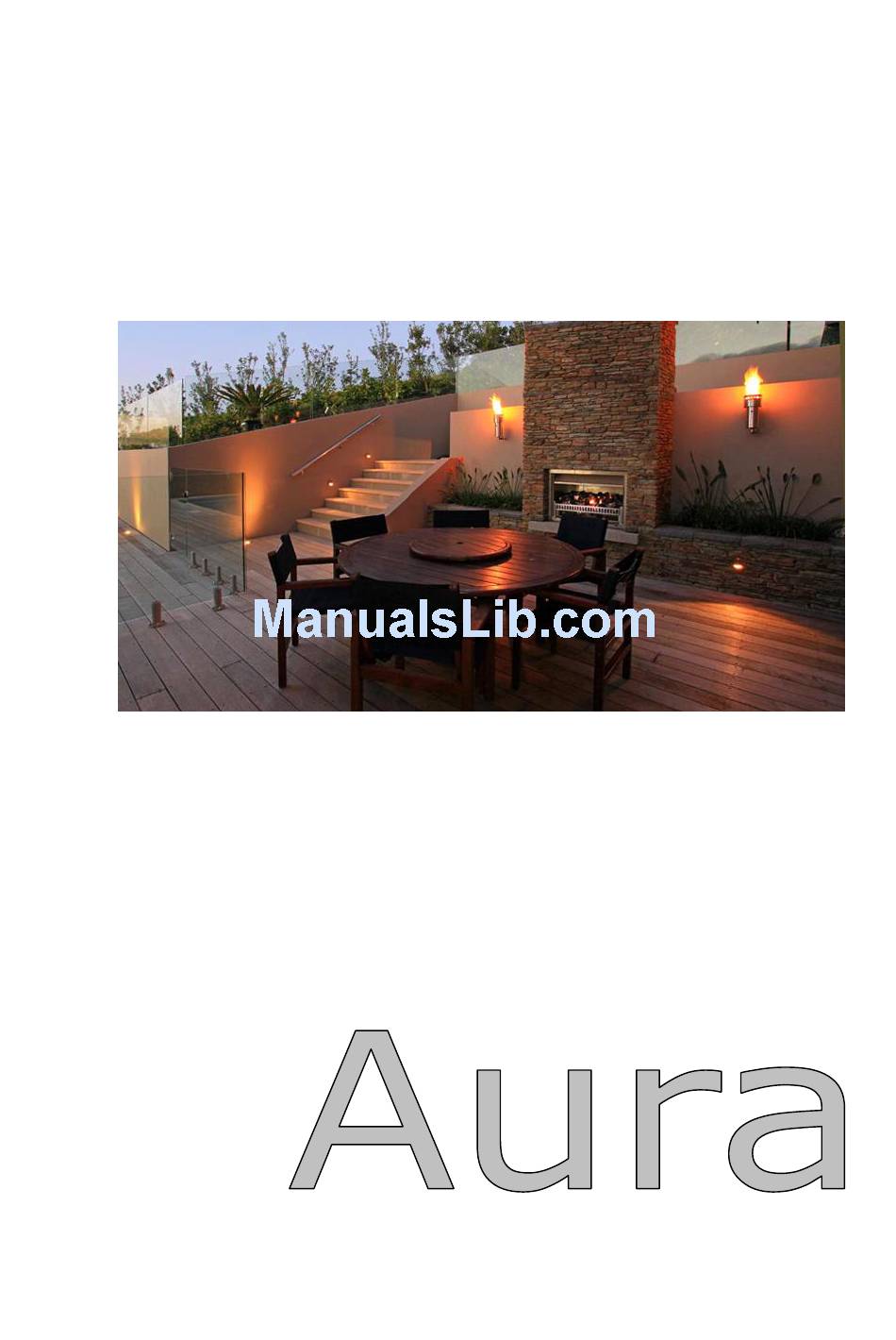

Page 1 Living Flame December 2016 Installation & Operating Instructions Aura Outdoor Fire Technical details subject to change Please ensure you have the latest specifications...
Page 3: Installation Instructions Guidelines
 Provision should be made for the drainage of excess water  A splash cover is provided with the fire Living Flame Inbuilt Gas Fireplaces must be installed in accordance with these guidelines. For safe installation and operation, carefully read the following information.
Page 5 Living Flame Aura Fireplace Installation Instructions Page 5 OWNER 1. Fireplace features and gas rating inputs 2. Aura overview 3. Dimensions – refer drawing 30. 4. Location 5. Your safety and protection 6. What to do if you smell gas 7.
Page 7 Living Flame Aura Fireplace Installation Instructions Page 7 BUILDER 23. Clearances / trim out – refer drawing 31. 24. Angle of mantle – refer drawing 6. DRAWINGS Variable rotary control, NG and LPG Flue height diagrams Flue components diagrams and offset rules...
Page 9 Living Flame Aura Fireplace Installation Instructions Page 9 Fireplace Features Radiant heat, Manual variable safety controls, Unique Living Flame diffuser burner fire, Glowing coals, logs and embers, Stainless steel construction for heat resistance and a longer lifetime, Air cavity sides,...
Page 10 Aura Fireplace Overview Standard Sizes for Auras Aura fireplaces are manufactured in sizes of 900mm, 1000mm, 1200mm and 1500mm widths. The standard height for all Aura fires is 630mm and the standard depth is 420mm. OPTIONS Trim: Brushed stainless steel trim.
Page 11: Your Safety And Protection
Living Flame Aura Fireplace Installation Instructions Page 11 Location The fireplace should be located: Out of high traffic areas; Out of strong draughts; Away from furniture; Where the flue system can be correctly installed without damaging the structure of the building, checking that the flue vent and its shielding will not interfere with any structural timberwork;...
Page 12: What To Do If You Smell Gas
Living Flame Aura Fireplace Installation Instructions Page 12 What to do if you Smell Gas Do not try to light any gas appliance; Do not use any electrical appliance or switches; Do not use the telephone in your home; Turn off the gas supply to your house at the gas meter shut off valve, or the shut off valves at your gas bottle(s) location;...
Page 13: Operating Instructions
The variable rotary control will automatically shut down should the pilot be interrupted or the pilot fail to light. If the system fails to light after several attempts, call for a registered Living Flame Maintenance Engineer or Living Flame Auckland for your nearest registered service agent.
Page 14 This is a One Year Guarantee covering the normal labour charges required to replace components of a Living Flame Fire should a part fail in its first year of service. The One Year Guarantee does not cover faults caused by incorrect installation or commissioning.
Page 15 Petroleum Gas or Propane Gas. The type of gas to be used should be specified at the time of ordering the unit. Living Flame Fireplaces must only be operated with a Living Flame Gas Insert Fire that has been commissioned to Living Flame’s Commissioning Instructions.
Page 16: Gas Connection
Living Flame Aura Fireplace Installation Instructions Page 16 Ventilation Adequate ventilation for the fireplace cavity shall be provided in accordance with AS/NZS:5601.1:2013. This fireplace has been designed to draw air into the fireplace to be used for combustion. The blocking up or modifying of any of the airways of the fireplace in any way, could create a hazardous situation of either overheating or poor ventilation.
Page 17: Gas Supply
Living Flame Aura Fireplace Installation Instructions Page 17 Gas Supply Inlet Standing Pressure Set Up Pressure NATURAL GAS 2.0 kPa HIGH 1.4 kPa LOW 0.7 kPa U/LPG – PROPANE 2.75 kPa HIGH 2.5 kPa LOW 1.50 kPa Maximum Inlet Pressure 4.0 kPa...
Page 18: Customer Requirements
Stand the fireplace in its proposed position, taking care to observe the minimum clearances shown. Flues must be sealed to prevent damage from water or products of combustion leakage. Flues should be inspected and tested annually. Note: If you are unsure, please refer to Living Flame Rules For Flues. © Copyright Living Flame 2016...
Page 19 Turn on gas supply and bleed air from the lines. Commission fire, smoke test, set flame height and combustion test. Some variations to these guidelines may be needed with different sized and shaped fireplaces. If you have any doubts, please do not hesitate to contact Living Flame Fires for advice on installation. ©...
Page 20 Adequate ventilation must be provided for the operation of the fire. Some variations to these guidelines may be needed with different sized and shaped fireplaces. If you have any doubts, please do not hesitate to contact Living Flame Fires for advice on installation.
Page 21: Flue And Chimney Requirements
Living Flame Aura Fireplace Installation Instructions Page 21 Flue and Chimney Requirements DESIGN  A flue or chimney is required for these inbuilt Fireplaces.  The flue size is determined by the size of the fireplace and is in direct proportion of the fireplace opening: 10% –...
Page 22 When the fire is set correctly the flames should be approximately 75mm – 100mm tall on high and 25mm – 35mm tall on low.  If the flames are incorrectly set, call your nearest Living Flame service engineer. © Copyright Living Flame 2016...
Page 23: Routine Service
Living Flame Aura Fireplace Installation Instructions Page 23 ROUTINE SERVICE Check meter or cylinders Pressure drop test gas lines Inspect inbuilt fireplace Dismantle fireplace and inspect components Clean all components and body Check operation of controls and safety devices Check flue system is clear and clean...
Page 30 Living Flame Aura Fireplace Installation Instructions Page 30 Flue Offset Drawing Number 4c Maximum offset dependant upon vertical height ratio of 1.5 vertical to 1 horizontal and dependant upon angle Minimum angle must be 10 from the horizontal Minimum recommended distance before bends is 1200 ©...
Page 33 Living Flame Aura Fireplace Installation Instructions Page 33 Outside 900 to 1500mm Aura Fireplace 900 & 1200 flue centre 1500 flues = 500mm centre to centre model size + 100mm flange to flange SIZE 900 mm 1200 mm 1225 2 x200...
