PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount
Rev 1.2

Cabinet Dimensions

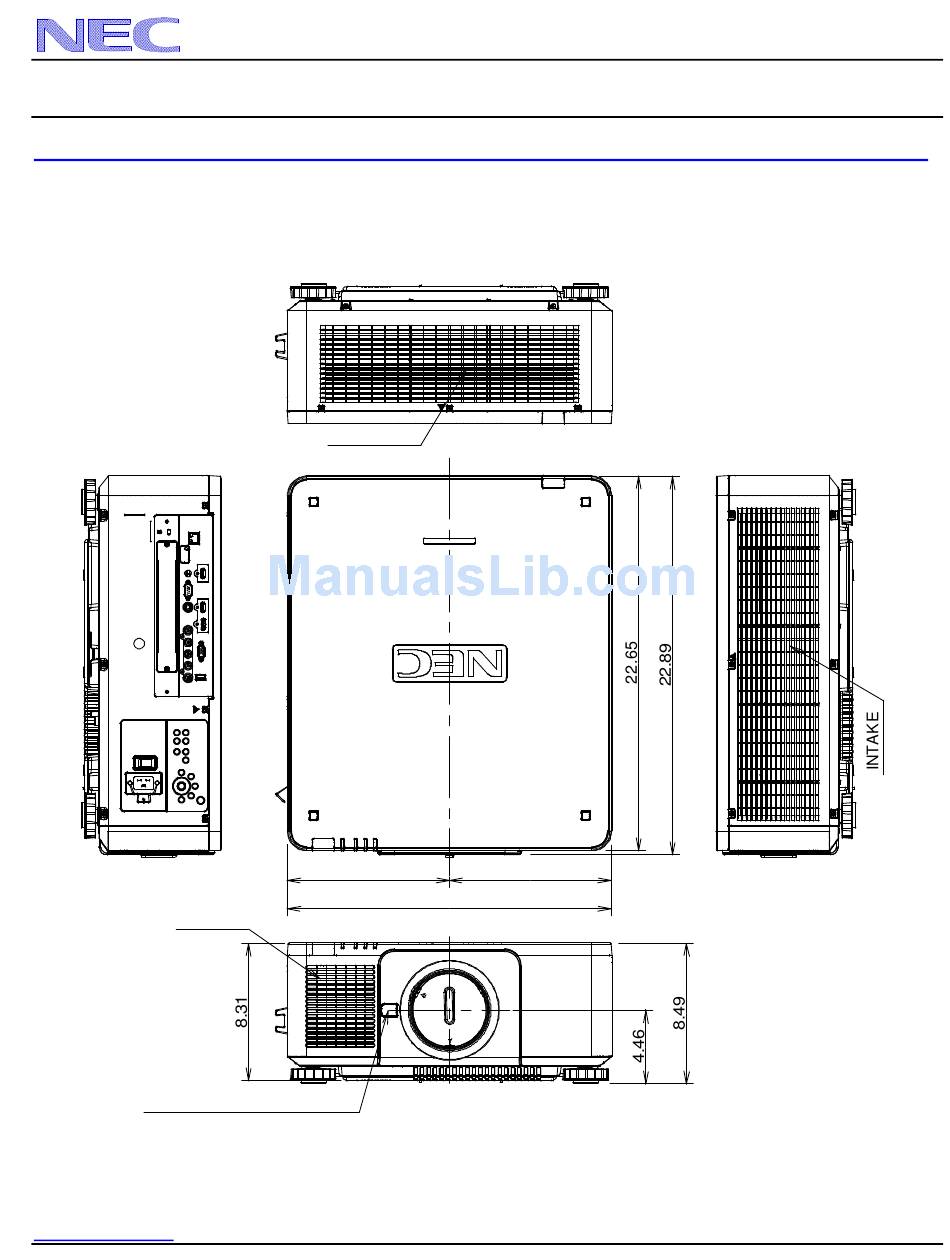

The following diagrams show the cabinet dimensions for the PX803UL and PX1004UL.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown without a lens
EXHAUST
9.82
9.82
19.63
INTAKE
LENS RELEASE BUTTON
www.necdisplay.com
PX803UL/PX1004UL
Page 6 of 12
