Summit Racing Equipment PC40 Owner's Manual

Inverter plasma cutter 230v 40a
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

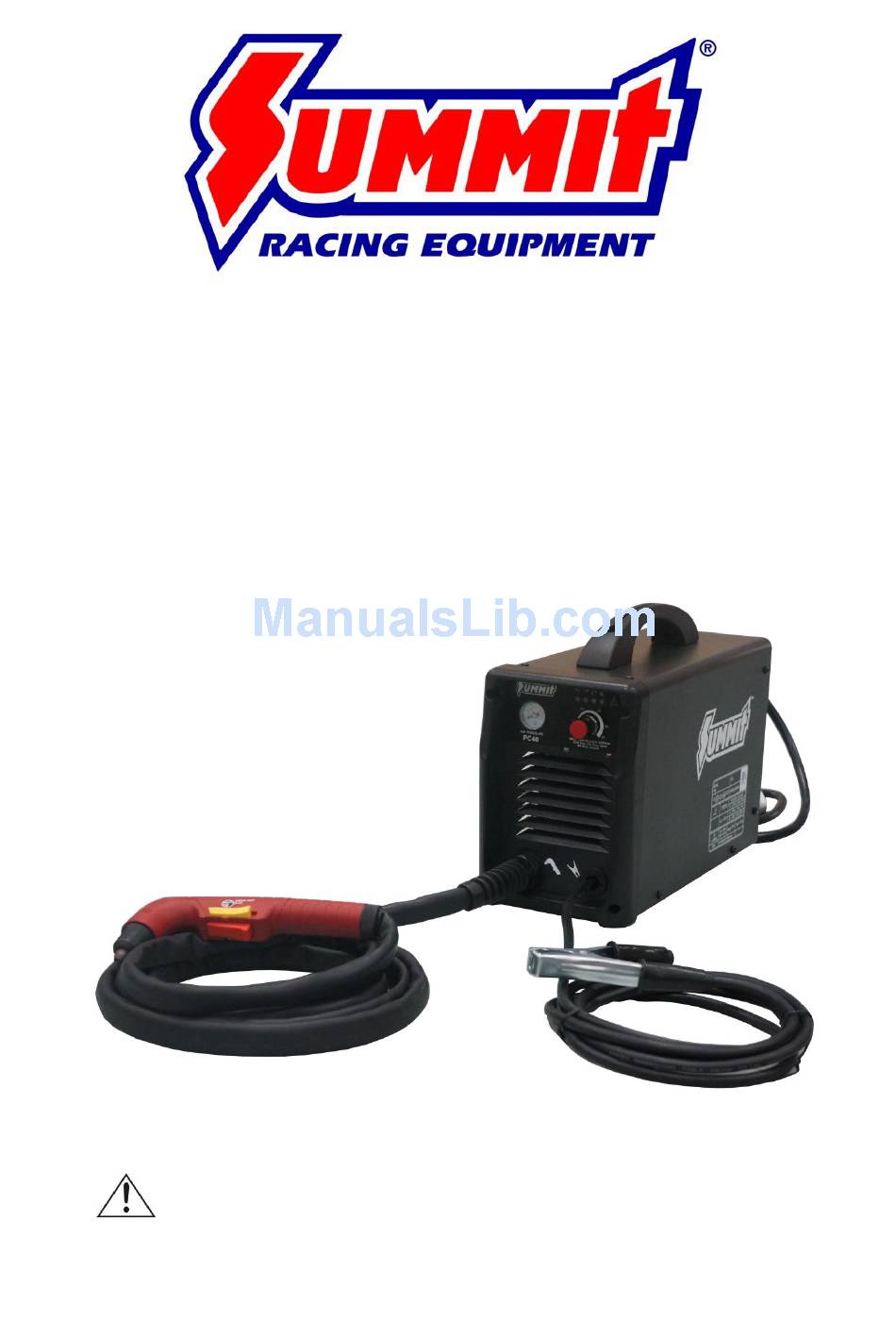

PC40
INVERTER PLASMA CUTTER 230V 40A
S U M - 9 0 0 9 9 0
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
05/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Summit Racing Equipment PC40

  • Page 1 PC40 INVERTER PLASMA CUTTER 230V 40A S U M - 9 0 0 9 9 0 OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
  • Page 2 Limited to the warranty periods below, Summit Racing Equipment will repair or replace the item under warranty that fails due to defects in material and workmanship. Summit Racing Equipment must be notified within 30 days of the failure, so as to provide instructions on how to proceed with the repair of your welder and warranty claim processing.

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this Flux Core 125 until they have read this manual and have developed a thorough understanding of how the Flux Core 125 works.
  • Page 4 -Do not allow any body part to come in contact with the welding wire if you are in contact with the material being welded, ground or electrode from another welder. -Do not weld if you are in an awkward position. Always have a secure stance while welding to prevent accidents.
  • Page 5 your eyes and skin. Do not look at the welding arc without proper eye protection. -Always use a helmet that covers your full face from the neck to top of head and to the back of each ear. -Use a lens that meets ANSI standards and safety glasses. For welders under 160 Amps output, use a shade 10 lens;...

  • Page 6: Technical Specifications

    Electromagnetic Field -Electromagnetic fields can interfere with various electrical and electronic devices such as pacemakers. -Consult your doctor before using any electric arc welder or cutting device -Keep people with pacemakers away from your welding area when welding. -Do not wrap cable around your body while welding. -Wrap MIG gun and ground cable together whenever possible.

  • Page 7: Know Your Welder

    KNOW YOUR WELDER Description The Summit Racing PC40 is an inverter powered 230 V input, 15-40 amp adjustable output plasma cutter that cuts mild steel up to 3/8” making it a versatile tool for any automotive shop. It cuts all electrically conductive materials.
  • Page 8 LOW GAS INDICATOR LIGHT This light will be on when the gas pressure or flow is low. CURRENT ADJUSTMENT Variable adjust the output cutting current. The higher output matches the thicker metal. The maximum cutting thickness is up to 3/8″ for this unit. Please note that the maximum cutting thickness varies depending on the material type you are cutting.

  • Page 9: Installation

    INSTALLATION 1. POWER REQUIREMENT AC single phase 230V 60HZ fused with a 50 amp time delayed fuse or circuit breaker is required. DO NOT OPERATE THIS UNIT if the ACTUAL power source voltage is less than 210 volts AC or greater than 240 volts AC.

  • Page 10: Operation

    OPERATION High voltage danger from power source! Consult a qualified electrician for proper installation of receptacle at the power source. This cutter must be grounded while in use to protect the operator from electrical shock. If you are not sure if your outlet is properly grounded, have it checked by a qualified electrician.
  • Page 11 2.2. Metal Mesh Cutting -Fix the work piece and connect the earth cable with the work piece. -Put the cutting nozzle onto the work piece, lift torch up slightly from the work piece and turn on the switch to cut. 2.3.

  • Page 12: Troubleshooting

    TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Unit Does Not Power Up Unit Is Not Plugged In Plug In Unit Input Power Circuit Breaker Not On Reset Input Power Circuit Breaker Main Power Switch Is Defective Replace Main Power Switch No Pilot Arc Low Air Supply Pressure Check Air Supply Adjust Gas Pressure Adjuster So The...
  • Page 13 MAIN CIRCUIT CHART Page of 16...

  • Page 14: Diagram & Parts List

    DIAGRAM & PARTS LIST Page of 16...
  • Page 15 PLASMA TORCH NOZZLE SUM__________ 105400041 PLASMA TORCH ELECTRODE SUM ____________ 105400072 105200024 FEET 105200065 INDUCTOR 105200066 BASE INSULATOR 105400067 REGULATOR SUPPORT ARM 185200024 OPERATOR'S MANUAL PC40 For replacement parts and technical questions contact the technical help line at 1-330-630-3030 Page of 16...
  • Page 16 Summit Racing Equipment 1200 Southeast Ave. Tallmadge, OH 44278 www.summitracing.com Made in China Page of 16...
