Summary of Contents for isweek Y511-A

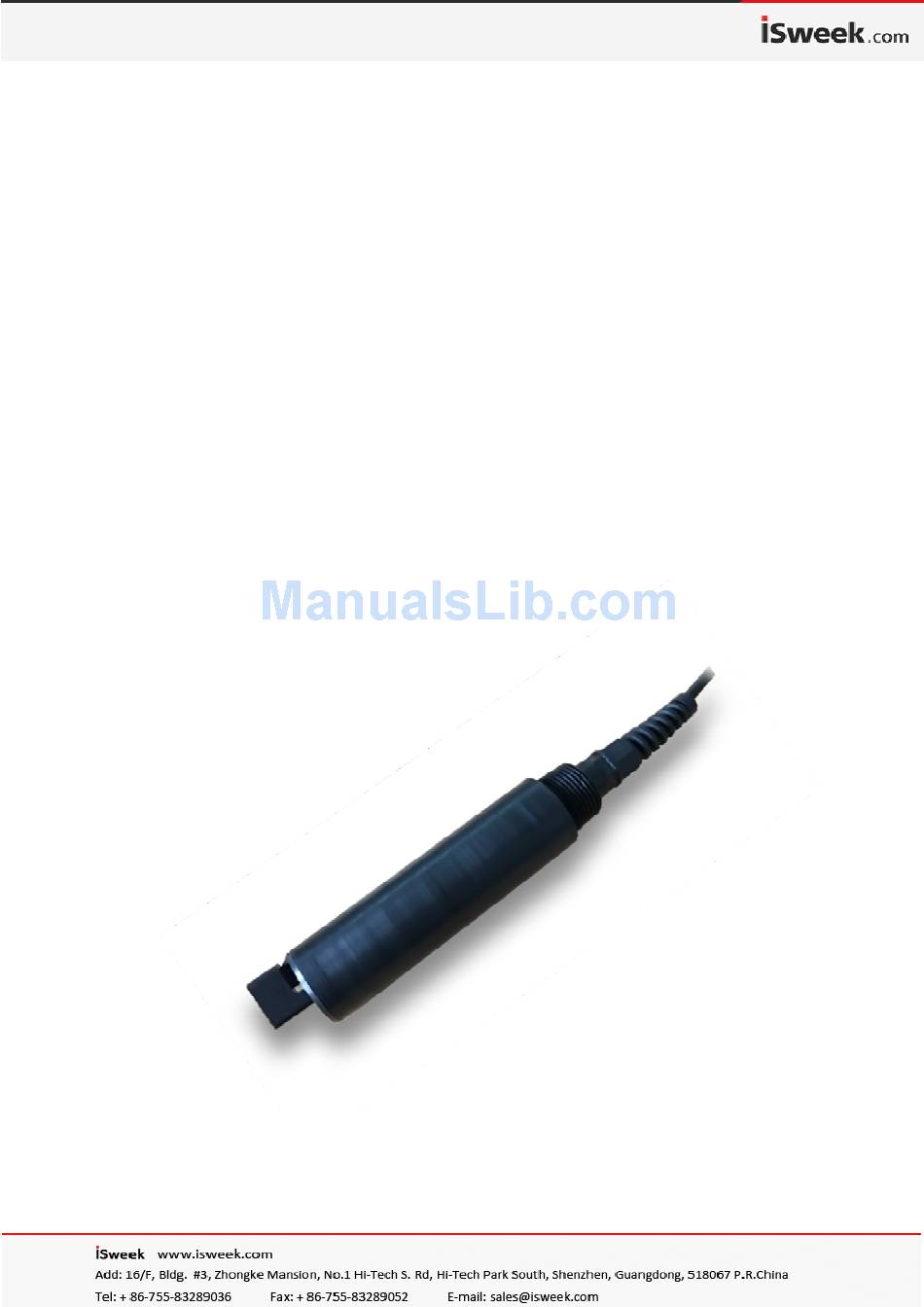

- Page 1 Online Self-cleaning Turbidity Sensor User Manual（ Version V1.1 ）...
- Page 2 CATALOGUE Summary 1111111111111 Sensor structure chart 1111111111112 Technical parameters 1111111111113 Maintenance 1111111111114 Cable definition 1111111111115 Quality assurance 1111111111116...
- Page 3 Y511-A Turbidity Sensor 0.1~1000 NTU Accuracy＜5% or 0.3 NTU 0~50 ℃；IP68 rating，10m underwater 90°Angle of scattered light principle Temperature sensor built-in RS-485; MODBUS protocol compatible Convenient, fast, stable, easy to maintain With automatic cleaning wiper, effectively eliminate the bubbles, reducing contamination without interference by the light interference from the outside world Ordering：...
- Page 4 Y511-A Sensor Structure chart Y511-A Sensor structure chart...
- Page 5 Y511-A Technical Parameters Range 0.1~1000 NTU Housing IP Rating IP68 Deepest Depth 10m underwater Accuracy ＜5% or 0.3NTU Temperature Range 0 ~ 50℃ Interface Support RS-485， MODBUS protocols Assembly Immersion or circulation installation Power Requirements DC 5~12V，current<50mA Sensor OD 33 mm...
-
Page 6: Maintenance Tasks
Y511-A Maintenance Maintenance schedule and methods 1、Maintenance Schedule Unlike traditional electrical chemical sensors, the turbidity sensors with wiper require low maintenance. There are no need for frequent solution filling and calibrations Maintenance tasks Maintenance frequency Calibration（ （ （ （ if required of agency） ） ） ）... - Page 7 Y511-A Cable Definition 1、 Turbidity Sensor Dimensions 33x156 mm(Φ xL) 2、Power Supply Requirements Power Supply DC 5~12V +/-5%, Current <50mA 3、Sensor Cable 4 wire AWG-24 OR AWG-26 shielding wire. OD=5mm 1, Red—Power (VCC) 2, White—485 Date_B ( 485_B) 3, Green ---485 Date_A (485_A)
-
Page 8: Quality Assurance
Quality Assurance Yosemite Technologies online self-cleaning turbidity sensor and controller are warranted for one (1) year from date of purchase against any material and manufacturing workmanship. If there are defects found during the warranty period, Yosemite technologies promises to repair or replace the defective products, or return the payment of product except the charge for the first time for transport and related formalities. - Page 9 Quality Assurance The quality assurance includes all content of products provided by Yosemite technologies It constitutes the final, complete and exclusive statement about the quality guarantee, no person or agent is authorized in the name of Yosemite technologies to develop other warranty. As described above, the remedial measures such as repair, replacement or return the payment for product is not in violation of the warranty, and it aim at our own products only.
