August, 1999

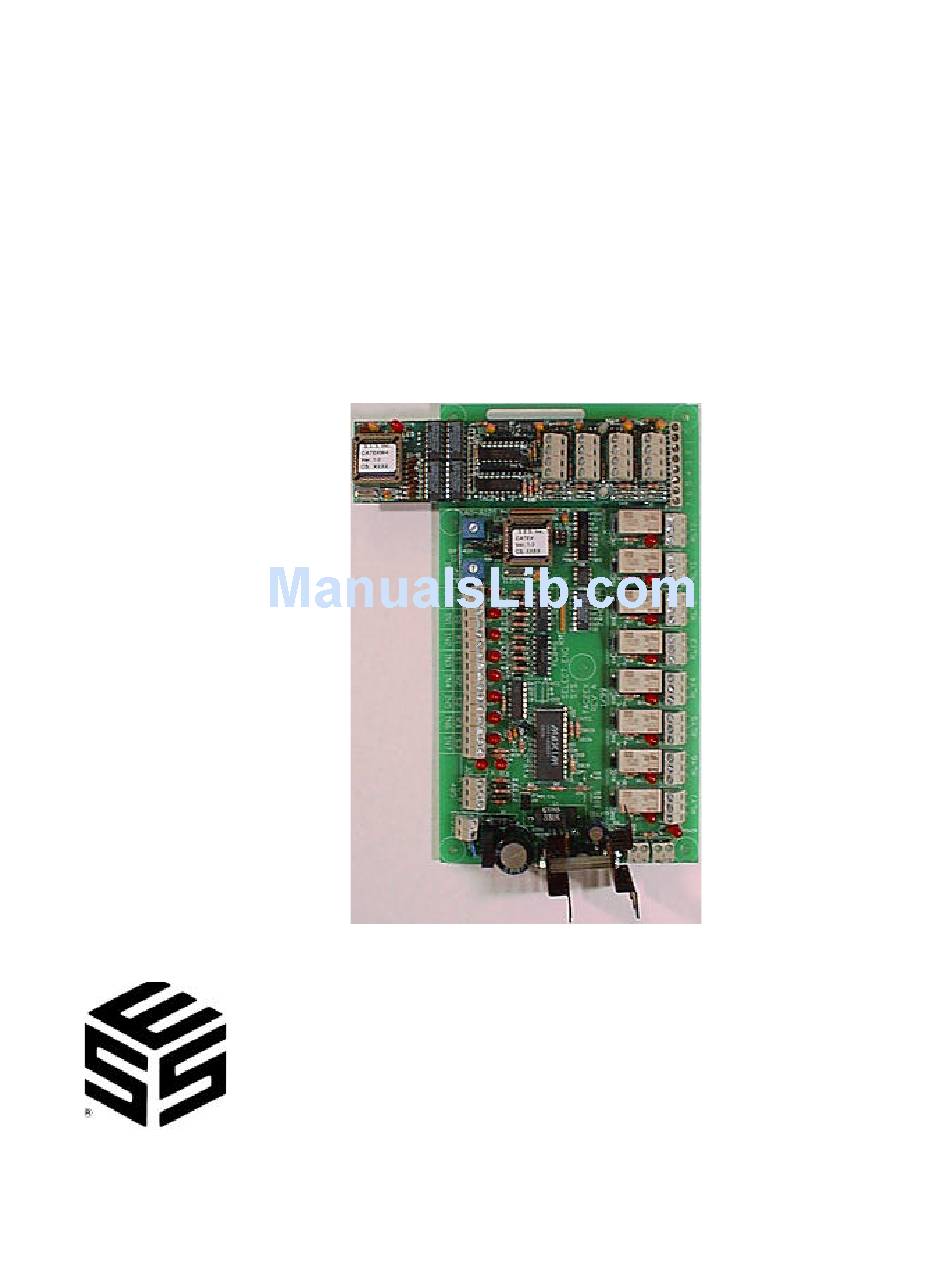

Cat Series 4 Entrance Expansion Module
Installation / Setup
Manual
CATDR4
Select
Engineered
Systems, Inc.
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CATDR4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Select Engineered Systems CATDR4

  • Page 1 August, 1999 Cat Series 4 Entrance Expansion Module Installation / Setup Manual CATDR4 Select Engineered Systems, Inc. Page 1...
  • Page 2 CAT Series Auxiliary 4 Reader Module Y2K Compliance Statement Cat Series Control Access Equipment is designed to be used prior to, during, and after the calendar year 2000 A.D., and Cat Series Control Access Equipment will operate during each such time period without error relating to date data, specifically including any error relating to, or the product of, date data which represents or references different cen- turies or more than one century.
  • Page 3 August, 1999 Table of Contents Cat Series Auxiliary 4 Reader Module Introduction to Cat Series 4 Entrance Expansion Module Description Reader Module Addressing Reader Activate Timing REX input and alarm terminals Output Terminals Wiring Connections Individual Relay Times Index Page 3...
  • Page 4 CAT Series Auxiliary 4 Reader Module The Select Engineered Systems Cat Series 4 Entrance Expansion Module The Cat Series 4 Entrance Expansion Module operates as a remote reader controller,with requests sent through a RS485 three wire loop from a CAT SERIES Unit ONLY. Wiegand in-...
  • Page 5 August, 1999 Standard Features for Cat Series 4 Entrance Expansion Module. The Cat Series 4 Entrance Expansion Module contains an addressing selector 16 position rotary switch (SW1). This sets the address of the first reader code on the board and the other readers follow in consecutive order ( Example: Switch Position 1 ( shown) sets the activation codes as RLY0 = Reader 5 control,...
  • Page 6 CAT Series Auxiliary 4 Reader Module Typical Wiring for Wiegand Readers Jumpers are shipped in the 12 volt position Warning: If the jumper is moved to the 12V position and Reader Power Selector Jumpers connected to a 5 Volt Reader, the reader will be damaged, and reader warrantys are void.
  • Page 7 August, 1999 Logical Output Block Standard Features for Cat Series 4 Entrance Expansion Module J16 Outputs The Cat Series 4 Entrance Expansion Module contains a terminal block (J16) that provides an logical low output for each Output Entr. relay output. They can be used to activate display LED’s on the readers to indicate acceptance.
  • Page 8 CAT Series Auxiliary 4 Reader Module Standard Features for Cat Series 4 Entrance Expansion Module. Shield Wiring and interconnections Power: 18 vac at 40 va. Plug in transformer supplied with unit. Connect at J1 with 18 GA wire to a maximum of 100 ft and 14 - 16 GA to 200 ft.
  • Page 10 CAT Series Auxiliary 4 Reader Module INDEX Board Address Cabinet Size, Type Code Addressing Description Fail Safe Configuration Individual Relay Times Index Jumper, Relay Power Connections Programming Individual Relay Times Relay Code Addressing Relay Code Setting Relay Timing Relay Rating RS485 Connections RS485 Wire type Size...
  • Page 11 August, 1999 Timing Selector Switch Switch Relay activate Time Position 2 sec 10 sec 20 sec 30 sec 40 sec 50 sec 60 sec 70 sec 80 sec 90 sec 100 sec 110 sec 120 sec 130 sec 140 sec 150 sec Relay Activa- tion...
  • Page 12 August, 1999 Cat Series 4 Entrance Expansion Module Addressing Selector Switches Terminal Locations and Wiring Connections Switch First Switch Last Position Reader Position Reader Number Number Logical low outputs for each reader . May be used with None None card readers to provide ad- ditional acceptance info.
  • Page 13 CAT Series Auxiliary 4 Reader Module “BETTER TECHNOLOGY MAKES BETTER SYSTEMS” 8/99 Select Engineered Systems, Inc. 7991 West 26th Ave. Hialeah, FL 33016 Toll Free: 1-800-342-5737 In FL: 305-823-5410 Fax: 305-823-5215 www.selectses.com Page 12...
