myStart EBDSPIR-PRM-LV Product Manual

Product Guide
EBDSPIR-PRM-LV
Ceiling PIR presence/absence detector 12-24V AC/DC

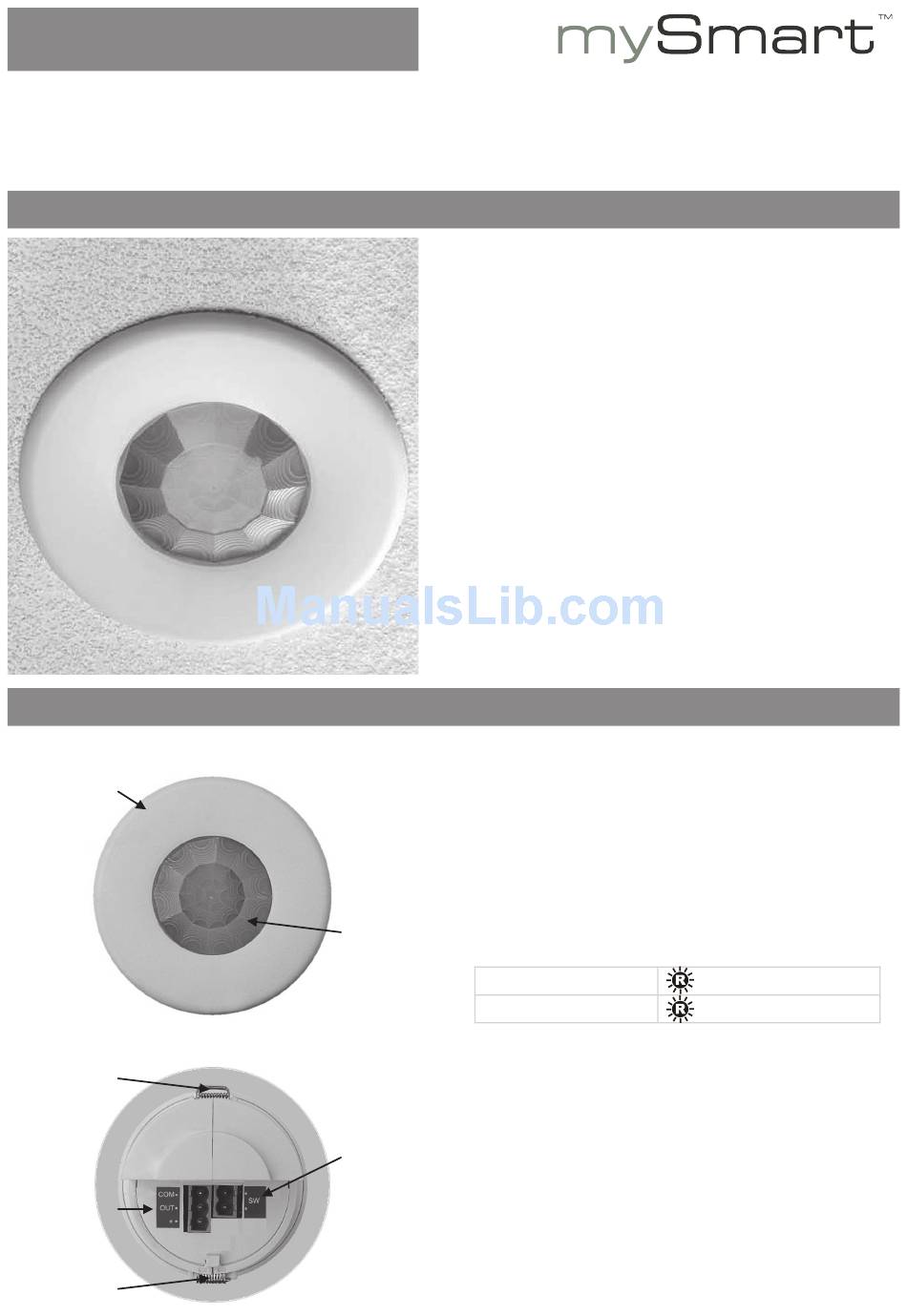

Front features
Mounting Bezel
Back features
Retaining Spring
Power Input &
Output
Connector
Retaining Spring
The EBDSPIR-PRM-LV PIR (passive infrared) presence
detector provides automatic control of low voltage loads
including lighting and BMS systems with optional manual
control.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight.
All functionality is fully programmable using an IR handset.
Three variants are available.
EBDSPIR-PRM-LV
PIR Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
The LED flashes Red to indicate the following:
PIR Sensor
IR Receiver
Light Level Sensor
Status LEDs
Power Input & Output Connector
Used to connect power to the unit and to connect a
switched load.
Switch Input Connector
Two input terminals can be used to manually override the
lights on or off.
Switch Input
Connector
Overview
Ceiling PIR presence/absence
detector 12-24V AC/DC
Features
